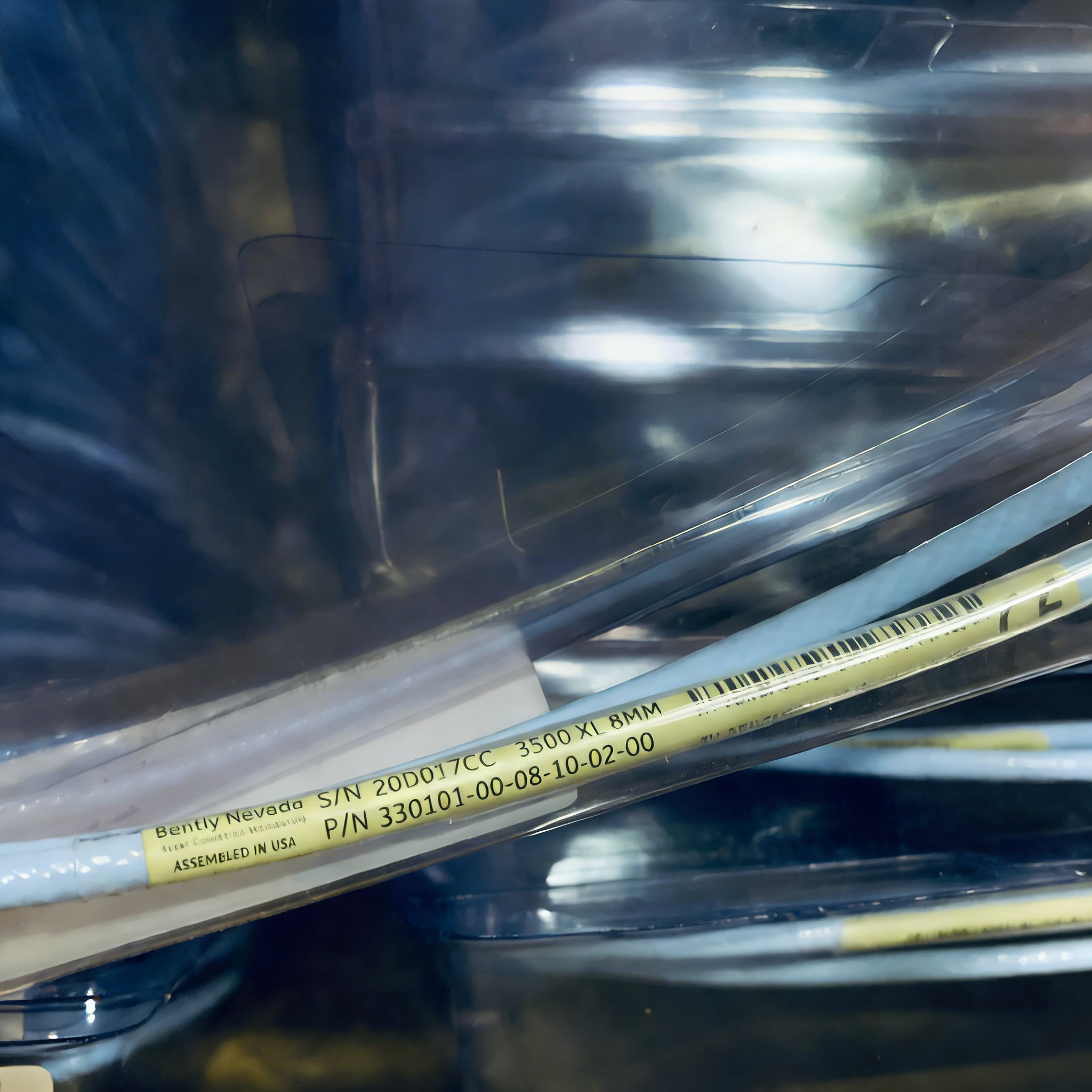

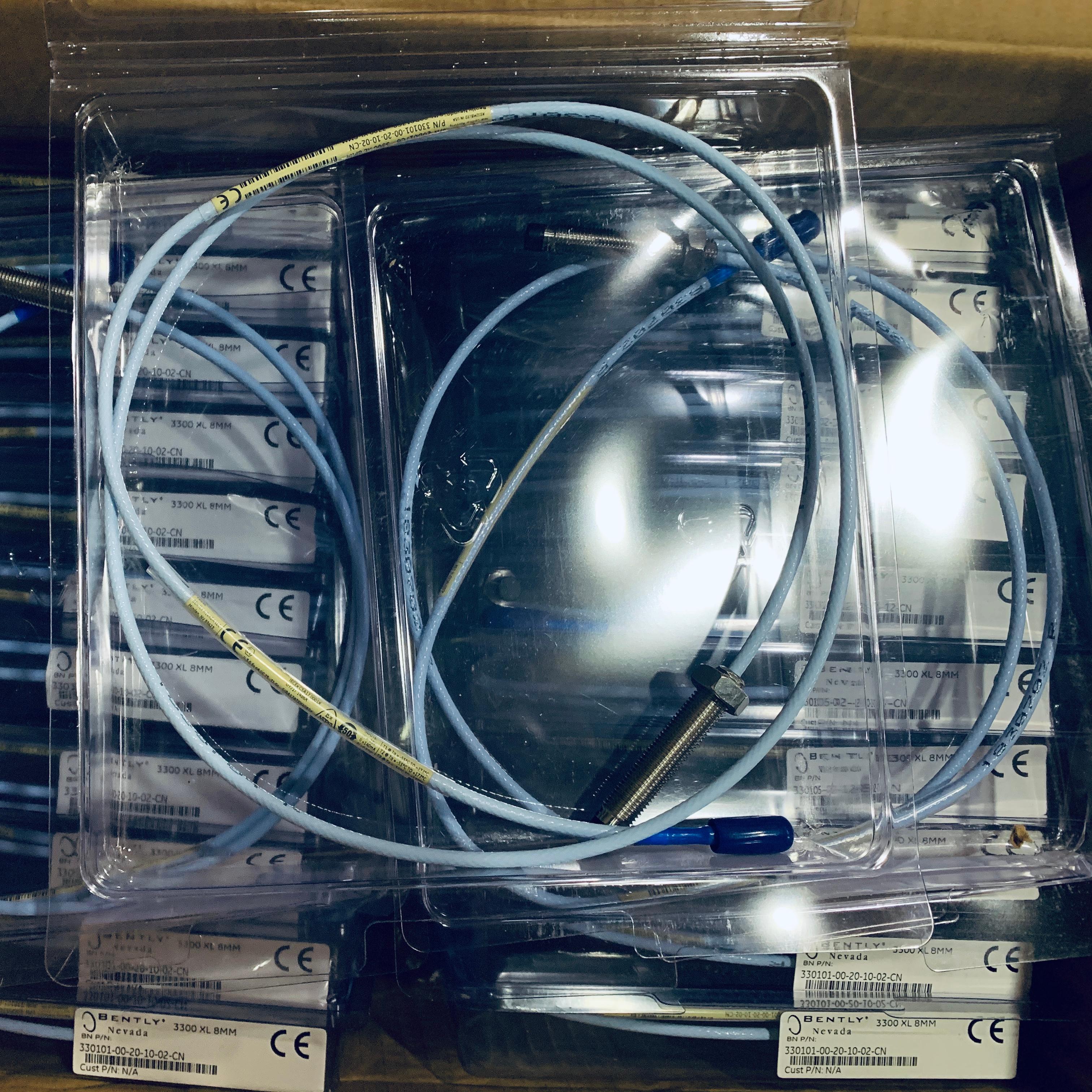

330101-00-08-10-02-00 is a Bently Nevada 3300 XL series standard eddy current probe with a total length of 1.0 meter (3.3 feet). This model features 3/8-24 UNF threads, 0.0 inch unthreaded length, 0.8 inch overall case length, a standard ClickLoc coaxial connector, and standard FEP-insulated cable. It does not include armor or hazardous area approvals. It is a fundamental component of the 3300 XL 8 mm proximity transducer system, suitable for most conventional industrial vibration and position monitoring applications.
This probe is typically used with a 3300 XL extension cable (e.g., 330130-040-00-00) and a 3300 XL Proximitor Sensor (e.g., 330180-50-00) to form a complete 5‑meter system (1.0 m probe + 4.0 m extension cable = 5 m system). Its 1.0 m total length is ideal for installations where the Proximitor Sensor is mounted close to the probe (e.g., in the same junction box or on the equipment casing).
Model Breakdown: 330101-00-08-10-02-00 Configuration Details
Following Bently Nevada’s part number coding system (refer to datasheet Pages 13-14), the fields in this model number represent the following:
Field | Code | Parameter | Description |
Base Model | 330101
| 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor | Compatible with 3300 XL 8 mm and 3300 5 mm systems |
Unthreaded Length (A) | 00
| 0.0 inches | Distance from probe tip to start of thread; shortest configuration |
Overall Case Length (B) | 08
| 0.8 inches | Total threaded length; standard short case |
Total Length Option (C) | 10
| 1.0 meter (3.3 ft) | Total probe cable length (including connector) |
Connector & Cable Option (D) | 02
| Miniature coaxial ClickLoc connector, standard cable | Standard FEP-insulated cable, gold-plated ClickLoc connector |
Agency Approval (E) | 00
| Not required | Standard industrial version for non-hazardous areas |
Key Configuration Note: This model is one of the most basic configurations in the 330101 series. The 0.0‑inch unthreaded length means the thread starts immediately after the probe tip, suitable for mounting holes that do not require an extended unthreaded section. The 0.8‑inch case length is the shortest threaded length, ideal for installations with limited space. The 1.0 m total length is used to form a 5‑meter system (with a 4.0 m extension cable).
Application Scenarios & Selection Guide
330101-00-08-10-02-00 is suitable for the following typical applications:
Standard 5‑Meter System Configuration: Paired with a 4.0 m extension cable (e.g., 330130-040-00-00) and a 5 m Proximitor Sensor (e.g., 330180-50-00) to form a complete 5‑meter monitoring system, ideal when the Proximitor Sensor is mounted near the equipment (e.g., in the same junction box).
Radial Vibration Monitoring: Suitable for shaft vibration measurement on fluid‑film bearing machines such as compressors, steam turbines, generators, and pumps.
Axial Position (Thrust) Monitoring: Can be used to measure rotor axial position and monitor thrust bearing wear.
Keyphasor / Speed Measurement: Can serve as a Keyphasor probe to provide speed reference signals.
Standard Industrial Environments: No armor, no hazardous area approvals – suitable for non‑hazardous, dry, clean installations.
Selection Notes:
Total Length Matching: Probe length + extension cable length = Proximitor Sensor total system length (5 m or 9 m). This 1.0 m probe must be used with a 4.0 m extension cable to form a 5‑meter system.
Thread Installation: 3/8-24 UNF threads. The mounting hole must match this thread. Thread engagement length should not exceed the datasheet maximum (0.563 inches) to avoid installation difficulty or probe damage.
Unthreaded Length: This model has 0.0‑inch unthreaded length, meaning the thread starts directly at the probe tip. If your mounting hole has an internal shoulder or you need the probe tip to extend a certain distance, select a model with a longer unthreaded length (e.g., code “12” = 1.2 inches).
Ambient Temperature: This probe is rated up to +177°C. If the application exceeds this temperature, select an ETR high‑temperature probe (330191/330192 series).
Hazardous Area Requirements: If the installation area has explosive gas atmospheres, select the version with hazardous area approvals (e.g., 330101-00-08-10-02-05).
Armor Protection: If the cable may be subject to mechanical damage (crushing, abrasion), select an armored version (e.g., 330102 base model or the same specification with armor).
Mechanical Dimensions & Installation
Probe Tip Diameter: 8.0 mm (0.31 in)
Thread Specification: 3/8-24 UNF-2A; recommended lock nut torque: 11.2 N·m (100 in·lbf)
Overall Case Length: 0.8 in (20.3 mm)
Unthreaded Length: 0.0 in
Cable Outer Diameter: 3.68 mm (0.145 in) maximum
Connector Outer Diameter: 7.24 mm (0.285 in) maximum
Minimum Bend Radius: 25.4 mm (1.0 in)
Installation Tips: Before installation, inspect the mounting hole threads for cleanliness and proper depth. Use the recommended Bently Nevada lock nut (part number 04301007) and tighten to the specified torque. Set the probe gap to the recommended -9 Vdc (approx. 1.27 mm), which can be monitored via the Proximitor Sensor output voltage.
Related Products & Compatible Configurations
This probe is typically used with the following products:
Companion Product | Recommended Model | Description |
Extension Cable | 330130-040-00-00 | 4.0 m standard cable, forms 5 m system |
Proximitor Sensor | 330180-50-00 | 5 m system panel‑mount Proximitor, no approvals |
Lock Nut | 04301007 | 3/8-24 lock nut with safety wire holes |
Mounting Bracket | 137492-01 | Aluminum threaded mounting bracket, 3/8-24 thread |
For other configurations, refer to the following probe options:
Model | Thread | Unthreaded Length | Case Length | Total Length | Armor | Approvals | Application |
330101-00-08-10-02-00 | 3/8-24 | 0.0" | 0.8" | 1.0 m | No | None | Current model, basic configuration |
330101-00-08-10-02-05 | 3/8-24 | 0.0" | 0.8" | 1.0 m | No | ATEX/IECEx | Basic hazardous area configuration |
330101-00-12-10-02-00 | 3/8-24 | 1.2" | 0.8" | 1.0 m | No | None | Longer unthreaded length required |
330101-00-08-05-02-00 | 3/8-24 | 0.0" | 0.8" | 0.5 m | No | None | Very short total length, pairs with 8.5 m cable for 9 m system |
330102-00-08-10-02-00 | 3/8-24 | 0.0" | 0.8" | 1.0 m | Yes | None | Armored for mechanical protection |
Matching Extension Cable: This probe must be used with a 4.0 m extension cable (e.g., 330130-040-00-00) to form a complete 5‑meter system.
Inquiry & Technical Support
330101-00-08-10-02-00 is one of the most commonly stocked Bently Nevada models and is typically available from inventory. For pricing, lead time, or technical drawings, please contact us:
Online Inquiry: Click the “Request a Quote” button and provide the model number for a prompt response.
Technical Support: If you need assistance verifying whether this configuration meets your installation dimensions and system length requirements, please provide your extension cable and Proximitor Sensor model numbers, and we will help confirm total length matching.
