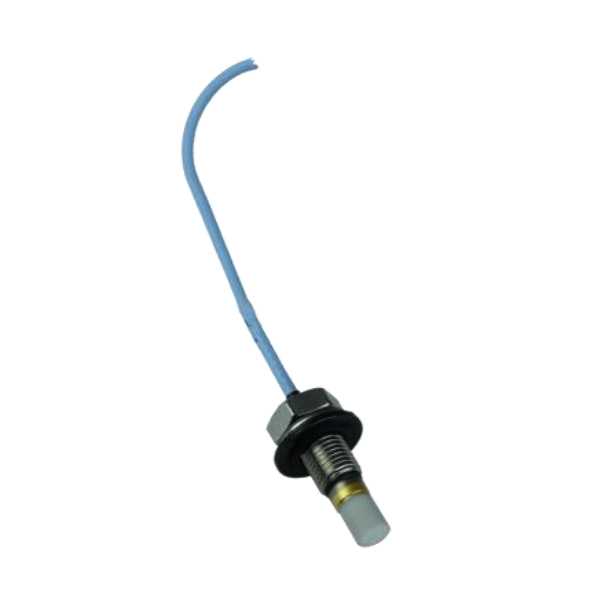

Bently Nevada 146054-40-05-02-05 Ceramic Capped Probe

The 146054-40-05-02-05 is a premium, non‑contact eddy‑current proximity probe from the Bently Nevada 3300 series, engineered for the most demanding machinery monitoring applications where aggressive chemicals, high pressures, and extreme pH conditions are encountered. This model is a 3300 Ceramic Capped Probe featuring a standard 3/8‑24 UNF mounting thread, supplied without armour, and configured with the maximum allowable overall case length of 4.0 inches, a 5.0‑metre integral coaxial cable, a miniature coaxial ClickLoc connector with standard cable, and multiple hazardous area approvals (CSA, ATEX, IECEx).

The ceramic‑capped design is the defining attribute of this probe family. The tip is fabricated from high‑purity alumina (Al₂O₃), a material renowned for its exceptional chemical inertness, high dielectric strength, and superior hardness. This ceramic composition resists corrosion from anhydrous ammonia, hydrogen sulphide, caustic solutions, acidic vapours, and a wide range of organic solvents that would rapidly degrade conventional polymer‑tipped or metal‑tipped probes. The probe case is manufactured from AISI 304 stainless steel, providing robust mechanical protection and outstanding resistance to pitting, crevice corrosion, and oxidation in humid, saline, or chemically active atmospheres. The front‑end ceramic‑to‑metal interface is hermetically sealed and subjected to rigorous helium leak testing at the factory, ensuring that corrosive gases and liquids cannot penetrate the sensing coil cavity – a critical requirement for long‑term reliability in harsh service.

The 146054-40-05-02-05 is designed for applications where only the front portion of the probe case assembly is exposed to corrosive media. Unlike the 146056 variant, this probe does not incorporate a rear fitting or stainless steel tubing. Consequently, the rear of the probe – where the coaxial cable exits the case – is not sealed and must be protected from water, ammonia, ammonium hydroxide, hydrogen sulphide, or any corrosive environment. This design choice simplifies the probe construction, reduces weight, and facilitates easier cable routing through conduit or cable trays, provided that the rear cable exit is kept in a clean, dry, non‑corrosive zone. For installations where the entire probe must be sealed against the process environment, the 146056 model with rear tubing and NPT fittings is the recommended alternative.

The 4.0‑inch case length (specified by the -40 code) represents the maximum overall case length available for this probe family, measured from the mounting thread shoulder to the probe tip. This extended reach is particularly advantageous in applications where the target shaft is deeply recessed within a machine housing, bearing pedestal, or thick casing wall. The 4.0‑inch length allows the probe to be positioned at the optimal standoff from the shaft surface while clearing obstructions such as oil deflectors, seals, or internal structural ribs. Despite its length, the probe maintains mechanical rigidity due to the robust 304 stainless steel construction, and the maximum case length is carefully engineered to avoid resonance within the typical frequency range of rotating machinery. When combined with a 3300 Proximitor Sensor and a matching extension cable, the 146054-40-05-02-05 forms a complete transducer system for measuring shaft relative vibration, axial position (thrust), eccentricity, and rotational speed.

The system is factory‑calibrated to an AISI 4140 steel target and exhibits a linear range of 1.52 mm (60 mils) with a nominal scale factor of 7.87 V/mm (200 mV/mil). Its interchangeability error of ±6.5 % ensures that replacement components can be fitted without full system recalibration, reducing maintenance downtime and simplifying field service.

Construction and Materials

The mechanical construction of the 146054-40-05-02-05 is engineered for durability and chemical resistance in the most severe industrial environments. The probe tip consists of a precision‑ground alumina ceramic cap that is brazed or bonded to the stainless steel case using a high‑temperature process that ensures a vacuum‑tight seal. The ceramic material is non‑porous, has a very low coefficient of thermal expansion, and maintains its electrical properties over the entire operating temperature range of –51°C to +177°C. The tip geometry is optimised to produce a stable eddy‑current field with minimal fringing effects, ensuring linear output over the specified gap range.

The probe case is machined from AISI 304 stainless steel bar stock. This austenitic grade is non‑magnetic, which is essential for eddy‑current probes to avoid interfering with the magnetic field generated by the sensing coil. The 304 alloy also provides excellent resistance to a wide range of corrosive media, including organic acids, alkalis, and chloride‑containing solutions (though prolonged exposure to high‑temperature chlorides should be avoided). The case incorporates a 3/8‑24 UNF 2A thread for mounting, with a maximum recommended thread engagement of 0.563 inch (14.3 mm) to prevent binding. Wrench flats of 5/16‑inch are provided for torque application during installation; these flats also serve as a reference for orienting the probe cable exit.

The integral coaxial cable is 5.0 metres in length and uses a 75 Ω impedance design with fluorinated ethylene propylene (FEP) insulation. FEP is chosen for its excellent dielectric properties, low moisture absorption, and resistance to high temperatures and chemicals. The cable is terminated with a miniature coaxial ClickLoc connector, which is gold‑plated to resist corrosion and ensure low contact resistance. The connector's positive locking mechanism audibly "clicks" when finger‑tight, eliminating the need for tools and preventing accidental disconnection due to vibration. The connector is of the standard fixed‑nut type (option -02), meaning that the nut is captive and cannot be removed. For applications requiring a removable nut, option -03 is available on other models, but the 146054-40-05-02-05 is specified with the standard configuration.

Intended Applications

The 146054-40-05-02-05 is ideally suited for the following industrial environments and machinery types, particularly where extended reach is required:

• Large anhydrous ammonia compressors in refrigeration cycles, fertiliser production, and petrochemical plants, where the shaft is deeply recessed within a heavy‑wall casting and ammonia vapour can condense and corrode conventional probes.

• Chemical reactor agitators and mixers with thick casing walls, handling acidic, alkaline, or saline slurries, where pH extremes would attack standard probe materials and where the probe must reach across a substantial clearance.

• High‑pressure centrifugal pumps in refinery and offshore service, where process fluids may contain hydrogen sulphide or sour gas, and the mounting boss is set back from the shaft surface.

• Gas turbine and steam turbine bearing housings with deep access ports, where the shaft is located far from the external casing, and oil mist and high temperatures are present but corrosive gases are confined to the front end.

• Large compressors in natural gas processing and pipeline stations, where the process gas may contain water and CO₂, forming carbonic acid, and the casing thickness requires an extended probe.

• Marine propulsion and auxiliary machinery on ships and offshore platforms, where salt spray and humid air are prevalent but the rear cable exit can be routed into dry control rooms, and the probe must reach across a deep bearing housing.

In all these cases, the ceramic cap ensures that the sensing face remains chemically intact, while the 304 stainless steel case provides structural integrity against pressure and mechanical stress. The 4.0‑inch case length is the maximum available, allowing the probe to be installed in the deepest housings without requiring custom non‑standard lengths, which might not be available off‑the‑shelf.

Ordering Code Breakdown

The full product number 146054-40-05-02-05 is decoded as follows:

When placing an order, the complete string 146054-40-05-02-05 must be used to ensure the correct combination of case length, cable length, connector style, and certification package is delivered.

Installation and Gapping Recommendations

Correct installation of the 146054-40-05-02-05 is essential for reliable operation and maximum service life, particularly given its extended 4.0‑inch case length. The probe is mounted by threading the 3/8‑24 UNF thread into a matching tapped hole in the machine casing or mounting bracket. The 5/16‑inch wrench flats should be used to apply torque, but care must be taken not to over‑tighten. The recommended practice is to use the optional 04301007 lock nut with safety wire holes to secure the probe against vibration loosening, especially in high‑speed machinery. Because the probe is longer, it may be more susceptible to lateral vibration if the mounting is not rigid; ensure that the mounting hole is perpendicular to the target surface and that the probe is fully supported.

The critical step is gapping the probe. Because ceramic‑capped probes have a shifted linear range compared with standard 3300 XL probes, mechanical gap setting using feeler gauges is not recommended. Instead, the probe should be connected to the Proximitor Sensor and a power supply, and the output DC voltage should be monitored. The probe is then positioned so that the target (shaft surface) falls within the linear voltage range of –4 Vdc to –16 Vdc. The optimal mid‑gap point is typically around –10 Vdc, which allows maximum bidirectional excursion for vibration measurement. The installer must ensure that the probe tip never contacts the rotating shaft, as the alumina ceramic is brittle and will chip or fracture upon impact. Such damage is not covered by the warranty. Given the extended length, extra care should be taken during insertion to avoid accidental contact with internal components.

The 5.0‑metre integral cable must be routed with a bending radius of at least 25.4 mm (1.0 inch) at every point. Sharp bends or kinks can deform the coaxial dielectric, altering the capacitance and causing measurement errors or signal dropout. The cable should be secured with cable ties or clamps at regular intervals to prevent strain on the probe‑to‑cable junction. Where the cable passes through conduit, ensure that the conduit ends are properly sealed to prevent moisture ingress that could track along the cable and reach the unsealed rear of the probe.

Because the rear of the 146054-40-05-02-05 is not sealed, special attention must be given to the environment around the cable exit. If the machine area has high humidity, occasional wash‑downs, or chemical vapours, the cable should be routed upwards and into a sealed junction box or instrument enclosure. A drip loop should be formed to prevent condensed liquids from flowing along the cable and entering the probe rear. For applications where this cannot be guaranteed, the fully sealed 146056 variant with rear tubing and NPT fittings is the appropriate choice.

System Calibration and Target Material Considerations

The 3300 system, including the 146054-40-05-02-05, is factory‑calibrated using an AISI 4140 steel target. This material is selected as the reference because it provides a consistent and repeatable eddy‑current response. However, many machine shafts are made from different alloys, such as 304 stainless steel, 316 stainless steel, Inconel, titanium, or chrome‑plated surfaces. Each of these materials has a different electrical conductivity and permeability, which will shift the scale factor and linearity of the system. Bentley Nevada offers custom calibration services for non‑standard target materials – the specific material must be specified at the time of ordering to ensure accurate readings.

The interchangeability error of ±6.5 % allows field replacement of the probe, extension cable, or Proximitor Sensor without full recalibration, provided all components are from the same system family and the target material remains unchanged. However, for critical protection applications (e.g., overspeed trip, thrust position alarms), it is strongly recommended to perform an in‑situ verification of the gap‑to‑voltage relationship using a calibrated micrometer or dial gauge after installation. This ensures that the absolute gap measurement is correct and that the alarm and trip setpoints are properly referenced.

Hazardous Area Approvals and Conditions of Safe Use

The 146054-40-05-02-05 with approval option -05 is certified for use in explosive atmospheres under multiple international standards. The following certifications are applicable:

• CSA (cNRTLus): Intrinsic safety (ia) for Class I, Zone 0; AEx/Ex ia IIC T4/T5 Ga; also Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III. For Zone 2, non‑incendive (nA/ec) ratings are provided. Temperature classification T5 for ambient –55°C to +40°C and T4 for –55°C to +80°C.

• ATEX: II 1 G; Ex ia IIC T5…T1 Ga; also Ex ia IIIC T90°C … T280°C Dc for dust atmospheres (EPL Dc).

• IECEx: Ex ia IIC T5…T1 Ga; Ex nA/ec IIC T5…T1 Gc.

The entity parameters for intrinsic safety (ia) are summarised below:

These parameters apply when the probe is connected via Bently Nevada extension cables to a Bently Nevada Proximitor Sensor with compatible entity ratings.

The conditions of safe use, as specified in the certificates, are as follows:

• For ia installations, the probe must be installed in accordance with Bently Nevada drawing 141092.

• For nA / ec (Zone 2) installations, the Proximitor must be installed such that its terminals achieve a degree of protection of at least IP54, per drawing 140979.

• The temperature schedule (see table below) must be observed to ensure that the probe's surface temperature does not exceed the ignition temperature of the surrounding gas or dust atmosphere.

Temperature Schedule for Hazardous Areas (Probe Only)

The 146054-40-05-02-05 itself does not generate significant self‑heating; the temperature class is primarily determined by the maximum ambient temperature at the installation site.

Important Limitations and Critical Warnings

Users of the 146054-40-05-02-05 must strictly observe the following limitations to ensure safe and reliable operation.

The rear of the probe is not hermetically sealed. Exposure of the cable exit or the rear portion of the probe case to any liquid (water, ammonia, condensate), corrosive gas (hydrogen sulphide, chlorine), or caustic vapour will lead to rapid degradation of the FEP insulation, corrosion of the centre conductor, and eventual electrical failure. This is the single most important operational constraint for this model. The rear cable exit must be routed through a clean, dry, non‑corrosive area at all times.

The ceramic tip is chemically robust but mechanically fragile. Any direct contact with the rotating shaft during installation, maintenance, or machine transient conditions can cause chipping, cracking, or complete fracture of the alumina cap. Such damage is catastrophic to measurement accuracy and is not covered by the product warranty. The probe must be gapped electrically, and physical stops must be used with extreme care. Given the extended 4.0‑inch length, the risk of accidental contact during installation is higher; always use a gap‑setting tool or a dummy shaft to verify clearance.

The pressure rating of 34 Bar (500 psi) applies only to the front‑end ceramic‑to‑metal seal. It does not imply that the entire probe body can withstand differential pressure across the mounting thread. If the process pressure exceeds this value, custom engineering modifications are required – contact Bentley Nevada for assistance.

Thread engagement must not exceed 0.563 inch (14.3 mm). The internal threads of the mounting hole must conform to the appropriate fit class. If the mounting hole is deeper than this, a thread spacer or lock nut must be used to limit insertion depth. Bentley Nevada does not replace probes under warranty for damage caused by excessive thread engagement. With a longer case, the risk of over‑insertion is notable; always measure the mounting hole depth before installation.

The cable bend radius must be maintained at or above 25.4 mm (1.0 inch). Smaller radii will deform the dielectric and change the characteristic impedance, introducing measurement errors and potentially causing intermittent signal dropout.

For installations in hazardous areas, the temperature limits and entity parameters must be respected. The probe must only be used with approved intrinsically safe barriers or isolated power supplies that limit voltage, current, and power to the specified values.

Accessories and Complementary Products

The 146054-40-05-02-05 is supplied without connector protectors or armour, but these can be added as accessories to enhance environmental protection and mechanical robustness. The following table lists commonly ordered accessories.

For applications requiring cable armour (mechanical protection against abrasion or crushing), the 146054 base model can be ordered with modification 164523, but this is not part of the 146054-40-05-02-05 configuration. If armour is essential, a different ordering code must be specified.

Comparison with Related Models

The 146054-40-05-02-05 represents the longest case length option within the 3300 ceramic‑capped probe family. The -40 length of 4.0 inches is the maximum permissible, making it the go‑to choice for deep‑recess installations. Shorter options, such as -08 (0.8 inch), -12 (1.2 inch), and -20 (2.0 inch), are available for shallower housings. The -40 length provides the greatest reach but also requires careful handling to avoid bending or vibration issues – the probe's natural frequency is lower than shorter variants, so it should not be used in applications with excessive lateral excitation without adequate support.

Compared with the 146056 variant, which includes rear stainless steel tubing and NPT fittings, the 146054-40-05-02-05 lacks rear sealing and is therefore less expensive and easier to install, but it demands a clean, dry rear environment. The 146056 is fully sealed at both ends and is suitable for wet or corrosive rear‑end conditions, such as when the probe is mounted in a pump casing where the cable exit is submerged in process fluid.

For metric thread requirements (M10 x 1), the 164517 model should be used instead of the 146054. The present model uses the imperial 3/8‑24 thread, which remains the most common standard in North American and many international turbomachinery applications.
