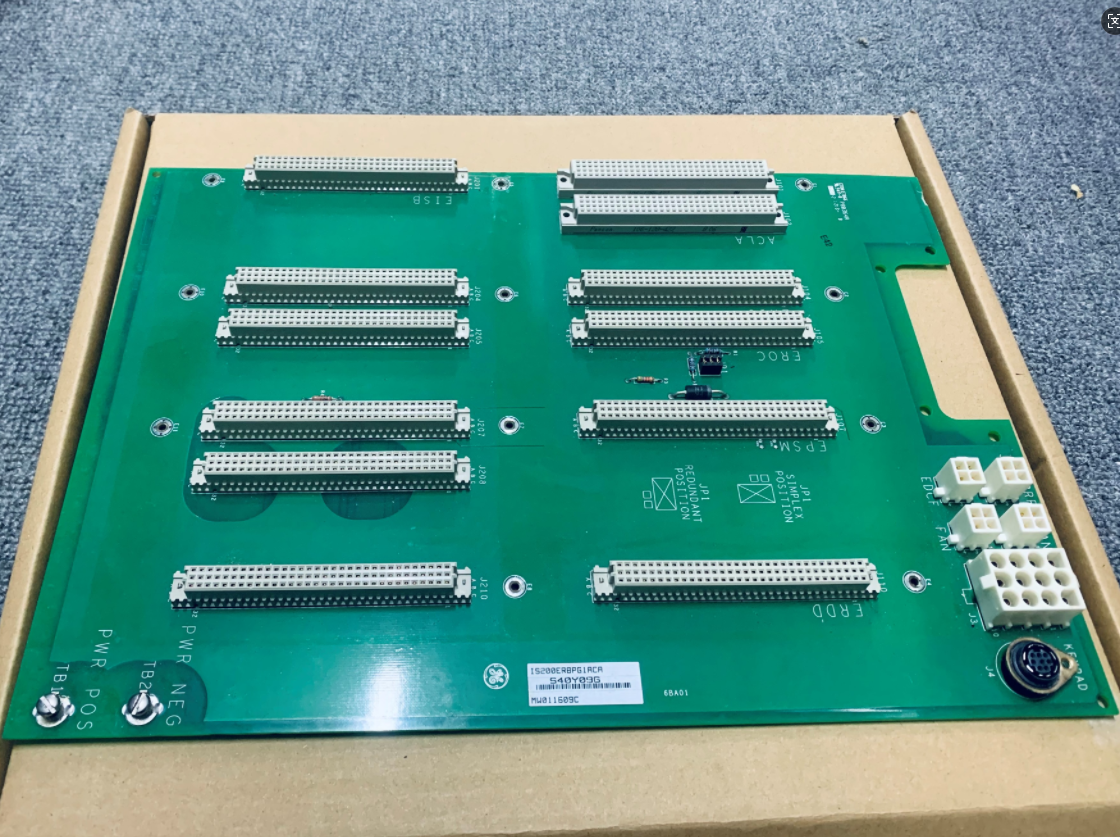

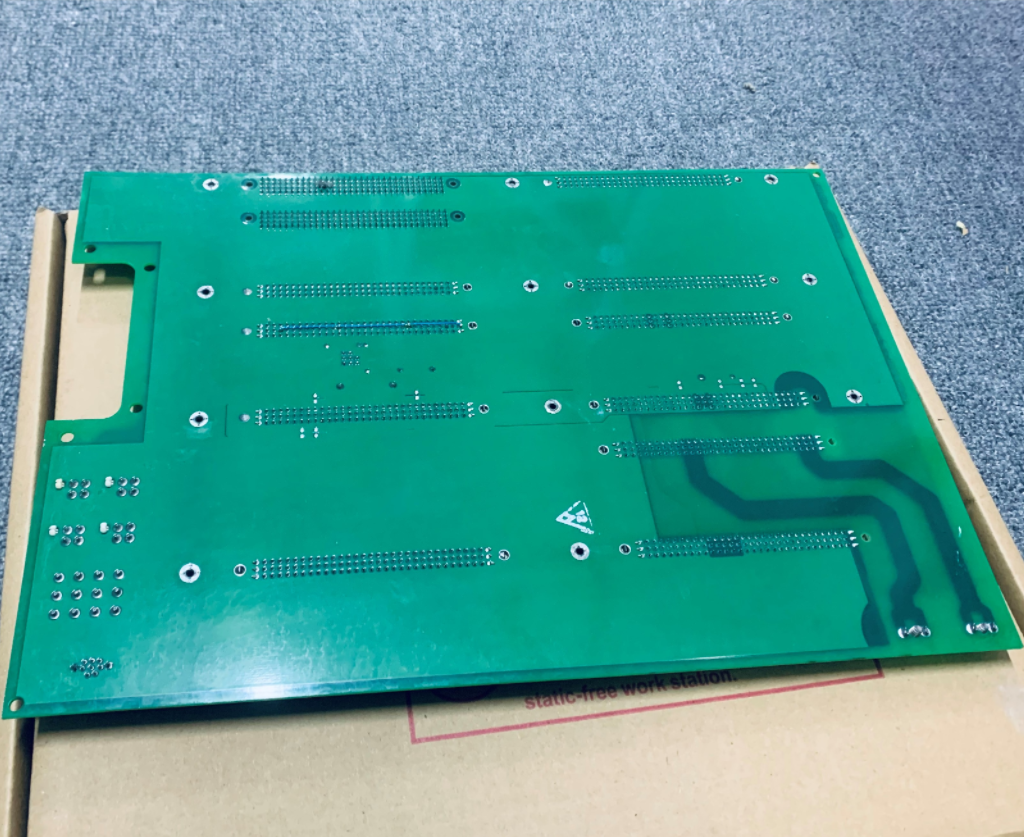

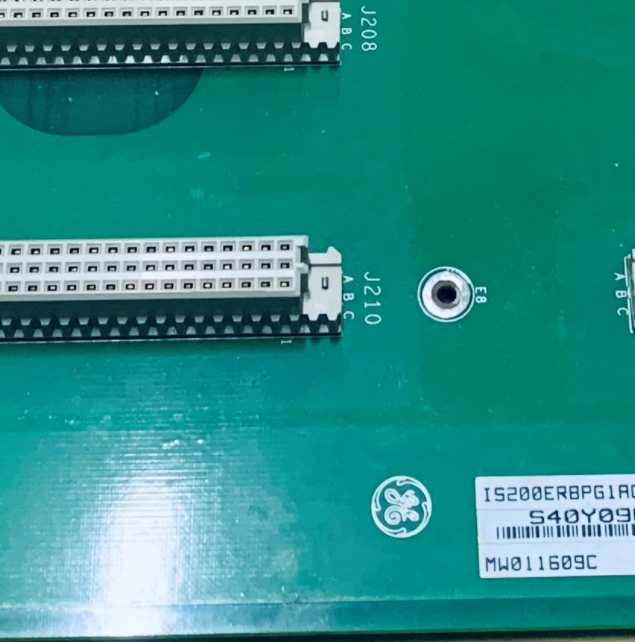

GE IS200ERBPG1A Exciter Regulator Backplane Board

The IS200ERBPG1A is an Exciter Regulator Backplane designed by General Electric (GE) for its EX2100 Excitation Control System. This board is the standard version within the ERBP series, primarily used in the EX2100 regulator control system (including both simplex and redundant applications). It provides the mounting base and electrical connections for various control boards, as well as cable interfaces for external terminal boards.

The IS200ERBPG1A backplane plays a central role in the EX2100 regulator control system. As the carrier and interconnection hub for all control boards, it facilitates power distribution and signal transmission between boards via the printed traces on the backplane. In a simplex system, the IS200ERBPG1A contains all necessary control boards, forming a complete regulator control core. In a redundant system, it serves as the backplane for the M1 controller, working in conjunction with the ERRB (M2/C backplane) to achieve triple modular redundant control.

Key features of the IS200ERBPG1A backplane include:

• Modular Design: Provides standardized mounting locations and electrical connections for various control boards.

• Flexible System Configuration: Supports both simplex and redundant system architectures.

• High Integration: Integrates core boards such as ACLA/DSPX, ERIO, EPSM, ERDD, and EROC.

• Expandability: Optionally accommodates an EISB board to enhance communication capabilities.

• Signal Integrity: Ensures reliable transmission of high-speed signals through carefully designed backplane routing.

• Power Distribution: Provides stable operating power to each board.

In a typical EX2100 regulator control system, the IS200ERBPG1A backplane is mounted inside the control cabinet and connects via cables to external terminal boards (such as EPCT, ECTB, etc.) to regulate and control the generator excitation system.

II. Main Functions

The primary functions of the IS200ERBPG1A include, but are not limited to, the following:

1. Control Board Mounting and Interconnection

The IS200ERBPG1A backplane provides physical mounting locations and electrical connections for various control boards within the EX2100 regulator control system. In a simplex system, the IS200ERBPG1A contains the following boards:

• ACLA/DSPX: Application Control Layer Module and Digital Signal Processor Control Board, forming the control core.

• ERIO: Exciter Regulator I/O Board, handling customer and system I/O.

• EPSM: Exciter Power Supply Module (Group 2), providing operating power for the system.

• ERDD: IGBT Exciter Regulator Interface and Dynamic Discharge Board.

• EROC: Exciter Regulator Options Card.

• EISB (Optional): ISBus Communication Board.

Through the connectors on the backplane, these boards can achieve high-speed signal interconnection, forming a complete excitation regulator control system.

2. System Configuration Support

The IS200ERBPG1A backplane supports two system configurations:

• Simplex System: One IS200ERBPG1A contains all control boards, forming an independent M1 controller.

• Redundant System: The IS200ERBPG1A serves as the backplane for the M1 controller and works with the ERRB (M2/C backplane) to form a triple modular redundant control system.

In a redundant system, the IS200ERBPG1A connects to the ERRB via cables, enabling data synchronization and coordinated control between the three controllers.

3. Power Distribution

The IS200ERBPG1A backplane distributes power received from the EPSM to each control board via the power bus on the backplane. Power includes:

• +5 V dc

• ±15 V dc

• +24 V dc

The backplane also distributes power to external terminal boards, such as EPCT and ECTB, via cable connectors.

4. Signal Routing

The IS200ERBPG1A backplane enables high-speed signal transmission between boards through carefully designed printed traces, including:

• Data bus

• Address bus

• Control signals

• I/O signals

• Communication signals (e.g., ISBus)

5. External Terminal Board Interface

The IS200ERBPG1A backplane connects to external terminal boards via cable connectors, including:

• EPCT: Exciter PT/CT Board for generator voltage and current measurement.

• ECTB: Exciter Contact Terminal Board for contact input/output.

• Other External Modules: Other devices connected as needed.

6. Optional EISB Board Support

The IS200ERBPG1A backplane can optionally accommodate an EISB board, providing ISBus communication capabilities for:

• Communication with DSPX boards.

• RS-232C communication with tool and keypad ports.

• Receiving current and voltage signals from the EDCF via fiber optic connections.

• Signal exchange with the EGDM ground detector module.




III. System Applications

1. Application in EX2100 Regulator Control System

The IS200ERBPG1A is the core backplane housing all boards for the M1 controller within the EX2100 Regulator Control System. Its roles within the system include:

• Control Core Carrier: Provides mounting locations and electrical connections for core control boards such as ACLA/DSPX, ERIO, EPSM, ERDD, and EROC.

• Signal Interconnection Hub: Enables high-speed signal transmission and data exchange between control boards via printed traces on the backplane.

• Power Distribution Platform: Distributes various DC power supplies from the EPSM to each control board, ensuring normal system operation.

• External Interface Gateway: Connects to external terminal boards such as EPCT and ECTB via cable connectors, providing I/O interfaces to field devices.

2. Simplex System Configuration

In a simplex regulator system, one IS200ERBPG1A backplane contains all necessary control boards, forming an independent M1 controller. The system structure is as follows:

• ACLA/DSPX: Control core, executing regulation algorithms and logic control.

• ERIO: Handles I/O interfaces with EPCT and ECTB.

• EPSM: Provides operating power for the system.

• ERDD: Provides IGBT gate drive control and dynamic discharge functions.

• EROC: Provides options functions such as ground detection and keypad support.

• EISB (Optional): Provides ISBus communication capabilities.

3. Redundant System Configuration

In a redundant regulator system, the IS200ERBPG1A serves as the backplane for the M1 controller and works with the ERRB (M2/C backplane) to form a triple modular redundant control system. The three controllers (M1, M2, C) achieve high-speed communication and data synchronization via EISB boards. The system can continue to operate even if one controller fails.

4. Differences from ERRB

The main differences between IS200ERBPG1A and ERRB are:

5. Typical Application Scenarios

• Steam Turbine Generator Excitation Regulation: Used in excitation control systems for large steam turbine generators.

• Hydro Turbine Generator Excitation Regulation: Used for excitation regulation of hydro turbine generators.

• Gas Turbine Excitation Regulation: Works with gas turbine control systems for fast-response excitation regulation.

• Industrial Synchronous Motor Excitation: Used for excitation control of industrial high-power synchronous motors.

• Excitation System Upgrades and Retrofits: Replaces the control core of legacy excitation systems.




IV. Detailed Interface Description

1. Board Slots

The IS200ERBPG1A backplane features multiple DIN connector slots for inserting various control boards. The mounting locations for each board are as follows:

2. External Terminal Board Interfaces

The IS200ERBPG1A backplane connects to external terminal boards via cable connectors, primarily including:

3. Power Interfaces

4. Communication Interfaces

When an EISB board is installed, the IS200ERBPG1A provides the following communication interfaces via the EISB:

V. Installation and Maintenance

1. Mounting Location

The IS200ERBPG1A backplane is mounted inside the control cabinet of the EX2100 regulator control system. It can be door-mounted or panel-mounted. The backplane is 19 inches wide, conforming to standard cabinet mounting specifications.

2. Installation Steps

1. Prepare Mounting Location: Ensure sufficient space in the control cabinet for the backplane and reserve space for wiring.

2. Secure Backplane: Place the IS200ERBPG1A backplane in the mounting location and secure it with screws.

3. Install Control Boards: Insert each control board into the corresponding slot on the backplane in the correct orientation, ensuring they are fully seated.

4. Connect Power: Connect the power output cables from the EPSM to the power interfaces on the backplane.

5. Connect External Terminal Boards: Connect terminal boards such as EPCT and ECTB to the corresponding interfaces on the backplane using cables.

6. Verify Installation: Confirm that all boards and cables are securely connected.

3. Maintenance Recommendations

• Periodic Inspection: Regularly check that boards are securely seated and cable connections are reliable.

• Cleaning: Regularly clean the backplane and boards to prevent dust accumulation affecting heat dissipation and insulation.

• ESD Protection: Wear a grounding strap when handling boards and the backplane, and store spare parts in anti-static bags.

• Spare Parts Management: Maintain a spare IS200ERBPG1A backplane to reduce downtime in case of failure.

4. Replacement Procedure

Safety Warnings:

• WARNING: Power to the excitation system must be turned off before replacing the backplane. Follow complete de-energizing and discharge procedures.

• CAUTION: Adhere to ESD (Electrostatic Discharge) precautions when handling the backplane.

Replacement Steps:

1. Verify the system is completely de-energized.

2. Open the control cabinet door and record all cable connection locations.

3. Remove all control boards (ACLA/DSPX, ERIO, EPSM, ERDD, EROC, EISB, etc.) from the backplane.

4. Disconnect all cables.

5. Remove the screws securing the old backplane and take it out.

6. Install the new backplane and secure it with screws.

7. Reconnect all cables.

8. Reinsert the control boards into their corresponding slots.

9. Verify all connections are correct, then restore power to the system.
