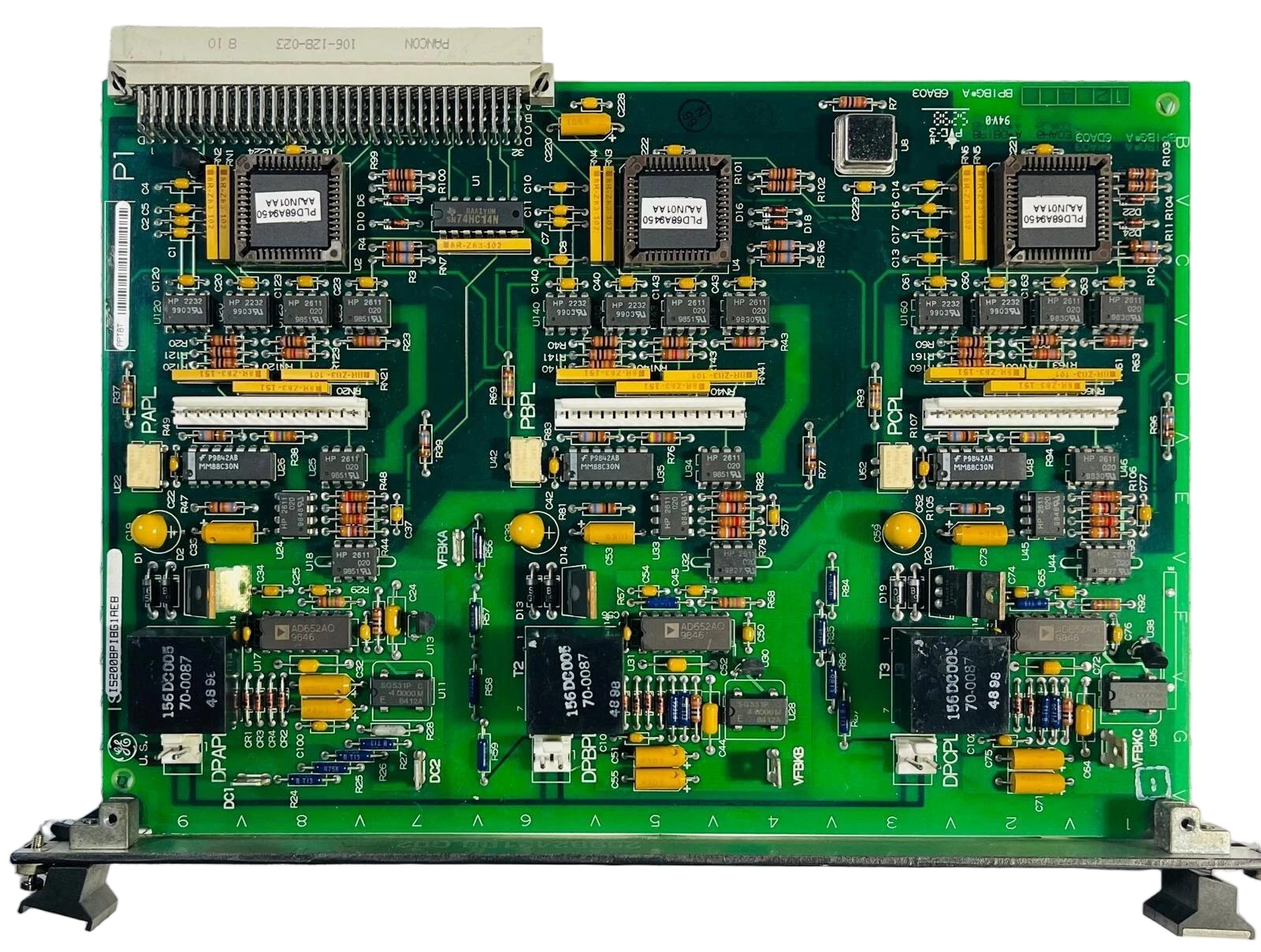

The IS200BPIBG1A IGBT Drive Bridge Personality Interface Board is an advanced interface component designed by GE Industrial Control Systems for IGBT-based three-phase AC drive systems. As the core signal conditioning and protection management unit between the control electronics and power electronics, the IS200BPIBG1A precisely interfaces logic-level digital control signals from the P1 connector to three or six Gate Driver/Shunt Feedback boards. Simultaneously, through built-in isolated Voltage-Controlled Oscillator (VCO) feedback circuits, it monitors the DC link voltage and the VAB and VBC phase output voltages in real time. The IS200BPIBG1A is responsible not only for transmitting drive commands and collecting feedback signals, but also integrates a highly sophisticated fault capture, processing, and reporting mechanism. It enables fast, autonomous local fault response, thereby enhancing the safety and reliability of the entire drive system.
The design of the IS200BPIBG1A board fully embodies GE's philosophy of modularization and intelligence in the industrial drive field. The IS200BPIBG1A supports both a single-bridge configuration (controlling three driver boards) and a parallel-bridge configuration (controlling six driver boards), flexibly adapting to the drive requirements of different power levels. The control logic for each phase is implemented in an independent Electronically Programmable Logic Device (EPLD). The functions of the three phases are highly parallel and mutually isolated, ensuring that an abnormality in one phase will not affect the normal operation of the others.
Core Functions and Control Architecture
The IS200BPIBG1A integrates three core functional modules: gate drive command management and fault processing, multi-channel precision voltage and current feedback signal conditioning, and system-level fault aggregation and reporting.
Independent EPLD Processing per Phase: The IS200BPIBG1A is configured with one EPLD for each of the phases A, B, and C. Except for common configuration, clock, and reset functions, these three devices independently execute the critical tasks for their respective phases. Key functions include:
Upper/Lower Driver Control: Based on the turn-on/turn-off commands from the main control system, it generates and drives control signals for the upper and lower IGBTs of the phase leg.
Soft Shutdown on Fault: When an IGBT desaturation or severe phase current imbalance is detected, the EPLD automatically initiates a soft shutdown sequence, turning off the IGBT in a controlled manner. This prevents secondary damage to the device from high voltage spikes caused by a hard turn-off. Once initiated, this sequence cannot be interrupted by external turn-on commands. The sequence must be completed and the fault latch cleared before new turn-on commands will be accepted. This mechanism greatly enhances the determinism of the protective action.
Fault Latching and Reporting: It decodes and latches upper/lower IGBT desaturation faults and gate driver undervoltage faults, and reports this fault information to the higher-level control system via the P1 connector.
Parallel Bridge Current Feedback Summing: In a parallel bridge configuration, the EPLD receives current VCO feedback signals from the two parallel bridge legs, conditions and averages them, and outputs a composite signal representing the total phase current to the P1 connector. This simplifies processing for the higher-level control.
This independent per-phase processing architecture allows the IS200BPIBG1A to provide symmetric and predictable control and protection characteristics, whether used in a single-bridge or a dual-bridge parallel system.
Power Supply System Design

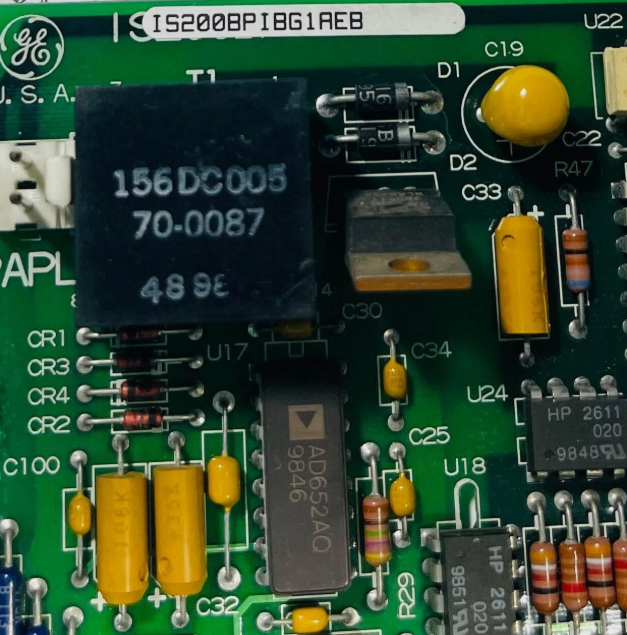

The power supply architecture of the IS200BPIBG1A ensures strict electrical isolation between the high-voltage and low-voltage sides, as well as between phases. The IS200BPIBG1A receives a 17.7 V AC square wave power supply from the P1 connector, which is distributed to three transformers, one per phase. Each transformer is equipped with two secondary windings, each serving distinct functions:
Isolated Control Interface Supply: The first secondary winding is full-wave rectified and filtered to produce a +7.5 V DC voltage, which is then precisely regulated down to +5 V by a linear regulator. This provides a stable operating voltage for the isolated control interface circuits of each phase. This power supply is dedicated to powering the differential signal transmission between the driver board and the IS200BPIBG1A, achieving safe isolation between the control and power sides.
Voltage Feedback VCO Supply: The second secondary winding is also full-wave rectified and filtered, outputting isolated ±12 V DC voltage. This supply is specifically used by precision analog circuits such as the phase voltage VCOs and the DC link voltage VCO. An integrated 5 V linear regulator on the +12 V supply locally generates the light-duty logic supply required by the VCO circuits.
Control Logic Supply: The standard +5 V DC supply required by the system's main control logic is provided directly to the IS200BPIBG1A board through the P1 connector, with a maximum power consumption of only 2.5 Watts.
The load current for the board's 17.7 V AC supply varies with the drive's switching frequency and the gate resistance of the power IGBTs. When driving three driver boards, the typical power consumption is 20 W at a 5 kHz switching frequency and 35 W at 10 kHz. When driving six driver boards, the typical power consumption is 35 W at 5 kHz and 65 W at 10 kHz.
IGBT Gate Drive Control and Soft Shutdown Protection
The IS200BPIBG1A receives independent turn-on/turn-off commands (active-low signals like NAUD, NALD, etc.) for the upper and lower IGBTs of each phase via the P1 connector, while simultaneously receiving fault status feedback from the corresponding Gate Driver boards. The EPLD processes these signals to achieve precise drive timing control and intelligent protection.
A signature feature is the soft shutdown function. When an IGBT is detected to be in desaturation (i.e., the device has left the saturation region and entered the linear amplification region, causing its on-state voltage drop to rise sharply) or a severe current imbalance between bridge legs is detected in that phase, the IS200BPIBG1A does not simply execute an immediate hard turn-off of the IGBT. Instead, it applies a 2 MHz modulation to the driver turn-on control signal, turning off the device with a gentler slope. This soft shutdown method effectively suppresses the rate of current change (di/dt) and voltage overshoot during the turn-off process, protecting the IGBT from overvoltage breakdown.
Once a soft shutdown sequence is triggered, it will execute to completion, even if the external turn-on command is removed during this period. Any new turn-on commands will be ignored until the fault latch is actively cleared. This "lock-and-complete" mechanism prevents the device from being repeatedly switched on under unclear fault conditions, providing operational personnel with a clear fault indication and a safe diagnostic window.
Regarding drive enabling, the IS200BPIBG1A follows GE's standard dual-wire safety mechanism. During normal operation, the DRVPC line is kept at logic low, while +5 V is applied to the DRVP5 line. When the system detects any fault requiring a drive disable, it can either pull the DRVPC line high to initiate a high-speed driver disable, or cut off the power from the DRVP5 line to completely remove power from the driver interface, achieving fail-safe isolation.
Precision Current Sensing and Inter-Bridge Imbalance Protection
The IS200BPIBG1A provides a precision shunt current feedback channel for each phase. Its operating mode differs based on the system configuration:
Single-Bridge Mode: The shunt VCO frequency signals from the driver board (centered at 1 MHz, with ±200 mV input corresponding to an ±800 kHz deviation) are directly conditioned by the IS200BPIBG1A's circuits and passed through unchanged to the P1 connector for acquisition by the higher-level control.
Parallel-Bridge Mode: Each phase receives two VCO current signals from the two independent bridge leg driver boards. The internal analog circuits of the IS200BPIBG1A first condition these two signals, then average them, and send the resulting average frequency signal to the P1 connector. This hardware averaging mechanism ensures that information about the current balance between parallel bridge legs is not lost, while providing the higher-level control with a concise, equivalent phase current feedback.
The digital imbalance detector is a critical safety feature of the IS200BPIBG1A in parallel applications. This detector compares the two VCO current signals per phase in real time. If an abnormal difference in the current distribution between the bridges is detected, it immediately triggers a protective action. Typically, a 10% current imbalance can cause a system trip within 88 microseconds. For the extremely dangerous condition of a bridge-to-bridge shoot-through, the protection response time is shortened to approximately 8 microseconds. Upon detecting an imbalance, the IS200BPIBG1A forces a desaturation fault signal and sets the imbalance fault latch, while simultaneously initiating the soft shutdown process described above. This isolates the fault with maximum speed to prevent escalation.
It is important to note that overcurrent (OC) or DI/DT shunt fault signals from the driver board are only logically OR-ed together and passed through transparently by the IS200BPIBG1A for reporting to the P1 connector. They do not initiate a soft shutdown, nor are they latched on this board. The processing logic for these types of faults is the sole responsibility of the higher-level control board connected to P1, reflecting a layered protection design philosophy.
Two bridge enable signal lines, BR1EN and BR2EN, are also provided on the P1 connector. By enabling or disabling the signal path for the corresponding bridge leg, the control system can perform online diagnostics of individual bridge feedback signals or flexibly configure the system for single-bridge or dual-bridge operation modes.
Voltage Feedback System
The IS200BPIBG1A provides the drive system with three fully isolated VCO voltage feedback channels, covering the critical requirements for AC output and DC link monitoring.
VAB and VBC Phase-to-Phase Voltage Feedback: Sampled directly from the stab-on terminals on the drive output, these form two independent, power-supply-isolated VCO circuits. Both VCOs are centered at 976.8 kHz (the nominal output at zero phase-to-phase voltage) with a dynamic range of 0 to 2 MHz. A ±1.0 V phase-to-phase voltage change is linearly converted into a frequency deviation of ±959.58 Hz. This highly linear, frequency-modulated transmission method inherently possesses strong noise immunity and safely couples the frequency signal to the control logic via optical couplers, ensuring the secure transfer of high-voltage side signals. Its typical output offset is only ±0.15%, typical gain error is ±0.5%, and the drift over the full temperature range does not exceed ±0.0085%/°C. This level of accuracy is sufficient for high-performance vector control.
DC Link Voltage Feedback: A third VCO is dedicated to monitoring the DC link voltage. Its input is scaled such that 0 to 1198 V corresponds to 0 to 2 MHz, i.e., a bias of 0 Hz, making it easy to reconstruct the voltage value through a counter. This channel also uses optical isolation, with accuracy specifications identical to the phase voltage VCO. It provides the system with precise, real-time monitoring of the DC bus voltage to support the implementation of functions like overvoltage protection and braking unit control.
Fault Management and Reporting Mechanism
The fault management system of the IS200BPIBG1A is clearly hierarchical and deterministic in its actions. For the upper and lower gate drive faults (desaturation and undervoltage), the IS200BPIBG1A latches them independently for each phase. Whenever an IGBT is commanded to turn ON, any latched fault associated with its driver circuit is immediately asserted on the corresponding phase's P1 fault line (active high). In a parallel-bridge configuration, the fault signals of the same type from both bridges are first OR-ed together on the board before being reported. Therefore, from the P1 perspective, only the fault phase and type (upper/lower) can be identified. If it is necessary to distinguish which specific bridge leg triggered the fault, the higher-level system can perform targeted diagnostics after the fault occurs by sequentially enabling a single bridge and reading the status of the fault latch.
All latched fault states remain set until the system sends a fault reset command via the NFLTRST line (active low) on the P1 connector. This holding mechanism ensures that transient faults are never missed and provides definitive evidence for post-fault analysis.
Interface and Connector Configuration
The IS200BPIBG1A interfaces with the system backplane through a standard VME P1 connector. Its pin definition is compact and fully considers high-voltage clearance. Rows B and C of the P1 connector carry all the critical control signals, including: 17.7 V AC power, bridge enables, driver power control, fault reset, upper/lower fault status for all phases, shunt faults, drive commands, phase current VCO outputs, phase and DC link voltage VCO outputs, a serial board ID line, and the switched +5 V driver power. Rows A and D are largely dedicated to voltage clearance, ensuring a safe distance between high- and low-voltage signals.
Connection to the driver boards is achieved through six dedicated plug connectors on the front panel:
PAPL, PBPL, PCPL: These interface connectors correspond to the driver boards of phases A, B, and C, respectively. Each connector includes two differential pairs for VCO current, two differential pairs for shunt faults, two differential pairs for upper/lower faults (corresponding to Bridge 1 and Bridge 2), an interface +5 V supply and its common, and independent +5 V supplies for the upper and lower drive circuits.
DPAPL, DPBPL, DPCPL: These provide the 17.7 V AC power supply to the driver board of the corresponding phase.
In addition, the IS200BPIBG1A board features five stab-on quick-connect terminals for bringing out the voltage sensing lines for phases A, B, and C, as well as the DC link positive and negative sensing lines, facilitating convenient field wiring.
The IS200BPIBG1A board has a compact design with no adjustable hardware, no testpoints, no LED indicators, and no fuses. All functions are implemented by fixed circuits, reducing field maintenance points and enhancing the long-term reliability of the equipment in harsh industrial environments.
