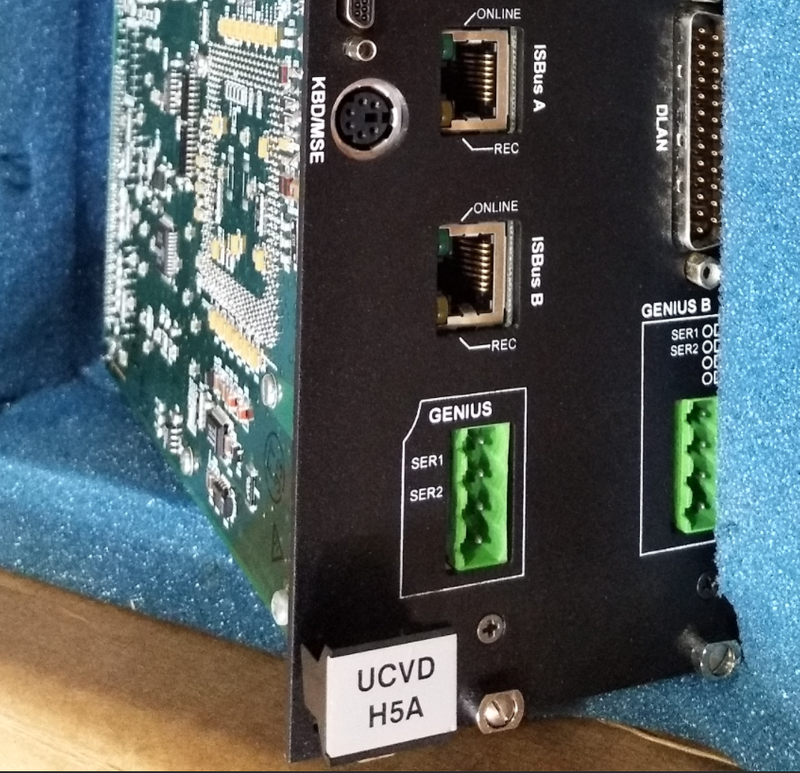

The IS215UCVDH5A is a high-performance VME bus single-board computer (SBC) designed by General Electric (GE) for its Mark VI turbine control system. Belonging to the UCVD series, this controller features a 6U height, double-slot form factor and mounts within a VME rack called the control module, serving as the core processing unit running turbine application code. Its operating system is QNX, a real-time, multitasking OS engineered for high-speed, high-reliability industrial applications.
The IS215UCVDH5A controller plays a critical role in the Mark VI system, responsible for executing control logic, processing I/O data, and communicating with operator interfaces and distributed control systems. It exchanges data with I/O boards on the VME bus and connects via an Ethernet interface to the Universal Data Highway (UDH), enabling seamless integration with HMIs, the CIMPLICITY monitoring system, Series 90-70 PLCs, and third-party DCSs.
This product is suitable for controlling critical rotating equipment such as gas turbines, steam turbines, compressors, and generators, and is widely used in industrial sectors including power generation, oil & gas, chemical processing, and metallurgy.
II. Key Functions
1. Control Logic Execution
The IS215UCVDH5A controller is loaded with software specific to its application (e.g., steam turbine, gas turbine, aeroderivative turbine, or balance of plant). It can execute control logic at rates up to 100,000 rungs or blocks per second. It supports both analog and discrete processing, with data types encompassing Boolean, 16-bit/32-bit signed integers, and 32-bit/64-bit floating points, meeting complex industrial control requirements.
2. Data Exchange and Communication
VME Bus Communication: Exchanges data with I/O boards via the VCMI communication board. In a simplex system, data comprises process inputs and outputs from I/O boards. In a Triple Modular Redundant (TMR) system, data includes voted inputs, computed outputs for output hardware voting, and internal state values exchanged between controllers.
Ethernet Communication: Equipped with one 10BaseT (RJ-45) Ethernet interface. It supports the TCP/IP protocol for communication with the Toolbox, the SRTP protocol for HMI communication, the EGD protocol for communication with CIMPLICITY HMI and Series 90-70 PLCs, and also supports the Modbus protocol for communication with third-party DCSs.
Serial Communication: Two RS-232C interfaces (COM1 and COM2). COM1 is reserved for diagnostics, and COM2 is used for serial Modbus slave communication.
3. System Synchronization and Real-Time Performance
The controller can synchronize with the clock on the VCMI communication board via an external clock interrupt, achieving accuracy within ±100 microseconds, ensuring strict synchronization requirements in multi-controller systems.
4. Online Programming and Diagnostics
Supports online modification of application software without requiring a system restart. When a failure is detected, the controller generates an internal fault code readable via the Toolbox. On UCVD series controllers, eight front-panel status LEDs can display either a rotating pattern for normal operation or flashing error codes for rapid on-site diagnostics.
5. Redundancy and Fault Tolerance Support
In TMR systems, the IS215UCVDH5A can operate in conjunction with two other controllers to perform input voting, output voting, and state exchange, significantly enhancing system reliability.

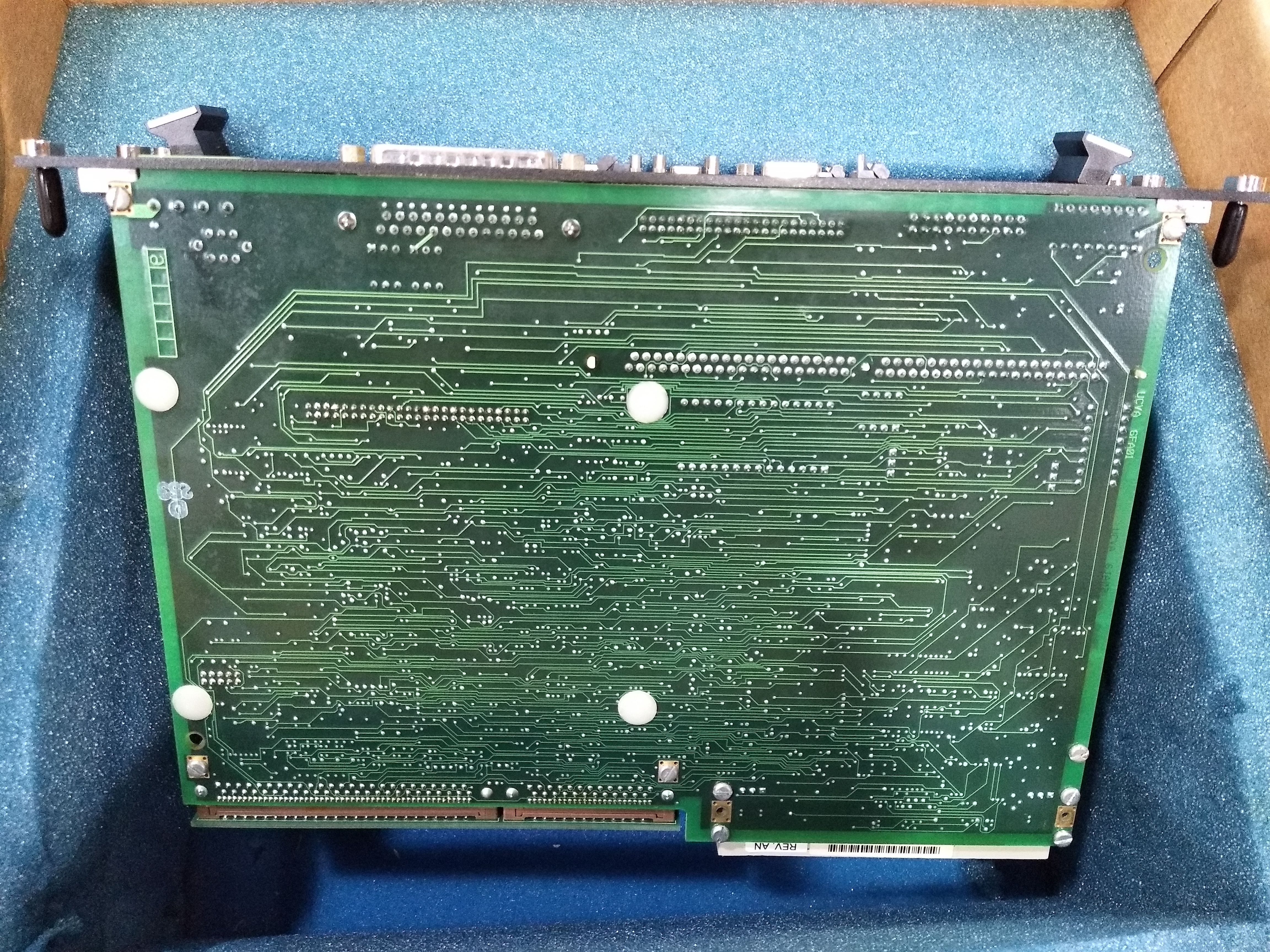

III. Hardware Architecture
1. Processor and Memory
The IS215UCVDH5A utilizes an AMD-K6 300 MHz microprocessor, equipped with 16 MB of DRAM, 8 MB of flash memory, and 256 KB of L2 cache, providing ample computing resources for real-time control applications.

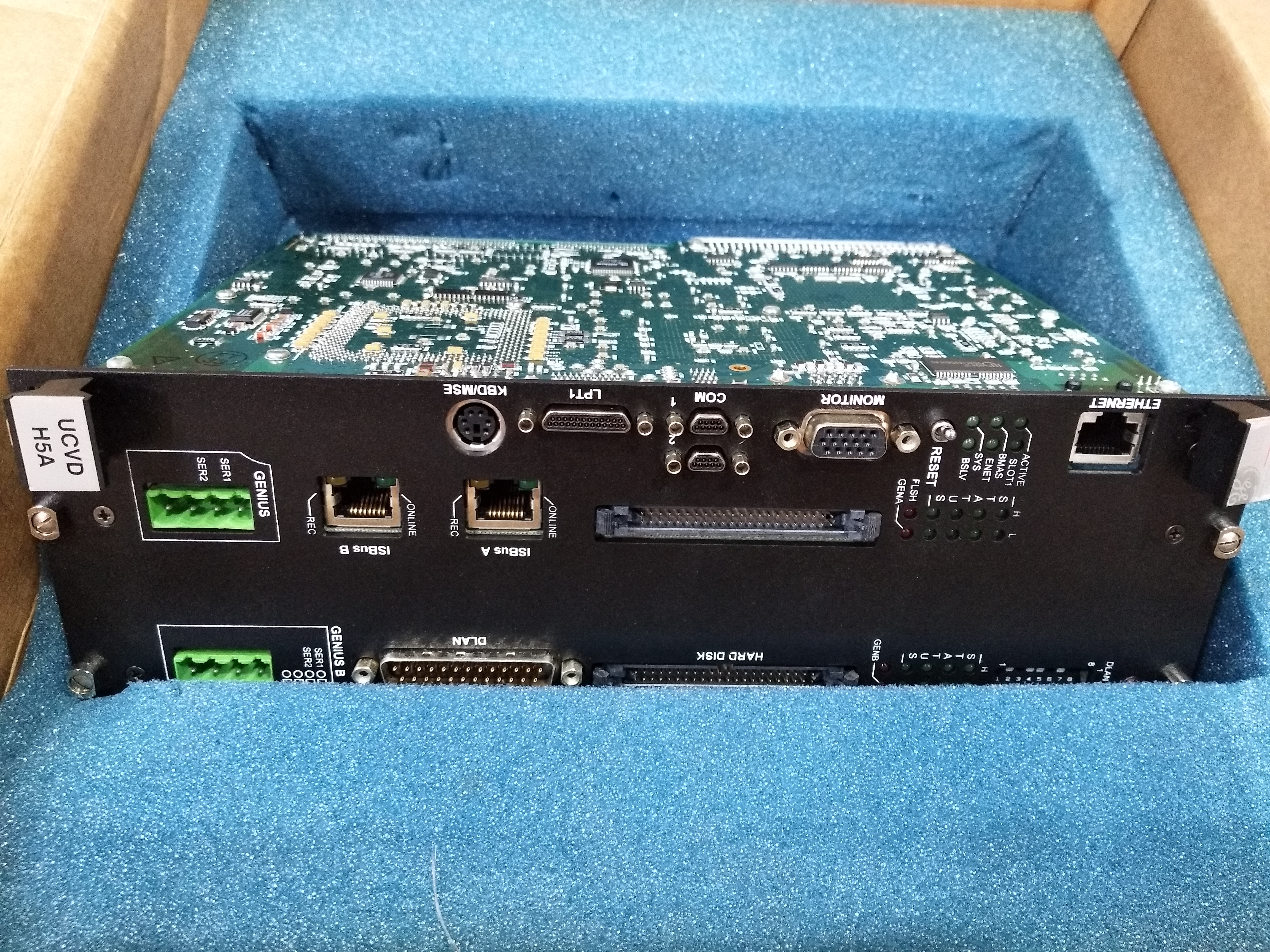

2. Front Panel Indicators
The front panel features a set of eight green status LEDs arranged in two columns. During normal operation, these LEDs display a "walking ones" pattern (a single LED sequentially rotating). When an error occurs, they display flashing codes to indicate the fault type. Additionally, several dedicated status LEDs are present:
ACTIVE: Indicates processor activity.
SLOT 1: Indicates the controller is configured as the slot 1 controller in the VME rack.
BMAS: Indicates VME master access is occurring.
ENET: Indicates Ethernet activity.
BSLV: Indicates VME slave access is occurring.
STATUS: Displays rotating pattern when OK; displays flashing error code when faulted.
FLSH: Indicates writing to Flash memory.
GENX: Indicates Genius I/O activity.

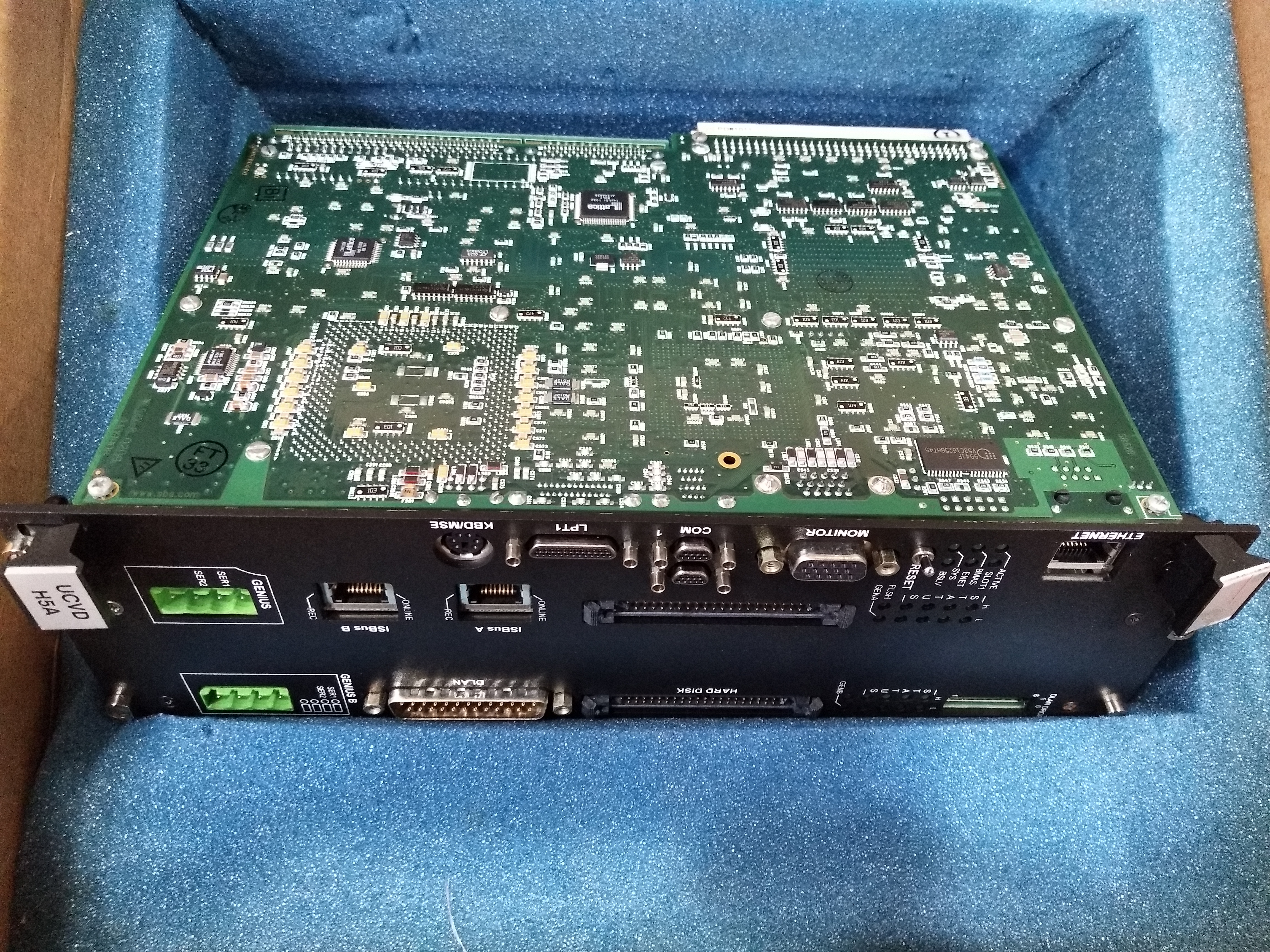

3. Interfaces and Connectors
Ethernet Interface: 1 RJ-45 connector, 10BaseT.
Serial Interfaces: 2 micro-miniature 9-pin D-type connectors (COM1, COM2).
VME Bus Connectors: P1/J1 and P2/J2 backplane connectors for power and bus communication.
IV. Detailed Interface Description
1. Ethernet Interface
The IS215UCVDH5A provides one 10BaseT Ethernet interface using an RJ-45 connector. This interface connects to the UDH for data exchange with the Toolbox, HMI, and other control equipment. Supported protocols include:
TCP/IP: Toolbox configuration and peer-to-peer communication.
SRTP (Serial Request Transfer Protocol): Communication with the HMI.
EGD (Ethernet Global Data): High-speed data exchange with CIMPLICITY HMI and Series 90-70 PLCs.
Modbus: Supports Modbus protocol for communication with third-party DCS.
2. Serial Interfaces (COM1 and COM2)
Both serial interfaces are micro-miniature 9-pin D connectors, with pin assignments conforming to RS-232C standards.
COM1: Fixed for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit. Users can obtain controller status and error information via a serial terminal.
COM2: Configurable for Modbus slave communication, supporting 9600 or 19200 baud. Used for connecting to distributed control systems or other serial devices.
3. VME Bus Interface
The controller connects to the VME bus via backplane connectors P1 and P2, facilitating data exchange with I/O boards and the VCMI communication board. P1 provides power and basic bus signals, while P2 is used for extended address and data lines (may not be fully utilized on the UCVD).
V. LED Indicators and Fault Diagnostics
1. Status LED Group
The eight green status LEDs on the IS215UCVDH5A front panel are arranged in a dual-column format, used to indicate the controller's operational status and error codes. The table below describes the LED display patterns for different conditions:
| Controller Condition | Status LED Display |
| Successfully completes boot-up, begins executing application code | Displays a "walking ones" pattern: a single green LED rotating through the bank of 8 LEDs. |
| Error occurs during the BIOS phase of boot-up | Displays a non-flashing error code. |
| Error occurs during application code load | Displays flashing error codes until the error is corrected and code is re-downloaded or the controller is rebooted. |
| Error occurs while the controller is running | May freeze with only a single LED lit. (Position information is not directly interpretable; fault codes are generated internally). |
2. Error Code Interpretation
When the status LEDs display a flashing code, observing the combination of LEDs in the left and right columns yields a two-digit hexadecimal error code (right column = lower digit, left column = upper digit). These codes correspond to runtime errors listed in the Toolbox help file. Users should refer to the GEH-6421 manual or the Toolbox software for detailed error definitions and handling recommendations.
3. Other Dedicated LEDs
ACTIVE: Illuminates when the processor is executing instructions.
SLOT 1: Illuminates when the controller is configured as the slot 1 controller in the VME rack (identified via the backplane ID plug).
BMAS: Flashes during VME bus master access.
ENET: Flashes during Ethernet data transmission/reception.
BSLV: Flashes during VME bus slave access.
FLSH: Illuminates during Flash memory write operations.
GENX: Illuminates during Genius I/O communication activity.
VI. Installation and Maintenance
1. Pre-Installation Preparation
Ensure the VME rack is correctly installed and grounded.
Verify that the required slot in the rack is free and meets the double-slot width requirement.
Prepare an anti-static wrist strap to prevent electrostatic damage to the board.
2. Installation Steps
Power Off the Rack: Ensure the rack power is turned off before inserting or removing any board.
Insert the Controller: Align the IS215UCVDH5A with the rack guides and push it in smoothly until the backplane connectors are fully engaged.
Secure the Front Panel: Tighten the captive screws at the top and bottom of the front panel to secure the board.
Connect External Cables: Connect Ethernet cables, serial cables, etc., as required.
Power On and Verify: After powering on, observe the front panel LEDs to ensure they display the normal "walking ones" pattern.
3. Maintenance Recommendations
Regular LED Checks: Under normal operation, the status LEDs should display the rotating pattern. If they are constantly on or flashing abnormally, investigate the error code promptly.
Ensure Adequate Ventilation: Verify that rack fans are operational and filters are clean to prevent controller overheating.
Anti-Static Precautions: Always wear a grounded wrist strap when handling the board. Store the board in an anti-static bag when not in use.
Firmware Upgrades: If a firmware upgrade is necessary, strictly follow GE's official procedures to avoid interruption during the process.
Spare Parts Management: It is recommended to keep at least one identical controller on-site as a spare to minimize downtime in case of failure.
VII. Applications
The IS215UCVDH5A controller is widely used in the following scenarios:
Gas Turbine Control: As the core controller in Mark VI systems, executing fuel control, speed control, temperature monitoring, etc.
Steam Turbine Control: Working with DEH systems for turbine speed governing and protection.
Compressor Control: Anti-surge control and performance optimization for pipeline and process compressors.
Generator Excitation Control: Interfacing with excitation systems for voltage and reactive power regulation.
Balance of Plant (BOP) Control: Logic control for auxiliary equipment such as boilers, pumps, and fans.
Combined Cycle Power Plants: Coordinating gas turbine and steam turbine operation in multi-shaft or single-shaft configurations.
