Parameter | Details |
General | |
Product Model | A9F54402 |
Local Distributor Code | 396791201 |
EAN Code | 3606480515057 |
Range | Acti9 |

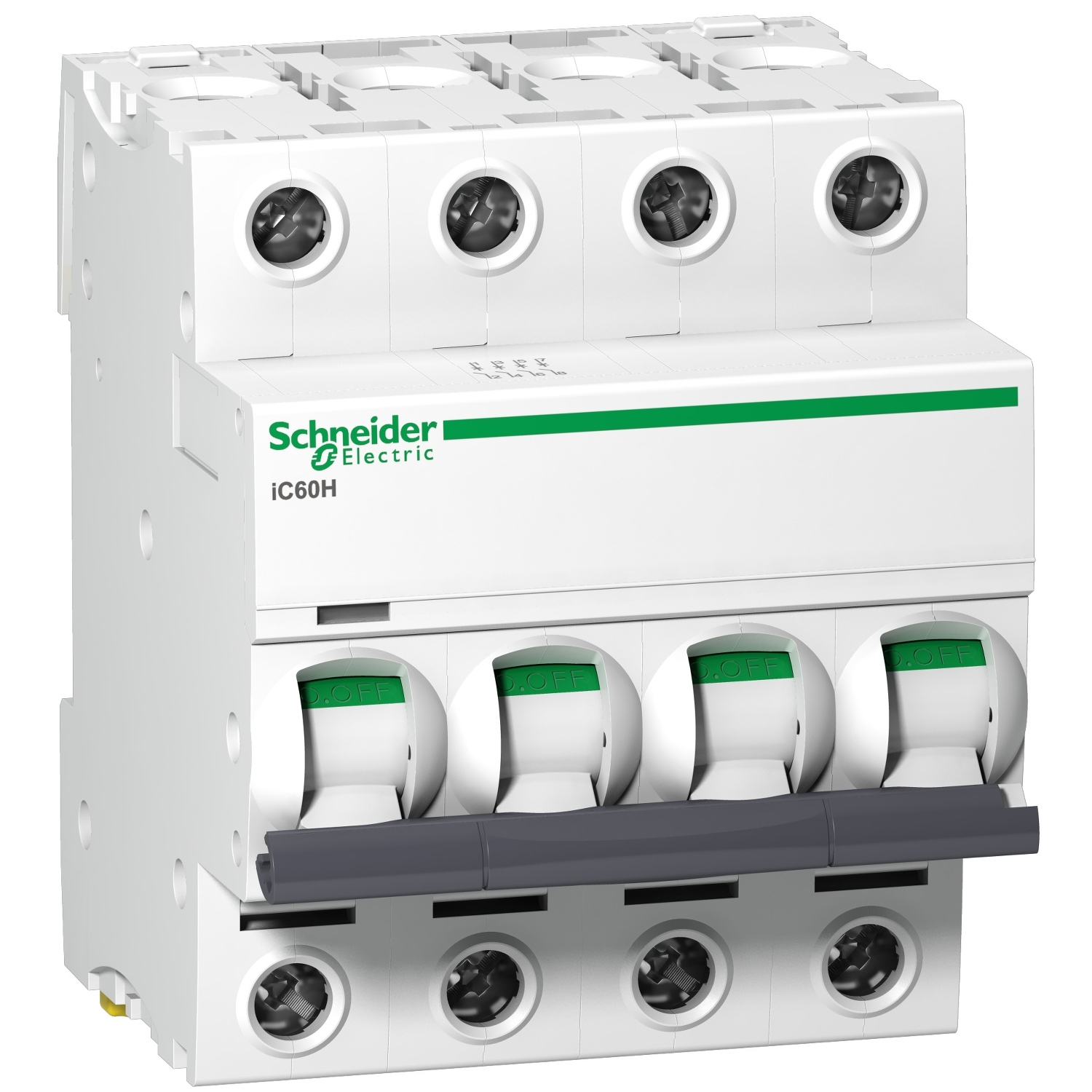

Product Name | Disbo iC60 |
Product or Component Type | Miniature circuit-breaker (MCB) |
Device Short Name | iC60H |
Poles Description | 4P |
Number of Protected Poles | 4 |
Rated Current (In) | 2 A |
Network Type | AC / DC |
Trip Unit Technology | Thermal-magnetic |
Curve Code | C |
Magnetic Tripping Limit | 8 x In ± 20% |
Utilisation Category | Category A conforming to EN/IEC 60947-2 |
Breaking Capacity (Icu) | |
– EN/IEC 60947-2 (AC) | 70 kA at 12…133 V AC 50/60 Hz
70 kA at 220…240 V AC 50/60 Hz
<70 kA at 380…415 V AC 50/60 Hz
<50 kA at 440 V AC 50/60 Hz |
– EN/IEC 60947-2 (DC) | 15 kA at <250 V DC |
– EN/IEC 60898-1 (AC) | 10,000 A at 415 V AC 50/60 Hz |
Service Breaking Capacity (Ics) | |
– EN/IEC 60947-2 (AC) | 70 kA (100%) at 12…133 V AC 50/60 Hz
70 kA (100%) at 220…240 V AC 50/60 Hz
70 kA (100%) at 380…415 V AC 50/60 Hz
50 kA (100%) at 440 V AC 50/60 Hz |
– EN/IEC 60947-2 (DC) | 15 kA (100%) at <250 V DC |
Limitation Class | 3 conforming to EN/IEC 60898-1 |
Complementary | |
Rated Operational Voltage (Ue) | 12…133 V AC 50/60 Hz
220…240 V AC 50/60 Hz
380…415 V AC 50/60 Hz
440 V AC 50/60 Hz
<250 V DC |
Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
Rated Impulse Withstand Voltage (Uimp) | 6 kV conforming to EN/IEC 60947-2 |
Network Frequency | 50/60 Hz |
Durability & Signalling | |
Mechanical Durability | 20,000 cycles |
Electrical Durability | 10,000 cycles |
Contact Position Indicator | Yes |
Control Type | Toggle |
Local Signalling | Trip indicator |
Mounting & Physical | |
Mounting Mode | Clip-on |
Mounting Support | Rail |
Number of 9 mm Pitches | 8 |
Height | 85 mm |
Width | 72 mm |
Depth | 78.5 mm |
Net Weight | 0.5 kg |
Colour | White (RAL9003) |
Terminals & Connections | |
Connection Type | Single terminal (top or bottom) |
Rigid Conductor (copper) | 1…35 mm² |
Flexible Conductor (copper) | 1…25 mm² |
Wire Stripping Length | 14 mm for top or bottom connection |
Tightening Torque | 3.5 N·m top or bottom |
Earth-leakage Protection | Separate block |
Environmental & Protection Ratings | |
Standards Compliance | EN/IEC 60898-1, EN/IEC 60947-2 |
IP Degree of Protection | IP20 conforming to IEC 60529
IP40 in modular enclosure (Insulation class II) conforming to IEC 60529 |
Pollution Degree | 3 conforming to EN/IEC 60947-2 |
Overvoltage Category | IV |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative Humidity | 95% at 55 °C |
Operating Temperature | -35…70 °C |
Storage Temperature | -40…85 °C |
Sustainability & Compliance | |
Halogen-free (plastic parts) | Halogen free plastic parts product |
PVC-free | Yes |
Silicone-free | No |
PFAS | Item contains PFAS Chemicals |
Recyclability Potential | 54% |
EU RoHS Directive | Compliant |
REACH Regulation | Reference contains SVHC above threshold |
SCIP Number | 26ff71d1-98cf-4280-8725-455b9a6b2fb9 |
Packaging with Recycled Cardboard | Yes |
Packaging without Single-use Plastic | Yes |
WEEE Label | Required for EU disposal (separate collection) |
Logistics & Packaging | |
Country of Origin | BG |
Package 3 (S03) | 33 units; H 30.0 cm × W 30.0 cm × L 40.0 cm; weight 15.711 kg |
Carbon Footprint (Lifecycle) | |
Total | 35 kg CO₂ eq. |
Manufacturing (A1-A3) | 3 kg CO₂ eq. |
Distribution (A4) | 0.1 kg CO₂ eq. |
Installation (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 31 kg CO₂ eq. |
End-of-life (C1-C4) | 1 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile available |
