Parameter | Details |
General | |
Product Model | A9V25363 |
Range | Acti9 |

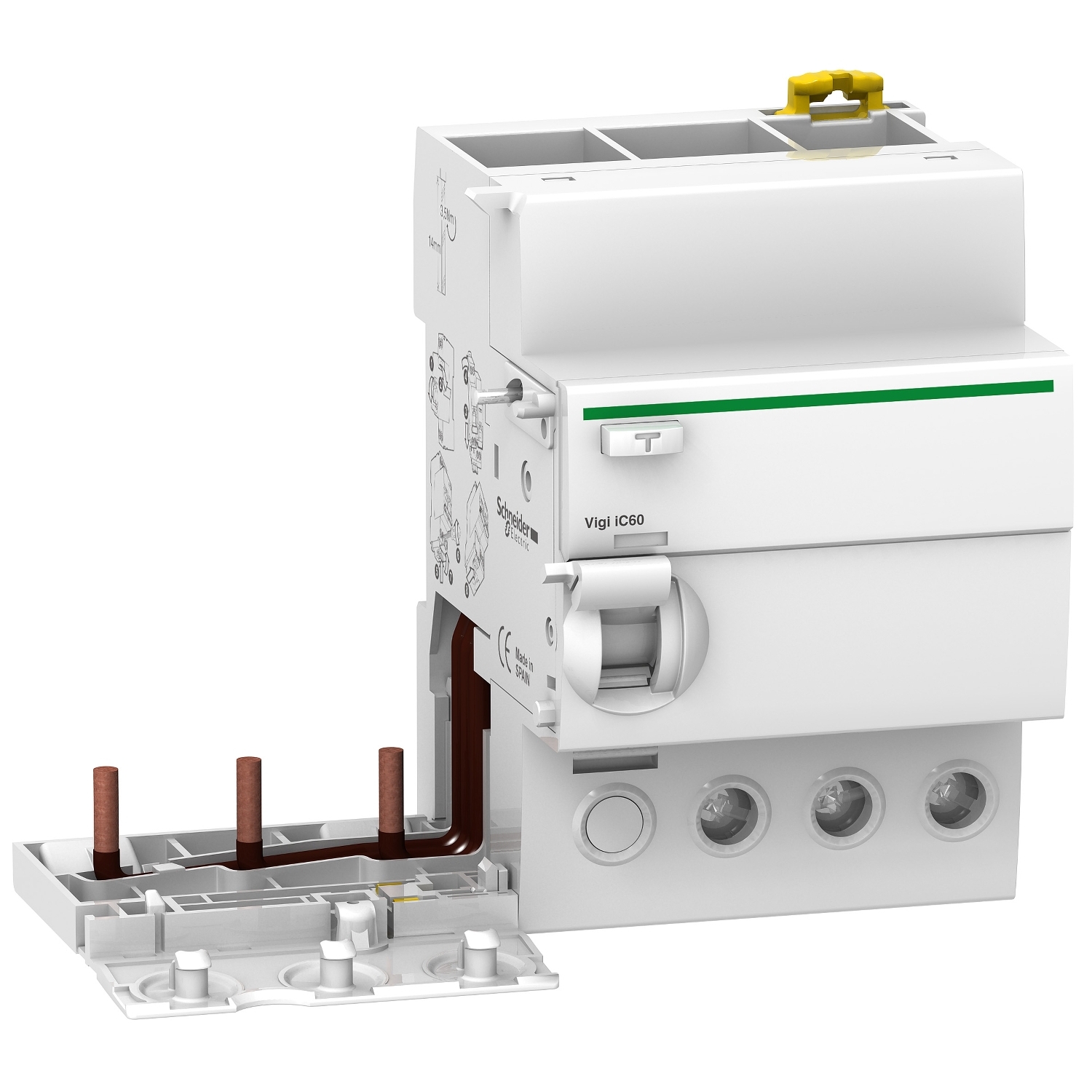

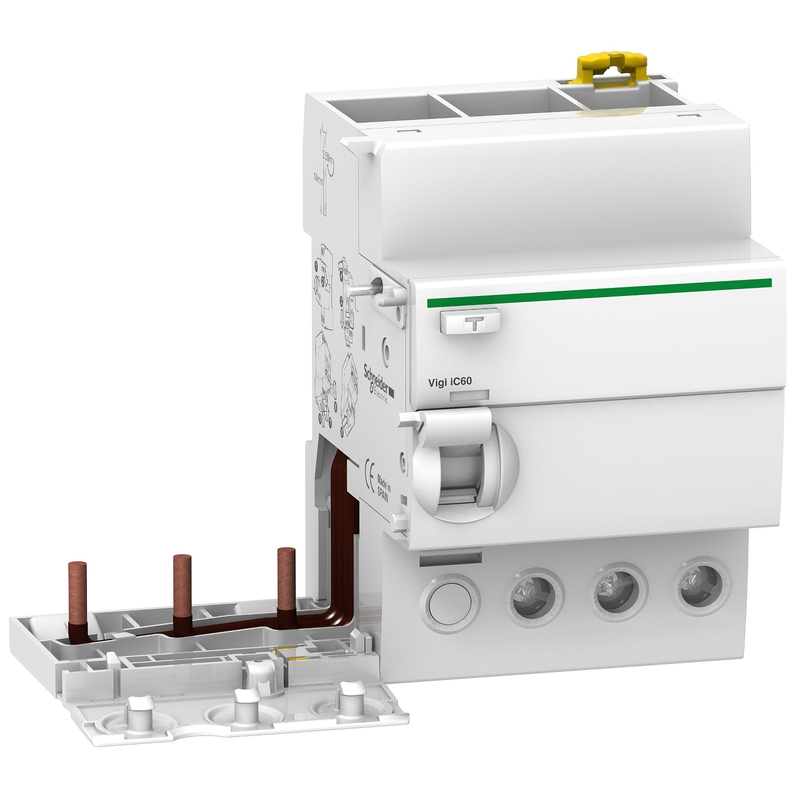

Product Name | Acti9 Vigi iC60 |
Product or Component Type | Add-on residual current device |
Device Short Name | Vigi iC60 |
Poles Description | 3P |
Rated Current (In) | 63 A |
Earth Leakage Sensitivity | 300 mA |
Earth Leakage Protection Time Delay | Selective |
Earth Leakage Protection Type | Type A |
Network Type | AC |
Network Frequency | 50/60 Hz |
Rated Operational Voltage (Ue) | 230...415 V AC 50/60 Hz conforming to EN/IEC 61009-1, EN/IEC 61009-2-1 |
Standards | EN/IEC 61009-1, EN/IEC 61009-2-1 |
9 mm Pitches | 7 |
Complementary | |
Device Location in System | Outdoor |
Residual Current Tripping Technology | Voltage independent |
Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
Rated Impulse Withstand Voltage (Uimp) | 6 kV conforming to IEC 60947-2 |
Range Compatibility | Acti9 iC60, Acti9 Reflex iC60 |
Product Compatibility | Single terminal |
Local Signalling | Trip indicator |
Mounting Mode | Clip-on |
Mounting Support | DIN rail |
Electrical Connection to MCB | By screws |
Comb Busbar and Distribution Block Compatibility | Bottom: Yes |
Height | 91 mm |
Width | 117 mm |
Depth | 73.5 mm |
Net Weight | 0.21 kg |
Connections – Terminals | |
Terminal Type | Tunnel type terminal (downside) |
Rigid Conductor | 1...35 mm² (without cable end) |
Flexible Conductor | 1...25 mm² (without cable end) |
Flexible with Cable End | 1...25 mm² |
Wire Stripping Length | 14 mm for bottom connection |
Tightening Torque | 3.5 N·m bottom |
Environment | |
IP Degree of Protection | IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529 |
Pollution Degree | 3 conforming to IEC 60947-2 |
Electromagnetic Compatibility | 8/20 μs impulse withstand, 3000 A conforming to IEC 61009-1 |
Ambient Air Temperature for Operation | -25...60 °C |
Ambient Air Temperature for Storage | -40...85 °C |
Packing Units | |
Package 1 (PCE) | 1 unit; H 8.6 cm × W 11.5 cm × L 14.1 cm; weight 224 g |
Package 2 (S03) | 15 units; H 30 cm × W 30 cm × L 40 cm; weight 3.857 kg |
Environmental Data | |
Total Lifecycle Carbon Footprint | 8 kg CO₂ eq. |
Manufacturing Phase (A1-A3) | 1 kg CO₂ eq. |
Distribution Phase (A4) | 0 kg CO₂ eq. |
Installation Phase (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 6 kg CO₂ eq. |
End-of-life Phase (C1-C4) | 0.4 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile |
Packaging with Recycled Cardboard | No |
Packaging without Single-use Plastic | Yes |
SCIP Number | B078722f-7853-4e1e-a05b-29638f57b0ab |
EU RoHS Directive | Compliant By Exemption |
REACH Regulation | Reference contains SVHC above threshold |
OECD PFAS Regulation | Item contains PFAS Chemicals |
Halogen-free Status | Halogen free plastic parts product |
PVC Free | Yes |
Recyclability Potential | 28% |
End-of-life Manual Availability | No need of specific recycling operations |
Take-back | No |
WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
