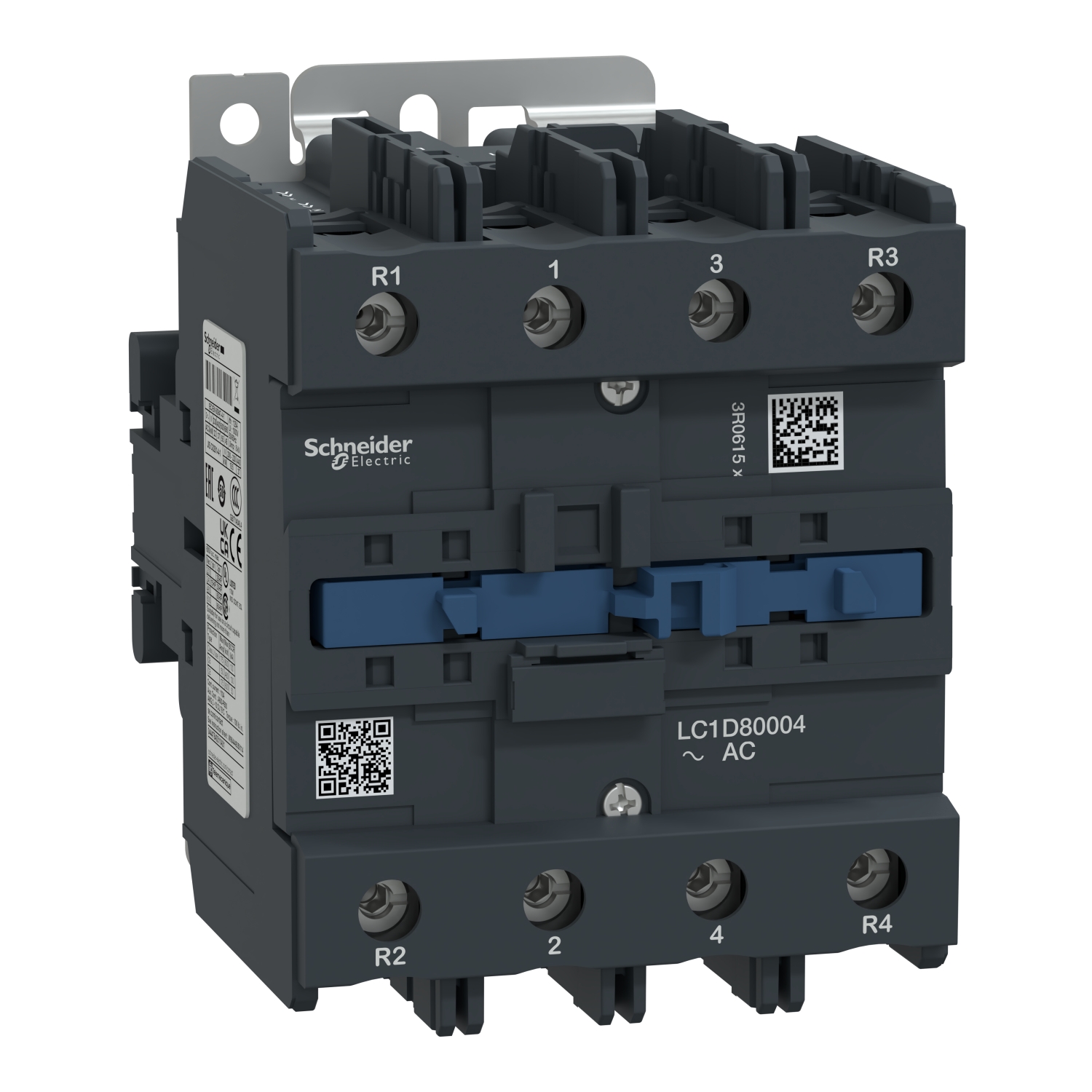

Name: Schneider LC1D80004E7 TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 48 V AC 50/60 Hz coil
Brand: Schneider
Rating: 5.0 (70 reviews)

Brand:
Schneider
Item No:
LC1D80004E7
Delivery Time:
IN STOCK
Payment:
T/T
Shipping Port:
XIAMEN

Quantity:
Availability:





Inquiry Add to Basket

The Schneider Electric LC1D80004E7 is a TeSys Deca series contactor built for AC-1 applications. It comes in a four-pole (4NO) configuration and is rated for loads up to 125 A at 440 V AC. The device uses a 48 V AC coil operating at 50/60 Hz and has no auxiliary contacts. Power and control connections are made through screw clamp terminals, making wiring straightforward. This contactor is designed for reliable switching in industrial control panels and machinery. It offers a mechanical durability of 4 million cycles and an electrical durability of 0.8 million cycles at 125 A AC-1 and 440 V. The unit meets major international standards, including IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, and CSA C22.2 No 14. It can be mounted on a plate or a rail. With a compact and robust construction, it is suitable for demanding environments. Its total lifecycle carbon footprint is 149 kg CO₂ eq., and it has a recyclability potential of 76%, supporting sustainability goals.

Parameter	Value
General
Product Model	LC1D80004E7
Range	TeSys
Product Name	TeSys Deca
Product or Component Type	Contactor
Device Short Name	LC1D
Poles Description	4P
Contact Configuration	4NO (4 normally open)
Utilisation Category	AC-1
Rated Current	125 A at ≤440 V AC
Coil Voltage	48 V AC at 50/60 Hz
Auxiliary Contacts	None
Electrical Characteristics
Control Circuit Type	AC at 50/60 Hz
Coil Technology	Without built-in suppressor module
Control Circuit Voltage Limits	0.85…1.1 Uc (-40…55 °C) operational AC 60 Hz 0.3…0.6 Uc (-40…70 °C) drop-out AC 50/60 Hz 0.8…1.1 Uc (-40…55 °C) operational AC 50 Hz 1…1.1 Uc (55…70 °C) operational AC 50/60 Hz
Inrush Power	245 VA at 50/60 Hz, cos φ 0.75 (at 20 °C)
Hold-in Power Consumption	26 VA at 50/60 Hz, cos φ 0.3 (at 20 °C)
Heat Dissipation	6…10 W at 50/60 Hz
Operating Time	20…35 ms closing 6…20 ms opening
Maximum Operating Rate	3600 cycles/h at 60 °C
Rated Impulse Withstand Voltage (Uimp)	8 kV conforming to IEC 60947
Overvoltage Category	III
Pollution Degree	3
Mechanical & Durability
Mechanical Durability	4 million cycles
Electrical Durability	0.8 million cycles at 125 A AC-1, Ue = 440 V
Safety Reliability Level	B10d = 1,369,863 cycles (nominal load) B10d = 20,000,000 cycles (mechanical load)
Connections & Terminals
Control Circuit Terminals	Screw clamp terminals, 1…4 mm² (flexible/solid)
Power Circuit Terminals	Connector, 4…50 mm² (flexible/solid)
Tightening Torque – Control	2 N·m
Tightening Torque – Power	12 N·m
Mounting
Mounting Support	Plate, Rail
Environmental & Compliance
Standards	EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL 60947-4-1, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, IEC 60335-1:Clause 30.2
EU RoHS Directive	Compliant
REACH Regulation	Free of SVHC above threshold
PVC Free	Yes
Environmental Data
Total Lifecycle Carbon Footprint	149 kg CO₂ eq.
Manufacturing (A1-A3)	12 kg CO₂ eq.
Distribution (A4)	0.2 kg CO₂ eq.
Installation (A5)	0.3 kg CO₂ eq.
Use Phase (B2, B3, B4, B6)	132 kg CO₂ eq.
End-of-life (C1-C4)	4 kg CO₂ eq.
Recyclability Potential	76%
Packaging with Recycled Cardboard	Yes
Packaging without Single-use Plastic	Yes
WEEE Label	Required for EU disposal (separate collection)
