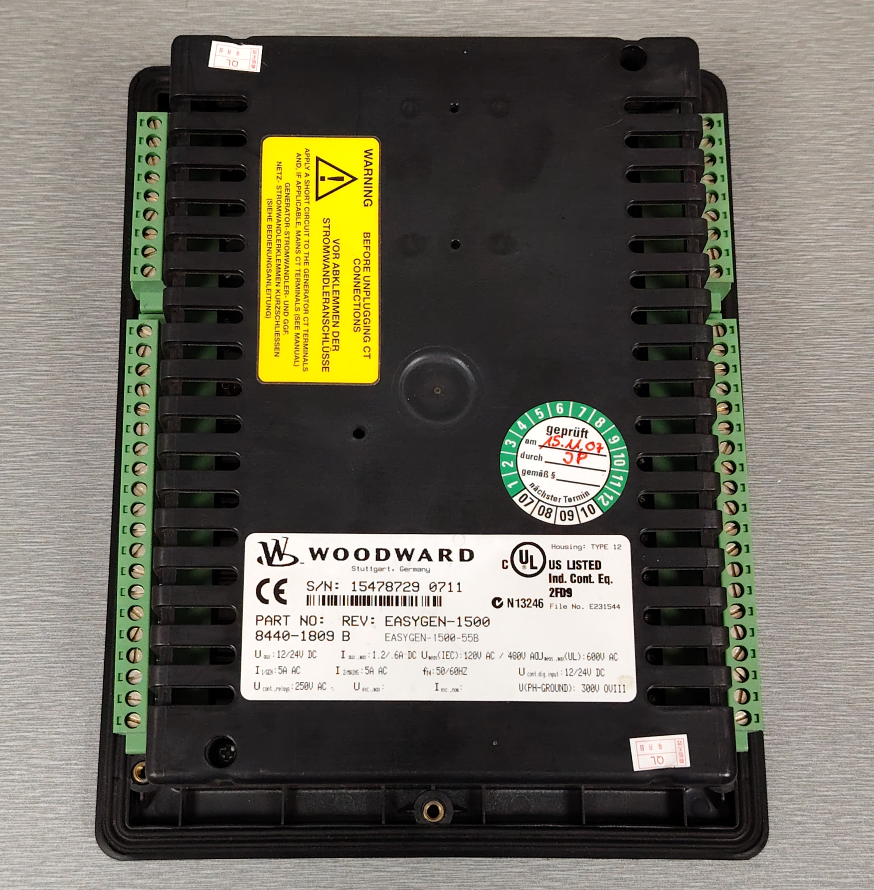

The Woodward easYgen-1500 Series is a second-generation genset controller designed for single-unit operation, offering exceptional flexibility and a user-friendly experience. Model 8440-1809 is a high-performance controller in this series, featuring a large graphical display suitable for various applications ranging from simple measurement conversion to complex automatic mains failure (AMF) and standby power systems.
This controller integrates several innovative technologies, including FlexApp™, DynamicsLCD™, FlexIn™, FlexCAN™, and LogicsManager™, allowing users to freely configure the controller’s functions, I/O, and logic according to specific application needs. Whether used for engine control, single-breaker control, or dual-breaker (GCB/MCB) AMF applications, the easYgen-1500 provides reliable and accurate genset protection and control.
The 8440-1809 employs true RMS measurement technology, supports wide-voltage FlexRange™ inputs, and incorporates comprehensive generator, engine, and mains protection. Its compact flush-mounting design, multi-language interface, event recorder, and various communication interfaces make it an ideal choice for industrial power generation, marine applications, standby power, and island operation.
Key Features & Benefits
FlexApp™ Technology: Configure four application modes (0, 1c, 2c, etc.) to easily adapt to different scenarios without hardware changes.

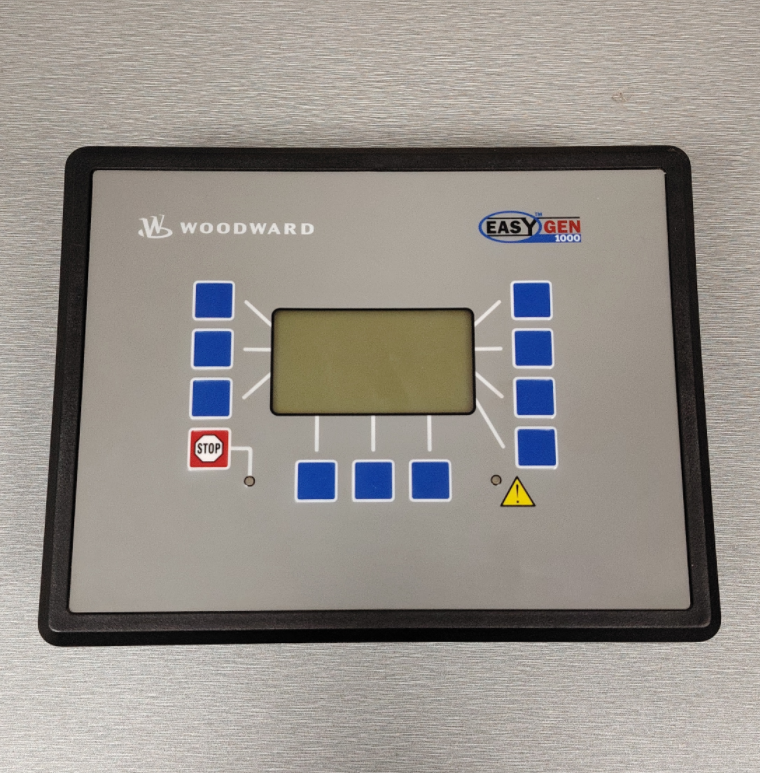

DynamicsLCD™ Graphic Display: 128×64 pixel graphical LCD with softkeys that change dynamically based on operation, providing an intuitive menu.
FlexRange™ Voltage Measurement: Single device supports both 120 Vac and 480 Vac nominal inputs (max 150 Vac / 600 Vac) without hardware jumpers.
Comprehensive Protection: Provides ANSI-based generator protection including over/undervoltage, over/underfrequency, overload, reverse power, unbalanced load, definite/inverse time overcurrent, and ground fault.
FlexIn™ Configurable Analog Inputs: Two analog inputs freely configurable for VDO sensors, PT100, resistive inputs, 0/4-20 mA, etc., with 2-point linear or 9-point user-defined curves.
FlexCAN™ Communication: Isolated CAN bus supporting CANopen, CAL, or J1939 protocols; connects to easYlite remote annunciator, third-party expansion cards, or ECUs (Scania, Volvo, Deutz, mtu).
LogicsManager™ Logic Management: Combine numerous measured values, inputs, internal states, and constants to flexibly control relay outputs or internal functions.
Multi-Language Support: 10 languages built into a single unit (English, German, French, Italian, Spanish, Portuguese, Russian, Turkish, Chinese, Japanese), switchable on-site.
Event Recorder: Stores 300 time-stamped events (FIFO) with battery-backed real-time clock (minimum 6 years).
Remote Monitoring & Control: Supports RS-232 Modbus RTU slave for remote communication, as well as remote control via digital signals or CAN bus.
Wide-Range Power Supply: 6.5 to 40.0 Vdc, compatible with 12 V and 24 V systems.
Full Certifications: CE marked, UL/cUL listed, GL and LR marine approvals.
FlexApp™ Application Modes
The easYgen-1500 Series supports four configuration modes via FlexApp™ technology. Users can select the appropriate mode without hardware changes.
Mode Code | Description | Breaker Control | Typical Application |
0 | Measuring transducer / engine control | No CB control | Measurement and display only, engine start/stop |
1a (1c) | Single breaker control (GCB open only / open-close) | GCB open/close | Generator isolated operation, no mains interaction |
2c | Dual breaker control (GCB and MCB open/close) | GCB and MCB open/close | AMF (auto mains failure), standby power, open transition |
Note: Model 8440-1809 supports full dual-breaker AMF applications with mains voltage and current measurement.
Protection Functions (ANSI Codes)
ANSI Code | Protection Function | Description |
59 / 27 | Overvoltage / Undervoltage | Configurable for generator and mains sides |
81O / 81U | Overfrequency / Underfrequency | Adjustable thresholds and delays |
32 / 32R | Overload / Reverse (reduced) power | Protects generator from motoring |
46 | Unbalanced load | Detects three-phase current imbalance |
50 / 51 | Definite time overcurrent | Phase overcurrent protection |
IEC255 | Inverse time overcurrent | Complies with IEC 255 characteristic curves |
Ground Fault | Calculated + measured ground fault | Configurable as alarm or shutdown |
Additional protections include battery voltage monitoring, overspeed, engine pre-glow or purge control, etc.
I/O Configuration Overview (by Application Mode)
I/O Type | Mode 0 | Mode 1a/1c | Mode 2c |
Speed Input (magnetic/switching) | 1 | 1 | 1 |
Configurable Discrete Alarm Inputs | 8 | 8 | 8 |
Programmable Relay Outputs | 7 | 8 | 9 |
Analog Inputs (FlexIn™) | 2 | 2 | 2 |
CAN Bus (FlexCAN™) | Yes | Yes | Yes |
RS-232 Modbus RTU | Yes | Yes | Yes |
Note: Actual available I/O depends on selected application mode and configuration. LogicsManager™ enables flexible relay assignment.
Measurement & Metering Functions
Generator Measurements: Three-phase voltage, three-phase current, frequency, active power, reactive power, power factor, apparent power, etc.
Mains Measurements: Three-phase voltage, frequency, active power (optional with current input).
Energy Metering: kWh (active energy), kvarh (reactive energy).
Counters:
Event Recorder: 300 events, FIFO, with real-time timestamp (battery backup ≥6 years).
Communication & Remote Control
FlexCAN™:
Supports CANopen, CAL, or J1939 protocols.
Can connect to easYlite remote annunciator for remote alarm display.
Supports communication with third-party expansion cards.
Supports ECU (Engine Control Unit) communication for remote start/stop and alarm management (e.g., Scania, Volvo, Deutz, mtu).
RS-232 Modbus RTU Slave:
Remote Control:
Configuration & Software
PC Configuration Software: DPC (Desktop PC Configuration) software, requires dedicated cable (P/N 5417-557).
Front Panel Configuration: Direct parameter editing via DynamicsLCD™ graphical interface and softkeys, no PC needed.
Multi-Level Password Protection: Prevents unauthorized parameter changes.
Multi-Language Switching: 10 languages built-in, switchable from the front panel.
Model & Ordering Information
Model (P/N) | Description | PT Secondary Rated Voltage | CT Rated Current | Mounting Type |

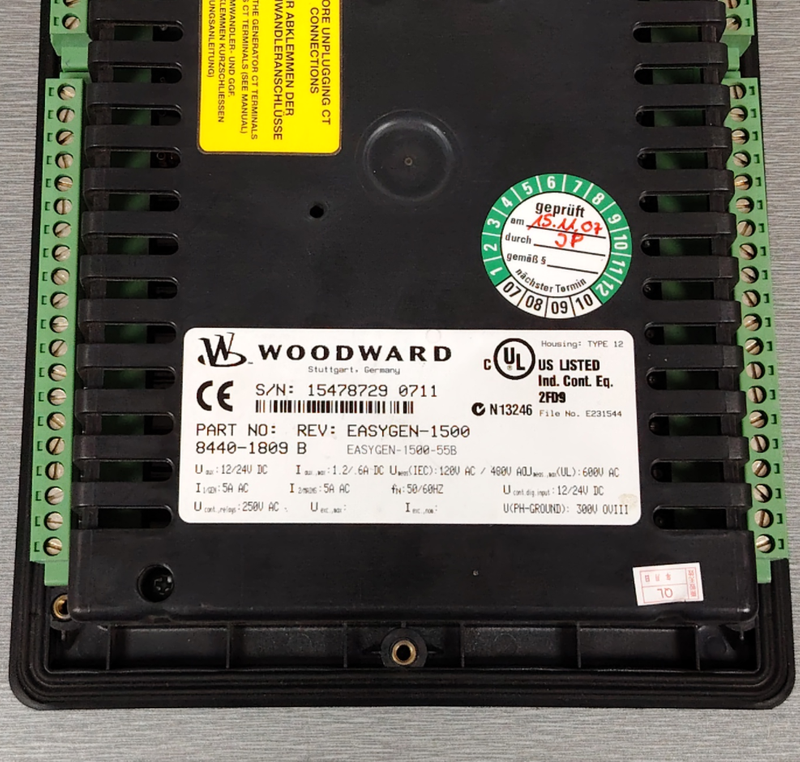

8440-1809 | easYgen-1500-55B | 69/120 Vac and 277/480 Vac (FlexRange™) | /5 A | Flush-mounting |
8440-1810 | easYgen-1500-51B | 69/120 Vac and 277/480 Vac (FlexRange™) | /1 A | Flush-mounting |
Notes:
8440-1809 comes standard with CT secondary rated current of 5 A, suitable for most industrial CTs.
8440-1810 is for 1 A CT systems.
Both models support FlexRange™ voltage input, adapting to 120 Vac or 480 Vac systems without hardware jumpers.
Installation & Dimensions
Mounting: Flush-mounting, suitable for standard electrical panel cutouts.
External Dimensions: 219 mm (W) × 171 mm (H) × 61 mm (D).
Cutout Dimensions: 186 [+1.1] mm × 138 [+1.0] mm.
Fastening: Clip fastening (front IP54) or screw fastening (front IP65).
Wiring: Screw/plug terminals, suitable for 2.5 mm² wire.
