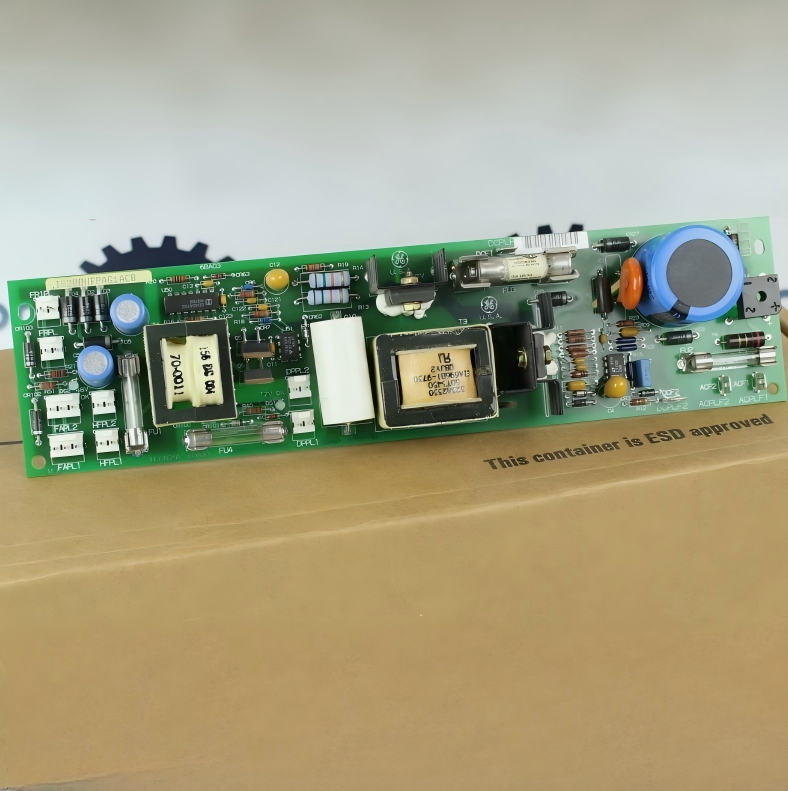

GE IS200HFPAG2A High Frequency AC Fan Power Supply Board

The IS200HFPAG2A is a High Frequency AC/Fan Power Supply Board designed by General Electric (GE) for its Innovation Series™ Drive Systems. This board is the G2 version within the HFPA series, primarily used to convert high-voltage DC or AC input into multiple low-voltage AC/DC outputs, providing stable and reliable power for fans, control circuits, and other auxiliary equipment in the drive system.

The IS200HFPAG2A board utilizes an advanced buck regulator and self-oscillating power supply inverter topology. It can convert a high-voltage DC input of 230–1000 V dc or an AC input of 230 V ac into the required low-voltage outputs. The core of the board is a current and voltage limited buck regulator that chops down the DC link voltage into a non-isolated intermediate voltage of approximately 118 V dc. This intermediate voltage is then fed to a self-oscillating inverter and transformer to produce the final output voltages.

The main difference between the IS200HFPAG2A and the G1 version is the higher output voltage values, making it suitable for applications requiring 52 V and 19.1 V power supplies.

Key features of the IS200HFPAG2A include:

• Dual Input Modes: Supports 230 V ac AC input or 230–1000 V dc DC input, adapting to different field power conditions.

• Multiple Outputs: Provides 52 V ac (25 kHz square wave), 19.1 V ac (25 kHz square wave), and 52 V dc (unregulated fan power).

• Output Power: Maximum total output load of 90 VA.

• Comprehensive Protection: Fuses are provided on both inputs and outputs, ensuring equipment and personnel safety.

• Status Indication: Two LED indicators (17V OK and 48V OK, monitoring 19.1V and 52V outputs respectively).

• Modular Design: Outputs various voltages via eight plug connectors, facilitating system integration.

The board is typically mounted inside the drive system's control cabinet, near the board rack or fan enclosure, and secured in a plastic carrier. The board utilizes surface-mount technology, operates in industrial-grade environments, and is suitable for various AC variable frequency drives and power conversion systems.

II. Main Functions

The primary functions of the IS200HFPAG2A include, but are not limited to, the following:

1. High-Voltage DC Input Conversion

The board accepts a high-voltage DC input of 230–1000 V dc. A current and voltage limited buck regulator converts the input voltage to a non-isolated intermediate voltage of approximately 118 V dc. Control voltage for the regulator is initially supplied by a low-current resistive path and then sustained by the scaled and rectified flyback voltage developed in a bias winding coupled to the regulator's series inductor. This bias winding voltage is also used as feedback to regulate the 118 V level.

2. AC Input Conversion

The board can also accept a 230 V ac, 50–60 Hz AC input. This input is internally rectified and filtered before being fed into the buck regulator, also producing the intermediate voltage. The input circuit is protected by fuse FU2 (250 V, 1.0 A).

3. Multiple Output Generation

The 118 V dc intermediate voltage is fed into a self-oscillating power supply inverter, converting it into an AC square wave that drives the primary of a transformer. The transformer's secondary windings produce the following outputs:

• 52 V ac Output: 25 kHz square wave, ±5% accuracy, output via HFPL1 and HFPL2 connectors, with one being a fused output (SQV48F, corresponding to 52 V).

• 19.1 V ac Output: 25 kHz square wave, ±5% accuracy, output via DPPL1 and DPPL2 connectors, with one being a fused output (SQV17F, corresponding to 19.1 V).

• 52 V dc Output: Unregulated fan power, output via FAPL1 and FAPL2 connectors, powering the cooling fans of the drive system.

4. Fan Reference Signal

The board also provides a fan reference signal (FREF) and common (COM48, corresponding to the 52 V common) via FRPL and FRPL1 connectors, used for controlling or monitoring fan operation.

5. Output Current Limiting

Output current is limited by fusing and restricting the buck regulator switch current to a maximum of 1.5 amps, ensuring the board is not damaged under overload or short circuit conditions.

6. LED Status Indication

Two green LED indicators monitor the main outputs. Note that their labels are still "17V OK" and "48V OK", but they actually monitor the G2 version's output voltages:

• DS1 (17V OK): Lights when the 19.1 V ac output is OK; if off, check fuse FU4.

• DS2 (48V OK): Lights when the 52 V ac and dc outputs are OK; if off, check fuse FU1.

7. Fuse Protection

The board features four fuses protecting different circuits:

• FU1: Protects the 52 V ac/dc power output (G2: 250 V, 2.5 A).

• FU2: Protects the 230 V ac power input (250 V, 1.0 A).

• FU3: Protects the 230–1000 V dc power input (600 V, 2.0 A).

• FU4: Protects the 19.1 V ac fused power output (G2: 250 V, 4.0 A).




III. System Applications

1. Application in Innovation Series Drive Systems

The IS200HFPAG2A is a key power supply module for auxiliary equipment within the Innovation Series drive system. Its roles within the system include:

• Fan Power Supply: Provides 52 V dc power for the drive system's cooling fans, ensuring proper heat dissipation for power modules.

• Control Circuit Power Supply: Provides 52 V ac and 19.1 V ac high-frequency square waves for control circuits, gate drives, and other isolated power needs.

• Input Voltage Adaptation: Accepts either high-voltage DC or AC input, adapting to different field power conditions such as DC link voltage or auxiliary AC power supplies.

2. Differences from the G1 Version

The HFPA series has G1 and G2 versions, with the main difference being the output voltage values:

The G2 version provides higher output voltages, suitable for specific applications requiring higher voltage levels, such as certain fan models or control circuits that may need 52 V power instead of 48 V.

3. Typical Application Scenarios

• AC Variable Frequency Drives: Provides multiple power supplies for fans, control boards, and gate drives within the drive, especially in applications requiring 52 V power.

• Power Conversion Systems: Acts as an auxiliary power supply, drawing power from a high-voltage DC bus to generate 52 V and 19.1 V low-voltage control power.

• Industrial Automation Equipment: Provides isolated power for PLCs, sensors, etc., that require higher voltages.

• Renewable Energy Systems: Powers auxiliary systems in photovoltaic inverters or wind turbine converters.




IV. Detailed Interface Description

1. Input Power Connectors (Stab-on Terminals)

2. 19.1 V ac Output Connectors DPPL1 and DPPL2

These connectors output the 19.1 V ac 25 kHz square wave power. Each connector provides two signals:

Note: The "17" in the signal name represents the voltage value for the G1 version. In the G2 version, the actual output is 19.1 V, but the signal naming remains unchanged.

3. 52 V ac Output Connectors HFPL1 and HFPL2

These connectors output the 52 V ac 25 kHz square wave power:

Note: The "48" in the signal name represents the voltage value for the G1 version. In the G2 version, the actual output is 52 V, but the signal naming remains unchanged.

4. 52 V dc Fan Power Connectors FAPL1 and FAPL2

These connectors output 52 V dc fan power and the fan reference signal:

Note: The "48" in the signal name represents the voltage value for the G1 version. In the G2 version, the actual voltage is 52 V, and the common corresponds to the 52 V return path.

5. Fan Reference Distribution Connectors FRPL and FRPL1

These connectors distribute the fan reference signal and common:

V. Indicators and Fuses

1. LED Indicators

Important Note: Although the LED labels are "17V OK" and "48V OK", in the G2 version they monitor the 19.1 V and 52 V outputs respectively. This is to maintain hardware compatibility with the G1 version; the actual output voltage is determined by the board model.

2. Fuses

VI. Installation and Replacement

1. Mounting Location

The IS200HFPAG2A board is typically mounted inside the drive system's control cabinet, possibly near the board rack or within the fan enclosure, and secured in a plastic carrier. During installation, ensure the board is firmly mounted and all connectors are securely mated.

2. Replacement Procedure

Safety Warnings:

• WARNING: To prevent electric shock, turn off power to the drive system and wait several minutes for all capacitors to discharge. Use high-voltage test equipment to confirm circuits are de-energized before touching.

• CAUTION: To prevent component damage caused by static electricity, treat all boards with static sensitive handling techniques. Wear a grounding strap and store boards in anti-static bags.

Replacement Steps:

1. Verify Power Off: Ensure the drive system is completely de-energized and capacitors are discharged.

2. Open Cabinet Door: Open the applicable drive cabinet door to access the HFPA board.

3. Label Cables: Verify all cables are correctly labeled according to the markings on the board for easy reconnection.

4. Disconnect Cables:

• For ribbon cables, grasp each side of the cable connector and gently pull it loose.

• For cables with pull tabs, carefully pull the tab.

5. Remove Old Board: Remove the two screws holding the HFPA board in the plastic carrier and take out the old board.

6. Inspect New Board: Confirm the new board model is IS200HFPAG2A, matching the original board.

7. Install New Board: Orient the new board in the same position and install it into the carrier with the two screws.

8. Reconnect Cables: Reconnect all cables as labeled, ensuring they are properly seated.

9. Check Fuses: Verify that all four fuses are present and good.

10. Restore Power: Close the cabinet doors and restore power to the system.

3. Fuse Replacement Precautions

• Power must be turned off before replacing fuses.

• Only use fuses with the same specifications for replacement.

• If a replacement fuse blows again, check the load circuit for shorts or overloads.
