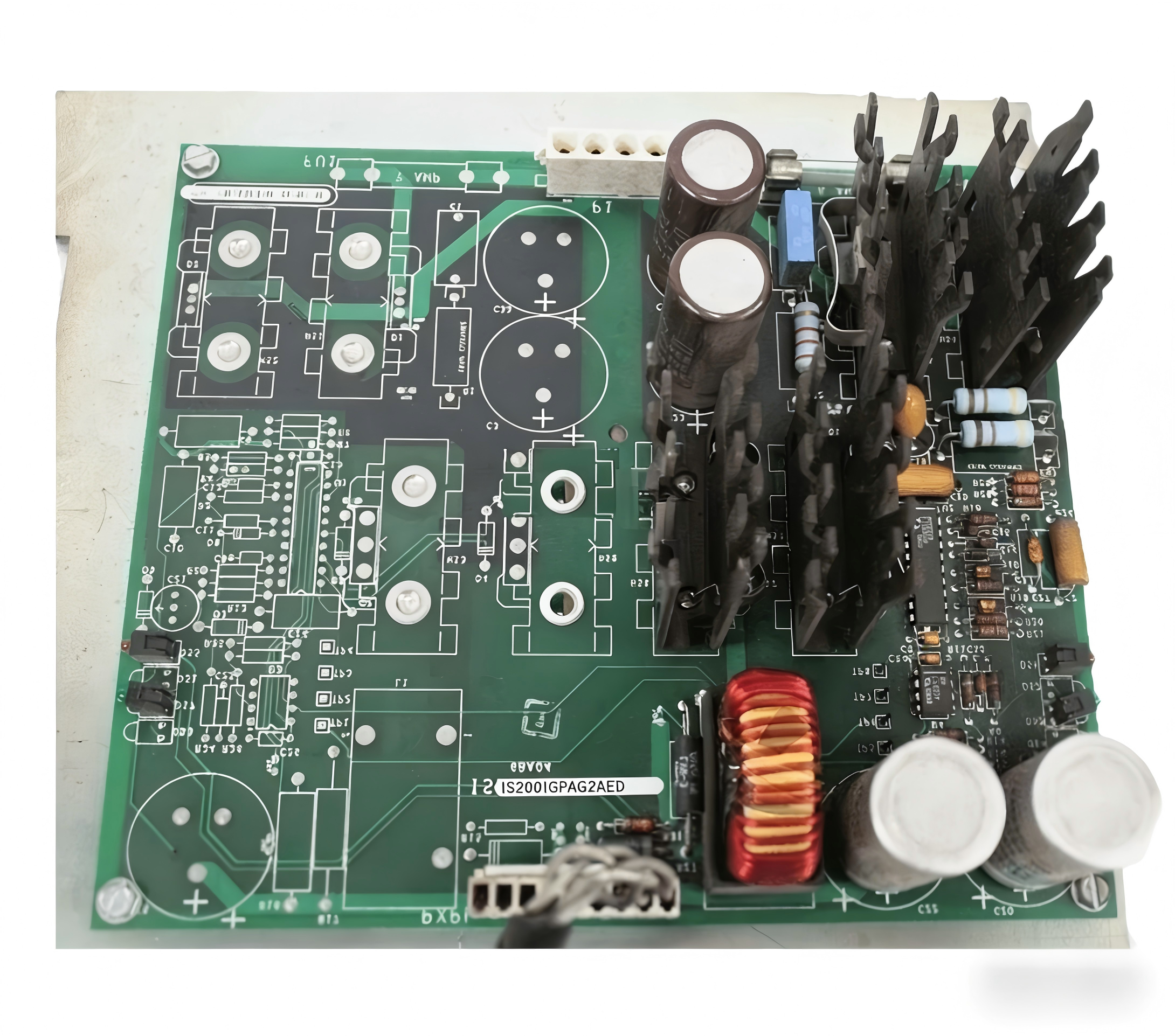

The GE IS200IGPAG2AED Gate Driver Power Supply Board is a specialized power supply module used within GE Industrial Control Systems drive platforms to furnish the DC gate driver power required by each Integrated Gate Commutated Thyristor (IGCT). The IS200IGPAG2AED Gate Driver Power Supply Board is mounted directly on the IGCT, with one board per IGCT, ensuring that the gate driver power is delivered with the shortest possible connections and minimal parasitic effects. The board converts an AC squarewave input from an external isolation transformer into the regulated positive and negative supply voltages required by the IGCT gate driver circuitry, and it provides comprehensive status indication, testpoints, and fuse protection.
The IS200IGPAG2AED Gate Driver Power Supply Board is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "IS200" prefix identifies the board as a GE Industrial Control Systems product, with "200" specifically indicating that the board is a base-level assembly. The "IGPA" acronym identifies the board's functional designation as a Gate Driver Power Supply Board. The "G2" designation identifies the board as a Group 2 board, which has only one power supply incorporated on the board, in contrast to the Group 1 boards which have two power supplies on each board. The "AED" suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components.
The IS200IGPAG2AED Gate Driver Power Supply Board is a floating board that operates at the cathode potential of the IGCT, which can be as high as 3300 to 6600 V AC. Because of this high floating potential, the board cannot be touched or probed when the bridge is energized, and all maintenance must be performed only after the drive has been de-energized and the absence of power has been verified. The board is mounted with six screws, standoffs, and star washers, with the star washers making a protective circuit that shunts accidental high voltage to ground, providing an important safety function for personnel and equipment.
This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE IS200IGPAG2AED Gate Driver Power Supply Board, serving as an essential reference for drive engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Signal Processing
The IS200IGPAG2AED Gate Driver Power Supply Board is built around a robust power conversion architecture that provides both a positive supply for turning on the IGCT and a negative supply for turning off the IGCT. The board receives input power from an external isolation transformer and converts it into the regulated DC voltages required by the gate driver circuitry, with current-mode control and soft-start features ensuring stable and reliable operation.
The general specifications of the IS200IGPAG2AED Gate Driver Power Supply Board define the power and switching characteristics of the board. The board receives a 50 V AC square wave (±1%) at 27 kHz (±1%) from the power supply board through the external isolation transformer, and it includes input fuses rated at 6 A and 7 A. The power dissipation is estimated at 10 W, and the board will function correctly with 80 LFPM of airflow. The switching frequency is 95 kHz, and the common-mode current is defined by the relationship I = c × 6 kV/μs, where c is the isolation transformer capacitance. These specifications ensure that the board can deliver the required gate driver power while maintaining safe operation in the high-voltage floating environment of the IGCT.
The positive supply section of the IS200IGPAG2AED Gate Driver Power Supply Board uses current-mode control with an outer voltage loop to provide a 5 V DC output with ±0.25 V accuracy. The output current is 15 A DC steady-state, with a current limit of 18 A DC. The soft-start time is 200 milliseconds, and the energy storage for regulating is a minimum of 1.0 milliseconds. This positive supply is responsible for turning on the IGCT, and its high current capability ensures that the gate can be driven rapidly and reliably even under demanding switching conditions.
The negative supply section of the IS200IGPAG2AED Gate Driver Power Supply Board also uses current-mode control with an outer voltage loop, providing a −20 V DC output with ±0.8 V accuracy. The output current is 6 A DC, with a current limit of 8 A DC. The soft-start time is 20 milliseconds, and the energy storage for regulating is a minimum of 1.0 milliseconds. This negative supply is responsible for turning off the IGCT, and its regulated output ensures that the gate is reliably biased off when the device is not conducting.
I/O Definitions and Connectors
The IS200IGPAG2AED Gate Driver Power Supply Board includes a 5-pin power supply input connector (P1) and a 9-pin power supply output connector (PXPL). These connectors provide the interface between the board and the external isolation transformer and the IGCT gate driver circuitry, and their pin assignments must be carefully observed during installation and maintenance.
The P1 power supply input connector of the IS200IGPAG2AED Gate Driver Power Supply Board includes five pins. Pin 1 provides AC1P (+20 V AC, 27 kHz), pin 2 provides AC1N (+20 V AC return), pin 3 provides AC2P (40 V AC, 27 kHz), pin 4 provides AC2N (40 V AC return), and pin 5 provides the cathode connection for the external isolation transformer shield. This connector receives the AC squarewave power from the external isolation transformer and delivers it to the board's power conversion circuitry.
The PXPL power supply output connector of the IS200IGPAG2AED Gate Driver Power Supply Board includes nine pins. Pins 1 and 2 provide P5 (the 5 V turn-on supply), pins 3 and 4 provide P5COM (the 5 V return), pin 5 is not connected, pins 6 and 7 provide N20 (the −20 V turn-off supply), and pins 8 and 9 provide N20COM (the −20 V return). This connector delivers the regulated positive and negative supply voltages to the IGCT gate driver circuitry, and the dual pins for each supply and return ensure that the current is distributed across multiple contacts, reducing contact resistance and improving reliability.
LED Indicators and Testpoints
The IS200IGPAG2AED Gate Driver Power Supply Board includes eight LED indicators that provide visual indication of the gating and voltage status of the board, and eight testpoints that allow maintenance personnel to measure the critical voltages and currents during troubleshooting.
The eight LED indicators on the IS200IGPAG2AED Gate Driver Power Supply Board are organized into two functional groups. LEDs 1, 2, 5, and 6 provide gating signal indication, while LEDs 3, 4, 7, and 8 provide voltage presence indications. DS1 is a green LED that turns ON when the 5 V DC output current is greater than 4 A, and DS2 is a yellow LED that turns ON when the 5 V DC output current is greater than 4 A. DS3 and DS4 indicate that the 5 V DC output is ON, DS5 is a gating LED that turns ON when the 20 V DC output current is greater than 2 A, DS6 is a gating LED that turns ON when the 20 V DC output current is less than 2 A, and DS7 and DS8 indicate that the 20 V DC output is ON. These indicators allow maintenance personnel to quickly assess the operating state of the board and to identify the source of a fault.
The eight testpoints on the IS200IGPAG2AED Gate Driver Power Supply Board allow detailed measurement of the positive and negative supply circuits. TP1 provides the signal common for the positive supply, TP2 provides the average current feedback for the positive supply, TP3 provides the power common for the positive supply, and TP4 provides the inductor input voltage for the positive supply. TP5 provides the average current feedback for the negative supply, TP6 provides the signal common for the negative supply, TP7 provides the power common for the negative supply, and TP8 provides the inductor input voltage for the negative supply. Because the testpoints float at bridge potential when the drive is operating, they must only be used when the drive is de-energized and the absence of power has been verified.
Fuse Protection
The IS200IGPAG2AED Gate Driver Power Supply Board includes two fuses that provide circuit protection for the 20 V and 40 V RMS squarewave inputs. FU1 is rated at 7 A, 250 V, 25×1, 3AG, AGC, fast-acting, and FU2 is rated at 6 A, 250 V, 25×1, 3AG, AGC, fast-acting. These fuses protect the board and the external isolation transformer from overcurrent conditions, ensuring that a fault in the board or the gate driver circuitry does not damage the upstream power supply or create a hazardous condition. If a fuse blows, the maintenance technician must first de-energize the drive and verify that no power exists before replacing the fuse with one of the same rating and type.
Application Suitability and System Integration
The IS200IGPAG2AED Gate Driver Power Supply Board is an essential component of GE industrial drive systems that use IGCT power bridges. Because the board is mounted directly on the IGCT, it delivers the gate driver power with the shortest possible connections, minimizing parasitic inductance and ensuring the fast and reliable switching that IGCT devices require. The Group 2 configuration, with only one power supply per board, is suitable for applications where a single positive and negative supply is sufficient for the IGCT gate driver.
In drive applications, the IS200IGPAG2AED Gate Driver Power Supply Board provides the positive supply for turning on the IGCT and the negative supply for turning it off. The positive supply's high current capability and fast soft-start ensure that the gate can be driven rapidly, while the negative supply's regulated output ensures that the gate is reliably biased off when the device is not conducting. The board's current-mode control and energy storage features ensure stable operation even under transient load conditions, and the comprehensive LED indicators and testpoints allow maintenance personnel to quickly verify the board's operation and to diagnose faults.
The board's floating design and the protective circuit formed by the metal standoffs and star washers are critical safety features in the high-voltage environment of the IGCT. The star washers must be seated against the metal surface with the metal standoffs, not with the plastic standoffs, to ensure that the protective circuit properly shunts accidental high voltage to ground. This requirement must be carefully observed during installation and maintenance to ensure the safety of personnel and equipment.
Maintenance and Lifecycle
The IS200IGPAG2AED Gate Driver Power Supply Board is designed for long service life with minimal maintenance. The board contains no moving parts, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the board, connectors, LEDs, and fuses, and verification that the board is securely mounted with all six screws, standoffs, and star washers properly seated.
If a fuse blows, the maintenance technician must first de-energize the drive and verify that no power exists before replacing the fuse with one of the same rating and type. If an LED is off or a testpoint reading is out of specification, the board should be replaced.
If the board requires replacement, the process requires careful attention to safety procedures. After making sure that the drive has been de-energized, the cabinet door should be opened and the circuits tested to ensure that power is off. The electrical connections should be disconnected, the six screws loosened with a ratchet and socket or screwdriver, and the standoffs and star washers caught as the screws are removed, remembering that the star washers are paired with the metal standoffs. The board can then be removed, and the replacement board installed with the six screws, standoffs, and star washers. The screws should be tightened to hold the board securely in place, with the metal standoff star washer biting into the metal surface, not the plastic board, and the electrical connections reconnected before closing the drive cabinet door.
GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement IS200IGPAG2AED Gate Driver Power Supply Board, provide the complete part number and description, the drive serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement boards is guaranteed.
Conclusion
The GE IS200IGPAG2AED Gate Driver Power Supply Board is a reliable, robust, and safety-critical power supply module for GE industrial drive systems with IGCT power bridges. Its two-stage positive and negative supply architecture, current-mode control, soft-start, and energy storage features provide the regulated gate driver power required for reliable IGCT switching, while its comprehensive LED indicators, testpoints, and fuse protection ensure that the board can be easily verified and maintained. The board's floating design and protective star washer circuit provide the safety features required in the high-voltage environment of the IGCT.
With its direct mounting on the IGCT, clearly marked connectors and testpoints, and comprehensive documentation, the IS200IGPAG2AED Gate Driver Power Supply Board is an essential component in GE drive installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the IS200IGPAG2AED Gate Driver Power Supply Board continues to deliver the performance, durability, and safety that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the IS200IGPAG2AED Gate Driver Power Supply Board provides the gate driver power functionality required for reliable and efficient drive operation.
