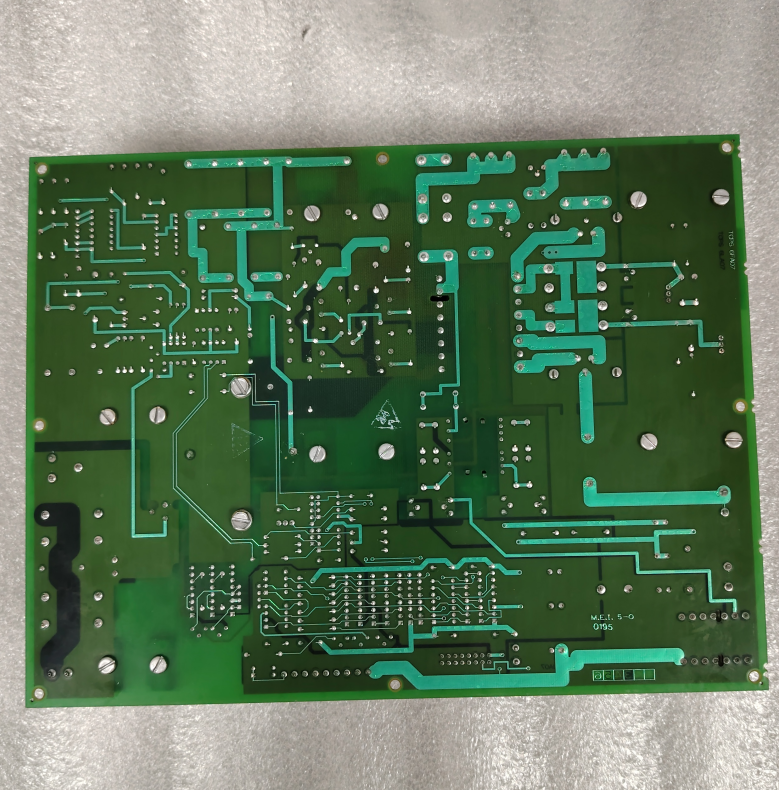

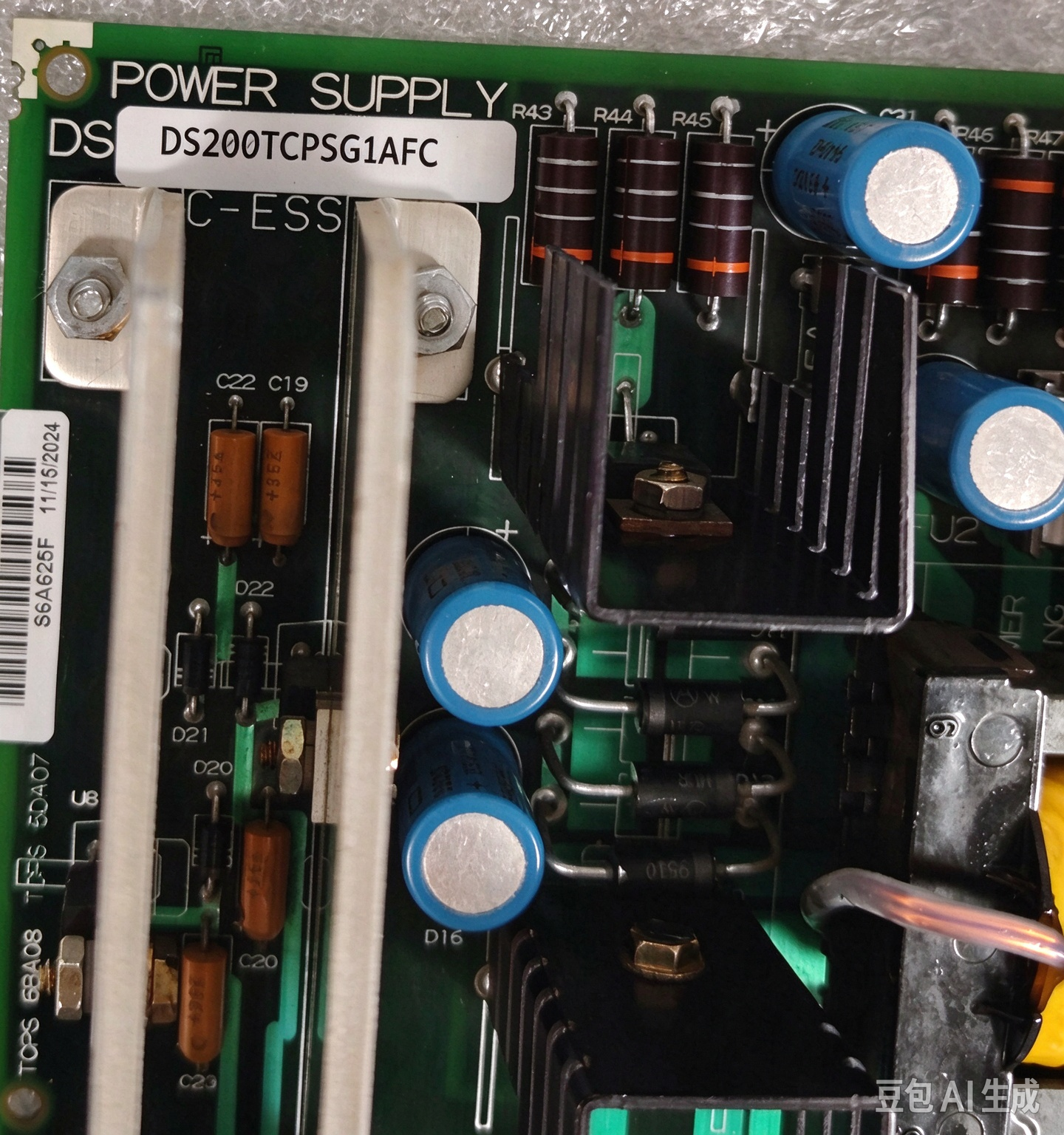

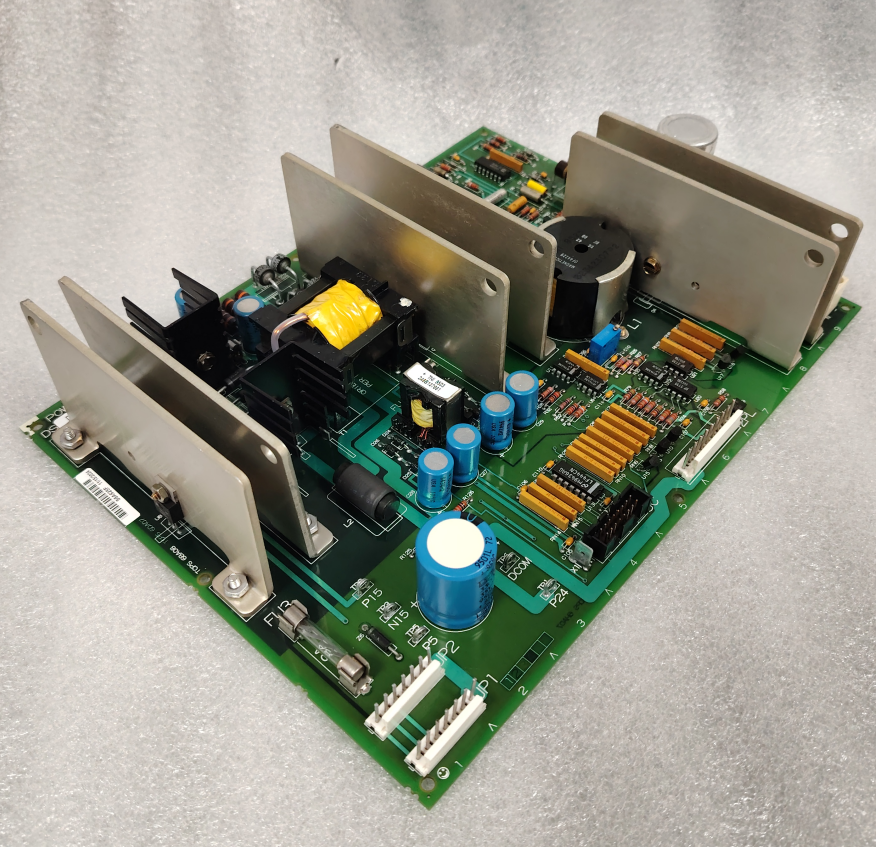

The GE DS200TCPSG1AFC Power Supply Board is a critical power conversion and distribution module used within GE Industrial Control Systems drive and excitation platforms. As a member of the TCPS board family, the DS200TCPSG1AFC Power Supply Board is responsible for converting input power into the regulated voltages required by the control system and for distributing those voltages to the various boards and terminal assemblies within the drive or exciter cabinet. The board operates as part of the power supply core architecture, working in conjunction with other TCPS boards to ensure that every control card, terminal board, and interface module receives stable and reliable power under all operating conditions.
The DS200TCPSG1AFC Power Supply Board is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "DS200" prefix identifies the board as a GE Industrial Control Systems product, with "200" specifically indicating that the board does not contain firmware at the base level. The "TCPS" acronym identifies the board's functional designation as a power supply board. The "G1" designation identifies the hardware group and revision level, while the "AFC" suffix identifies the specific artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components.
The DS200TCPSG1AFC Power Supply Board is typically mounted in the power supply core of the drive cabinet, where it receives input power from the control power transformer or from an upstream power source and generates the regulated DC voltages required by the control system. These voltages typically include +5 V DC for digital logic, ±15 V DC for analog signal conditioning, and ±24 V DC for relay and contactor drivers, along with other application-specific voltages as required by the particular drive or exciter configuration. The board also provides isolation between the input power source and the control system, protecting the sensitive control electronics from voltage transients, ground loops, and other electrical disturbances present on the input power lines.
This product introduction provides detailed technical information, functional descriptions, configuration guidance, and comprehensive specifications for the GE DS200TCPSG1AFC Power Supply Board, serving as an essential reference for drive engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Power Conversion
The DS200TCPSG1AFC Power Supply Board is built around a robust architecture for power conversion, regulation, and distribution. The board performs several distinct functions that together ensure reliable and stable power delivery to the control system, including input rectification and filtering, DC-to-DC conversion, voltage regulation, output filtering, and power distribution.
The primary function of the DS200TCPSG1AFC Power Supply Board is the conversion of input power into the regulated DC voltages required by the control system. The board accepts input power from the control power transformer or from an upstream power source, typically at 38 V AC, 115 V AC, or 24 V DC depending on the specific drive configuration and the power supply architecture employed. The input power is rectified and filtered to produce an unregulated DC voltage, which is then converted by switching regulators or linear regulators into the regulated output voltages.
The DS200TCPSG1AFC Power Supply Board generates multiple output voltages to meet the diverse power requirements of the control system. These typically include +5 V DC for digital logic circuits, which powers the microprocessors, memory devices, gate arrays, and other digital components on the control cards. The +5 V DC output is typically the highest current output, as digital logic circuits can draw significant current, particularly in systems with large amounts of processing capability and memory.
The board also generates ±15 V DC for analog signal conditioning circuits, which power operational amplifiers, analog-to-digital converters, digital-to-analog converters, and other analog components used in the voltage and current feedback circuits. The ±15 V DC outputs are typically lower current than the +5 V DC output, but must be well regulated and low noise to ensure accurate analog signal processing.
The DS200TCPSG1AFC Power Supply Board may also generate ±24 V DC for relay and contactor driver circuits, which power the pilot relays, interposing relays, and contactor coils used to control the field output devices. The ±24 V DC outputs must be capable of supplying the inrush current required by relay and contactor coils, and must be protected against the inductive kickback that occurs when these inductive loads are de-energized.
In addition to these standard voltages, the DS200TCPSG1AFC Power Supply Board may generate other application-specific voltages as required by the particular drive or exciter configuration. These may include isolated voltages for the armature current feedback circuits, bias voltages for the SCR firing circuits, or other specialized voltages required by the control system.
The power conversion architecture of the DS200TCPSG1AFC Power Supply Board is designed to provide high efficiency, low noise, and reliable operation over the full range of input voltage and load conditions. The board employs switching regulator technology for the higher current outputs, achieving high efficiency and reducing heat dissipation, while linear regulators may be used for the lower current outputs where low noise is critical. The board includes comprehensive protection features, including overvoltage protection, overcurrent protection, short circuit protection, and thermal shutdown, ensuring that the board and the control system are protected from damage under fault conditions.
Power Distribution and Interconnection
The DS200TCPSG1AFC Power Supply Board is responsible for distributing the regulated voltages to the various boards and terminal assemblies within the drive or exciter cabinet. The board provides multiple output connectors that interface with the other boards in the system, allowing power to be distributed efficiently and reliably throughout the control system.
The power distribution architecture of the DS200TCPSG1AFC Power Supply Board is designed to minimize voltage drop and noise coupling between the various loads. The board uses separate output connectors for different groups of loads, allowing the power distribution to be tailored to the specific requirements of each board or terminal assembly. This approach also provides a degree of fault isolation, as a fault on one output connector does not necessarily affect the other outputs.
The DS200TCPSG1AFC Power Supply Board typically provides power to the following boards and assemblies within the drive or exciter cabinet: the drive control card (SDCC/LDCC), which contains the main processor, memory, and control logic; the logic control card (SLCC), which contains the sequencing and protection logic; the terminal boards (DTBA, DTBB, TCRA, and others), which provide the field wiring interface; the communication boards (TCQC, TCEA, and others), which provide the IONET and other communication interfaces; the gate driver boards (PCCA and others), which provide the SCR gate pulse signals; and the analog interface boards (SHVI/SHVM and others), which provide the voltage and current feedback circuits.
The power distribution connections are made through plug connectors and ribbon cables, which are keyed to prevent incorrect insertion and are secured with latching mechanisms to prevent accidental disconnection. The connectors are clearly labeled with the board designations and the voltages they carry, simplifying installation and maintenance.
The DS200TCPSG1AFC Power Supply Board also provides monitoring and status signals that allow the control system to verify that the power supplies are operating correctly. These signals may include a power supply enable signal (/PSEN), which indicates that the +5 V DC supply is in regulation, and fault signals that indicate overvoltage, overcurrent, or other fault conditions. The control system can use these signals to generate alarms, initiate protective actions, or switch to a redundant power supply if the system is configured for redundancy.
Configuration and Setup
The DS200TCPSG1AFC Power Supply Board includes configuration options that allow the board to be adapted to the specific requirements of the drive or exciter application. These configuration options may include jumper settings, DIP switch settings, and other hardware configuration elements that determine the board's operating characteristics.
The configuration options on the DS200TCPSG1AFC Power Supply Board are typically factory-set according to the drive configuration and should be verified against the test data sheets supplied with the controller. When replacing a DS200TCPSG1AFC Power Supply Board, the configuration settings on the new board must be set in the same position as on the board being replaced, unless the instructions state otherwise.
The configuration options may include settings for the input voltage range, allowing the board to accept different input voltages depending on the drive configuration. The board may also include settings for the output voltage levels, allowing the board to be adapted to different control system requirements. Other configuration options may include settings for the protection thresholds, the monitoring signals, and the power distribution configuration.
The DS200TCPSG1AFC Power Supply Board may also include test points that allow maintenance personnel to measure the output voltages and verify that the power supplies are operating correctly. These test points are typically clearly labeled with the voltage they carry and the nominal value, allowing quick verification of the power supply operation. The test points may also include a common reference point, allowing differential measurements to be made.
Diagnostics and Fault Detection
The DS200TCPSG1AFC Power Supply Board supports comprehensive diagnostic capabilities that enable the control system to detect and report faults in the power supply circuits. These diagnostics include monitoring of the output voltages, detection of overvoltage and overcurrent conditions, verification of the power supply enable signal, and reporting of board identification and configuration information.
The output voltages of the DS200TCPSG1AFC Power Supply Board are continuously monitored to ensure that they remain within acceptable limits. If an output voltage goes out of regulation, either above or below the acceptable range, a diagnostic alarm is generated, alerting the operator to a power supply fault. The power supply enable signal (/PSEN) is also monitored, and if it indicates that the +5 V DC supply is out of regulation, the control system may generate a microprocessor reset to prevent operation with invalid power.
Overvoltage and overcurrent conditions are detected by protection circuits on the DS200TCPSG1AFC Power Supply Board. If an output voltage exceeds a safe threshold, or if an output current exceeds the rated value, the protection circuit limits the output or shuts down the affected output to prevent damage to the board or the load. A fault signal is generated to alert the control system to the condition, and the control system can take appropriate action, such as switching to a redundant power supply or initiating a controlled shutdown.
Board identification is provided by a read-only chip or hardwired identification circuit on the DS200TCPSG1AFC Power Supply Board. The control processor interrogates this identification circuit during system initialization and verifies that the correct board type and revision are installed. If a mismatch is detected, a hardware incompatibility fault is generated, preventing the drive from operating with incorrect or mismatched hardware.
The DS200TCPSG1AFC Power Supply Board may also include indicators, such as LEDs, that provide visual indication of the power supply status. These indicators may include a power good LED that lights when the output voltages are within regulation, and fault LEDs that light when a fault condition is detected. These indicators provide immediate visual confirmation of the power supply status, enabling rapid troubleshooting.
Application Suitability and System Integration
The DS200TCPSG1AFC Power Supply Board is an integral component of GE's industrial control systems, providing the power conversion and distribution functions that are essential for the operation of the drive or exciter control electronics. Its applications span the full range of GE drive and exciter products, including DC drives, AC drives, and excitation control systems.
In DC drive applications, the DS200TCPSG1AFC Power Supply Board provides the regulated voltages required by the drive control card, the logic control card, the terminal boards, and the gate driver boards. The board's comprehensive protection features ensure that the control system is protected from input power transients and output faults, contributing to high system reliability and availability.
In AC drive applications, the DS200TCPSG1AFC Power Supply Board performs similar functions, supplying power to the control electronics that manage the AC drive's operation. The board's high efficiency and low noise characteristics are particularly important in AC drive applications, where precise control of the output waveform requires accurate analog signal processing.
In excitation control applications, the DS200TCPSG1AFC Power Supply Board provides the power for the exciter's control and protection circuits, including the voltage and current feedback circuits, the SCR firing circuits, and the communication interfaces. The board's isolated outputs are particularly valuable in excitation applications, where the field circuit may be at a high potential relative to ground.
The DS200TCPSG1AFC Power Supply Board is designed for easy integration into the drive system. Its standard connectors, clearly marked test points, and comprehensive diagnostics simplify installation and maintenance. The board's power distribution architecture minimizes voltage drop and noise coupling, ensuring that all control boards receive clean and stable power.
Maintenance and Lifecycle
The DS200TCPSG1AFC Power Supply Board is designed for long service life with minimal maintenance. The board contains no moving parts or user-adjustable components (other than factory-set configuration jumpers and switches), and its solid-state construction ensures high reliability in continuous industrial operation.
Routine maintenance consists of periodic visual inspection of the connectors, cables, and board cleanliness. The input and output cables should be inspected for signs of damage, loose connections, or overheating. The board should be kept free of dust and debris, which can interfere with heat dissipation and cause overheating. The output voltages should be periodically measured at the test points to verify that they remain within specification.
If a board fails, replacement is straightforward. After turning off all power to the drive and verifying that no power exists on the board, disconnect the input and output cables, release the plastic snaps, and remove the board from the carrier. Install the replacement DS200TCPSG1AFC Power Supply Board in the reverse order, ensuring that all configuration jumpers and switches are set identically to the original board. Reconnect all cables, then apply power and verify correct operation through the diagnostic interface and test points.
GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement DS200TCPSG1AFC Power Supply Board, provide the complete part number, the equipment serial number and model number, and the board number and description. The factory may substitute later revisions based on availability, but functional compatibility is guaranteed.
Conclusion
The GE DS200TCPSG1AFC Power Supply Board is a reliable, robust, and versatile power supply module for GE industrial control systems. Its comprehensive power conversion, regulation, and distribution capabilities ensure that all control boards receive stable and reliable power under all operating conditions. The board's comprehensive protection features, including overvoltage, overcurrent, short circuit, and thermal protection, ensure that the board and the control system are protected from damage under fault conditions.
With its standard connectors, clearly marked test points, and comprehensive diagnostics, the DS200TCPSG1AFC Power Supply Board is an essential component in countless industrial installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the DS200TCPSG1AFC Power Supply Board continues to deliver the performance, durability, and ease of use that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the DS200TCPSG1AFC Power Supply Board provides the power conversion and distribution functionality required for reliable and efficient industrial control.
