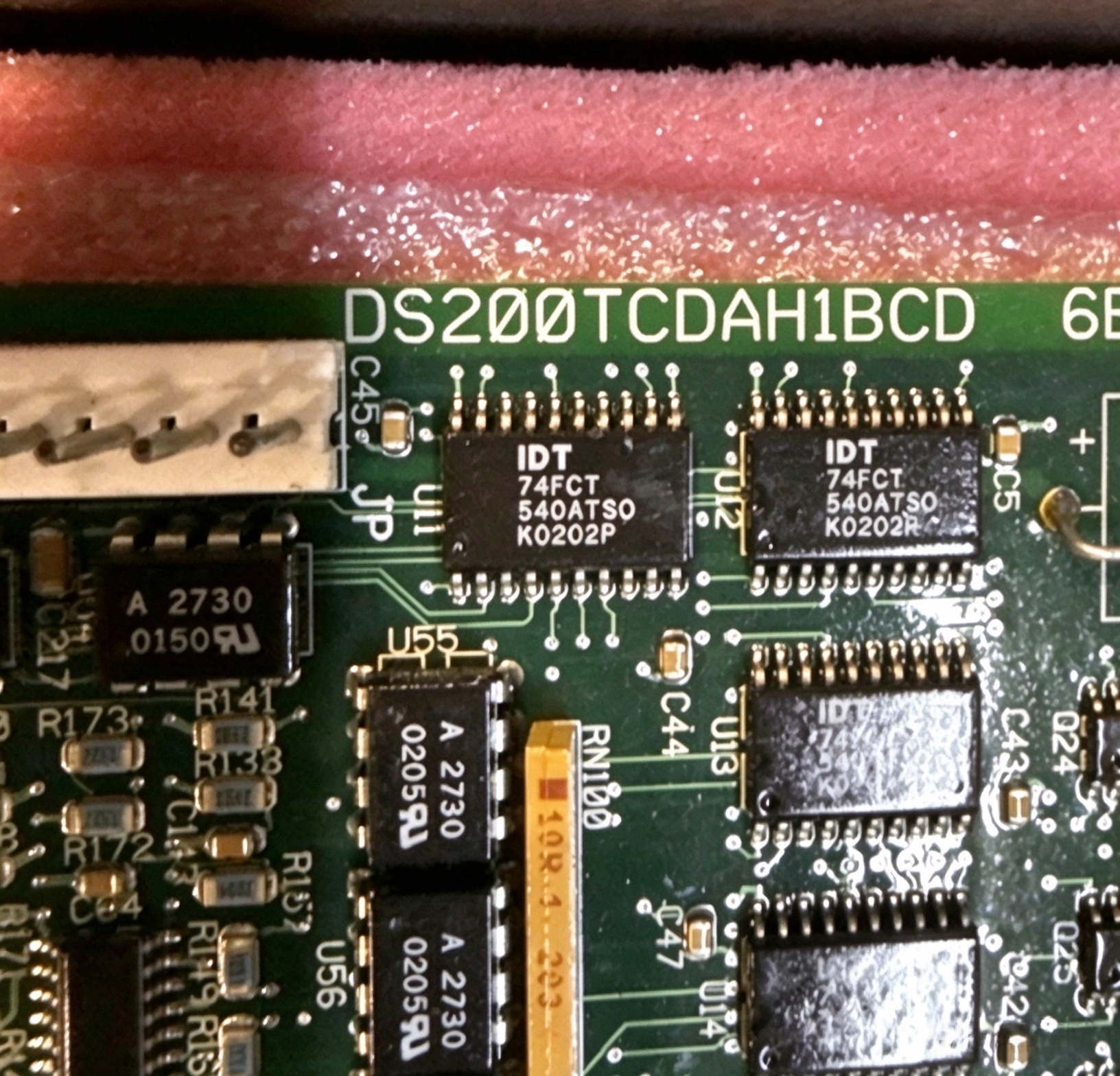

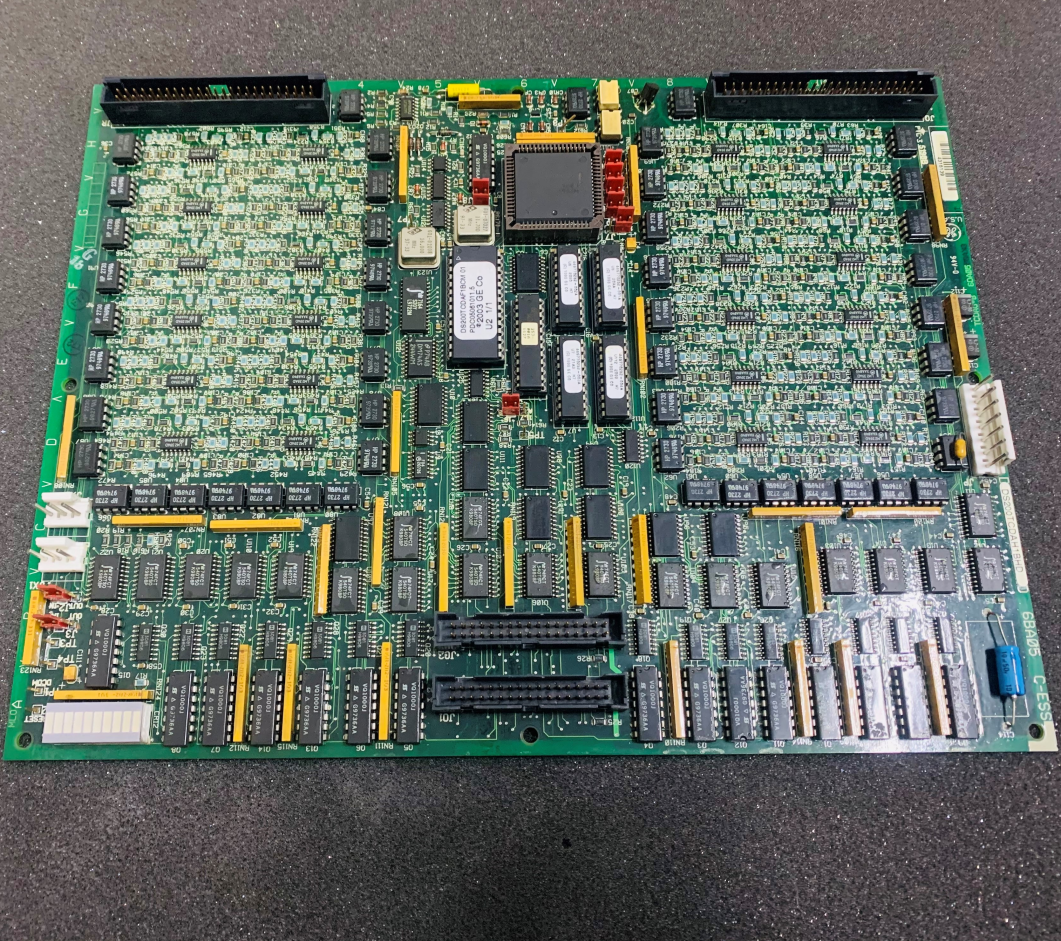

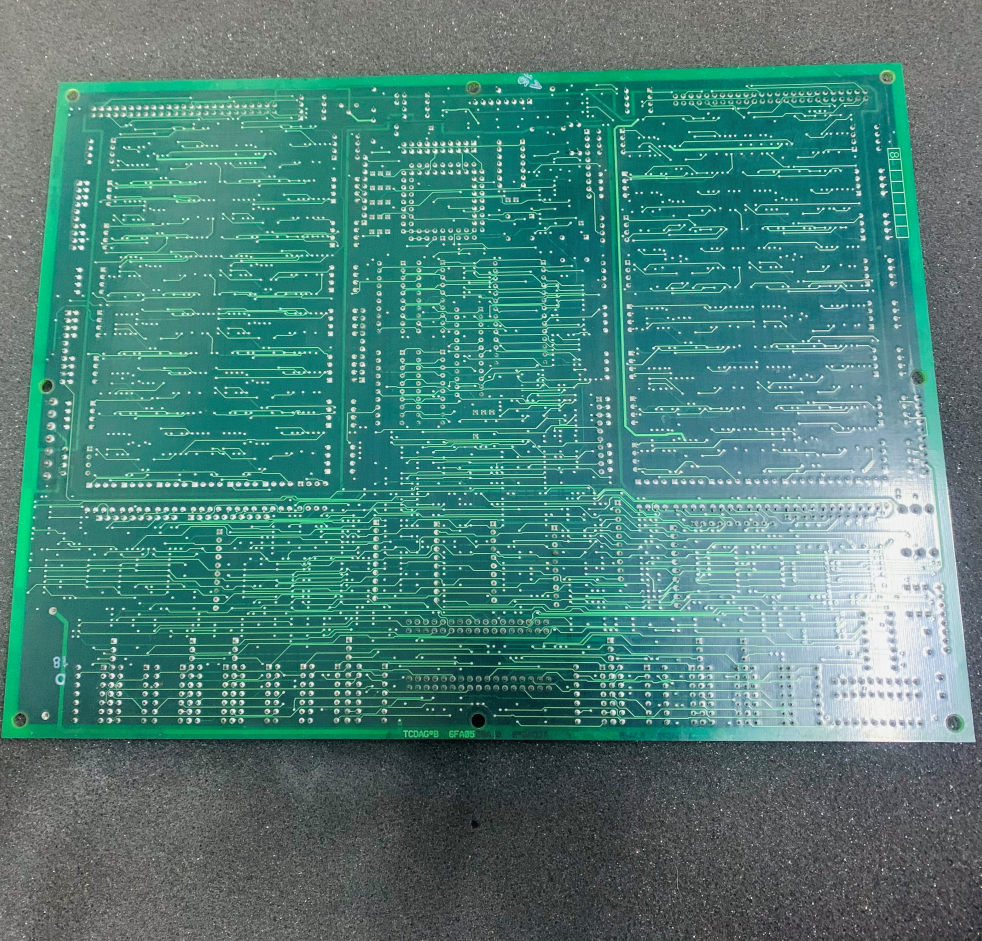

The GE DS200TCDAH1BCD Digital Input Output Board is a digital input/output processor board used within GE Industrial Control Systems drive and excitation platforms. As a member of the TCDA board family, the DS200TCDAH1BCD Digital Input Output Board serves as the central processing and communication hub for digital contact input signals and contact output signals within the digital I/O cores of the drive control system. The board receives contact input signals from DTBA and DTBB terminal boards, processes and conditions these signals, applies time tagging to any change of state, and transmits the resulting data over the IONET communication network to the TCQC board and the CTBA terminal board. In the opposite direction, the DS200TCDAH1BCD Digital Input Output Board writes contact output (relay and solenoid) command signals to the TCRA boards, enabling the control system to drive field output devices through the terminal board interface.
The DS200TCDAH1BCD Digital Input Output Board is located within the digital I/O cores designated as Q11, Q51, and, when present, Q21. These cores form the interface between the field wiring terminated on the DTBA and DTBB terminal boards and the higher-level control and communication functions performed by the TCQC board and the CTBA terminal board. The board's position within this architecture makes the DS200TCDAH1BCD Digital Input Output Board a critical link in the signal chain, responsible for ensuring that field contact states are accurately captured, time-stamped, and communicated to the controller, and that control commands are reliably delivered to the output relay and solenoid drivers.
The DS200TCDAH1BCD Digital Input Output Board is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "DS200" prefix identifies the board as a GE Industrial Control Systems product that does not contain onboard firmware in the conventional sense, with "200" specifically indicating the absence of firmware at the base level. The "TCDA" acronym identifies the board's functional designation as a Digital IO Board. The "H1" designation identifies the hardware group and revision level, while the "BCD" suffix identifies the specific artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components.
This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE DS200TCDAH1BCD Digital Input Output Board, serving as an essential reference for drive engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Signal Processing
The DS200TCDAH1BCD Digital Input Output Board is built around a robust architecture for digital signal acquisition, conditioning, time tagging, and communication. The board performs several distinct functions that together ensure reliable and accurate transfer of digital contact information between the field wiring and the control system.
The primary function of the DS200TCDAH1BCD Digital Input Output Board is the processing of digital contact input signals received from the DTBA and DTBB terminal boards. These terminal boards provide the physical termination points for field contact wiring, accepting discrete signals from pushbuttons, selector switches, limit switches, relay contacts, pressure switches, level switches, temperature switches, and proximity sensors. The contact input signals are carried from the DTBA board to the DS200TCDAH1BCD Digital Input Output Board through the JQ connector, and from the DTBB board through the JR connector. Each of these connectors provides a dedicated pathway for a group of contact input signals, allowing the board to manage multiple input channels simultaneously.
Upon receipt of the contact input signals, the DS200TCDAH1BCD Digital Input Output Board applies signal conditioning circuitry that filters noise, debounces contact transitions, and ensures that only valid state changes are recognized. The board then time tags any change of state, recording the precise moment at which each input transition occurs. This time tagging capability is essential for sequence-of-events recording, fault analysis, and control system diagnostics, allowing engineers to reconstruct the exact order and timing of events leading up to a fault or trip condition.
The contact signal inversions for the DS200TCDAH1BCD Digital Input Output Board are performed through software using I/O configuration constants. This software-based inversion capability provides flexibility in configuring the board to match the field wiring and the control logic requirements, allowing normally-open and normally-closed contacts to be accommodated without hardware changes. The I/O configuration constants for contact input inversions are entered in the I/O Configuration Editor located on the human-machine interface, simplifying configuration and reducing the potential for wiring errors.
Once the contact input signals have been conditioned, time tagged, and configured, the DS200TCDAH1BCD Digital Input Output Board carries the signals to the IONET communication network through the JX1 or JX2 connector. The IONET is a high-speed serial communication network that provides reliable data transfer between the digital I/O cores and the higher-level control boards. The board in the Q11 core writes the signals to the JX2 connection on the TCEA board in location five of the P1 core, while the board in the Q51 core writes the signals to the JX connection on the CTBA terminal board in the R5 core. Either JX1 or JX2 can be used for this function, providing redundancy and flexibility in system wiring.
In addition to its contact input processing functions, the DS200TCDAH1BCD Digital Input Output Board also manages contact output signals. The board receives contact output commands from the control system and writes these signals to the TCRA boards through the JO1 and JO2 connectors. The TCRA boards provide the relay and solenoid driver circuits that interface with the field output devices, such as pilot relays, interposing relays, contactors, solenoid valves, and indicator lamps. The JO1 connector writes the contact output signals to the TCRA board in location four, while the JO2 connector writes to the TCRA board in location five. In the Q11 core, the JO1 connector is not used, since the relays in location four are controlled directly by the TCQE board in the R1 core, reflecting the specific architectural arrangement of that core.
Connector Assignments and Interfaces
The DS200TCDAH1BCD Digital Input Output Board provides a comprehensive set of connectors that interface with the terminal boards, the IONET communication network, the power supply, and the output driver boards. Each connector serves a specific function in the overall signal chain, and understanding these connector assignments is essential for installation, maintenance, and troubleshooting.
The JP connector distributes power from the TCPS board in the R1, R2, and R5 cores to the Q11, Q21, and Q51 cores respectively. This power distribution function ensures that the DS200TCDAH1BCD Digital Input Output Board and the associated terminal boards receive the necessary operating voltages from the centralized power supply. The JP connector is therefore critical to the operation of the board, and any interruption in power distribution will affect all functions of the board and its associated terminal boards.
The JQ connector connects to the JQR socket on the DTBA board, carrying the contact input signals from the DTBA board to the DS200TCDAH1BCD Digital Input Output Board. The DTBA board is one of the two terminal boards that provide the physical interface for contact input signals, and the JQ connector provides the pathway for these signals to reach the processing circuitry on the TCDA board. The JQ connector is typically a multi-pin ribbon cable connector, with each pin corresponding to a specific input channel or a group of input channels.
The JR connector connects to the JRR socket on the DTBB board, carrying the contact input signals from the DTBB board to the DS200TCDAH1BCD Digital Input Output Board. The DTBB board is the second of the two contact input terminal boards, and the JR connector provides the pathway for these additional input signals. Together, the JQ and JR connectors allow the DS200TCDAH1BCD Digital Input Output Board to manage contact inputs from both terminal boards, providing a comprehensive digital input capability for the drive system.
The JO1 connector writes the contact output (relay and solenoid) signals to the TCRA board in location four. The TCRA board provides the output driver circuits that interface with the field output devices, and the JO1 connector carries the command signals from the DS200TCDAH1BCD Digital Input Output Board to the TCRA board. As noted, in the Q11 core, the JO1 connector is not used, since the relays in location four are controlled directly by the TCQE board in the R1 core. This exception reflects the specific architectural arrangement of the Q11 core and must be observed when installing or replacing boards in that core.
The JO2 connector writes the contact output (relay and solenoid) signals to the TCRA board in location five. This connector provides the pathway for output commands to reach the second TCRA board, allowing the DS200TCDAH1BCD Digital Input Output Board to control a larger number of output devices. The JO2 connector is used in all cores where the TCRA board in location five is present, and its signals must be properly configured to match the output device assignments.
The JX1 connector provides a shielded twisted pair interface for the IONET signals. The IONET is the communication network that carries the contact input data from the DS200TCDAH1BCD Digital Input Output Board to the TCQC board and the CTBA terminal board. The JX1 connector is one of two possible IONET connections, with the JX2 connector providing the alternative pathway. Either JX1 or JX2 can be used, providing flexibility in system wiring and redundancy in communication paths. The TCDA board in the Q11 core writes the signals to the JX2 connection on the TCEA board in location five of the P1 core, while the TCDA board in the Q51 core writes the signals to the JX connection on the CTBA terminal board in the R5 core.
The JX2 connector is used for the same function as JX1, providing an alternative IONET connection. The availability of two IONET connectors allows the system designer to select the most convenient routing for the communication cable, and provides a degree of redundancy in case one connector or cable path is damaged or unavailable. Either JX1 or JX2 can be used, but not both simultaneously for the same signal path, as they serve as alternative connection points for the same IONET interface.
Configuration and Setup
The DS200TCDAH1BCD Digital Input Output Board includes eight hardware jumpers that provide configuration options for various board functions. These jumpers are designated J1 through J8, and their settings must be verified and correctly configured during installation and board replacement.
Jumpers J1 and J8 are reserved for factory test purposes. These jumpers are set at the factory during manufacturing and testing, and should not be changed in the field unless specifically instructed by GE technical support. Changing these jumpers without proper authorization may affect the board's operation and could void the warranty.
Jumpers J2 and J3 control the IONET termination resistors. Proper termination of the IONET communication network is essential for reliable data transmission, as incorrect termination can cause signal reflections, data corruption, and communication failures. The termination resistors should be enabled at the ends of the IONET network and disabled at intermediate nodes. The settings of J2 and J3 must be configured according to the board's position in the IONET network, and reference should be made to the hardware document in Appendix B and the signal flow diagrams in Appendix D for specific guidance.
Jumpers J4, J5, and J6 are used to set up the IONET ID for the DS200TCDAH1BCD Digital Input Output Board. The IONET ID is a unique identifier that allows the board to be addressed correctly on the communication network. Each board in the IONET network must have a unique ID, and the jumpers J4, J5, and J6 allow the ID to be set according to the board's location and function within the system. The IONET ID settings must match the system configuration, and reference should be made to Appendix A and the hardware jumper screen on the operator interface for information on the specific settings required for each board position.
Jumper J7 is the stall timer enable. The stall timer provides a protective function that monitors the operation of the board and generates a fault if the board stops responding or if communication is interrupted. Enabling the stall timer ensures that the control system can detect a failed or stalled DS200TCDAH1BCD Digital Input Output Board and take appropriate action, such as switching to a redundant board or initiating a controlled shutdown. The stall timer enable jumper should be set according to the system requirements and the redundancy configuration.
In addition to the hardware jumper settings, the DS200TCDAH1BCD Digital Input Output Board also requires software configuration. The I/O configuration constants for the contact input inversions are entered in the I/O Configuration Editor located on the human-machine interface. These constants determine whether each contact input is interpreted as normally-open or normally-closed, and allow the control logic to correctly interpret the field contact states. The software configuration must match the physical wiring and the intended control logic, and should be verified during system commissioning and after any board replacement.
The hardware document in Appendix B and the signal flow diagrams in Appendix D contain more information on the configuration and setup of the DS200TCDAH1BCD Digital Input Output Board. These documents provide detailed guidance on jumper settings, connector assignments, signal flow, and system integration, and should be consulted whenever configuring, installing, or troubleshooting the board.
The contact input circuits of the DS200TCDAH1BCD Digital Input Output Board are responsible for receiving, conditioning, and processing the digital contact signals from the DTBA and DTBB terminal boards. These circuits form the primary interface between the field contact wiring and the control system, and their reliable operation is essential for accurate monitoring of field device states.
The DS200TCDAH1BCD Digital Input Output Board carries contact inputs from the DTBA and DTBB terminal boards via the JR and JQ connectors. The DTBA board provides the physical termination points for one group of contact inputs, and the DTBB board provides the termination points for another group. The contact input signals are carried from these terminal boards to the DS200TCDAH1BCD Digital Input Output Board through the JQ and JR connectors, which are typically multi-conductor ribbon cables designed for reliable signal transmission in the drive environment.
The circuitry in the DS200TCDAH1BCD Digital Input Output Board conditions the signals received from the terminal boards, ensuring that the signals are clean, debounced, and suitable for further processing. The conditioning circuitry includes filtering to attenuate high-frequency noise, threshold detection to discriminate between valid on and off states, and debouncing to prevent false transitions caused by contact bounce or mechanical vibration. The conditioning circuitry also provides protection against overvoltage and reverse polarity conditions, ensuring that the board is not damaged by field wiring faults or transient voltage spikes.
After conditioning, the DS200TCDAH1BCD Digital Input Output Board time tags any change of state for each contact input. The time tagging function records the precise moment at which each input transition occurs, allowing the control system to reconstruct the sequence of events and to perform accurate sequence-of-events analysis. This capability is particularly valuable for diagnosing faults and trips, as it allows engineers to determine the exact order and timing of events leading up to a protective action. The time tagging resolution and accuracy are critical for these applications, and the DS200TCDAH1BCD Digital Input Output Board is designed to provide the necessary precision.
The contact signal inversions are done through software using I/O configuration constants. This software-based approach allows the board to accommodate normally-open and normally-closed contacts without hardware changes, simplifying configuration and reducing the potential for wiring errors. The I/O configuration constants are entered in the I/O Configuration Editor located on the human-machine interface, and the settings must match the physical wiring and the intended control logic.
Once the contact input signals have been conditioned, time tagged, and configured, the DS200TCDAH1BCD Digital Input Output Board carries the signals to the IONET via the JX1 or JX2 connector. The IONET is a high-speed serial communication network that provides reliable data transfer between the digital I/O cores and the higher-level control boards. The use of a serial communication network reduces wiring complexity and improves noise immunity compared to parallel signal transmission, and the IONET protocol includes error detection and correction features that ensure data integrity.
The contact output circuits of the DS200TCDAH1BCD Digital Input Output Board are responsible for transmitting the contact output commands from the control system to the TCRA boards, which in turn drive the field output devices. These circuits provide the pathway for control commands to reach the relay and solenoid drivers, enabling the control system to operate field devices such as pilot relays, interposing relays, contactors, solenoid valves, and indicator lamps.
The contact output signals are carried to the TCRA boards via the JO1 and JO2 connectors. The JO1 connector writes the contact output signals to the TCRA board in location four, while the JO2 connector writes to the TCRA board in location five. In the Q11 core, the JO1 connector is not used, since the relays in location four are controlled directly by the TCQE board in the R1 core. This exception reflects the specific architectural arrangement of the Q11 core and must be observed when installing or replacing boards in that core.
The TCRA boards provide the output driver circuits that interface with the field output devices. These driver circuits are designed to sink or source sufficient current to operate the field devices, and include protection against short circuits, overcurrent conditions, and inductive kickback from relay coils and solenoid loads. The TCRA boards also provide status feedback to the control system, allowing the processor to verify that the output commands have been executed correctly and to detect faults in the output circuits.
The contact output circuits of the DS200TCDAH1BCD Digital Input Output Board are designed to provide reliable and responsive control of the field output devices. The board receives the output commands from the control system through the IONET or through direct backplane connections, and writes these commands to the TCRA boards through the JO1 and JO2 connectors. The timing and sequencing of the output commands are controlled by the drive control logic, which ensures that the output devices are operated in the correct order and at the correct times to achieve the desired control response.
Diagnostics and Fault Detection
The DS200TCDAH1BCD Digital Input Output Board supports comprehensive diagnostic capabilities that enable the control system to detect and report faults in the digital I/O circuits. These diagnostics include monitoring of the IONET communication link, detection of board failures, verification of output driver operation, and reporting of board identification and configuration information.
The IONET communication link is continuously monitored for errors and interruptions. The IONET protocol includes error detection and correction features that allow the control system to detect corrupted data and to request retransmission. If the communication link fails or if the error rate exceeds acceptable limits, a diagnostic alarm is generated, alerting the operator to a communication fault. The stall timer function, enabled by jumper J7, provides an additional level of protection by generating a fault if the board stops responding or if communication is interrupted for an extended period.
Board failures are detected through a combination of self-test functions and communication monitoring. The DS200TCDAH1BCD Digital Input Output Board performs self-tests during power-up and periodically during operation, verifying the integrity of the processing circuitry, memory, and communication interfaces. If a self-test fails, a diagnostic alarm is generated and the board may be taken out of service, allowing a redundant board to assume control if the system is configured for redundancy.
Output driver verification is provided through status feedback from the TCRA boards. The control processor compares the commanded output state with the actual output state, as reported by the TCRA boards, and generates a fault if a discrepancy is detected. This verification ensures that the output devices are operating correctly and that the field wiring is intact, and allows the control system to detect and respond to output circuit faults.
Board identification is provided by a read-only chip or hardwired identification circuit on the DS200TCDAH1BCD Digital Input Output Board. The control processor interrogates this identification circuit during system initialization and verifies that the correct board type and revision are installed in each location. If a mismatch is detected, a hardware incompatibility fault is generated, preventing the drive from operating with incorrect or mismatched hardware. This feature is particularly important in systems with multiple board types, as it ensures that the correct board is installed in each location and that the system configuration matches the physical hardware.
Application Suitability and System Integration
The DS200TCDAH1BCD Digital Input Output Board is an integral component of GE's industrial control systems, providing the digital I/O processing and communication functions that connect the field contact wiring to the drive control processor. Its applications span the full range of GE drive and exciter products, including DC drives, AC drives, and excitation control systems.
In DC drive applications, the DS200TCDAH1BCD Digital Input Output Board processes the contact inputs from operator controls, interlock circuits, and auxiliary equipment, and manages the contact outputs that drive pilot relays, indicator lamps, and annunciators. The board's time tagging capability is particularly valuable in DC drive applications, where sequence-of-events analysis is often required to diagnose complex faults and trips.
In AC drive applications, the DS200TCDAH1BCD Digital Input Output Board performs similar functions, interfacing with the discrete field devices associated with the drive, motor, and driven load. The board's fast response time and robust noise immunity are essential for capturing transient events and ensuring correct sequencing of the drive's startup, running, and shutdown operations.
In excitation control applications, the DS200TCDAH1BCD Digital Input Output Board provides the digital I/O processing for the exciter's control and protection circuits. The board monitors the status of field breakers, cooling equipment, and protective relays, and controls the exciter's contactors and indicating devices through the TCRA boards.
The DS200TCDAH1BCD Digital Input Output Board is designed for easy integration into the drive system. Its standard connectors, clearly marked jumpers, and comprehensive diagnostics simplify installation and maintenance. The board's IONET communication interface reduces wiring complexity and improves noise immunity compared to parallel signal transmission, and the software-configurable input inversions provide flexibility in matching the board to the field wiring and control logic.
Maintenance and Lifecycle
The DS200TCDAH1BCD Digital Input Output Board is designed for long service life with minimal maintenance. The board contains no moving parts or user-adjustable components (other than the configuration jumpers), and its solid-state construction ensures high reliability in continuous industrial operation.
Routine maintenance consists of periodic visual inspection of the connectors, cables, and board cleanliness. The ribbon cables connecting the DS200TCDAH1BCD Digital Input Output Board to the DTBA and DTBB terminal boards, and to the TCRA boards, should be inspected for signs of damage, loose connections, or contamination. The IONET cables should be checked for proper termination and shielding, and the jumper settings should be verified against the system configuration.
If a board fails, replacement is straightforward. After turning off all power to the drive and verifying that no power exists on the board, disconnect the ribbon cables and IONET cables, release the plastic snaps, and remove the board from the carrier. Install the replacement DS200TCDAH1BCD Digital Input Output Board in the reverse order, ensuring that all jumpers (J1–J8) are set identically to the original board, particularly the IONET termination (J2, J3), IONET ID (J4, J5, J6), and stall timer enable (J7) settings. Reconnect all cables, then apply power and verify correct operation through the diagnostic interface.
GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement DS200TCDAH1BCD Digital Input Output Board, provide the complete part number, the equipment serial number and model number, and the board number and description. The factory may substitute later revisions based on availability, but functional compatibility is guaranteed.
Conclusion
The GE DS200TCDAH1BCD Digital Input Output Board is a reliable, robust, and versatile digital I/O processor board for GE industrial control systems. Its comprehensive contact input processing, time tagging, software-configurable inversion, and IONET communication capabilities ensure accurate and timely transfer of digital contact information between the field wiring and the control system. The board's contact output management functions, through the JO1 and JO2 connectors to the TCRA boards, provide reliable control of field output devices such as relays and solenoids.
With its standard connectors, clearly marked configuration jumpers, and comprehensive diagnostics, the DS200TCDAH1BCD Digital Input Output Board is an essential component in countless industrial installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the DS200TCDAH1BCD Digital Input Output Board continues to deliver the performance, durability, and ease of use that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the DS200TCDAH1BCD Digital Input Output Board provides the digital I/O processing and communication functionality required for reliable and efficient industrial control.
