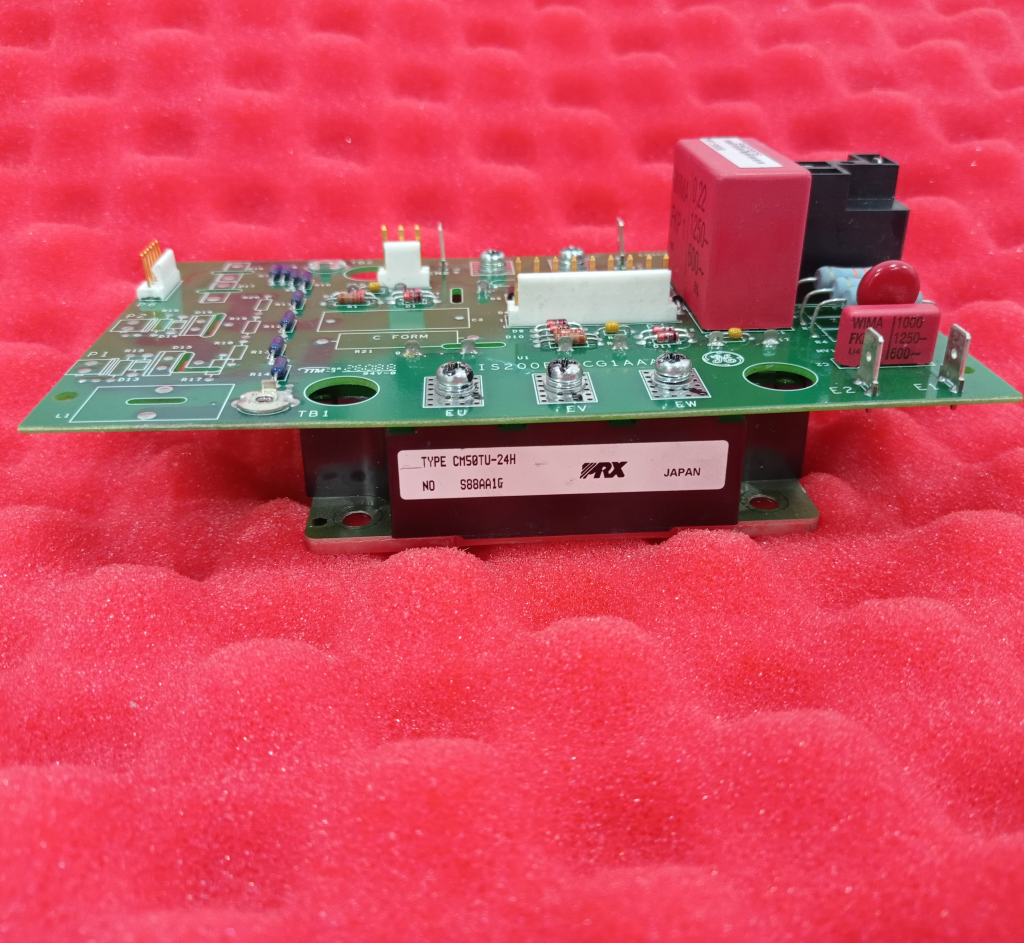

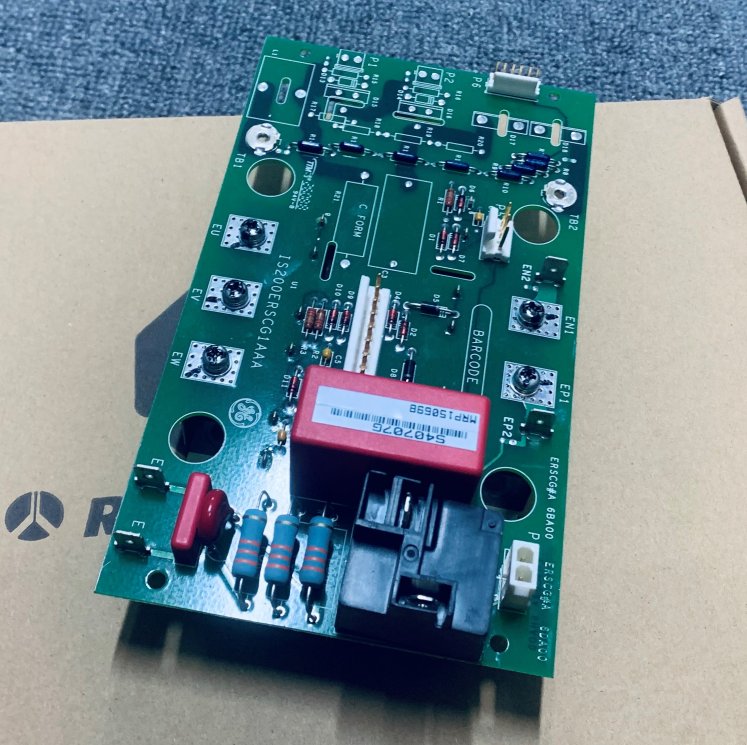

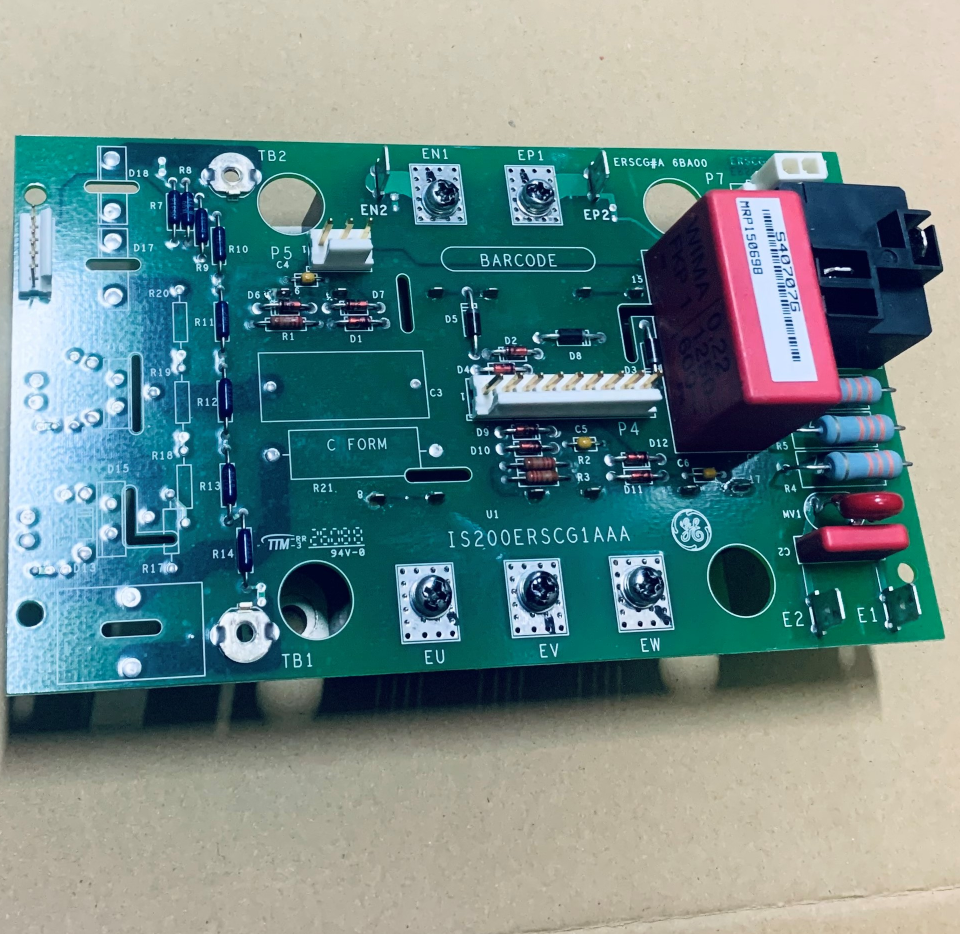

The IS200ERSCG1A is the core power conversion board within the General Electric (GE) EX2100 excitation control system, designed specifically for IGBT-based regulator applications. As the Exciter Regulator Static Converter board (ERSC), the IS200ERSCG1A undertakes the critical task of converting DC link electrical energy into precisely controlled Pulse Width Modulated (PWM) excitation output current. It serves as the physical embodiment of the entire excitation Power Conversion Module (PCM). The board is installed in the Exciter Regulator Backplane (ERBP) and works in close coordination with the ERDD (Exciter Regulator Interface and Dynamic Discharge) board to receive control commands and report power device status. Together, they complete the final transformation from digital control commands to generator field current.
At its heart, the IS200ERSCG1A features an integrated three-phase IGBT inverter bridge module. Within this module, two IGBTs are specifically allocated for producing the PWM DC output to drive the generator excitation winding. A third IGBT is dedicated to the DC link dynamic discharge function—when a generator load rejection or trip causes the DC link voltage to rise rapidly, this IGBT quickly and safely dissipates the excess energy stored in the DC link capacitors through an external high-power discharge resistor. This "two-in-one" design concept achieves a high degree of integration of precise excitation current regulation and rapid system protection within a single compact board.
System Positioning and Architecture Integration
Within the power chain of the EX2100 IGBT excitation regulator, the IS200ERSCG1A is situated between the DC link and the excitation output circuit. Upstream, it receives various levels of DC operating power from the EPSM power supply module via the ERBP backplane, and draws its power input from the DC link. Downstream, it connects directly to the generator's excitation winding (through a DC contactor or breaker). Regarding the control signal chain, the IS200ERSCG1A interfaces with the ERDD board through a dedicated cable, receiving IGBT gate drive pulses from the ERDD and sending back critical feedback information such as the DC link voltage, output shunt current, IGBT temperature, and gate drive status (including power supply status and desaturation fault signals).
The IS200ERSCG1A supports both simplex and Warm Backup redundant system configurations, corresponding one-to-one with the ERDD board. In a simplex system, a single IS200ERSCG1A handles all power conversion tasks. In a redundant system, two IS200ERSCG1A boards are installed respectively in the backplanes of the M1 and M2/C control sections, serving as mutual backups, with seamless transfer achieved through the ERRR Redundant Relay board.
Regarding power input, the DC link for the IS200ERSCG1A can be supplied from two sources: an AC rectified power source, derived from the generator terminals or an auxiliary bus through an excitation transformer and a diode rectifier; or a 125 V or 250 V nominal DC station battery source. Both are combined after diode isolation and filtering, providing redundant power supply assurance for the DC link.
Detailed Core Functions
1. IGBT Pulse-Width Modulated Excitation Output
The IGBT inverter bridge inside the IS200ERSCG1A chops and modulates the DC link voltage into the required excitation voltage and current. The chopping frequency is approximately 1000 Hz, a selection that balances IGBT switching losses, output current ripple, and electromagnetic compatibility requirements. By precisely controlling the PWM duty cycle, the IS200ERSCG1A can deliver a continuously adjustable excitation output from zero to its maximum rated value, meeting the automatic voltage regulation needs of the generator under varying loads and operating conditions.
In terms of output performance, the IS200ERSCG1A can provide a maximum continuous excitation current of 20 A DC, with a 150% forcing capability (maximum 30 A DC) for 10 seconds. This transient forcing capability is crucial for maintaining generator voltage during power system faults—when a severe disturbance such as a short circuit occurs on the power grid, the excitation system must instantaneously and significantly boost the excitation current to prevent generator voltage collapse.
The output circuit includes a DC shunt that monitors the excitation current in real time. This signal, after being conditioned by the ERDD board, is sent back to the controller, forming the feedback basis for Field Current Regulation (FCR) and Over-Excitation Limiting (OEL).
2. Dynamic Discharge Protection
The third IGBT on the IS200ERSCG1A board is dedicated to the DC link dynamic discharge function. When a generator unit experiences a sudden load rejection, an emergency trip, or a grid fault that causes the DC link capacitor voltage to spike due to energy feedback, the ERDD board detects that the DC link voltage has exceeded the safe threshold. It immediately sends a drive signal to turn this discharge IGBT on, rapidly dissipating the energy stored in the capacitors through an external high-power discharge resistor. This protective action is entirely implemented in hardware, providing an extremely fast response without needing controller software intervention. It thus reliably protects the power devices and DC link capacitors from high-voltage damage even during communication loss or processor abnormality.
3. DC Link Soft Charging
To prevent excessive inrush current into the DC link capacitors upon initial power-up, the IS200ERSCG1A works with relay K3 to implement a DC link soft charging function. At the beginning of power-up, K3 is in an open state, and the DC link charges slowly through a current-limiting resistor. Once the DC bus voltage reaches a preset value, K3 closes, bypasses the current-limiting resistor, and the system enters normal operation. This process is executed automatically each time the excitation system starts, effectively extending the service life of the DC link capacitors and the rectifier bridge.
4. Comprehensive Monitoring and Protection
To ensure the safe operation of the IGBT power module, the IS200ERSCG1A integrates multiple monitoring and protection functions:
IGBT Desaturation Detection: The gate driver for each IGBT continuously monitors the collector-emitter voltage when the device is on. If this voltage exceeds a preset threshold (indicating the IGBT has come out of full saturation and entered the linear region with high power dissipation), the driver immediately turns off the IGBT and reports the fault to the ERDD.
Temperature Monitoring: Temperature sensing elements installed on the IGBT heat sink provide bridge over-temperature alarm and trip protection signals.
Gate Drive Power Supply Monitoring: The supply voltage for each IGBT gate driver is monitored in real time to ensure that the driver can produce adequate gate drive voltage under all operating conditions.
