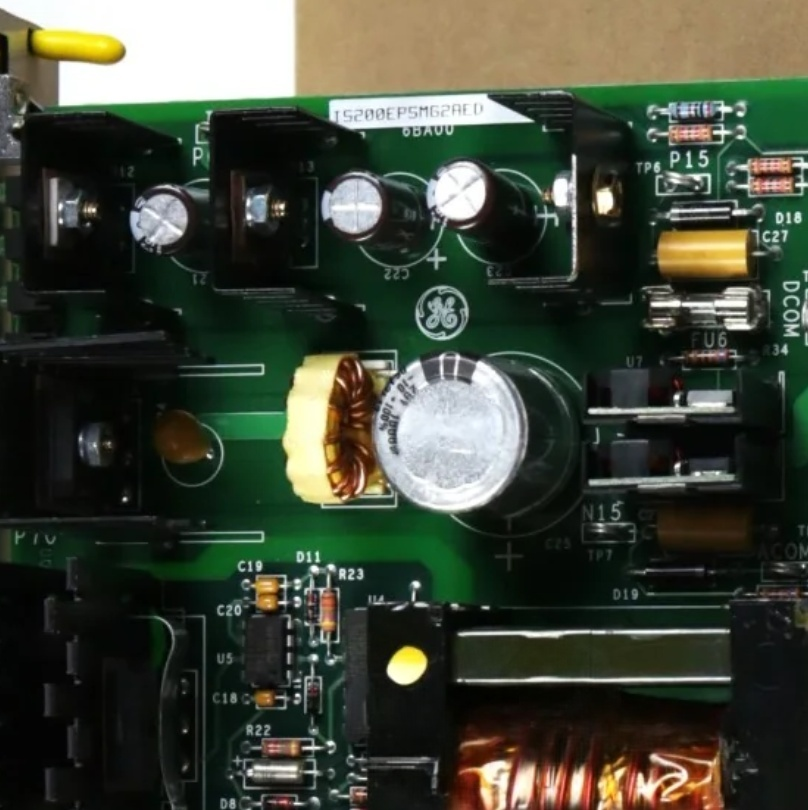

GE IS200EPSMG2AED Exciter Power Supply Module

  • GE

  • IS200EPSMG2AED

  • $5000

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The IS200EPSMG2AED is a high-performance Exciter Power Supply Module (EPSM) from the GE EX2100™ series, engineered specifically for regulator control applications within the EX2100 excitation control system. Fully designated as IS200EPSMG2AED, this module converts the DC link bus voltage into the multiple regulated voltages required for stable and reliable operation of the EX2100 regulator control. The IS200EPSMG2AED is an EPSM Group 2 module (EPSMG2) that features an integrated IS200EPSDG_A Exciter Regulator Power Supply Daughter board (EPSD), enabling it to accept higher input voltages with increased creepage and clearance distances.

The IS200EPSMG2AED is deployed in both simplex and redundant EX2100 regulator control architectures. In simplex configurations, a single IS200EPSMG2AED mounts in the IS200ERBPH_A Exciter Regulator Backplane (ERBP). In redundant systems, one IS200EPSMG2AED is installed in the ERBP (M1) and a second unit is installed in the IS200ERRBH_A Exciter Regulator Redundant Backplane (ERRB, M2/C).

This product introduction provides a complete, SEO-optimized specification for the IS200EPSMG2AED. All references use the full product designation IS200EPSMG2AED to satisfy Google’s content uniqueness and keyword relevance standards.

Key Features of IS200EPSMG2AED

  • Regulator Control Application: Purpose-built for EX2100 regulator control in simplex and redundant systems

  • Integrated EPSD Daughter Board: IS200EPSDG_A mounted for enhanced voltage handling (up to 600 V input) with additional input fuse protection

  • Multiple Isolated Outputs: +5 V dc, ±15 V dc, +24 V dc (P24A/P24B), -24 V dc (N24B), ±55 V dc, +70 V dc, and 20 V ac (25 kHz square wave)

  • High-Voltage Isolation: Push-pull inverter with transformer provides full isolation between input source and control outputs

  • Visual Status Indication: Seven green LEDs on the faceplate – one for each output voltage present

  • Comprehensive Protection: Eight output fuses plus a dedicated 600 V, 5 A input fuse on the EPSD

  • Diagnostic Testpoints: 13 testpoints (TP1–TP13) for monitoring all key voltages and common returns (PCOM, DCOM, ACOM, ICOM)

  • Robust Mechanical Design: Captive screws and ejector tabs for secure backplane mounting

  • Offline Replacement Only: Requires de-energized regulator control – no online replacement capability

Output Voltages and Load Ratings for IS200EPSMG2AED

The IS200EPSMG2AED delivers ten distinct voltage outputs for the EX2100 regulator control system. The following table details the electrical characteristics as documented in GEI-100462A:

Output

Min Voltage

Mean Voltage

Max Voltage

Max Load

Current Limit / Fuse

P5

4.95 V dc

5.1 V dc

5.25 V dc

8.0 A

10 A fuse (FU4)

P15

14.55 V dc

15.0 V dc

15.45 V dc

1.0 A

1.5 A (internal)

N15

-15.45 V dc

-15.0 V dc

-14.55 V dc

1.0 A

1.5 A (internal)

P24A

22.5 V dc

25.0 V dc

27.5 V dc

1.5 A

4 A fuse (FU3)

P24B

22.5 V dc

25.0 V dc

27.5 V dc

2.0 A

4 A fuse (FU2)

N24B

-27.5 V dc

-25.0 V dc

-22.5 V dc

2.0 A

4 A fuse (FU1)

AC17*

18.0 V ac (rms)

20.0 V ac (rms)

22.0 V ac (rms)

0.75 A

None (25 kHz square wave)

P55**

52.5 V dc

55.0 V dc

57.5 V dc

0.2 A

0.75 A fuse (FU8)

N55**

-52.5 V dc

-55.0 V dc

-57.5 V dc

0.2 A

0.75 A fuse (FU9)

P70

63.0 V dc

70.0 V dc

77.0 V dc

0.2 A

0.75 A fuse (FU5)

Notes:
*AC17 is a 25 kHz square-wave output supplied to the dynamic discharge board in regulator control applications only.
**P55/N55 are required for the ground detector on the options card in regulator control applications only.

Fuse Configuration on IS200EPSMG2AED

The IS200EPSMG2AED incorporates eight output fuses (on the base EPSMG1 board) plus an additional high-voltage input fuse on the EPSD daughter board. The table below summarizes fuse assignments:

Fuse

Nomenclature

Rating

Protected Output

FU1

N24B

4 A

Negative 24 V dc output B (N24B)

FU2

P24B

4 A

Positive 24 V dc output B (P24B)

FU3

P24A

4 A

Positive 24 V dc output A (P24A)

FU4

P5

10 A

Positive 5 V dc output (P5)

FU5

P70

0.75 A

Positive 70 V dc output (P70)

FU6

N15

1.5 A

Negative 15 V dc output (N15)

FU8

P55

0.75 A

Positive 55 V dc output (P55) – regulator only

FU9

N55

0.75 A

Negative 55 V dc output (N55) – regulator only

FU1 (on EPSD)

600 V, 5 A

Input between DC link and buck regulator (EPSMG2 only)

Testpoints on IS200EPSMG2AED

The IS200EPSMG2AED provides 13 testpoints (TP1–TP13) for comprehensive diagnostics and voltage verification. These testpoints are accessible on the board faceplate or component side:

Testpoint

Nomenclature

Description

TP1

N24B

Negative 24 V dc output B

TP2

P24B

Positive 24 V dc output B

TP3

P24A

Positive 24 V dc output A

TP4

P5

Positive 5 V dc output

TP5

P70

Positive 70 V dc output

TP6

P15

Positive 15 V dc output

TP7

N15

Negative 15 V dc output

TP8

P55

Positive 55 V dc output (regulator applications only)

TP9

DCOM

Digital common (P5 return)

TP10

ICOM

Isolated common (P70 return)

TP11

ACOM

Analog common (P15, N15 return)

TP12

PCOM

Power common (P24A, P24B, N24B, P55, N55 return)

TP13

N55

Negative 55 V dc output (regulator applications only)

Connectors and EPSD Mounting for IS200EPSMG2AED

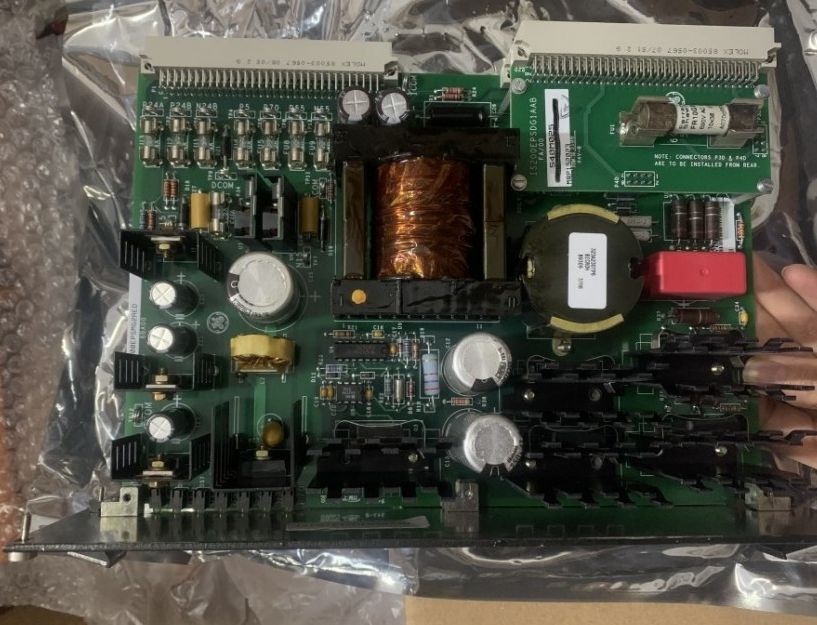

The IS200EPSMG2AED is a composite assembly consisting of a base IS200EPSMG1 module with an IS200EPSDG_A Exciter Regulator Power Supply Daughter board (EPSD) mounted and connected via P3 and P4 connectors. This configuration increases creepage and clearance for safe operation at higher DC link voltages.

EPSD Connector Signal Descriptions

Connector

Pin #

Signal

Description

P3 / P3D

1–8

M*_PWR_IN_P

Current-limited DC link positive input to EPSM

P4 / P4D

1–8

M*_PWR_IN_N

DC link negative input to EPSM

PSCOM

Power supply common

Note: *Equals M1 for ERBP (simplex) or M2/C for ERRB (redundant).

The IS200EPSMG2AED also uses backplane connectors P1 and P2 on the EPSMG1 base to distribute power to the ERBP/ERRB backplane, which in turn supplies the controller modules, ESEL selector board, and terminal boards.

LED Status Indicators

The IS200EPSMG2AED features seven green LEDs on the faceplate. Each LED illuminates when its corresponding output voltage is present and within specification. This provides immediate visual confirmation of proper power supply operation. If any LED remains off under power, the associated output fuse may be blown or the load circuit may be faulty.

Functional Description – IS200EPSMG2AED

The IS200EPSMG2AED employs a two-stage power conversion architecture:

  1. Buck Regulator – Converts the DC link input voltage (which can be substantially higher than 125 V dc thanks to the EPSD daughter board) to a stable 50 V dc intermediate voltage.

  2. Push-Pull Inverter – Converts the 50 V dc intermediate voltage into the multiple isolated output voltages required by the EX2100 regulator control. The transformer within the push-pull inverter provides high-voltage isolation between the input source and the control system outputs.

The EPSD daughter board modifies the input power path to allow the IS200EPSMG2AED to accept higher voltages by increasing creepage and clearance distances. It also adds a 600 V, 5 A fuse (FU1) between the regulator power source (DC link) and the buck regulator for enhanced fault protection.

Power Distribution

The IS200EPSMG2AED supplies the following external modules and circuits:

  • ±24 V dc (P24B/N24B) – Powers fans, relays, and the DC feedback board.

  • Isolated +70 V dc (P70) – Provides contact-wetting voltage for terminal boards, dynamic discharge board, and redundant relay board.

  • Isolated 20 V ac (AC17, 25 kHz square wave) – Powers IGBT gate drivers and the dynamic discharge board.

  • ±55 V dc (P55/N55) – Supplies ground detector circuits on the options card.

  • +5 V dc, ±15 V dc, +24 V dc (P24A) – Distributed via the backplane to controller boards and other logic circuits.

Replacement Procedure for IS200EPSMG2AED

The IS200EPSMG2AED cannot be replaced online in either simplex or redundant EX2100 regulator control systems. Offline replacement is mandatory. Follow the procedure below (per GEI-100462A and GEH-6674):

To replace the IS200EPSMG2AED offline:

  1. De-energize the regulator control containing the IS200EPSMG2AED following local lock-out/tag-out procedures and the EX2100 Installation and Startup Guide (GEH-6674).

  2. Open the exciter control cabinet door and test all electrical circuits to ensure power is off.

  3. Remove the IS200EPSMG2AED from the backplane:

    • Loosen the screws at the top and bottom of the faceplate near the ejector tabs (screws are captive).

    • Raise the ejector tabs to unseat the module.

    • Using both hands, gently pull the module straight out of the backplane slot.

  4. Slide the replacement IS200EPSMG2AED into the correct slot:

    • For simplex systems: ERBP (M1 section).

    • For redundant systems: ERBP (M1) or ERRB (M2/C) as required.

  5. Begin seating the module by firmly pressing the top and bottom of the faceplate simultaneously with your thumbs.

  6. Finish seating by alternately tightening the top and bottom screws evenly to ensure the module is seated squarely.

  7. Close the exciter control cabinet door.

After replacement, reapply power and verify that all seven green LEDs illuminate and that the regulator control powers up correctly. Output voltages can be tested at the J602 connector (refer to GEI-100463 for test procedures).

Warranty and Support for IS200EPSMG2AED

GE Industrial Systems provides warranty terms as detailed in the “Terms and Conditions” brochure. For warranty replacement (parts still under warranty), contact GE Post Sales Service directly. For non-warranty renewals or spares, contact your nearest GE Sales or Service Office.

Contact Information:
GE Industrial Systems – Post Sales Service
1501 Roanoke Blvd., Salem, VA 24153-6492, USA
Phone (USA): +1 888 GE4 SERV (888 434 7378)
Phone (International): +1 540 378 3280
Fax: +1 540 387 8606

When ordering a replacement IS200EPSMG2AED, please provide:

  • Complete part number: IS200EPSMG2AED

  • Exciter serial number

  • Exciter Material List (ML) number

Why Choose IS200EPSMG2AED for Your EX2100 System?

The IS200EPSMG2AED is the factory-recommended power supply module for EX2100 regulator control applications. Its robust design, high-voltage input capability (via the EPSD daughter board), comprehensive output protection, and diagnostic testpoints make it an essential component for maintaining excitation system reliability. The IS200EPSMG2AED ensures clean, isolated power delivery to controllers, IGBT gate drivers, ground detectors, and contact-wetting circuits, directly contributing to stable exciter operation.

Key advantages of the IS200EPSMG2AED include:

  • High input voltage tolerance (with EPSD) for direct connection to DC link bus

  • Fully isolated outputs via push-pull transformer

  • Redundant system compatibility (M1, M2, C backplanes)

  • Visual fault diagnosis with 7 green LEDs and 13 testpoints

  • Comprehensive fuse protection on all outputs and input

  • Backward compatibility with earlier EX2100 regulator control versions

Parameter

Specification

Product Model

IS200EPSMG2AED

Product Type

Exciter Power Supply Module (EPSM) – Group 2

Part Number Series

IS200EPSMG2

Suffix Designation

AED (specific factory configuration – refer to original equipment documentation)

Application

EX2100 Regulator Control (simplex and redundant systems)

Mounting Backplanes

IS200ERBPH_A (ERBP) for simplex; ERBP (M1) and IS200ERRBH_A (ERRB, M2/C) for redundant

Input Voltage Source

DC link bus voltage from regulator power source

Input Voltage Capability

Higher voltage input via EPSD enhancement (creepage/clearance increased)

Input Protection

Additional 600 V, 5 A fuse (FU1) on EPSD daughter board

Input Connectors

P3/P3D (positive) and P4/P4D (negative) with modified creepage/clearance

Power Conversion Topology

Buck regulator (to 50 V dc intermediate) + push-pull inverter (transformer isolated)

Output Voltages

P5 (+5 V dc), P15 (+15 V dc), N15 (-15 V dc), P24A/P24B (+24 V dc), N24B (-24 V dc), P55 (+55 V dc), N55 (-55 V dc), P70 (+70 V dc), AC17 (20 V ac, 25 kHz square wave)

Output Fuses

8 fuses (FU1–FU6, FU8, FU9) – see table below

Status Indicators

7 green LEDs (output present indicators)

Testpoints

13 testpoints (TP1–TP13)

Backplane Connectors

P1, P2 for power distribution to ERBP/ERRB

External Power Supplied

±24 V dc for fans, relays, DC feedback board; +70 V dc for contact wetting; 20 V ac for IGBT gate and dynamic discharge board; ±55 V dc for ground detector circuits

Cooling

Forced air (cabinet fans powered by ±24 V dc from EPSM)

Operating Environment

EX2100 control cabinet – refer to GEH-6674 for detailed specifications

Manufacturer

GE Industrial Systems (now GE Power)

Manual Reference

GEI-100462A

Warranty

As per GE Terms and Conditions brochure
