The GE IS200EBKPG1CAA Exciter Backplane is a central structural and electrical interconnection assembly used in the EX2100™ Excitation Control system. As a member of the EBKP board family, the IS200EBKPG1CAA Exciter Backplane is part of the control module and provides the backplane for the control boards, along with the connectors for the I/O terminal board cables. The IS200EBKPG1CAA Exciter Backplane serves as the physical mounting structure and the electrical distribution hub for the entire control rack, enabling the control boards to communicate with each other and with the field wiring through the terminal board cables.
The IS200EBKPG1CAA Exciter Backplane is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "IS200" prefix identifies the assembly as a GE Industrial Control Systems product, with "200" specifically indicating that the assembly is a base-level board. The "EBKP" acronym identifies the assembly's functional designation as an Exciter Backplane. The "G1" designation identifies the hardware group and normal coating, while the "CAA" suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any assembly, as assemblies of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement assemblies while noting that different revision levels may not contain identical components.
The IS200EBKPG1CAA Exciter Backplane has three sections for the controllers M1, M2, and C. Each section has its own independent power supply, ensuring that a fault or power loss in one section does not affect the operation of the other sections. Sections M1 and M2 both have the ACLO or ACLE, DSPX, EISB, EMIO, and ESEL boards, providing fully redundant control channels. Section C has the DSPX, EISB, and EMIO boards, providing the common or coordinating control functions. The IS200EBKPG1CAA Exciter Backplane is mounted in a rack holding the control boards, with two cooling fans at the top to provide forced-air cooling for the control electronics.

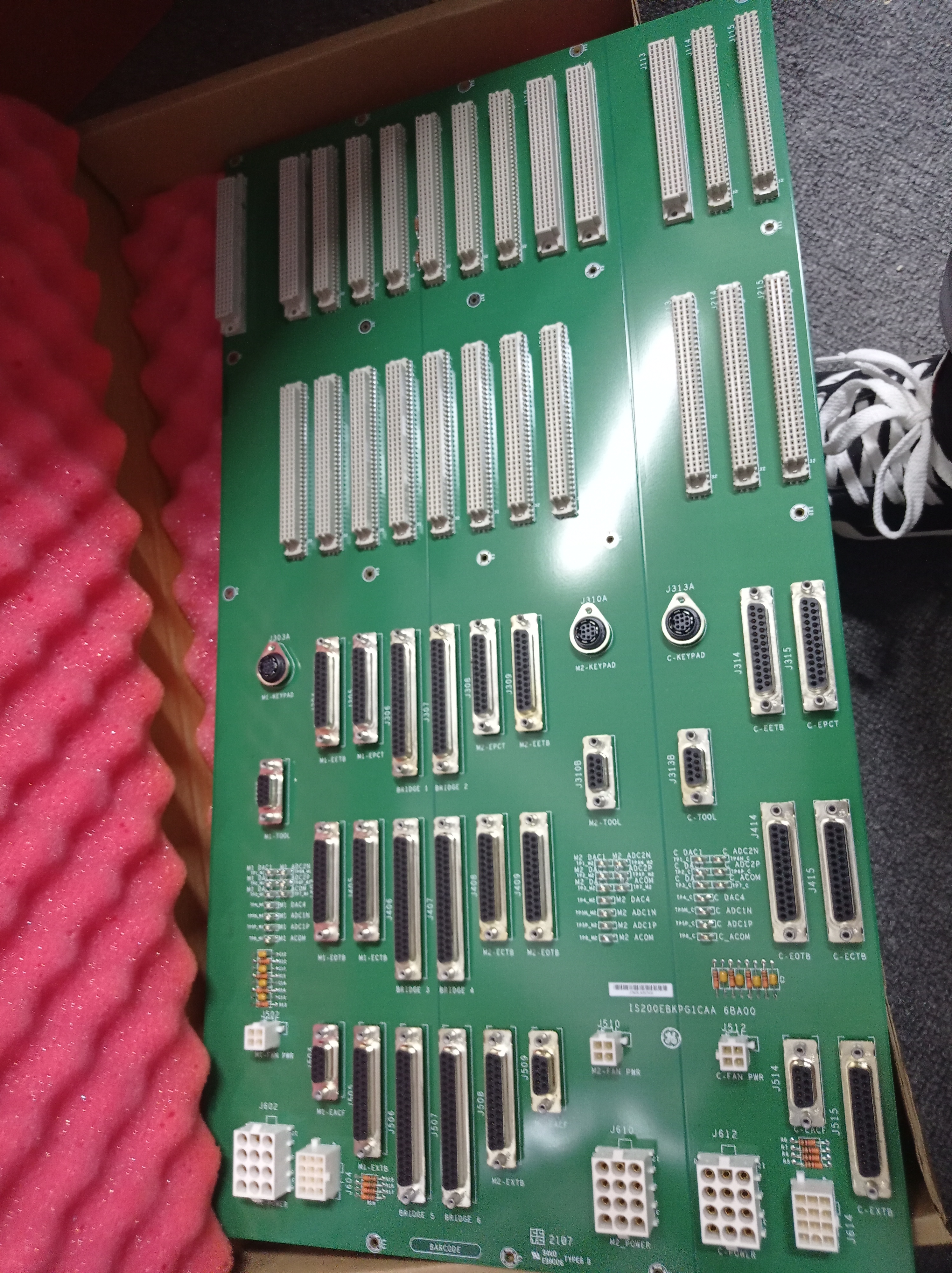

The upper part of the backplane contains 24 DIN connectors as part of the backplane, providing the electrical and mechanical interface for the control boards. The lower part of the backplane contains 27 D-SUB connectors, three circular DIN connectors, three 12-pin power supply plugs, three fan power plugs, and 30 testpoints. The labels on the connectors refer to the boards and devices to which the cables are connected, simplifying installation and maintenance. The IS200EBKPG1CAA Exciter Backplane has no LEDs, fuses, or adjustable hardware, and the testpoints provide signal access to diagnostic analog-to-digital converters and to digital-to-analog converters.
This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE IS200EBKPG1CAA Exciter Backplane, serving as an essential reference for excitation control engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Rack Organization
The IS200EBKPG1CAA Exciter Backplane is built around a robust architecture that provides mechanical support, electrical interconnection, power distribution, and diagnostic access for the EX2100 Excitation Control system. The backplane is organized into three independent controller sections, designated M1, M2, and C, each with its own power supply and its own set of control boards. This three-section architecture provides the redundancy and availability required for critical excitation control applications.
Section M1 and Section M2 are the two redundant control channels. Each of these sections includes the ACLO or ACLE board, the DSPX board, the EISB board, the EMIO board, and the ESEL board. The ACLO or ACLE board provides the Application Control Layer interface, the DSPX board provides the primary control processing, the EISB board provides the Exciter Interface Signal Board functions, the EMIO board provides the Exciter Main I/O functions, and the ESEL board provides the Exciter Selector functions for the gate pulse amplifiers. The two redundant sections operate in parallel, with one section acting as the active master and the other acting as the standby master. If the active master fails, control transfers seamlessly to the standby master, ensuring continuous operation of the excitation system.
Section C includes the DSPX board, the EISB board, and the EMIO board. This section provides the common or coordinating control functions that are shared between the two redundant channels. The DSPX board in Section C provides additional processing capability, the EISB board provides additional interface functions, and the EMIO board provides additional I/O functions. The independent power supply for Section C ensures that the common functions remain available even if one of the redundant sections experiences a power fault.
The IS200EBKPG1CAA Exciter Backplane provides the electrical interconnection between all of these boards through the 24 DIN connectors in the upper part of the backplane. These connectors carry the power, data, address, and control signals that allow the boards to communicate with each other and to coordinate their operation. The backplane also provides the connectors for the I/O terminal board cables in the lower part of the backplane, allowing the control boards to interface with the field wiring through the terminal boards.
Terminal Board Connectors
The lower part of the IS200EBKPG1CAA Exciter Backplane contains the connectors for the I/O terminal board cables. These connectors provide the interface between the control boards and the field wiring, allowing the excitation system to monitor and control the generator field, the PTs and CTs, the contact inputs and outputs, and the gate pulse amplifiers.
The EGPA Exciter Gate Pulse Amplifier connectors are provided at J306, J307, J406, J407, J506, and J507 for PCMs (bridges) 1 through 6 respectively. These six connectors support up to six EGPA or EHPA boards, which can be driven by the ESEL board. The group number of the ESEL board determines how many of these connectors are driven, allowing the excitation system to be configured for different bridge configurations. The EGPA connector pin descriptions include the gate driver positive and negative signals for gates 1 through 6, the conduction sensor positive and negative signals for phases A, B, and C for both M1 and M2, the alarm and trip signals for both M1 and M2, and the ground connections.
The ECTB Exciter Contact Terminal Board connectors are provided at J405, J408, and J415, and all three connectors carry similar signals. These connectors provide the interface between the EMIO board and the customer relay contacts. The ECTB connector pin descriptions include the auxiliary contact inputs 1 through 6, the contact input 86G positive and negative, the single-ended contact input 52G, the relay 1 driver command from EMIO, the relay 1 status feedback to EMIO, the +24 V DC power from EMIO, the trip 2 status feedback to EMIO, the trip 2 driver command from EMIO, the trip 1 status feedback to EMIO, the trip 1 driver command from EMIO, the relay 4 status feedback to EMIO, the relay 4 driver command from EMIO, the relay 3 status feedback to EMIO, the relay 3 driver command from EMIO, the relay 2 status feedback to EMIO, the relay 2 driver command from EMIO, and the 24 V DC power return.
The ECTB connector also provides the crowbar and de-excitation signals, including the crowbar A return signal, the de-excitation return signal, the feedback of the K41 coil current status, the feedback of the K53A coil current status, the driver for the K53B coil, the 24 V DC from EMIO, the contact input from 53B, the contact input from 41, the contact input from 53A, the crowbar feedback from the EXDE board A, the de-excitation feedback A, the K41T status feedback to M1, the K53B status feedback to M1, the driver for the K41 coil, the driver for the K41T coil, the driver for the K53A coil, and the PCOM on EMIO. These signals are critical for the protection and safe shutdown of the excitation system.
The EPCT Exciter PT/CT Terminal Board connectors are provided at J305, J308, and J315, and all three connectors carry similar signals. These connectors provide the interface between the EMIO board and the PTs and CTs. The EPCT connector pin descriptions include the current phase A input low and high, the current phase C input low and high, the voltage input 1 Phase A negative and positive, the voltage input 1 Phase B negative, the analog input positive and negative, the voltage input 2 Phase B positive and negative, the voltage input 2 Phase A positive and negative, and the voltage input 1 Phase B positive.
The EACF Exciter AC Feedback Board connectors are provided at J504, J509, and J514, and all three 9-pin connectors carry similar signals. These connectors provide the interface between the EMIO board and the air core CT and flux coil inputs. The EACF connector pin descriptions include the air core current transformer signal 1 negative and positive, the air core current transformer signal 2 negative and positive, the power potential transformer signal 1 negative and positive, the power potential transformer signal 2 negative and positive, and the not connected pin.
Power and Peripheral Connectors
The IS200EBKPG1CAA Exciter Backplane provides the connectors for the keypads, the external RS232C tool computers, the power supply cables, and the cooling fans. These connectors support the operator interface and the auxiliary equipment required for the operation and maintenance of the excitation system.
The keypad connectors support the bezel-mounted keypad on the cabinet door. These 8-pin circular connectors are located at J303A, J310A, and J313A to support controllers M1, M2, and C respectively. The keypad connector pin descriptions include the 24 V DC power supply to the keypad on the door, the keypad RS-232C TX signal from the EISB, the keypad RS-232C RX signal to the EISB, the keypad power return (power common), the 24 V DC power supply to the keypad on the door, and the keypad RS-232C RTS signal from the EISB. These connectors allow the operator to interact with the excitation system through the keypad and display on the cabinet door.
The tool connectors support the external RS232C tool computers that are used for configuration, diagnostics, and maintenance. These connectors are located at the appropriate positions for controllers M1, M2, and C. The tool connectors provide the RS-232C communication interface between the external computer and the EISB board, allowing the GE Control Systems Toolbox or other configuration tools to be connected for system setup and troubleshooting.
The power supply connectors provide the power input for each of the three sections. These 12-pin connectors are located at J502, J510, and J512 for the M1, M2, and C sections respectively. The power supply connectors receive the 24 V DC power from the external power supplies and distribute it to the control boards through the backplane. The independent power supply for each section ensures that a fault in one section does not affect the operation of the other sections.
The fan power connectors provide the power for the cooling fans at the top of the rack. These 4-pin mini-mate-n-lock connectors are located at J502, J510, and J512, and they provide the +24 V DC supply and the 24 V DC power common. The cooling fans ensure that the control electronics remain within their operating temperature range, enhancing the reliability and longevity of the system.
Testpoints and Signal Diagnostics

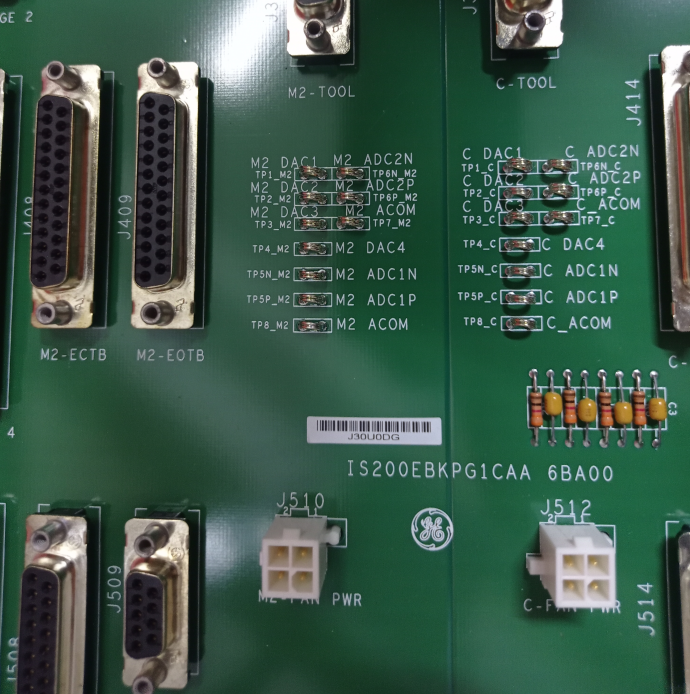

The IS200EBKPG1CAA Exciter Backplane provides three groups of seven testpoints, one group for each of the M1, M2, and C sections. These testpoints provide signal access to diagnostic analog-to-digital converters and to digital-to-analog converters, allowing maintenance personnel to monitor the operation of the control system and to diagnose faults.
Each group of seven testpoints includes four DAC outputs (M1 DAC1, M1 DAC2, M1 DAC3, and M1 DAC4), two ADC inputs (M1 ADC1N, M1 ADC1P, M1 ADC2N, and M1 ADC2P), and one analog common (M1 ACOM). The testpoints are labeled TP1_M1 through TP8_M1 for the M1 section, with corresponding labels for the M2 and C sections. The toolbox is used to configure these testpoints for diagnostic purposes, allowing the engineer to select which signals are routed to the testpoints for monitoring.
The testpoints are particularly valuable for troubleshooting because they allow the engineer to observe the analog signals without disconnecting any wiring or removing any boards. The DAC outputs can be used to monitor the commanded values of the control loops, while the ADC inputs can be used to monitor the feedback values from the field sensors. The analog common provides the reference point for the differential measurements, ensuring accurate readings.
Application Suitability and System Integration
The IS200EBKPG1CAA Exciter Backplane is an integral component of the EX2100™ Excitation Control system, providing the physical mounting, electrical interconnection, power distribution, and diagnostic access that are essential for the operation of the control system. Its three-section architecture, with independent power supplies for the M1, M2, and C sections, provides the redundancy and availability required for critical excitation control applications.
In the EX2100 Excitation Control, the IS200EBKPG1CAA Exciter Backplane supports the redundant control channels that regulate the generator field current and voltage to maintain the generator terminal voltage and reactive power output. The M1 and M2 sections operate in parallel, with one section acting as the active master and the other acting as the standby master. If the active master fails, control transfers seamlessly to the standby master, ensuring continuous operation of the excitation system. The C section provides the common or coordinating control functions that are shared between the two redundant channels.
The backplane's comprehensive connector set supports the full range of excitation control I/O, including the gate pulse amplifiers, the contact terminal board, the PT/CT terminal board, and the AC feedback board. The keypad and tool connectors support the operator interface and the configuration and diagnostic tools, while the power supply and fan connectors support the auxiliary equipment required for the operation and maintenance of the system.
The IS200EBKPG1CAA Exciter Backplane is designed for easy integration into the excitation control system. Its standard DIN connectors, clearly labeled D-SUB connectors, and comprehensive testpoints simplify installation and maintenance. The independent power supply for each section enhances the reliability and availability of the system, and the forced-air cooling ensures that the control electronics remain within their operating temperature range. The backplane has no LEDs, fuses, or adjustable hardware, reducing the potential for configuration errors and simplifying the spare parts inventory.
Maintenance and Lifecycle
The IS200EBKPG1CAA Exciter Backplane is designed for long service life with minimal maintenance. The backplane contains no moving parts or user-adjustable components, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the backplane, connectors, and mounting hardware, verification of the testpoint signals, and confirmation that the cooling fans are operating correctly and the rack is properly ventilated.
If a backplane failure occurs, replacement requires careful attention to safety procedures. After de-energizing the exciter and verifying that no power exists on the boards, all cables must be labeled with the correct connector name to simplify reconnection, and all cables must be disconnected from the bottom part of the backplane, including the fiber-optic cables from the EISB and the Ethernet cable from the ACLx. All boards must be removed from the top part of the backplane, and the rack mounting screws must be removed so that the entire rack can be pulled out of the cabinet. The replacement rack containing the new backplane is then inserted, the mounting screws are replaced and tightened, and all control boards are replaced in the correct slots and secured. All cables are reconnected to the correct connectors on the backplane and tightened, the Ethernet cable is reconnected to the ACLx, the fiber-optic cables are reconnected to the EISB, and the fan power plugs are reconnected. Finally, the exciter control cabinet door is closed.
GE recommends that the customer stocks a complete control rack with the EBKP and fans, or just the EBKP board. If only the EBKP is stocked, it must be mounted in the old rack before installation. GE Industrial Control Systems ensures compatibility of its replacement assemblies, even though assemblies of different revision levels may not contain identical hardware. When ordering a replacement IS200EBKPG1CAA Exciter Backplane, provide the complete part number and description, the exciter serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement assemblies is guaranteed.
Conclusion
The GE IS200EBKPG1CAA Exciter Backplane is a reliable, robust, and highly integrated backplane assembly for the EX2100™ Excitation Control system. Its three-section architecture, with independent power supplies for the M1, M2, and C sections, provides the redundancy and availability required for critical excitation control applications, while its comprehensive connector set supports the full range of excitation control I/O. The backplane's diagnostic testpoints, keypad and tool connectors, power supply and fan connectors, and forced-air cooling ensure that the control system can be operated, configured, and maintained efficiently and reliably.
With its standard DIN connectors, clearly labeled D-SUB connectors, comprehensive testpoints, and detailed documentation, the IS200EBKPG1CAA Exciter Backplane is an essential component in EX2100 Excitation Control installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the IS200EBKPG1CAA Exciter Backplane continues to deliver the performance, durability, and ease of use that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing assembly, the IS200EBKPG1CAA Exciter Backplane provides the physical mounting, electrical interconnection, power distribution, and diagnostic access required for reliable and efficient excitation control operation.
