GE IS200DTAIH1ABB Simplex Analog Input/Output Board

The GE IS200DTAIH1ABB Simplex Analog Input Output Board is a compact, high‑performance analog terminal board designed for DIN‑rail mounting in industrial control systems. As part of the DTAI family of simplex analog interfaces, the IS200DTAIH1ABB provides ten analog input channels and two analog output channels, connecting to the VAIC processor board via a single shielded 37‑pin D‑sub cable. This cable is fully interchangeable with those used on the larger TBAI terminal boards, ensuring seamless integration within existing GE control architectures and reducing spare parts inventory.

The IS200DTAIH1ABB represents a specific revision level of the DTAI platform, offering the same core functionality as its predecessors while incorporating any manufacturing or firmware improvements that GE has implemented over the product lifecycle. The board is engineered for simplex (non‑redundant) operation, making it an economical and space‑efficient choice for analog signal conditioning in applications where redundancy is not required. Its vertical stacking capability on a standard 35 mm DIN‑rail allows multiple boards to be mounted in a compact vertical arrangement, significantly reducing cabinet space requirements compared to traditional rack‑mounted solutions.

Two IS200DTAIH1ABB boards can be connected to a single VAIC processor, expanding the system to twenty analog inputs and four analog outputs. This scalability makes the board ideal for medium‑scale distributed control systems, process monitoring, and actuator control in industries such as power generation, chemical processing, oil and gas, and manufacturing. The board incorporates the same robust noise suppression and signal conditioning features as the larger TBAI terminal boards, ensuring accurate and stable signal acquisition even in electrically noisy industrial environments.

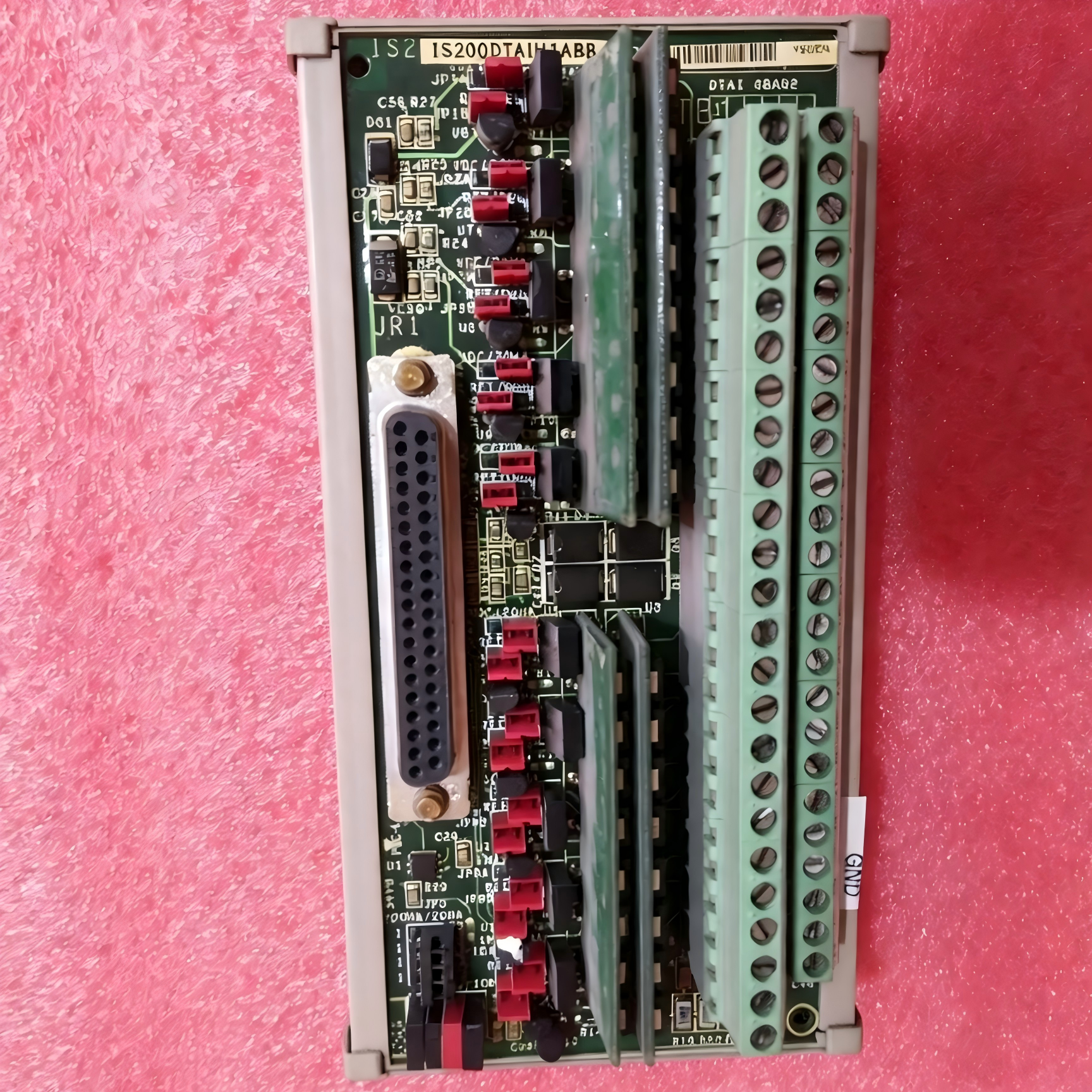

High‑density euro‑block type terminal blocks are permanently mounted to the IS200DTAIH1ABB, providing 48 terminals for field wiring. Two dedicated screw terminals (43 and 44) are provided for the SCOM (signal common) ground connection, which must be connected to chassis ground with the shortest possible lead length to minimize ground loops and common‑mode interference. An onboard identification chip automatically identifies the board to the VAIC processor, enabling system‑level diagnostics, configuration validation, and inventory tracking.

This product introduction provides comprehensive technical information, installation guidelines, configuration options, and detailed specifications for the GE IS200DTAIH1ABB Simplex Analog Input Output Board, serving as a definitive reference for system integrators, maintenance engineers, and procurement specialists.

Functional Architecture and Signal Conditioning

The IS200DTAIH1ABB Simplex Analog Input Output Board is built around a flexible analog signal conditioning architecture that supports a wide variety of field transmitters and sensor types. Its ten analog input channels are individually configurable via onboard jumpers, allowing each channel to be set for either current or voltage operation, and for specific input ranges. This flexibility eliminates the need for external signal conditioners in most applications, reducing system complexity and cost.

For current loop inputs, the IS200DTAIH1ABB accepts the industry‑standard 4‑20 mA signal, which is prevalent in process control for transmitting pressure, temperature, flow, and level measurements. The board provides a precision shunt resistor for each current‑configured channel, converting the current into a voltage that is then digitized by the VAIC processor. The input impedance is low for current mode, ensuring minimal burden on the loop. For voltage inputs, the board presents a high impedance (>1 MΩ) to the source, allowing accurate measurement without loading the sensor. The voltage ranges available are ±5 V DC and ±10 V DC, covering most common analog output from sensors, transducers, and other instrumentation.

In addition to the first eight standard channels, the IS200DTAIH1ABB provides two special‑purpose input channels (channels 9 and 10) that can be configured for 4‑20 mA or ±1 mA current input. The ±1 mA range is particularly useful for low‑level signals such as those from thermocouple amplifiers, photodiodes, or other low‑current sensors, providing finer resolution and better signal‑to‑noise ratio for sensitive measurements. These channels use a different shunt resistor and gain stage, selected by the jumper settings.

The two analog output channels provide 0‑20 mA current outputs suitable for driving actuators, valve positioners, recorders, and other analog control devices. The first output channel is fixed at 0‑20 mA, while the second output can be jumper‑configured for either 0‑20 mA or 0‑200 mA. The high‑current 0‑200 mA option allows the IS200DTAIH1ABB to directly drive devices that require more power, such as certain proportional solenoid valves or long‑distance signal transmission lines, without the need for an external amplifier or signal booster.

The IS200DTAIH1ABB derives its operating power from the 24 V DC system supply, which is also distributed to the terminal block for powering field transducers. This onboard power source supports two‑wire transmitters, simplifying wiring by providing both power and signal over the same pair of wires. The board's power distribution is designed to handle the cumulative current draw of all connected transducers within its specified limits, and the VAIC processor monitors the supply voltage for diagnostic purposes.

Noise suppression on the IS200DTAIH1ABB is implemented through a combination of differential input filtering, common‑mode rejection, and careful PCB layout. The board is designed to meet the electromagnetic compatibility requirements of industrial environments, with immunity to radiated and conducted interference from sources such as variable frequency drives, contactors, and switching power supplies. The ground system is separated into signal common (SCOM) and chassis ground, with the SCOM terminal serving as the reference point for all analog signals. The recommendation to keep the SCOM connection as short as possible is critical to maintaining low impedance to ground and minimizing noise pickup.

Physical Design and Mounting

The IS200DTAIH1ABB Simplex Analog Input Output Board is mechanically optimized for dense industrial cabinets. Its DIN‑rail mounting system uses a plastic holder that snaps onto a standard 35 mm rail, and the board slides into the holder with a positive latch. The vertical orientation allows boards to be stacked one above another, with the front‑facing terminal blocks providing easy access for wiring, troubleshooting, and maintenance. The overall width is approximately 45 mm (one standard slot), and the height accommodates the 48‑position terminal block and the 37‑pin D‑sub connector.

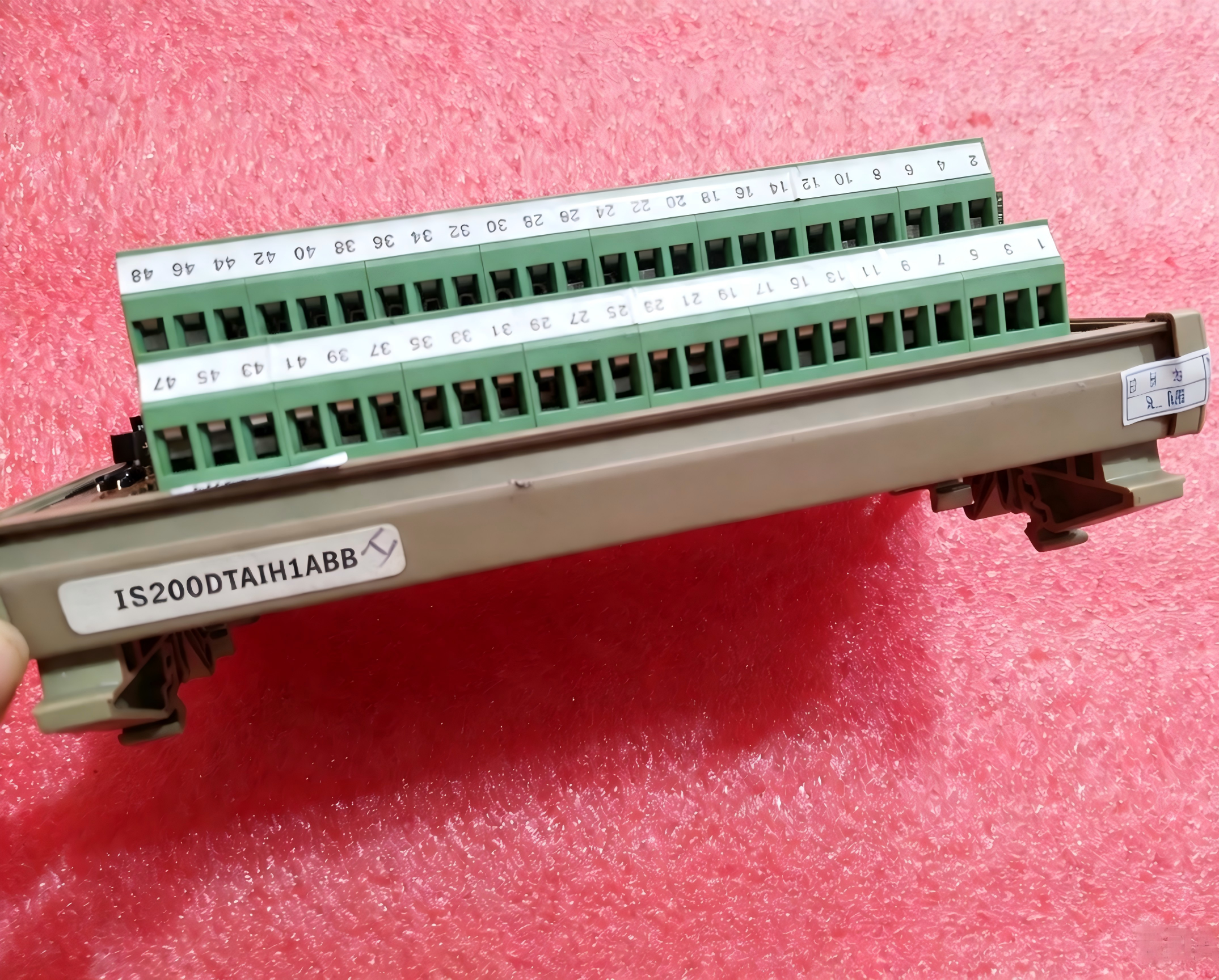

The terminal block is a high‑density euro‑block type with screw clamps that accept solid or stranded wires up to #18 AWG. Shielded twisted‑pair cable is recommended for analog signals to reduce noise pickup and crosstalk. The terminal block is permanently soldered to the board, ensuring reliable connections over the product's lifetime. Each terminal position is clearly numbered, and the wiring diagram provides the corresponding signal assignments for each configuration.

The 37‑pin D‑sub connector is located on the left side of the board (when viewed from the front) and features latching fasteners (screw locks) to secure the cable and prevent accidental disconnection due to vibration. The cable is identical to that used on the TBAI terminal boards, allowing standard off‑the‑shelf cable assemblies to be used. The single cable connection is a deliberate design choice for simplex operation; the board does not support the multiple cable connections required for triple‑modular redundant (TMR) applications.

There is no dedicated shield terminal strip on the IS200DTAIH1ABB. Cable shields must be terminated externally, typically at the field device or through a common grounding bar. This approach is common in many industrial installations and requires careful attention to grounding practices to ensure signal integrity.

Installation and Wiring Procedures

Proper installation of the IS200DTAIH1ABB Simplex Analog Input Output Board is essential for reliable system operation. The following step‑by‑step guidance covers the key aspects of mechanical mounting, electrical wiring, and system integration.

Mechanical Mounting: Begin by securing the plastic DIN‑rail holder to a standard 35 mm rail. The holder snaps onto the rail with an audible click. Then, align the IS200DTAIH1ABB board with the guide slots in the holder and slide it downward until it locks into place. Ensure that the board is firmly seated and that the terminal block and D‑sub connector are accessible for wiring. When stacking multiple boards, maintain sufficient vertical clearance for cable bending and termination access.

Wiring the Analog Inputs: The board supports four transmitter types: two‑wire, three‑wire, four‑wire, and externally powered. For two‑wire transmitters, the positive lead connects to the board's power supply terminal (e.g., terminal 1 for channel 1), and the negative lead connects to the input terminal (e.g., terminal 2). The loop current returns through the internal shunt resistor. For three‑wire transmitters, an additional connection is required for the negative supply return. Four‑wire transmitters have separate power and signal pairs; only the signal leads connect to the input terminals, while the power is supplied from an external source. Externally powered transmitters are similar to four‑wire, but the power source is not part of the transmitter; the signal wires connect directly to the input terminals.

For voltage inputs, connect the signal high to the positive input terminal and the signal low to the negative input terminal (or to SCOM for single‑ended connections). Ensure that the input voltage does not exceed the selected range to avoid saturation or damage.

Wiring the Analog Outputs: The two output channels are terminated on designated screw terminals. For the standard 0‑20 mA output, connect the load between the output terminal and the return (SCOM). For the high‑current 0‑200 mA output (channel 2 when jumpered accordingly), ensure that the load resistance is within the specified limit (typically 60 Ω max) to avoid exceeding the compliance voltage of the output driver. Longer cable runs may require larger wire gauge to minimize voltage drop.

Grounding: The SCOM terminal (terminal 43) must be connected to chassis ground using the shortest possible wire. Both screws 43 and 44 are provided for this purpose; either or both can be used to create a low‑impedance ground path. This connection establishes the reference potential for all analog signals and is critical for noise immunity. The board does not provide a separate shield terminal; cable shields should be terminated at one end (usually the field device) and connected to ground at that point, or they can be routed to a common ground bar.

Cable Connection: After all field wiring is complete, connect the 37‑pin D‑sub cable between the IS200DTAIH1ABB and the VAIC processor board. Tighten the latching screws to secure the connector. The VAIC will automatically recognize the board via the onboard ID chip upon power‑up.

Power‑Up and Verification: Apply power to the system and observe the VAIC diagnostics. The IS200DTAIH1ABB should be identified correctly, and channel readings should reflect the connected field devices. If any channel reads incorrectly, verify jumper settings and wiring.

Configuration and Jumper Settings

The IS200DTAIH1ABB Simplex Analog Input Output Board offers extensive configuration options through onboard jumpers. The jumpers are grouped by channel and are clearly marked on the printed circuit board. The following table summarizes the available configurations:

• Channels 1–8: Each can be independently set for ±10 V DC, ±5 V DC, or 4‑20 mA. A single jumper per channel selects the mode. When set to voltage, the input impedance is high; when set to current, the precision shunt resistor is engaged.

• Channels 9–10: These two channels can be set for 4‑20 mA or ±1 mA. The ±1 mA mode provides higher sensitivity for low‑level signals and uses a different shunt resistor value.

• Output Channel 1: Fixed 0‑20 mA; no jumper selection.

• Output Channel 2: Jumper‑selectable for 0‑20 mA or 0‑200 mA. Ensure that the load and cable are appropriate for the selected range.

The jumper positions are illustrated in the wiring diagram included in the product documentation. It is essential to set the jumpers correctly before applying power, as incorrect settings can lead to inaccurate readings or damage to the input circuitry. After changing jumpers, verify that the system software (VAIC) is configured with the corresponding channel types for correct scaling and engineering units.

The onboard ID chip is a non‑volatile memory device that stores board‑specific data, including the part number (IS200DTAIH1ABB), revision level, and serial number. The VAIC reads this information during initialization and can use it to enforce correct configuration or to alert the operator if the wrong board type is installed. This feature is particularly valuable in large systems with multiple terminal boards.

Diagnostics and System Monitoring

The IS200DTAIH1ABB Simplex Analog Input Output Board integrates seamlessly with the VAIC processor's diagnostic framework. The board itself does not have visual status indicators, but the VAIC provides comprehensive channel‑level status through its software interface. The following diagnostic information is typically available:

• Channel Data: Raw ADC counts and scaled engineering units for each input.

• Channel Status: Indications of open‑circuit (for current loops), under‑range, over‑range, or sensor faults.

• Board Identification: Part number, revision, and serial number read from the ID chip.

• Communication Health: Status of the cable connection between the IS200DTAIH1ABB and the VAIC; loss of communication generates an alarm.

• Power Supply Monitoring: The VAIC can monitor the 24 V supply voltage to ensure it remains within acceptable limits.

In the event of a fault, the VAIC can be configured to take appropriate action, such as generating an alarm, freezing the last known outputs, or commanding a safe state. The fail‑safe behavior is programmable in the system software and should be tailored to the specific process requirements.

For troubleshooting, the VAIC's diagnostic screens provide real‑time data that can be compared against expected values from the field devices. If a channel is reading incorrectly, the first step is to check the jumper settings and wiring continuity. The ID chip can confirm that the correct board is installed. If the problem persists, the cable and the VAIC itself should be inspected.

Technical Specifications

The following table provides comprehensive technical specifications for the GE IS200DTAIH1ABB Simplex Analog Input Output Board. All values are typical unless otherwise noted.

Application Suitability

The IS200DTAIH1ABB Simplex Analog Input Output Board is ideally suited for a wide range of industrial applications where analog signal conditioning is required but redundancy is not mandatory. Its compact size and vertical stacking capability make it particularly attractive for retrofit projects and new installations where cabinet space is limited.

In process control, the board interfaces with standard 4‑20 mA transmitters for pressure, temperature, flow, and level measurements. The configurable voltage inputs allow connection to sensors with analog voltage outputs, such as certain accelerometers, position sensors, and thermocouple transmitters with built‑in amplifiers. The ±1 mA inputs are valuable for low‑level current signals from photodiodes or special‑purpose transducers.

In power generation, the IS200DTAIH1ABB can be used for monitoring generator auxiliary parameters, such as bearing temperatures, cooling water flow, and hydrogen pressure. The analog outputs can drive chart recorders or remote indicators, providing a historical record of critical parameters. In drive control systems, the board can provide speed and torque reference signals, as well as feedback from tachometers and load cells.

The 0‑200 mA output option is especially useful for driving high‑current actuators, such as proportional hydraulic valves or electric actuators with high input impedance, without requiring an interposing amplifier. This reduces system cost and complexity while improving reliability.

For systems requiring more than 10 inputs or 2 outputs, a second IS200DTAIH1ABB can be added to the same VAIC processor, providing a total of 20 inputs and 4 outputs. This scalability allows the board to grow with the application, from small standalone units to larger distributed control systems.

Maintenance and Lifecycle

The IS200DTAIH1ABB Simplex Analog Input Output Board is designed for long service life with minimal maintenance. The solid‑state construction, with no moving parts or adjustable potentiometers, ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of terminal connections, cable integrity, and board cleanliness. In dusty or corrosive environments, occasional cleaning with a soft brush or low‑pressure air may be necessary to maintain insulation resistance and contact reliability.

If a board requires replacement, the process is straightforward: de‑energize the system, disconnect field wiring (after marking terminal assignments), unplug the D‑sub cable, release the DIN‑rail holder, and slide the board off. Install the new IS200DTAIH1ABB board in the reverse order, ensuring that all jumpers are set identically to the original board. The VAIC will automatically recognize the new board via the ID chip; no software reconfiguration is needed if the channel types remain the same.

GE maintains a comprehensive spares inventory for the IS200DTAIH1ABB, and backward compatibility is ensured across all revisions. When ordering a replacement, provide the complete part number, the associated system serial number, and the Material List number if available. The factory may substitute later revisions based on availability, but functional compatibility is guaranteed.
