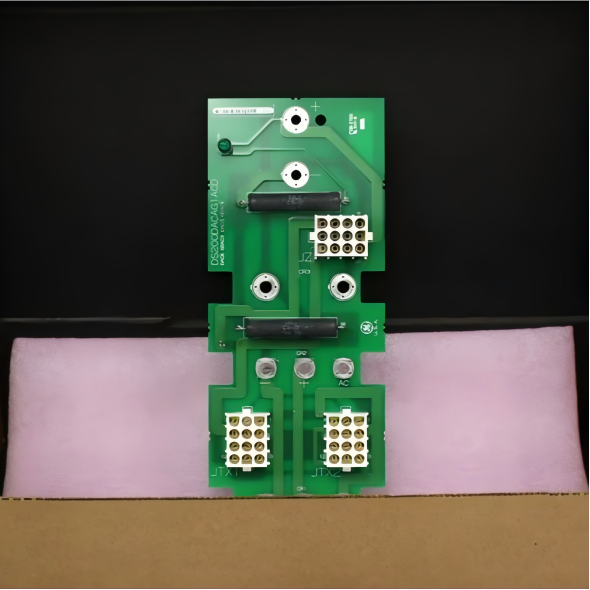

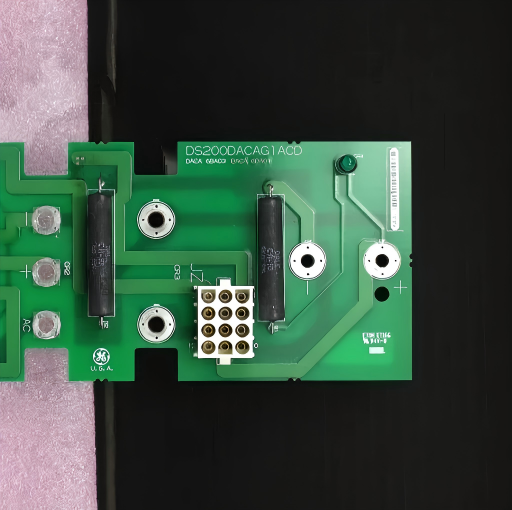

The DS200DACAG1A is an Ac-Dc Power Conversion Module designed by General Electric (GE) Energy for its Mark VIe control system. Belonging to the DACA (Ac-Dc Power Conversion Module) series, this module is a core component of the Mark VIe Modular Power Distribution (PDM) system, used to convert AC input power into stable DC output power, providing reliable operating power for critical control system equipment.
The primary function of the DS200DACAG1A module is to convert 115 V or 230 V AC input power into 125 V DC output power. When the control system’s primary power source is 125 V DC (with or without a battery), the DACA module acts as an AC-DC conversion unit, providing an additional power source for the system. Additionally, the module features local energy storage that extends the ride-through time in the event of a complete loss of control power to the Mark VIe control system, ensuring that critical control functions are maintained.
The DS200DACAG1A module is designed to meet the demands of industrial control systems and features the following characteristics:
Flexible Input Voltage Selection: Supports 115 V or 230 V AC input, selectable via internal cabling.
Stable DC Output: Provides 125 V DC output, meeting Mark VIe system power quality requirements.
Local Energy Storage: Built-in capacitive energy storage to provide ride-through capability during power interruptions.
Fanless Design: Uses convection cooling with no moving parts, enhancing reliability.
Compact Modular Structure: Mounts on the cabinet floor with dedicated brackets, saving space.
Plug-and-Play Connection: Single 12-position JZ connector for power input and output.
This product is widely used in the Mark VIe control system’s power distribution system, particularly in industrial applications where AC power needs to be converted to DC to supply the control system.
II. Key Functions
1. AC-DC Power Conversion
The core function of the DS200DACAG1A module is to convert 115 V or 230 V AC input power into 125 V DC output power. The module uses a simple design consisting of a full-wave bridge rectifier plus output capacitance, providing stable DC output voltage that meets the power quality requirements of the Mark VIe control system.
2. Input Voltage Selection
The DS200DACAG1A module supports two AC input voltage ranges, selectable by internal cabling:
This flexible configuration allows the module to adapt to different regional power standards, meeting global application requirements.
3. Local Energy Storage
The DS200DACAG1A module incorporates built-in capacitive energy storage that provides additional ride-through time in the event of a complete loss of control power. This feature is critical for ensuring that the control system can complete necessary protective actions and save status information during power interruptions.
4. Power Filtering
The module integrates appropriate filtering circuits internally, eliminating the need for external filters. Input power filtering is provided by the AC power distribution module, ensuring that the power received by the DACA module meets quality requirements.
5. Modular Mounting
The DS200DACAG1A module is designed for modular installation, secured to the cabinet floor with four dedicated mounting brackets. This mounting method simplifies on-site installation while ensuring module stability and reliability.
III. Hardware Architecture
1. Module Structure
The DS200DACAG1A module features a compact metal enclosure and includes:
Full-Wave Bridge Rectifier Circuit: Converts AC input to DC output.
Output Capacitor Array: Provides voltage smoothing and energy storage.
Input Voltage Selection Connectors: JTX1 (115 V) and JTX2 (230 V).
12-Position Power Connector JZ: For AC input and DC output connections.
2. Mounting Method
The DS200DACAG1A module is secured to the cabinet floor using four dedicated mounting brackets. When installing, ensure proper grounding and correct connection to the JZ2 or JZ3 connector of the JPDF module in the PDM system.
3. Connector Description
| Connector | Type | Function Description |
| JZ | 12-position plug-in | Connects to JZ2/JZ3 of the JPDF module for AC input and DC output |
| JTX1 | Internal cable connector | Selects 115 V AC input |
| JTX2 | Internal cable connector | Selects 230 V AC input |
4. Operating Principle
The DS200DACAG1A module receives AC power from the AC power distribution module (JPDB). The full-wave bridge rectifier converts the AC to pulsating DC, which is then smoothed by the output capacitors to produce a stable 125 V DC output. The DC output returns to the JPDF module, where it combines with battery power to provide a highly reliable 125 V DC source for the control system.
IV. Detailed Interface Description
1. JZ Connector
The JZ connector is the main interface between the DS200DACAG1A module and the JPDF module. It is a 12-position plug-in connector that connects via a cable harness to the JZ2 or JZ3 connector of the JPDF module, carrying AC input and DC output signals.
| Pin Group | Signal | Description |
| AC Input | Line / Neutral | 115/230 V ac input from JPDF module |
| DC Output | DC+ / DC- | 125 V dc output returning to JPDF module |
2. JTX1 and JTX2 Connectors
JTX1 and JTX2 are internal cable connectors used to select the input voltage range:
| Connector | Input Voltage Selection | Description |
| JTX1 | 115 V ac input | Plug internal cable into this connector to select 115 V input |
| JTX2 | 230 V ac input | Plug internal cable into this connector to select 230 V input |
V. Installation and Maintenance
1. Mounting Location
The DS200DACAG1A module is mounted on the cabinet floor in the power distribution area, secured with four dedicated mounting brackets. The module should be installed in a location that facilitates cabling and maintenance.
2. Installation Steps
Verify Power is Off: Ensure the Mark VIe control system power is turned off and test to verify no power is present.
Locate Mounting Position: Identify the mounting location on the cabinet floor, ensuring sufficient space for the four brackets.
Install Brackets: Secure the DACA module to the cabinet floor using the four dedicated mounting brackets.
Connect Harness: Connect the JZ connector of the DACA module to the JZ2 or JZ3 connector of the JPDF module via the cable harness.
Select Input Voltage: Based on the site supply voltage, plug the internal cable into JTX1 (115 V) or JTX2 (230 V).
Grounding: Ensure the module is reliably grounded through the mounting brackets.
Power On and Verify: After applying power, use a multimeter to check that the output voltage meets specifications.
3. Removal Steps
Verify Power is Off: Ensure the system has been de-energized and test to verify no power is present.
Disconnect Harness: Carefully disconnect the JZ connector harness.
Remove Brackets: Loosen the four bracket bolts and remove the DACA module.
4. Maintenance Recommendations
Periodic Inspection: Regularly check module connectors for looseness and bracket bolts for tightness.
Temperature Monitoring: Monitor the module operating temperature to ensure adequate ventilation and no overheating.
Voltage Checks: Periodically measure the output voltage to ensure it remains within specifications.
Spare Parts Management: It is recommended to keep at least one identical DACA module on-site as a spare to minimize downtime.
VI. Applications
The DS200DACAG1A Ac-Dc Power Conversion Module is widely used in the following industrial applications:
Mark VIe Control Systems: As a core component of the PDM system, providing 125 V dc power to the control system.
Power Plant Control Systems: Converting AC power to DC in power plant control systems to supply control equipment.
Turbine Control Systems: Providing stable DC operating power for Mark VIe turbine control systems.
Industrial Process Control: Providing power conversion in industrial control applications requiring AC-DC conversion.
Redundant Power Systems: Working in conjunction with battery power to build highly reliable redundant power systems.
