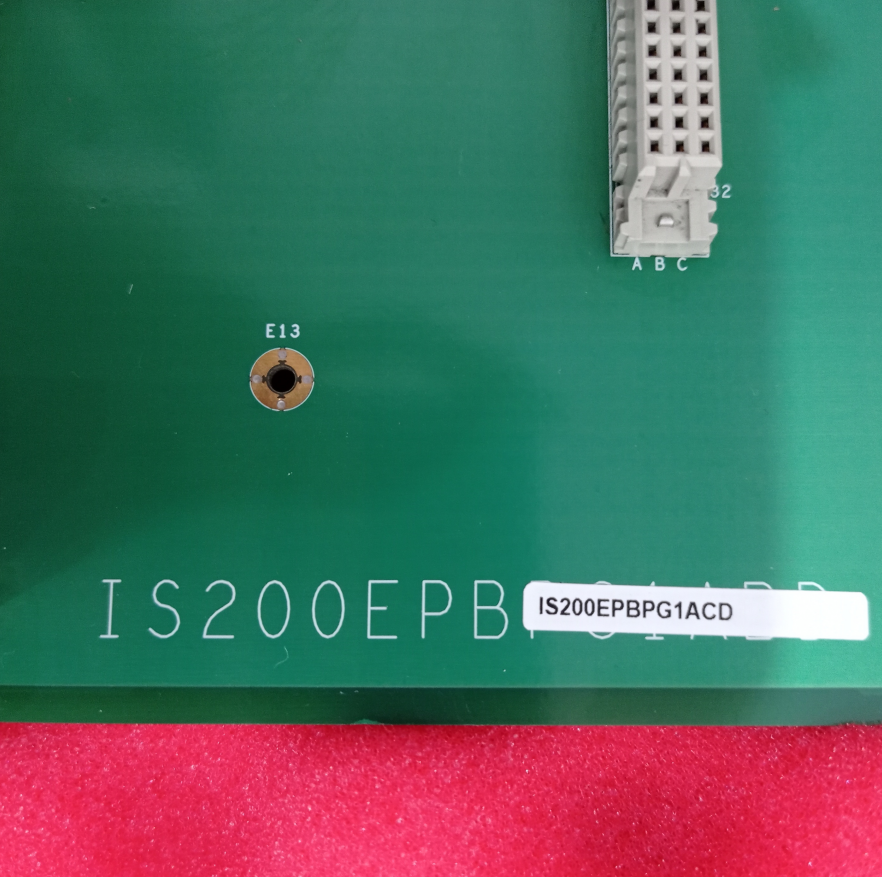

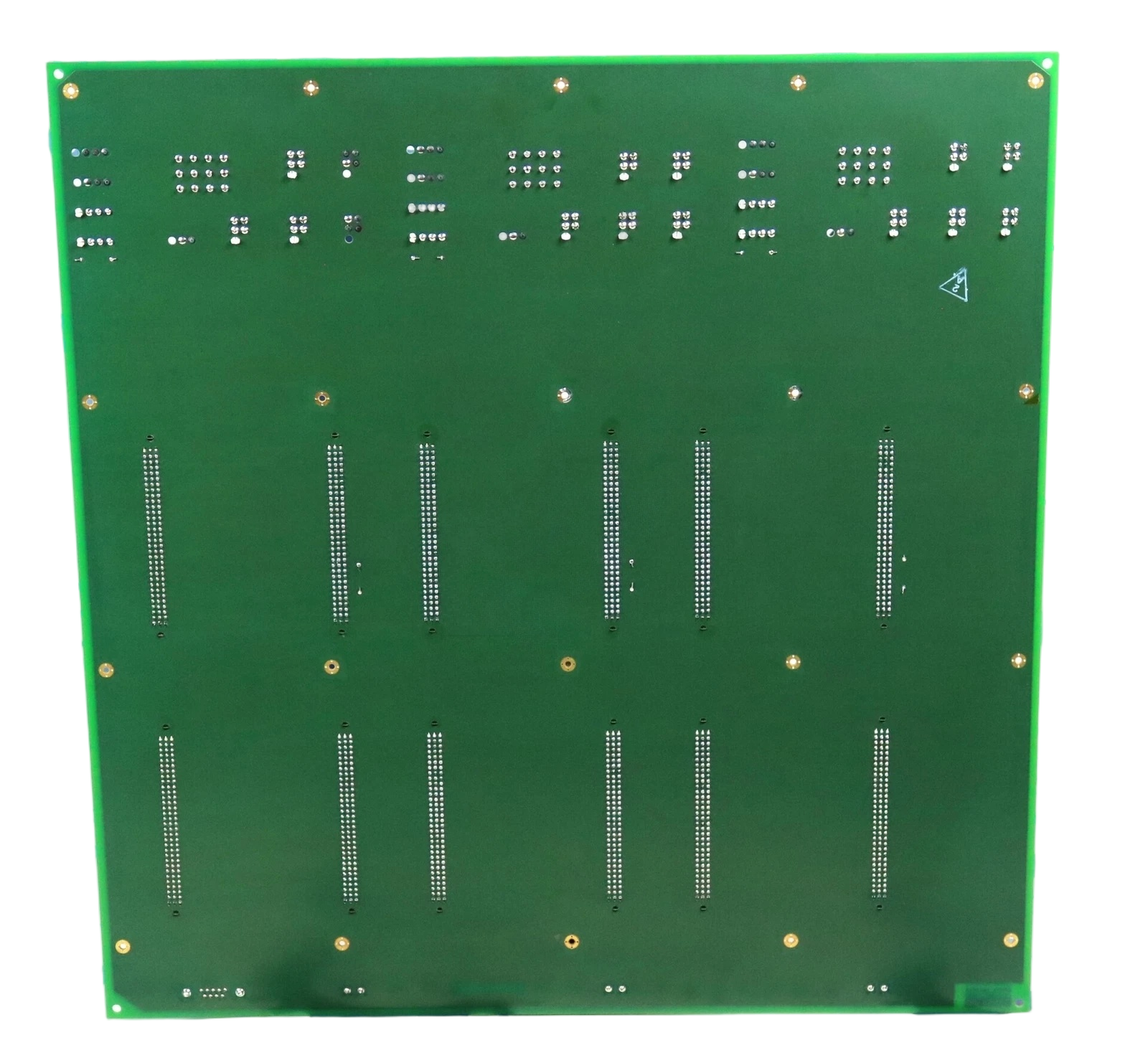

GE IS200EPBPG1A Exciter Power Backplane

The IS200EPBPG1A is the core backplane assembly within the power management subsystem of the General Electric (GE) EX2100e digital excitation control system. As the Exciter Power Backplane (EPBP), the IS200EPBPG1A assumes the critical task of centrally receiving, converting, and distributing control power. It provides stable and reliable DC operating voltages for the excitation system's three independent controllers (M1, M2, and C), as well as for multiple terminal boards and functional modules. This backplane is mounted inside the exciter power supply module housing and works in close coordination with the adjacent Exciter Power Distribution Module (EPDM), together forming the central hub for control power distribution.

The design of the IS200EPBPG1A follows the principles of high reliability and redundant power feeding. It can simultaneously accommodate three independent power supply modules (EPSM) and three ground detection modules (EGDM) internally. Each EPSM module corresponds to one control section and can be controlled via an independent ON-OFF switch on the EPDM panel. This architecture of physical isolation and independent power supply ensures that even if a single power supply module or a controller section fails, the remaining sections continue to operate normally. This provides a solid power foundation for realizing the Triple Modular Redundant (TMR) control of the EX2100e system.

System Positioning and Architecture Integration

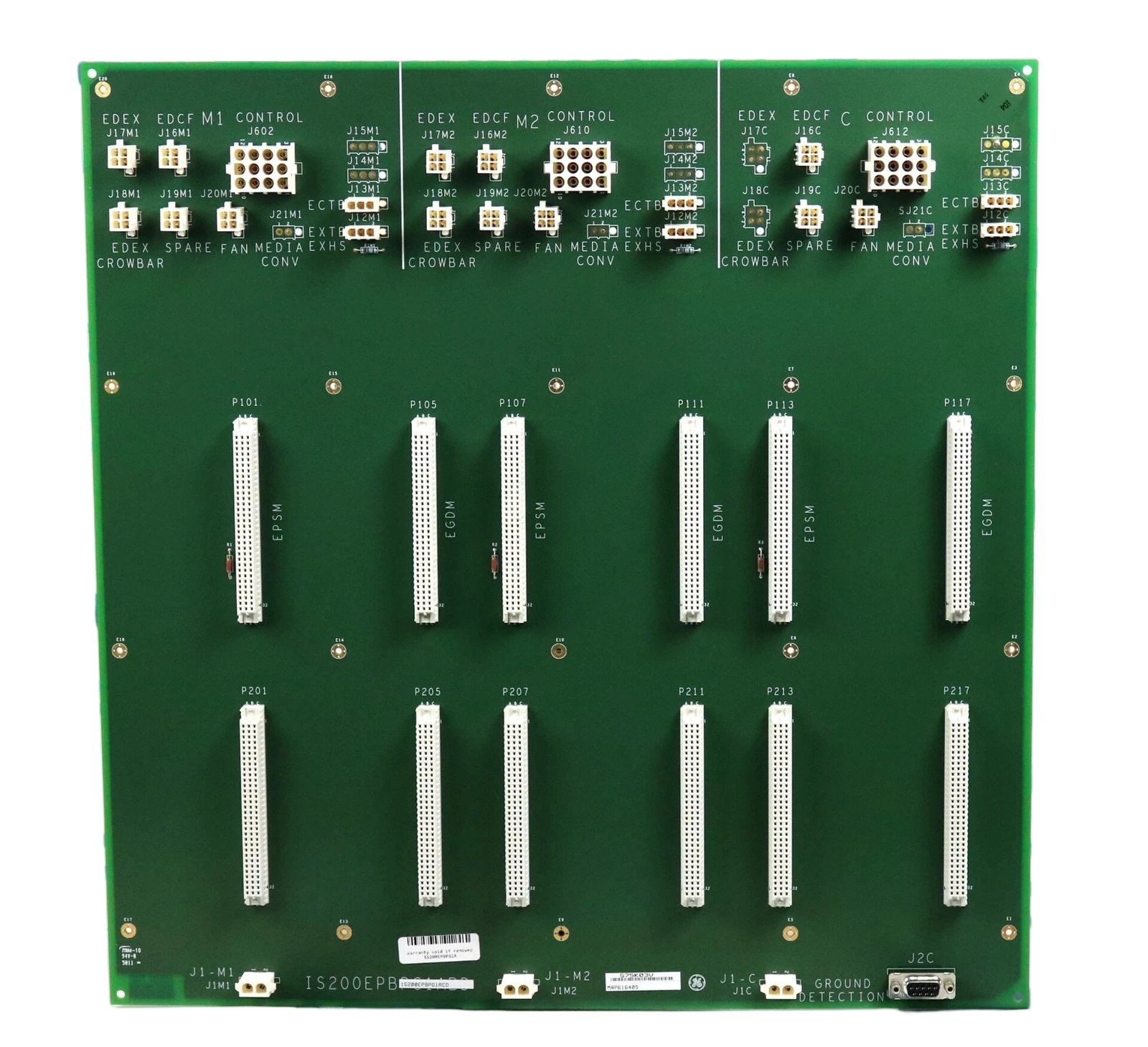

Inside the EX2100e control cabinet, the IS200EPBPG1A is located in the power supply module rack. The EPDM module is mounted on the side of the rack. It receives 125 V DC power from the station battery and external AC sources, and after internal AC/DC conversion, forms a stable 125 V DC bus. The IS200EPBPG1A receives the 125 V DC input for the three control sections (M1, M2, and C) from the EPDM through three sets of input connectors (J1-M1, J1-M2, and J1-C). The EPSM power modules mounted on the backplane then convert this input into the various low-voltage DC supplies required by each section (such as ±24 V, 70 V, 5 V), delivering them to the corresponding terminal boards and functional modules via the numerous output connectors on the backplane.

The IS200EPBPG1A backplane is not merely a passive interconnection board; it is the core of the power distribution network. It integrates multiple standardized locking connectors, ensuring connection reliability under high-vibration conditions. Simultaneously, the backplane features mounting slots and associated interfaces for the EGDM ground detection modules, physically integrating the ground detection function with power distribution. This simplifies intra-cabinet wiring and enhances the system's level of integration.

Core Functional Features

1. Three-Channel Independent Power Supply Architecture

The defining feature of the IS200EPBPG1A is its three completely independent power channels, serving the M1, M2, and C controllers respectively. Each channel receives a dedicated 125 V DC input from the EPDM, which is then converted by an independent EPSM power module to output all the voltage levels required by that channel. Each EPSM module has its own dedicated power switch on the EPDM panel, allowing maintenance personnel to individually shut down any channel for maintenance without affecting the operation of the others. This architecture perfectly supports the online maintenance requirements of the EX2100e.

2. Centralized Distribution of Multiple Voltage Levels

To meet the power supply needs of diverse load types within the excitation system, the IS200EPBPG1A provides a rich variety of output voltage types:

• Controller Logic Power: Supplied directly by the EPSM power modules, serving as the core operating power for the M1, M2, and C controllers.

• 70 V DC Power (P70): Specifically supplies power to terminal boards such as the EXTB (Exciter Expansion Terminal Board), ECTB (Exciter CT Expansion Terminal Board), and EDEX (De-Excitation Control Board). Each control section provides 4 output connectors, totaling 12 connectors across the three sections.

• ±24 V DC Power (P24/N24): Supplies power to equipment such as the EDCF (Exciter DC Fanned Feedback Board), EDEX (De-Excitation Control Board), EGDM (Ground Detection Module), and cooling fans. Each control section provides 5 output connectors, totaling 15 across the three sections.

• +5 V DC Power: Dedicated to powering the Ethernet Media Converter. Each control section provides 1 output connector (J21), totaling 3 across the three sections.

All output voltages originate from the EPSM modules on the backplane, facilitating unified management and troubleshooting.

3. Integration of Ground Detection Modules

The IS200EPBPG1A backplane is designed with three mounting slots for EGDM (Ground Detection Module) boards, corresponding to the M1, M2, and C control sections respectively. The EGDM modules work in conjunction with the EXAM (Attenuator Module) to implement the field ground detection function for the generator field winding. The backplane connects to the EXAM via a 9-pin D-sub connector, J2C, transmitting amplifier input signals from the three EGDMs, power, and relay switching signals. The pin definition for J2C is as follows:

This integrated design allows the ground detection function to share backplane resources with the power distribution, eliminating additional cable connections and enhancing signal integrity.

4. Input Power Interface

The IS200EPBPG1A receives 125 V DC power from the EPDM through three sets of 2-pin locking connectors (J1-M1, J1-M2, J1-C). The pin definition for each connector is: Pin 1 is the +125 V DC supply, and Pin 2 is the 125 V DC common return. This locking connector design effectively prevents accidental disconnection due to vibration, ensuring continuity of the power supply.

Power Distribution Connector Detailed Specifications

The following table summarizes the types, quantities, and pin definitions of the main power output connectors on the IS200EPBPG1A backplane.

Redundancy and Reliability Design

The IS200EPBPG1A is a key hardware component supporting the high-reliability metrics of the EX2100e excitation system. Its redundancy features are manifested on multiple levels:

• Power Module Redundancy: Each control section is powered by an independent EPSM module. Under the TMR architecture, the power supplies for the M1, M2, and C sections are mutually independent. If any single module fails, the remaining two sections can still maintain the system's control function, ensuring the generator excitation system will not shut down due to a single power supply fault.

• Input Power Redundancy: The 125 V DC input to each EPSM module originates from the EPDM's dual or triple redundant power supply network (fed by the station battery and/or AC rectified power sources coupled together), ensuring the reliability of the source power.

• Physical Isolation: Power outputs for different voltage levels are distributed on different connectors, which utilize locking mechanisms. This prevents power failures caused by poor contact or incorrect insertion.

Physical Characteristics and Installation/Maintenance

The IS200EPBPG1A is installed inside the power supply module rack, which is equipped with cooling fans to dissipate heat from the power modules. When replacing the backplane, the following procedure must be followed (only after complete de-energization and Lockout/Tagout procedures have been performed):

1. Disconnect all cables from the top section of the backplane and the ground detector cable at J2C.

2. Remove all cables and power wiring from the EPDM on the left-hand side of the module, except for the PS1M1, PS1M2, and PS1C cables which can be left in place. Disconnect the wiring from the breakers located above the EPDM.

3. Remove all power supply and ground detector boards from the rack.

4. Remove the rack mounting screws and pull the entire rack, with the EPDM and breaker bracket attached, out of the cabinet.

5. Disconnect the PS1 cables and remove the EPDM and breaker bracket from the old rack, then attach it to the side of the replacement rack containing the new backplane, and re-attach the PS1 cables.

6. Insert the replacement rack into the cabinet, re-insert the mounting screws, and tighten them.

7. Re-insert all the power and ground detect boards in the correct slots and tighten the mounting screws.

8. Reconnect all cables to the correct connectors on the backplane and EPDM, and reconnect the EPDM and breaker wiring.

Since the backplane accommodates the EPSM and EGDM modules, it is recommended that users keep a complete spare power supply module assembly (containing the backplane, modules, and fans), or at least a spare IS200EPBPG1A backplane alone, to minimize repair time.
