The IS200DSPXH1DAA is a Digital Signal Processor Control Board (DSPX) manufactured by GE Energy as part of the EX2100™ Excitation Control system. This board serves as the primary controller for inner loop bridge control, I/O processing, and protection functions within the EX2100 excitation system. The DSPX board is a single‑slot, 3U high module located in the control rack, typically adjacent to the ACLA (Application Control Layer Module) board. It shares control responsibilities with the ACLA and is responsible for real‑time regulation, gating control, sequencing, and protection of the generator field.
The IS200DSPXH1DAA is installed on the EBKP (Exciter Backplane) within the control module. The EBKP has three independent sections (M1, M2, and C) for redundant control configurations. In simplex systems, only the M1 section is populated; in redundant systems, M1 and M2 are active controllers, with the C section providing backup and voting functions. The DSPX board is present in all three sections (M1, M2, and C), but in the C section it is not paired with an ACLA board. The board communicates with the EISB (Exciter ISBus Board) via a fiber‑optic link and with other boards through the backplane.
The suffix DAA indicates a specific revision and factory configuration (including conformal coating and component selection) that maintains full backward compatibility with all EX2100 systems while incorporating the latest design enhancements. This variant is part of the DSPXH1D family, which features the latest hardware refinements and firmware updates to ensure reliable operation in demanding industrial environments. The board includes front‑panel status LEDs for visual diagnostics and is designed for high reliability in continuous operation.
Functional Description
The IS200DSPXH1DAA is the main controller for the inner loop regulation and protection functions in the EX2100 excitation control system. It works in conjunction with the ACLA board (which handles outer loop regulation, communication gateway, and HMI interface) to provide complete generator field control. The DSPX board performs the following major functions, as outlined in the EX2100 product documentation:
Field Voltage Regulator (FVR) – Regulates the generator field voltage to maintain the desired excitation level.
Field Current Regulator (FCR) – Regulates the generator field current for precise control.
SCR Gating Signal Generation – Produces firing pulses for the SCRs (Silicon Controlled Rectifiers) in the power bridge, which are sent to the ESEL (Exciter Selector) board for distribution to the gate pulse amplifier boards.
Start‑Stop Sequencing – Controls the start‑up and shutdown sequence of the exciter, including field flashing.
Field Flashing Control – Manages the initial excitation build‑up during generator start‑up.
Alarms and Trip Logic – Monitors system parameters and initiates trips or alarms upon detecting fault conditions.
Generator Instrumentation Processing – Processes voltage, current, and other feedback signals from the generator for monitoring and control.
Generator Simulator – Provides a simulated generator model for testing and commissioning purposes.
The board is powered from the EBKP backplane and communicates with the ACLA board (in M1 and M2 sections) via the EISB and the backplane. In redundant configurations, the three DSPX boards (one in each section) work in a voting scheme to ensure high availability and fail‑safe operation. The C section DSPX is responsible for voting and backup functions.

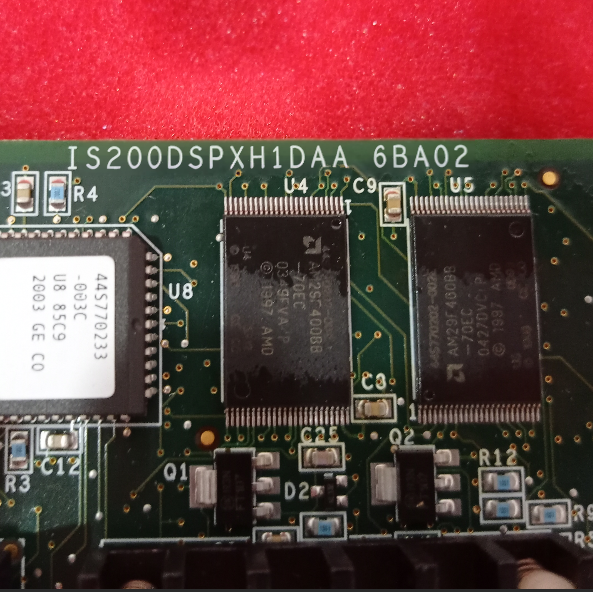

The DSPX board includes a high‑performance digital signal processor, memory (Flash, RAM, NVRAM), and an ASIC for custom logic. It receives analog feedback signals (voltages, currents) from the power bridge via VCO inputs and processes them for regulation and protection. It also interfaces with the operator interface (HMI) through the ACLA and the Unit Data Highway for configuration and monitoring.
Hardware Characteristics

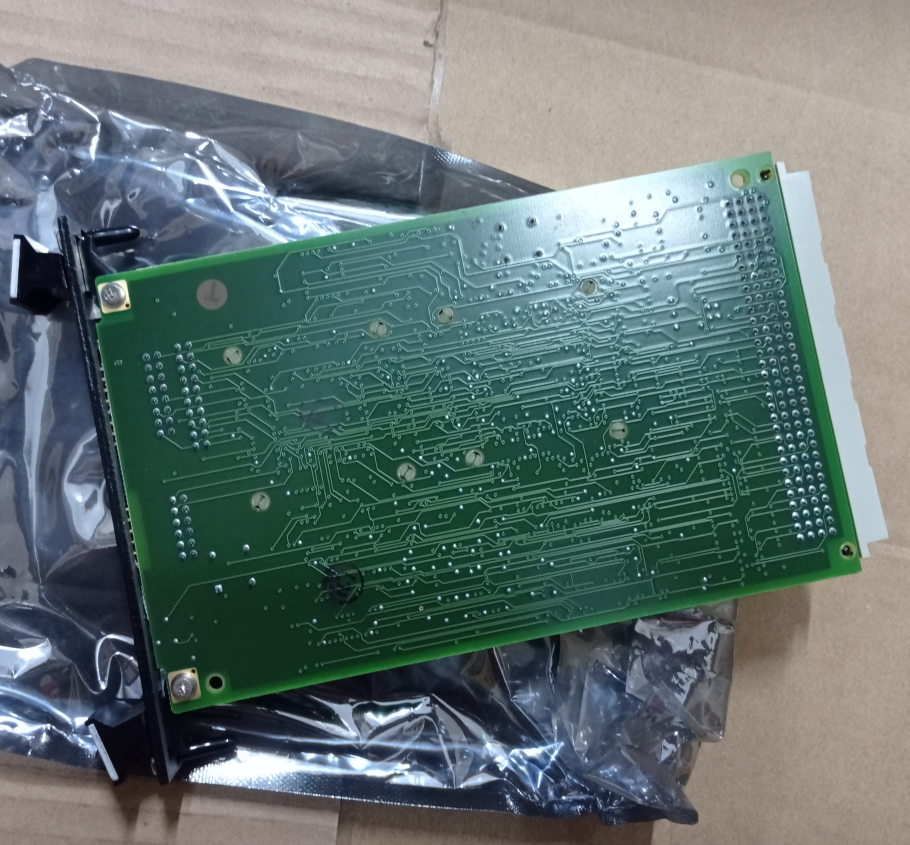

The IS200DSPXH1DAA is a single‑slot, 3U high Eurocard (approximately 100 mm × 160 mm) designed for insertion into the EBKP backplane in the EX2100 control module. It is secured by faceplate screws and includes ejector tabs for easy removal. The board is cooled by overhead fans in the control rack.
Connectors

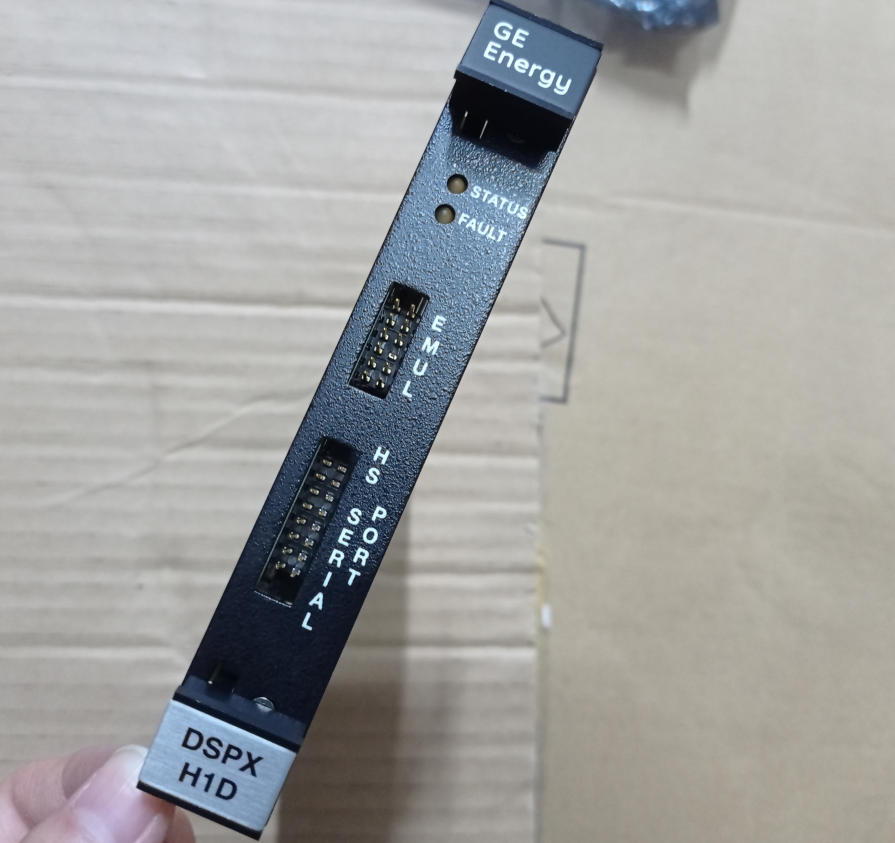

The board connects to the backplane via a 128‑pin DIN connector (P1). There are no other external connectors on the board itself; all I/O and communication are routed through the backplane and the EISB board. The board also features a front‑panel emulator port (P5) for TI emulator interface and a monitor port (P6) for engineering use, though these are typically not used in normal field operation.
Status LEDs
The DSPX board includes two front‑panel LEDs for visual status indication:
LED | Nomenclature | Color | Description |
DS1 | FAULT | Red | Fault LED driven by the DSP. ON or flashing: a fault has occurred or during reset. OFF: no faults are present. |
DS2 | STATUS | Green | Status monitor LED driven by the DSP. Flashing: Running. ON: Stopped. OFF: a fault has occurred or during reset. |
Key I/O Functions (via Backplane)
The board interfaces with the following signals through the P1 connector:
32‑bit data bus and 14‑bit address bus for memory‑mapped I/O.
Chip select signals for bridge interface (BIC_), I/O, LAN, and spare boards.
Six VCO inputs (0‑2 MHz) for bridge current and voltage feedback.
Two ISBus serial channels for high‑speed communication with the ACLA and other boards.
Load pulse outputs for synchronising gating signals.
Five differential HIFI inputs for tachometer or discrete inputs.
Two PWM outputs for meter drive.
Power supply (+5 V, ±15 V) and returns.
System Integration
The IS200DSPXH1DAA is part of the EX2100 control module, which also includes:
ACLA (Application Control Layer Module) – Present in M1 and M2 sections; handles outer loop regulation, communication gateway, and HMI interface.
EISB (Exciter ISBus Board) – Provides fiber‑optic communication between DSPX boards and with the EGDM (Field Ground Detector) and EDCF (DC Feedback) boards.
EMIO (Exciter Main I/O Board) – Interfaces customer and system I/O to the DSPX.
ESEL (Exciter Selector Board) – Distributes SCR gating signals to the power bridge.
In a redundant configuration, three DSPX boards (M1, M2, C) provide triple redundancy. The C section DSPX performs voting and backup functions, ensuring that a single failure does not compromise system operation. The DSPX boards communicate via the EISB and the ISBus for data exchange and synchronisation.
Installation and Replacement
Handling Precautions
Static sensitivity – The IS200DSPXH1DAA contains static‑sensitive components. Always wear a wrist grounding strap and handle the board at a grounded workstation. Store the board in its antistatic bag when not in use.
De‑energise before handling – Turn off power to the exciter (or the specific section in redundant systems) and verify zero voltage before touching the board or any connected circuits. Follow lock‑out/tag‑out procedures.
Do not insert or remove with power applied – Doing so may cause equipment damage or personal injury.
Replacement Procedure (Offline)
De‑energise the exciter following the EX2100 Installation and Startup Guide (GEH‑6631 or GEH‑6674).
Open the control cabinet door and verify that the LEDs on the DSPX and other boards are off.
If the DSPX is attached to an EISB board (as in some configurations), disconnect the fiber‑optic cables from the EISB front panel.
Loosen the top and bottom captive screws on the DSPX faceplate.
Raise the ejector tabs to unseat the board from the backplane.
Pull the board straight out using both hands.
If applicable, detach the EISB from the old DSPX and attach it to the replacement IS200DSPXH1DAA.
Slide the replacement board into the correct slot and press firmly to seat it.
Tighten the faceplate screws evenly.
Reconnect fiber‑optic cables (if applicable) and restore power.
After replacement, reconfigure the DSPX using the ToolboxST software (load configuration parameters).
Replacement Procedure (Redundant Online)
Identify the failed DSPX using the FAULT and STATUS LEDs.
De‑energise only the section (M1, M2, or C) containing the failed board, following the specific procedure for the EX2100 type.
Confirm that control has transferred to the other master (check LEDs and system status).
Disconnect fiber‑optic cables and remove the failed DSPX (and EISB if attached) as described above.
Install the replacement board, reconnect cables, and restore power to that section.
Test the replacement by transferring control to it and verifying normal operation.
When ordering the IS200DSPXH1DAA, use the complete part number exactly as shown. The part number follows GE’s convention:
IS200 – Innovation Series, 200‑class.
DSPX – Functional acronym: Digital Signal Processor Control Board.
H1 – Generation/version.
D – Base designator (specific to this variant).
A – Modifier (e.g., coating or component variation).
A – Revision A.
Warranty and Order Placement
Note: All digits and letters in the part number are significant. GE may substitute later compatible revisions, but backward compatibility is assured.
Diagnostics and Maintenance
The IS200DSPXH1DAA does not require routine calibration. The board performs continuous self‑diagnostics, including:
Stack overflow detection (foreground and background)
Watchdog timer monitoring (timeout generates a hard reset)
Memory integrity checks
Communication link status with ISBus and other interfaces
The FAULT and STATUS LEDs provide immediate visual indication of board health. If the FAULT LED is ON or flashing, a fault has occurred. If the STATUS LED is OFF, a fault or reset condition exists. Under normal operation, the STATUS LED should be flashing green.
Diagnostic alarms are reported to the HMI via the ACLA and the Unit Data Highway. The ToolboxST software provides detailed diagnostic information and allows configuration updates.
