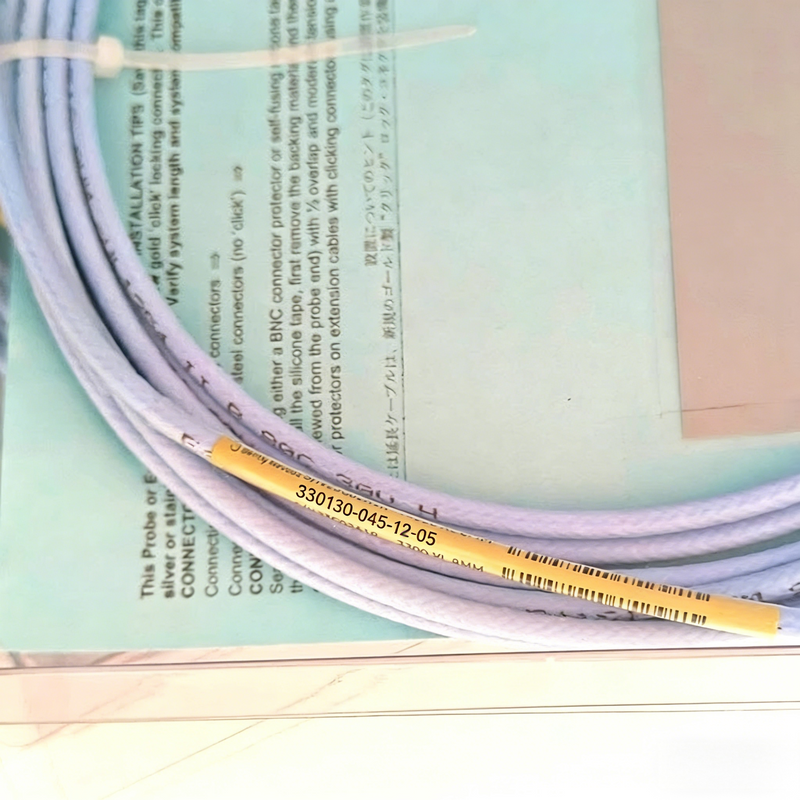

330130-045-12-05 FluidLoc Cable with Connector Protector

  • Bently Nevada

  • 330130-045-12-05

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

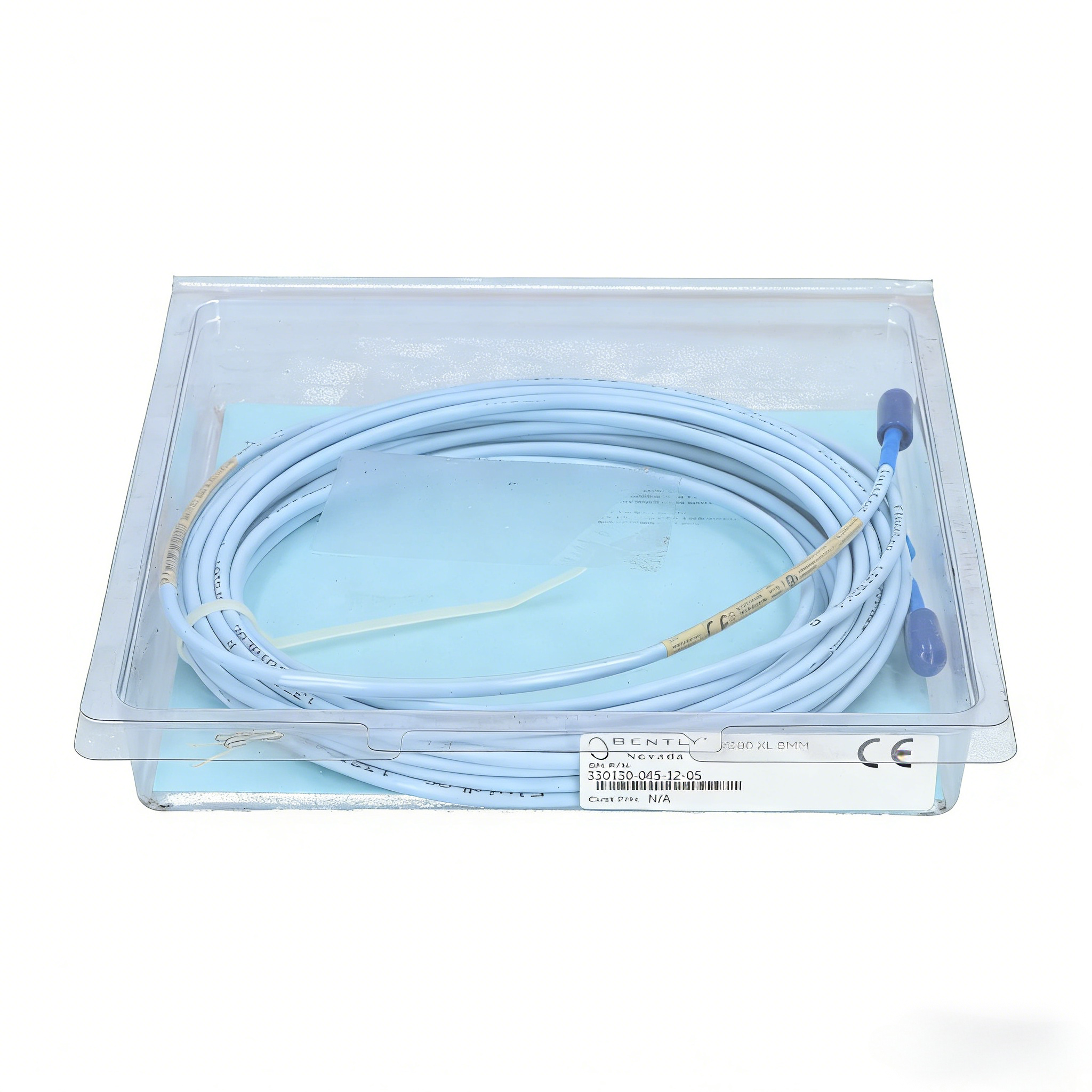

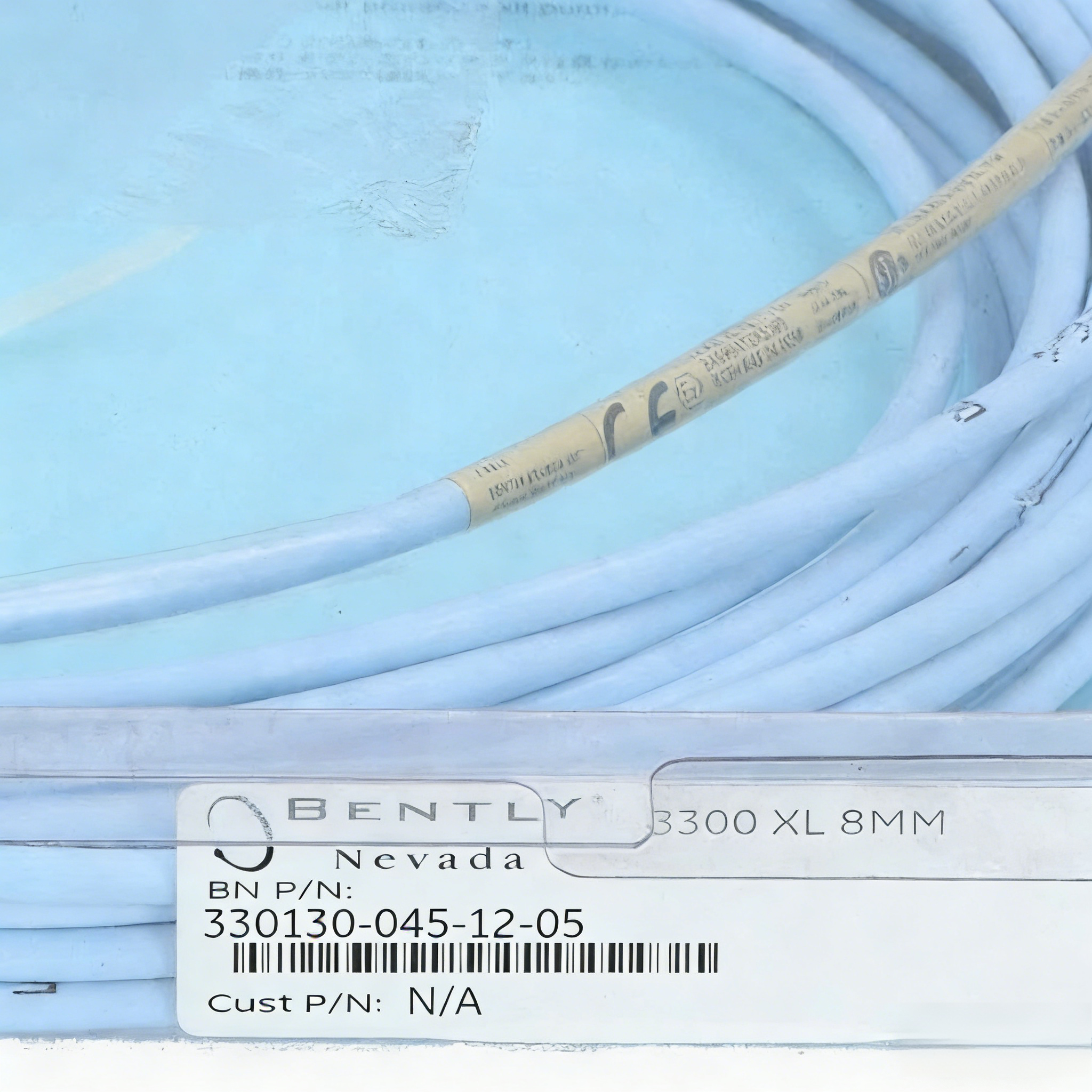

330130-045-12-05 is a high‑performance specialty Bently Nevada 3300 XL series extension cable with a total length of 4.5 meters (14.8 feet). This model integrates three core protection technologies: FluidLoc leak‑resistant technology to prevent oil migration through the cable interior, pre‑installed connector protectors for reliable environmental sealing, and CSA, ATEX, and IECEx hazardous area approvals for safe use in explosive atmospheres. It does not include armor.

It is an essential component of the 3300 XL 8 mm eddy current probe system, designed for applications requiring the precise 4.5 meter length to match a 0.5 meter hazardous area approved probe to form a complete 5 meter intrinsically safe system, along with oil leak prevention and connector environmental sealing without the need for mechanical armor. Typical applications include turbine bearing housings, compressors, and gearboxes in Zone 0 and Zone 1 hazardous areas such as refineries, petrochemical plants, and natural gas facilities, where lubricating oil leakage risk, oil mist, moisture, and intrinsic safety requirements are present. When using a 0.5 meter hazardous area approved probe (e.g., 330101-XX-05-XX-05), a 4.5 meter hazardous area approved extension cable is required to form a complete 5 m IS system (0.5 m + 4.5 m = 5 m). This model meets this precise total length matching requirement while providing internal FluidLoc leak protection, external connector environmental sealing, and hazardous area approvals – a non‑armored IS solution for hazardous areas with oil leakage risk and oil mist/moisture exposure.

Model Breakdown: 330130-045-12-05 Configuration Details

Following Bently Nevada’s part number coding system (refer to datasheet Page 19), the fields in this model number represent the following:

Field

Code

Parameter

Description

Base Model

330130

3300 XL Standard Extension Cable

Compatible with 3300 XL 8 mm and 3300 5 mm series probes

Length Option

045

4.5 meters (14.8 ft)

Total cable length for precise system total length matching (pairs with 0.5 m probe)

Cable Option

12

FluidLoc Cable with Connector Protector

FluidLoc leak‑resistant construction + pre‑installed connector protector

Agency Approval

05

CSA, ATEX, IECEx Hazardous Area Approvals

Certified for intrinsically safe installations in explosive atmospheres

Key Configuration Note: The combination of 045, 12, and 05 is the defining feature of this model. In a 3300 XL intrinsically safe system, when using a 0.5 meter hazardous area approved probe, a 4.5 meter hazardous area approved extension cable is required to form a complete 5 m IS system (0.5 m + 4.5 m = 5 m). This model meets this precise total length matching requirement while providing FluidLoc internal leak prevention, connector protector external environmental sealing, and hazardous area approvals – a non‑armored IS solution for hazardous areas with oil leakage risk and oil mist/moisture exposure.

FluidLoc Leak‑Resistant Technology & Connector Protector Details

What is FluidLoc?

FluidLoc is a patented technology from Bently Nevada that incorporates a specialized sealing structure inside the cable to prevent oil or other liquids from migrating through the gap between the center conductor and outer conductor via capillary action. In standard cables, if the probe tip seal fails or the cable jacket is damaged, oil can continuously migrate through the cable interior and eventually leak out at the connector or Proximitor Sensor end, causing environmental contamination or equipment damage.

How FluidLoc Works

  • Blocks Migration Paths: The FluidLoc structure fills the voids between conductors along the entire cable length, eliminating pathways for liquid capillary migration.

  • Compatible Media: Turbine oil, lubricating oil, water, and most industrial fluids.

Connector Protector

This model includes pre‑installed fluorosilicone connector protectors, which provide:

  • Environmental Sealing: Prevents turbine oil, moisture, and dust from penetrating the connector interface, reducing the risk of signal degradation or short circuits

  • Enhanced Connection Reliability: Forms a sealed sleeve after connector mating, ensuring long‑term connection stability

  • Media Ingress Prevention: In oil mist environments, the protector prevents oil from seeping through the connector threads

  • Intrinsic Safety Integrity: In hazardous areas, connector protectors help maintain sealing at the connection point, preventing media ingress that could affect intrinsic safety performance

Important Note: The datasheet specifically notes that silicone tape is not recommended for applications where the probe‑to‑extension cable connection will be exposed to turbine oil, and connector protectors are the recommended alternative. This model, with both FluidLoc and protectors plus hazardous area approvals, is the ideal non‑armored choice for preventing both internal oil migration and external environmental ingress in turbine oil environments within hazardous areas.

Comparison with Related Models

Feature

Standard IS (00-05)

FluidLoc IS (10-05)

Protector IS (02-05)

This Model (12-05)

Armored FluidLoc+Protector IS (13-05)

Oil Leak Prevention (FluidLoc)

No

Yes

No

Yes

Yes

Connector Environmental Sealing

No

No

Yes

Yes

Yes

Mechanical Protection (Armor)

No

No

No

No

Yes

Hazardous Area Approvals

Yes

Yes

Yes

Yes

Yes

Typical Applications

Dry, clean hazardous areas

Oil leakage risk hazardous areas

Oil mist/moisture hazardous areas

Oil leakage risk + oil mist/moisture hazardous areas

Oil leakage risk + oil mist/moisture + mechanical stress hazardous areas

Selection Tip: This model is the ideal non‑armored IS solution for hazardous area applications requiring both internal oil leak prevention and external connector environmental sealing. If the installation environment also involves mechanical impact, crushing, or abrasion risks, consider the armored version (e.g., 330130-045-13-05).

Approvals & Conditions of Safe Use

Hazardous Area Certifications

330130-045-12-05 carries the following hazardous area approvals, suitable for installations in major industrial regions worldwide:

Certification

Type

Area Classification

Temperature Class

ATEX / IECEx

Ex ia IIC T4/T5 Ga

Zone 0, 1, 2

T5 @ Ta = -55°C to +40°C
T4 @ Ta = -55°C to +80°C

cNRTLus

Class I, Zone 0, AEx/Ex ia IIC T4/T5 Ga

Class I, Groups A, B, C, D

Same as above

Conditions of Safe Use (Intrinsically Safe Systems)

When used in an intrinsically safe system, the following conditions must be observed:

  • Barriers/Isolators: Must be installed with intrinsically safe zener barriers per Bently Nevada drawing 141092, or with galvanic isolators.

  • Entity Parameters (when connected to approved Proximitor Sensor):

    • Ui = -28V

    • Ii = 140 mA

    • Pi = 0.91 W

    • Ci = 47 nF

    • Li = 1460 μH

  • Installation Environment: The Proximitor Sensor must be installed in a non‑hazardous area or within an approved explosion‑proof enclosure.

Important: This cable must be used with hazardous area approved probes (e.g., 330101-XX-05-XX-05) and Proximitor Sensors (e.g., 330180-50-05) to maintain a complete intrinsically safe system. Mixing with non‑approved components will void the hazardous area certification.

Application Scenarios & Selection Guide

330130-045-12-05 is suitable for the following typical applications:

  1. Precise Total Length Matching for 5 m IS Systems (0.5 m Hazardous Area Probe) + Dual Protection: When using a 0.5 meter hazardous area approved probe, a 4.5 meter hazardous area approved extension cable is required to form a complete 5 m IS system (0.5 m + 4.5 m = 5 m). This model meets this precise total length matching requirement while providing FluidLoc internal leak prevention, connector environmental sealing, and hazardous area approvals – ideal for hazardous areas with oil leakage risk and oil mist/moisture exposure.

  2. Turbomachinery Bearing Housings in Hazardous Areas: Steam turbines, compressors, and gas turbines in refineries and petrochemical plants have lubricating oil circulating inside bearing housings and are often located in Zone 1 or Zone 2 areas. FluidLoc cable prevents oil migration, connector protectors prevent oil mist from penetrating the connector interface, and hazardous area approvals ensure safety compliance.

  3. Oil Contact + Oil Mist/Moisture Environments in Hazardous Areas: Gearboxes, engine test stands, and similar equipment in classified areas may expose cables to liquid oil and also operate in oil‑mist or humid conditions. Triple protection provides comprehensive security.

  4. Hazardous Area Applications Where Armor is Not Required: If the installation environment has no mechanical impact, crushing, or abrasion risks, this model offers leak prevention, environmental sealing, and hazardous area approvals at a smaller diameter and lower cost than armored versions.

Selection Notes:

  • Total Length Matching: Probe length + extension cable length = Proximitor Sensor total system length (5 m or 9 m). Verify your probe length: if using a 0.5 m hazardous area approved probe, select this model (4.5 m); if using a 1.0 m hazardous area approved probe, select a 4.0 m FluidLoc+protector hazardous area cable (e.g., 330130-040-12-05).

  • System Integrity: All components entering the hazardous area (probe, extension cable, connector protectors) must carry the same hazardous area approval rating. This model includes pre‑installed protectors and hazardous area approvals, meeting system requirements.

  • Slightly Larger FluidLoc Cable Diameter: FluidLoc cable outer diameter is 3.94 mm (standard 3.68 mm). The connector protector outer diameter is 12.4 mm. Verify clearance when routing through conduit or tight spaces.

  • Bend Radius: Minimum bend radius is 25.4 mm (1.0 in), the same as standard cable.

  • Ambient Temperature: If the application environment exceeds +177°C, consider the ETR (Extended Temperature Range) FluidLoc+protector hazardous area cable series (e.g., 330190-045-12-05).

  • Armor Requirements: If the installation environment also involves mechanical impact, crushing, or abrasion risks, consider the armored version (e.g., 330130-045-13-05).

Comparison with Common Lengths

Model

Length

FluidLoc

Protector

Armor

Approvals

Typical Matching Probe

System

330130-040-12-05

4.0 m

Yes

Yes

No

ATEX/IECEx

1.0 m hazardous area probe

5 m IS system

330130-045-12-05

4.5 m

Yes

Yes

No

ATEX/IECEx

0.5 m hazardous area probe

5 m IS system

330130-080-12-05

8.0 m

Yes

Yes

No

ATEX/IECEx

1.0 m hazardous area probe

9 m IS system

330130-085-12-05

8.5 m

Yes

Yes

No

ATEX/IECEx

0.5 m hazardous area probe

9 m IS system

Standard 5 m intrinsically safe systems are typically composed of a 1.0 m hazardous area probe + 4.0 m hazardous area cable, or a 0.5 m hazardous area probe + 4.5 m hazardous area cable. Choose the extension cable length that matches your probe. This model provides a FluidLoc+protector dual‑protection plus hazardous area approvals option for 5 m IS systems using a 0.5 m probe.

Mechanical Dimensions & Installation

  • Cable Outer Diameter: FluidLoc cable 3.94 mm (0.155 in) maximum

  • Connector Protector Outer Diameter: 12.4 mm (0.49 in) maximum

  • Connector: Features the ClickLoc design. Finger‑tighten until an audible "click" is heard — no special tools are required. The protector automatically forms a seal when tightened.

  • Installation Drawing: Intrinsically safe system installation must strictly follow Bently Nevada drawing 141092, including barrier selection, grounding, and wiring practices.

  • Installation Tips: When routing through conduit in hazardous areas, use a pull rope or fish tape attached to the cable jacket (not the connector protector) to avoid stress. Since this model has no armor, the pull rope must be attached to the cable jacket. If protector removal is required for inspection, refer to the datasheet for tool instructions, and ensure proper reinstallation to maintain seal integrity.

Related Products & Compatible Configurations

For other lengths or configurations of FluidLoc+protector hazardous area extension cables, refer to the following options:

Model

Length

Cable Option

Approvals

Application

330130-040-12-05

4.0 m

FluidLoc + Protector

ATEX/IECEx

Pairs with 1.0 m hazardous area probe, 5 m IS system, dual protection + approvals

330130-045-12-05

4.5 m

FluidLoc + Protector

ATEX/IECEx

Current model, pairs with 0.5 m hazardous area probe, 5 m IS system, dual protection + approvals

330130-045-10-05

4.5 m

FluidLoc (no protector)

ATEX/IECEx

Leak prevention + approvals only, no environmental sealing (0.5 m probe)

330130-045-02-05

4.5 m

Standard + Protector

ATEX/IECEx

Environmental sealing + approvals only, no leak prevention (0.5 m probe)

330130-045-13-05

4.5 m

Armored FluidLoc + Protector

ATEX/IECEx

Mechanical protection + leak prevention + environmental sealing + approvals (0.5 m probe)

Matching Probe: This cable is commonly used with 330101 series 0.5 m hazardous area approved probes (total length option 05, approval option 05).

Inquiry & Technical Support

330130-045-12-05 is a specialty FluidLoc+protector hazardous area model in the Bently Nevada product line. For pricing, lead time, or technical drawings, please contact us:

  • Online Inquiry: Click the “Request a Quote” button and provide the model number for a prompt response.

  • Technical Support: If you need assistance verifying whether this configuration meets your hazardous area turbomachinery leak prevention, environmental sealing, and intrinsic safety requirements, please describe your installation environment (hazardous area classification, oil contact, oil mist, moisture, etc.) and we will help recommend the optimal cable configuration and confirm system certification integrity.

Specification

Value

Cable Type

75Ω triaxial, FluidLoc leak‑resistant construction, FEP insulation

Overall Length

4.5 meters (14.8 ft)

Connector Type

ClickLoc gold‑plated brass/beryllium copper (male)

Connector Protector

Pre‑installed, fluorosilicone material, provides environmental sealing

Cable Outer Diameter (max)

FluidLoc cable: 3.94 mm (0.155 in) maximum

Connector Torque

Finger‑tight until "click"; maximum 0.565 N·m (5 in·lbf)

DC Resistance (Center to Center)

0.99 Ω ± 0.15 (based on 4.5 m length)

DC Resistance (Outer to Outer)

0.30 Ω ± 0.06 (based on 4.5 m length)

Nominal Capacitance

69.9 pF/m (21.3 pF/ft)

Operating Temperature Range

-52°C to +177°C (-62°F to +350°F)

Minimum Bend Radius

25.4 mm (1.0 in)

Tensile Strength

270 N (60 lbf) rated at connector

Compatible Probes

3300 XL 8 mm series, 3300 5 mm series probes (must be approved versions)

Matching Proximitor Sensors

3300 XL 5 m system Proximitor Sensors with hazardous area approvals (e.g., 330180-50-05)

DC Resistance Note: Based on datasheet Pages 4-5, the center conductor resistance for a 4.5 m extension cable is approximately 0.99 Ω (derived from 4.0 m value of 0.88Ω), and the outer conductor resistance is approximately 0.30 Ω (derived from 4.0 m value of 0.26Ω). Consult official specifications for exact values.
