The GE IS200EPSDG1AAB Exciter Power Supply Daughterboard is a compact auxiliary PCB component designed to modify the power input path of the Exciter Power Supply Module within GE excitation control systems. The IS200EPSDG1AAB Exciter Power Supply Daughterboard functions as a daughterboard for the EPSM card, enabling the module to accept higher input voltages by increasing the creep and clearance distances in the power input path. Additionally, the board provides a critical fuse between the buck regulator and the regulator power source or DC link, protecting the power supply module from downstream failures.
The IS200EPSDG1AAB Exciter Power Supply Daughterboard is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The “IS200” prefix identifies the board as a GE Industrial Control Systems product, with “200” specifically indicating that the board is a base-level assembly. The “EPSD” acronym identifies the board’s functional designation as an Exciter Power Supply Daughterboard. The “G1” designation identifies the hardware group, while the “AAB” suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards.

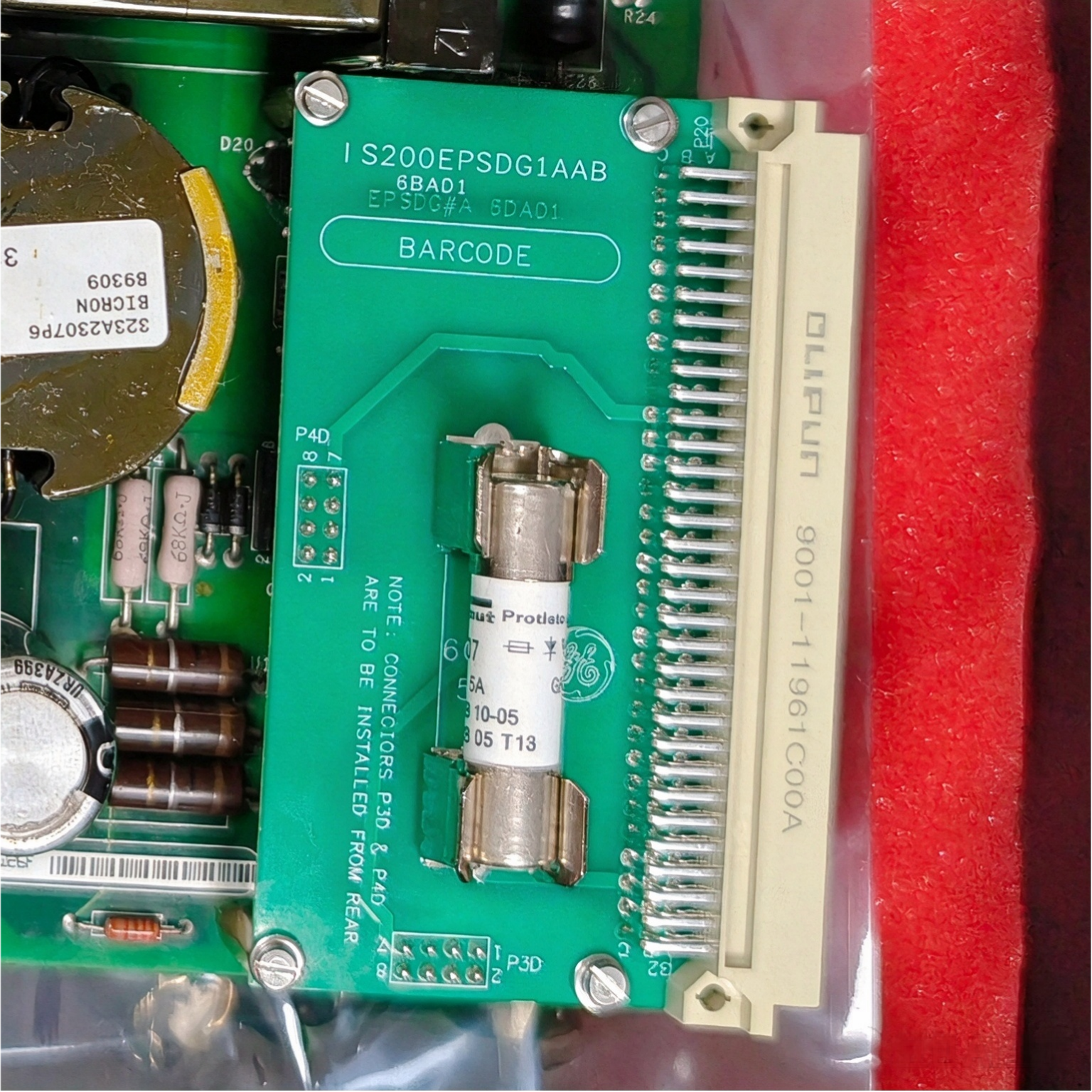

The IS200EPSDG1AAB Exciter Power Supply Daughterboard is a very small component, built with a single backplane and a single high-voltage fuse mounted via flame-resistant inline fuse holders. The board mounts to the EPSM motherboard using four screws inserted into standoffs, with the screws threaded through four factory-made holes in the EPSD board. The board is marked with the GE logo and its board ID number, and it is treated as a static-sensitive board requiring anti-static handling and packaging during transit.
This product introduction provides detailed technical information, functional descriptions, configuration guidance, and comprehensive specifications for the GE IS200EPSDG1AAB Exciter Power Supply Daughterboard, serving as an essential reference for excitation control engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Signal Processing
The IS200EPSDG1AAB Exciter Power Supply Daughterboard performs two primary functions within the EPSM power supply architecture: voltage input path modification and fuse protection. These functions are critical for adapting the EPSM module to higher input voltage applications and for protecting the power conversion circuitry from fault conditions.
The primary function of the IS200EPSDG1AAB Exciter Power Supply Daughterboard is to modify the power input path of the EPSM to allow it to accept higher voltages. The EPSM itself consists of two basic sections: a buck regulator and a push-pull inverter. The buck regulator converts the input voltage into an intermediate 50 V DC voltage, which is then fed into the push-pull inverter to generate the various output voltages required by the control system. The push-pull inverter’s transformer provides high-voltage isolation between the input voltage source and the output supplied to the control system.
The IS200EPSDG1AAB Exciter Power Supply Daughterboard alters the power input path by increasing the creep and clearance distances, which is essential when the EPSM is used in applications with higher input voltages. This modification ensures that the board can safely withstand the elevated voltages without risk of arcing or insulation breakdown. The daughterboard is particularly relevant for EPSM Group 2 (EPSMG2) modules used in regulator control applications, where the input is derived from the DC link bus voltage rather than the 125 V DC station battery supply used in excitation control applications.
The second critical function of the IS200EPSDG1AAB Exciter Power Supply Daughterboard is to provide a fuse between the regulator power source (DC connection) and the buck regulator. This fuse protects the power supply module from damage due to downstream failures. If a fault occurs in the buck regulator or the subsequent circuitry, the fuse on the IS200EPSDG1AAB will open, isolating the fault and preventing damage to the upstream power source or the DC link. This protection is essential for maintaining the reliability and safety of the excitation control system.
Physical Design and Mounting
The IS200EPSDG1AAB Exciter Power Supply Daughterboard is a compact, lightweight assembly designed for direct mounting onto the EPSM motherboard. Its small size and simple construction belie its critical role in the power supply architecture.
The board is built with a single backplane and a single high-voltage fuse. The fuse is mounted via flame-resistant inline fuse holders, ensuring that the fuse remains securely in place and that any heat generated during a fault condition is safely contained. The board mounts to the motherboard using four screws inserted into standoffs, with the screws threaded through four factory-made holes in the EPSD board. This mounting method ensures a secure and reliable connection while allowing for straightforward removal and replacement when necessary.
The IS200EPSDG1AAB Exciter Power Supply Daughterboard is marked with the GE logo and its board ID number, allowing for easy identification during maintenance and inventory management. The board is treated as a static-sensitive component and is shipped in anti-static packaging to protect it from electrostatic discharge damage during transit and handling.
Application Suitability and System Integration
The IS200EPSDG1AAB Exciter Power Supply Daughterboard is an integral component of the EPSM power supply architecture in GE excitation control systems. Its primary application is in EPSM Group 2 (EPSMG2) modules used in regulator control applications, where the input voltage is derived from the DC link bus rather than the station battery supply used in excitation control applications.
In the EX2100 Regulator Control, the EPSM converts the DC link bus voltage into the voltages required to control the regulator. The IS200EPSDG1AAB Exciter Power Supply Daughterboard is mounted on the EPSMG2 module to modify the power input path, allowing the module to accept the higher voltages present on the DC link. The board also provides fuse protection between the DC link and the buck regulator, protecting the power supply module from damage if a fault occurs in the downstream circuitry.
The IS200EPSDG1AAB Exciter Power Supply Daughterboard is designed for easy integration into the EPSM assembly. Its small size and simple mounting method allow it to be installed or replaced without specialized tooling, and its clearly marked board ID number facilitates identification and inventory management. The board’s anti-static packaging ensures that it arrives at the installation site in proper condition, ready for immediate use.
Maintenance and Lifecycle
The IS200EPSDG1AAB Exciter Power Supply Daughterboard is designed for long service life with minimal maintenance. The board contains no moving parts, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the board and its fuse, verification of the mounting screws, and confirmation that the board is properly seated on the EPSM motherboard.
If the board requires replacement, the process is straightforward. After de-energizing the associated equipment and verifying that no power exists, the four mounting screws must be removed, and the board must be carefully lifted from the EPSM motherboard. The replacement board is then positioned over the standoffs, and the four screws are inserted and tightened. All connections should be verified before power is reapplied.
GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement IS200EPSDG1AAB Exciter Power Supply Daughterboard, provide the complete part number and description, the exciter serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement boards is guaranteed.
Conclusion
The GE IS200EPSDG1AAB Exciter Power Supply Daughterboard is a compact, reliable, and essential auxiliary component for the EPSM power supply module in GE excitation control systems. Its dual functions of modifying the power input path to accept higher voltages and providing critical fuse protection between the buck regulator and the power source ensure that the EPSM module operates safely and reliably in demanding industrial applications.
With its simple construction, secure mounting method, and clear identification markings, the IS200EPSDG1AAB Exciter Power Supply Daughterboard is designed for easy installation and maintenance. Backed by GE’s quality manufacturing, global support network, and commitment to backward compatibility, the IS200EPSDG1AAB Exciter Power Supply Daughterboard continues to deliver the performance and reliability that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the IS200EPSDG1AAB Exciter Power Supply Daughterboard provides the voltage adaptation and fuse protection functionality required for reliable and efficient excitation control operation.
