Parameter | Details |
General | |

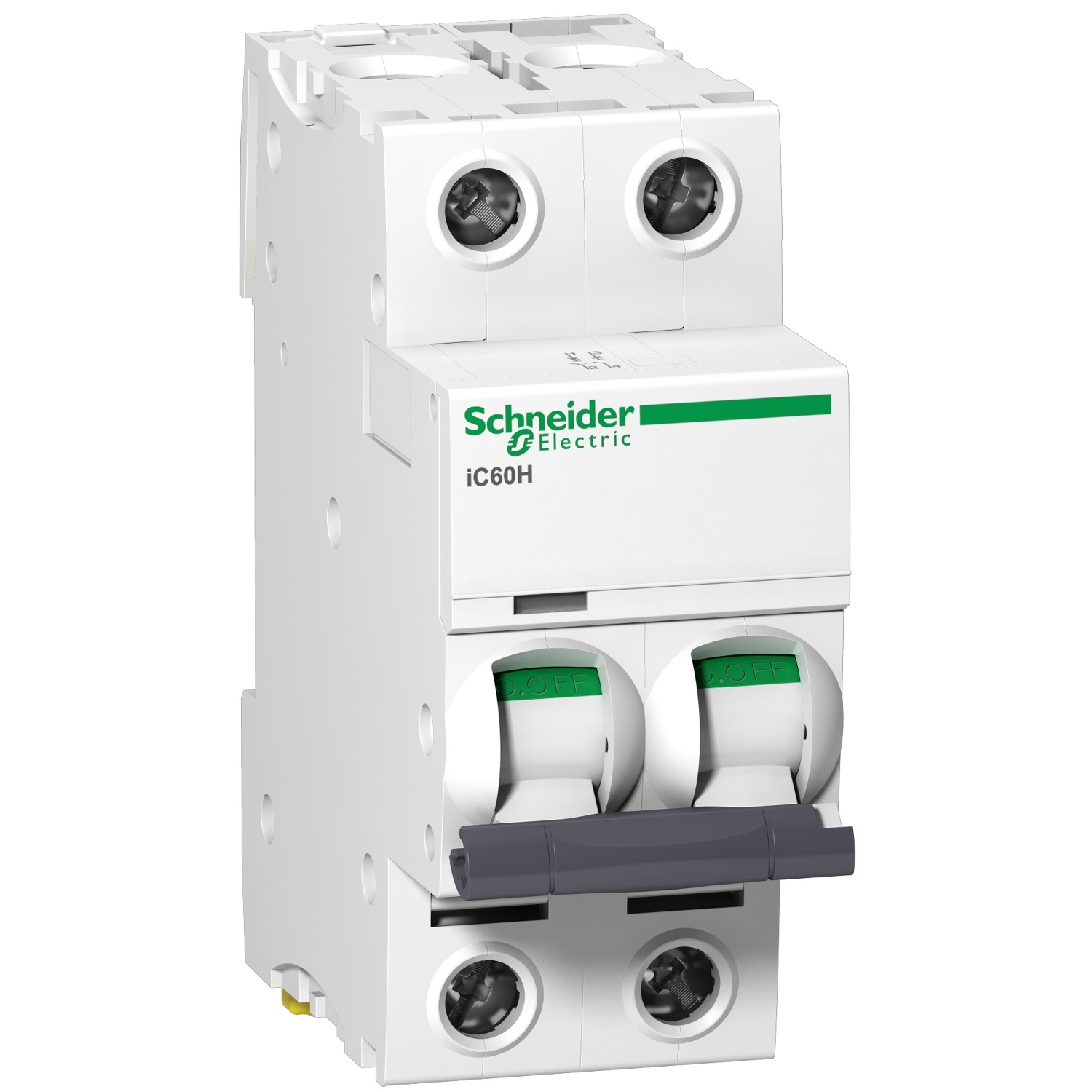

Product Model | A9F55240 |
Range | Acti9 |
Product Name | Disbo iC60 |
Device Short Name | iC60H |
Poles Description | 2P |
Number of Protected Poles | 2 |
Rated Current (In) | 40 A |
Network Type | AC / DC |
Trip Unit Technology | Thermal‑magnetic |
Tripping Curve | D |
Magnetic Tripping Limit | 12 x In ± 20% |
Suitability for Isolation | Yes (conforming to EN/IEC 60898‑1 and EN/IEC 60947‑2) |
Utilisation Category | Category A (EN/IEC 60947‑2) |
Breaking Capacity (Icu) – EN/IEC 60947‑2 | |
– 12…133 V AC 50/60 Hz | 42 kA |
– 220…240 V AC 50/60 Hz | 30 kA (as per product image) |
– 380…415 V AC 50/60 Hz | 15 kA |
– 440 V AC 50/60 Hz | 10 kA |
– ≤125 V DC | 15 kA |
Breaking Capacity (Icu) – EN/IEC 60898‑1 | |
– 415 V AC 50/60 Hz | 10,000 A (as per product image and PDF) |
Service Breaking Capacity (Ics) – EN/IEC 60947‑2 | |
– 12…133 V AC | 21 kA (50%) |
– 220…240 V AC | 15 kA (50%) |
– 380…415 V AC | 7.5 kA (50%) |
– 440 V AC | 5 kA (50%) |
– ≤125 V DC | 15 kA (100%) |
Limitation Class | Class 3 (EN/IEC 60898‑1) |
Rated Operational Voltage (Ue) | 12…133 V AC 50/60 Hz
220…240 V AC 50/60 Hz
380…415 V AC 50/60 Hz
440 V AC 50/60 Hz
≤125 V DC |
Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz (EN/IEC 60947‑2) |
Rated Impulse Withstand Voltage (Uimp) | 6 kV (EN/IEC 60947‑2) |
Network Frequency | 50/60 Hz |
Durability | |
Mechanical Durability | 20,000 cycles |
Electrical Durability | 10,000 cycles |
Contact Position Indicator | Yes (toggle) |
Local Signalling | Trip indicator (VisiTrip) |
Mounting & Physical | |
Mounting Mode | Clip‑on (DIN rail) |
Mounting Support | Rail, 9 mm pitches |
Number of Pitches | 4 (36 mm total width) |
Width | 36 mm |
Height | 85 mm |
Depth | 78.5 mm |
Net Weight | 0.25 kg |
Colour | White (RAL9003) |
Terminals & Connections | |
Connection Type | Double tunnel terminals (top and bottom) |
Rigid Conductor (copper) | 1…25 mm² |
Flexible Conductor (copper) | 1…16 mm² |
Wire Stripping Length | 14 mm (top or bottom) – typical for series |
Tightening Torque | 2 N·m (top or bottom) – typical for series |
Padlocking Provision | Yes (padlockable) |
Earth‑leakage Protection | Separate add‑on block (Vigi iC60) required |
Environmental & Protection Ratings | |
Standards Compliance | EN/IEC 60947‑2, EN/IEC 60898‑1 |
IP Degree (terminals) | IP20 (IEC 60529) |
IP in Enclosure | IP40 (Insulation class II) – typical for series |
Pollution Degree | 3 (EN/IEC 60947‑2) |
Overvoltage Category | IV |
Tropicalisation | 2 (IEC 60068‑1) |
Relative Humidity | 95% at 55°C |
Operating Temperature | -35°C … +70°C |
Storage Temperature | -40°C … +85°C |
Sustainability & Compliance | |
Halogen‑free status | Product contains halogen above thresholds (not halogen‑free) |
PVC‑free | Yes |
Silicone‑free | No |
Recyclability Potential | 54% |
EU RoHS Directive | Compliant |
REACH SVHC | Contains SVHC above threshold |
SCIP Number | 26ff71d1‑98cf‑4280‑8725‑455b9a6b2fb9 |
Packaging with recycled cardboard | Yes |
Packaging without single‑use plastic | Yes |
WEEE Label | Required for EU disposal (separate collection) |
Repair / Take‑back | No / No |
Logistics | |
Country of Origin | Bulgaria (BG) |
Warranty | 18 months |
EAN Code | 3606480515378 |
Package 1 (Single unit) | 1 pc; dimensions not specified in provided data; weight approx. 0.25 kg |
Package 2 (Box) | Not specified |
Package 3 (Pallet) | Not specified |
Carbon Footprint (Lifecycle) | |
Total | 41 kg CO₂ eq. |
Manufacturing (A1‑A3) | 2 kg CO₂ eq. |
Distribution (A4) | 0 kg CO₂ eq. |
Installation (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 39 kg CO₂ eq. |
End‑of‑life (C1‑C4) | 0.7 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile available |
