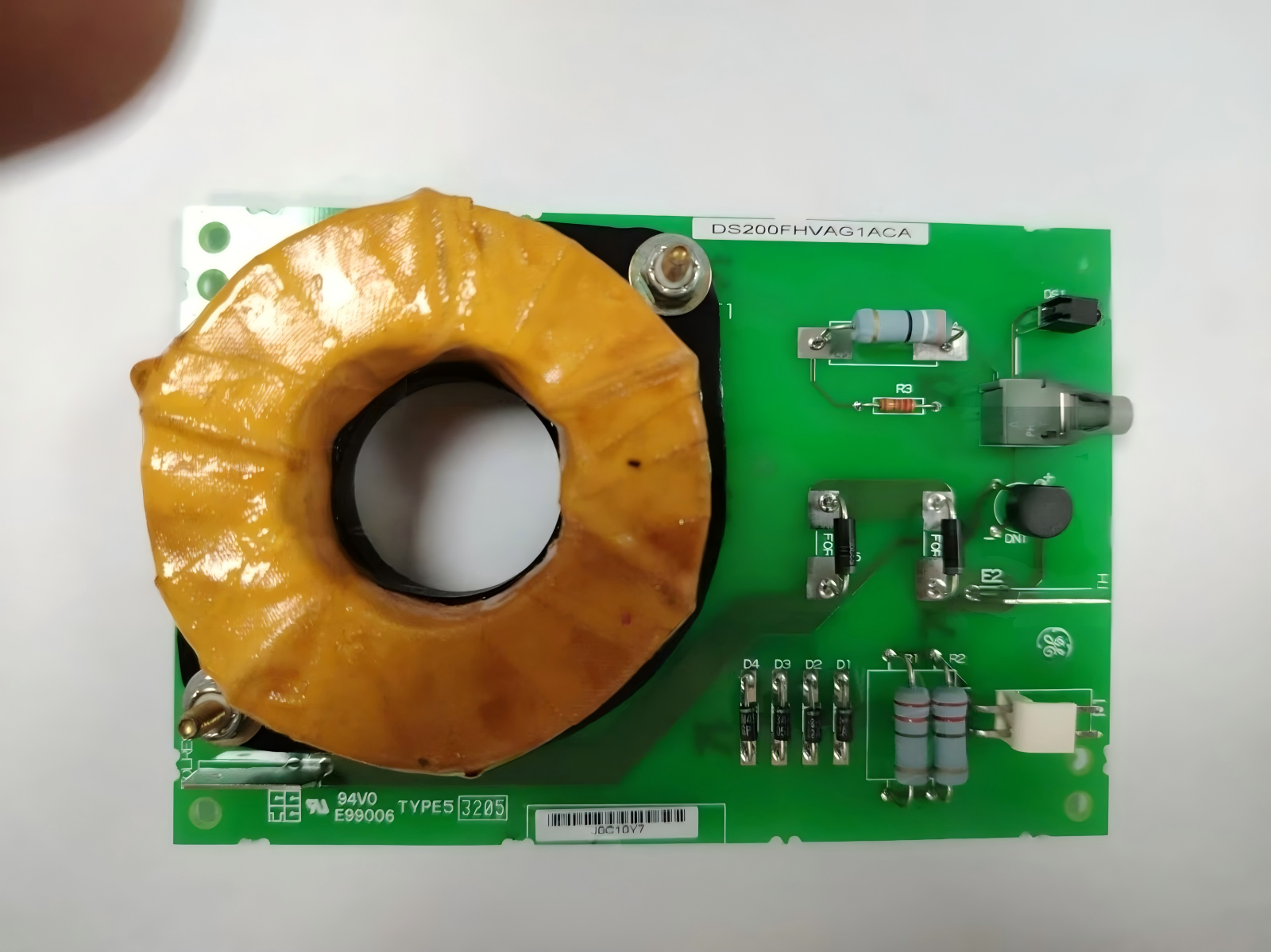

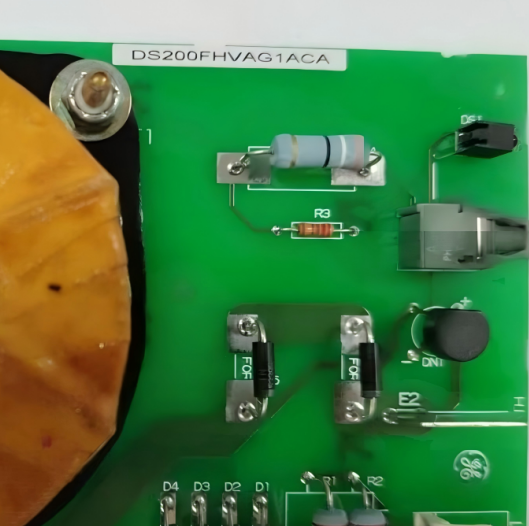

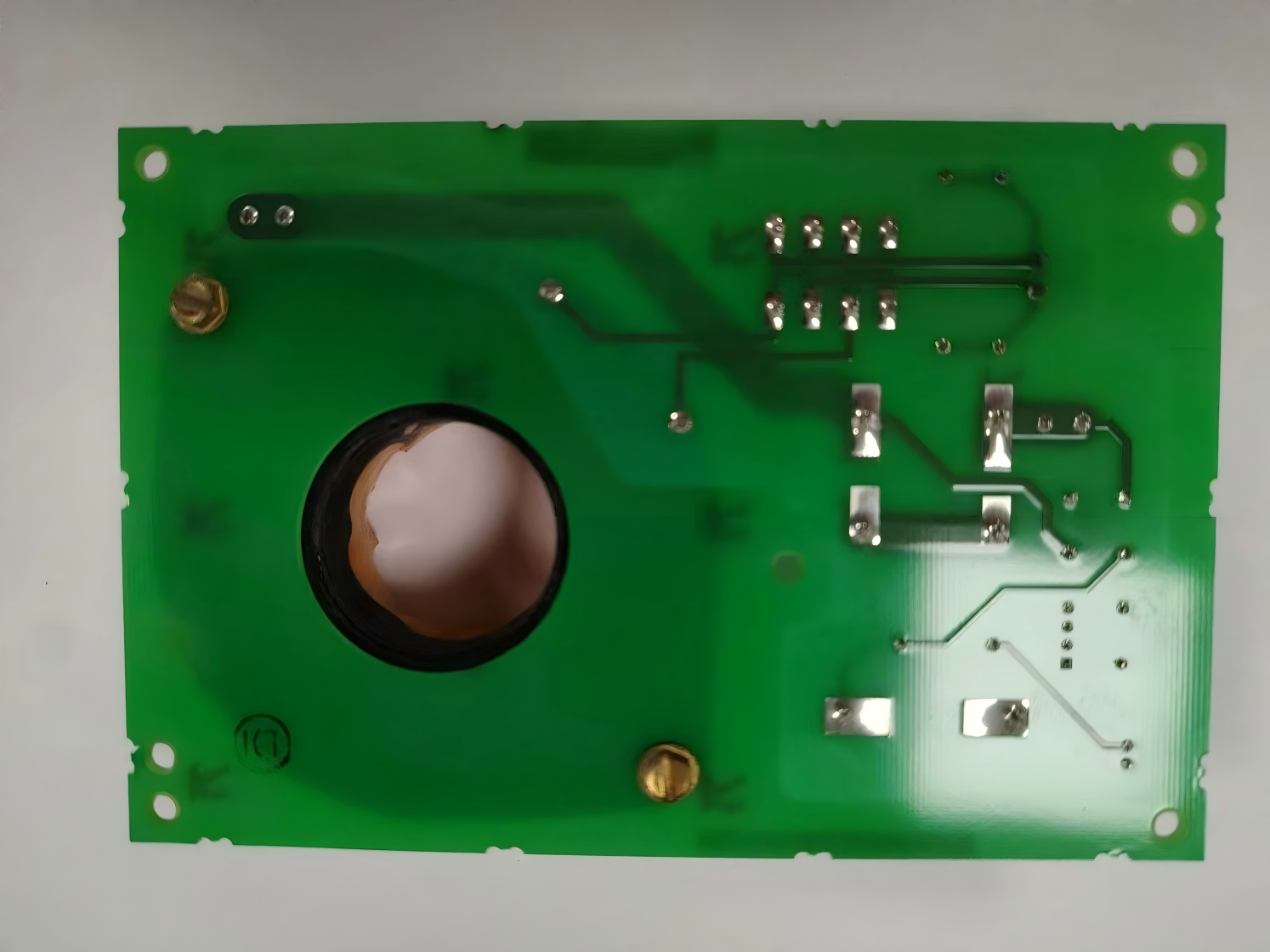

The DS200FHVAG1A is a High Voltage Gate Interface Board designed by General Electric (GE) Energy for its LS2100 static starter system. Belonging to the FHVA (High Voltage Gate Interface Board) series, this board is a core component of the power conversion section of the LS2100 static starter, providing electrical isolation and signal interface between the high-voltage SCR gate drive circuits and the control circuits.
The primary function of the FHVA High Voltage Gate Interface Board is to receive trigger signals from the FCGD Gate Pulse Amplifier Board and, after electrical isolation and power amplification, drive the SCR gates of the power bridge. This board employs high-voltage isolation technology to ensure safe separation between the control-side circuits and the power-side circuits, preventing high-voltage side interference from affecting the normal operation of the control system. The FHVA board is typically installed near the SCR assembly of the power bridge and connects to the FCGD board via fiber optics or cables, achieving safe and reliable SCR trigger control.
The DS200FHVAG1A board is designed to meet the demands of high-voltage power electronic systems and features the following characteristics:
High-Voltage Electrical Isolation: Provides high-voltage electrical isolation between the control side and the power side, ensuring control circuit safety.
Gate Drive Amplification: Amplifies control signals into power pulses sufficient to drive SCR gates.
High Voltage Withstand Capability: Capable of withstanding the high voltages of the SCR bridge, suitable for high-voltage systems up to 4160 V and above.
Multi-Channel Output: Supports multiple SCR gate drive channels to meet the triggering requirements of three-phase bridges.
Fiber Optic Interface: Supports fiber optic signal transmission for long-distance, high-reliability signal transfer.
Compact Design: Modular design facilitates installation near the SCR assembly.
This product is widely used in high-voltage power electronics applications such as LS2100 static starter systems, large synchronous motor starting, gas turbine starting, and other high-voltage SCR bridge applications requiring high-voltage isolation and reliable gate drive.
II. Key Functions
1. High-Voltage Electrical Isolation
The core function of the DS200FHVAG1A board is to achieve high-voltage electrical isolation between the control-side circuits and the power-side circuits. There is a significant voltage difference between the control system (located in the control cabinet) and the SCR power bridge (located in the power cabinet). Direct connection could damage the control system or cause personal safety hazards. The FHVA board employs opto-isolation or fiber optic transmission technology to ensure safe transmission of control signals to the high-voltage side while blocking potential interference signals from the high-voltage side.
2. SCR Gate Drive Amplification
The DS200FHVAG1A board receives low-level trigger signals from the FCGD board and, after isolation and amplification, generates sufficient gate current and voltage to ensure reliable SCR conduction. The characteristics of the gate drive pulses (amplitude, width, rise time) are optimized to meet the requirements of different SCR devices.
3. Multi-Channel SCR Triggering
The DS200FHVAG1A board supports multiple SCR gate drive outputs, typically including:
Source Bridge A Trigger Outputs: 6 SCR gate drives (corresponding to 6 SCRs of a three-phase full bridge)
Source Bridge B Trigger Outputs: 6 SCR gate drives (for dual-bridge parallel configurations)
Load Bridge Trigger Outputs: 6 SCR gate drives (for load-commutated inverters)
Each output can be independently controlled to achieve precise SCR trigger timing.
4. Gate Status Feedback
The DS200FHVAG1A board may provide gate status feedback signals for monitoring the trigger status of SCR gates, helping the control system confirm whether SCRs have been correctly triggered. This is important for fault diagnostics and system protection.
5. Fiber Optic Communication Interface
In high-voltage applications, the DS200FHVAG1A board may use fiber optics as the signal transmission medium. Fiber optic communication offers the following advantages:
Complete Electrical Isolation: Fiber optics are non-conductive, providing complete electrical isolation.
Electromagnetic Interference Immunity: Fiber optics are immune to electromagnetic interference, ensuring stable and reliable signal transmission.
Long-Distance Transmission: Supports long-distance signal transmission, facilitating separate installation of control cabinets and power cabinets.
6. Fault Detection and Protection
The DS200FHVAG1A board may integrate fault detection circuits to monitor the status of SCR gate drive circuits and send fault signals to the control system upon detecting abnormalities, triggering protective actions.
III. Hardware Architecture
1. Board Structure
The DS200FHVAG1A board adopts a modular design and is typically installed near the SCR power bridge assembly. The board includes:
Opto-Isolation Circuits: Achieve electrical isolation between control signals and the high-voltage side.
Gate Drive Amplification Circuits: Provide the drive power required by SCR gates.
Fiber Optic Interface Module: Receives fiber optic signals from the FCGD board.
Status Feedback Circuits: Monitor gate drive status and provide feedback to the control system.
Power Management Circuits: Provide operating power for onboard circuits.
2. Mounting Location
The DS200FHVAG1A board is installed in the power conversion cabinet of the LS2100 static starter, near the SCR assembly, and connects via fiber optics or cables to the FCGD board located in the control cabinet.
3. Electrical Connections
The main electrical connections of the DS200FHVAG1A board include:
Signal Input: Gate trigger signals from the FCGD board (via fiber optics or cables)
Gate Drive Outputs: Drive cables connected to SCR gates and cathodes
Operating Power: Power sourced from the power side or external power supply
Status Feedback Outputs: Status signals returned to the control system
4. Voltage Ratings
The voltage ratings of the DS200FHVAG1A board match the system voltage of the LS2100 static starter, typically capable of withstanding the following voltage levels:
System Voltage: Up to 4160 V ac (or higher depending on configuration)
Isolation Voltage: > 10 kV between control side and power side
SCR Gate Drive Voltage: Determined by SCR device specifications
IV. Detailed Interface Description
1. Signal Input Interface
The DS200FHVAG1A board receives gate trigger signals from the FCGD board via fiber optics or cables:
| Interface Type | Description |
| Fiber Optic Interface | ST connector, using 62.5/125 μm multimode fiber, supporting long-distance transmission |
| Cable Interface | Shielded twisted pair, for shorter distance connections (depending on system configuration) |
2. Gate Drive Output Interface
The DS200FHVAG1A board provides multiple SCR gate drive outputs, each including gate (G) and cathode (K) connections:
| Output Channel | Description |
| Channels 1-6 | 6 SCR gate drives for a standard three-phase full bridge |
| Channels 7-12 | Second set of SCR gate drives for dual-bridge configurations |
3. Status Feedback Interface
The DS200FHVAG1A board may optionally provide gate status feedback signals returned to the control system:
| Signal | Description |
| Gate Status | Indicates whether SCR gates have been correctly triggered |
| Fault Status | Indicates whether the gate drive circuit has a fault |
4. Power Interface
The DS200FHVAG1A board requires external power supply:
| Power Type | Specification |
| Operating Power | 24 V dc or 48 V dc, depending on system configuration |
V. Installation and Maintenance
1. Mounting Location
The DS200FHVAG1A board is installed in the power conversion cabinet of the LS2100 static starter, near the SCR assembly, to minimize gate drive cable length and reduce noise interference.
2. Installation Steps
Verify Power is Off: Ensure the LS2100 static starter system power is turned off and test to verify no power is present.
Locate Mounting Position: Identify the installation position for the FHVA board in the power cabinet, typically near the SCR assembly.
Secure the Board: Use appropriate mounting brackets to secure the FHVA board to the mounting plate near the SCR assembly.
Connect Fiber Optic Cables: Connect fiber optic cables from the control cabinet to the FHVA board's fiber optic interfaces, ensuring secure connections and avoiding excessive bending.
Connect Gate Drive Cables: Connect gate drive output cables to the corresponding SCR gates and cathodes, ensuring correct and secure connections.
Connect Power Supply: Connect the operating power supply to the FHVA board.
Connect Status Feedback: If required, connect status feedback signal cables to the control system.
Power On Verification: After completing installation, perform power-on verification according to system commissioning procedures.
3. Removal Steps
Verify Power is Off: Ensure the system has been de-energized and test to verify no power is present.
Disconnect Cables: Carefully disconnect all connection cables (fiber optics, gate drive, power, status feedback).
Loosen Mounting: Loosen the mounting bracket securing screws.
Remove the Board: Remove the FHVA board.
4. Maintenance Recommendations
Periodic Inspection: Regularly inspect fiber optic connectors for cleanliness and secure connections, and check gate drive cables for integrity.
Fiber Optic Cleaning: Use specialized fiber optic cleaning tools to clean fiber optic connector end faces to ensure optical signal transmission quality.
ESD Precautions: Always wear a grounding strap when handling boards. Store boards in anti-static bags.
Spare Parts Management: It is recommended to keep at least one identical FHVA board on-site as a spare to minimize downtime.
VI. Applications
The DS200FHVAG1A High Voltage Gate Interface Board is widely used in the following industrial applications:
LS2100 Static Starter Systems: Serves as the high-voltage interface for SCR gate drive, controlling the power bridge of the static starter.
Large Synchronous Motor Starting: Drives the SCR bridge during synchronous motor starting to achieve soft start.
Gas Turbine Starting: Controls the static starter during gas turbine starting to provide starting torque for the generator.
High-Voltage Variable Frequency Drives: Provides SCR gate drive interfaces in high-voltage VFD applications.
High-Voltage DC Transmission: Used for gate drive of SCR valve groups in HVDC systems.
