IS200EPSMG1ABB
In Stock
T/T
Xiamen
| Availability: | |
|---|---|
| Quantity: | |

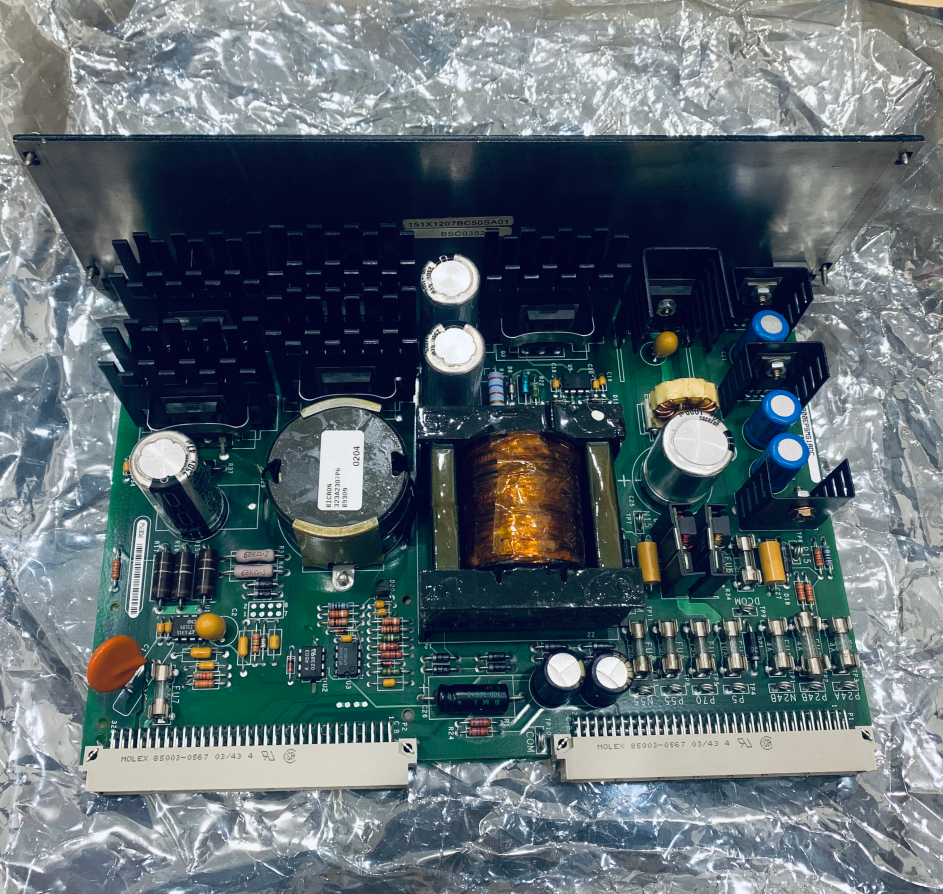

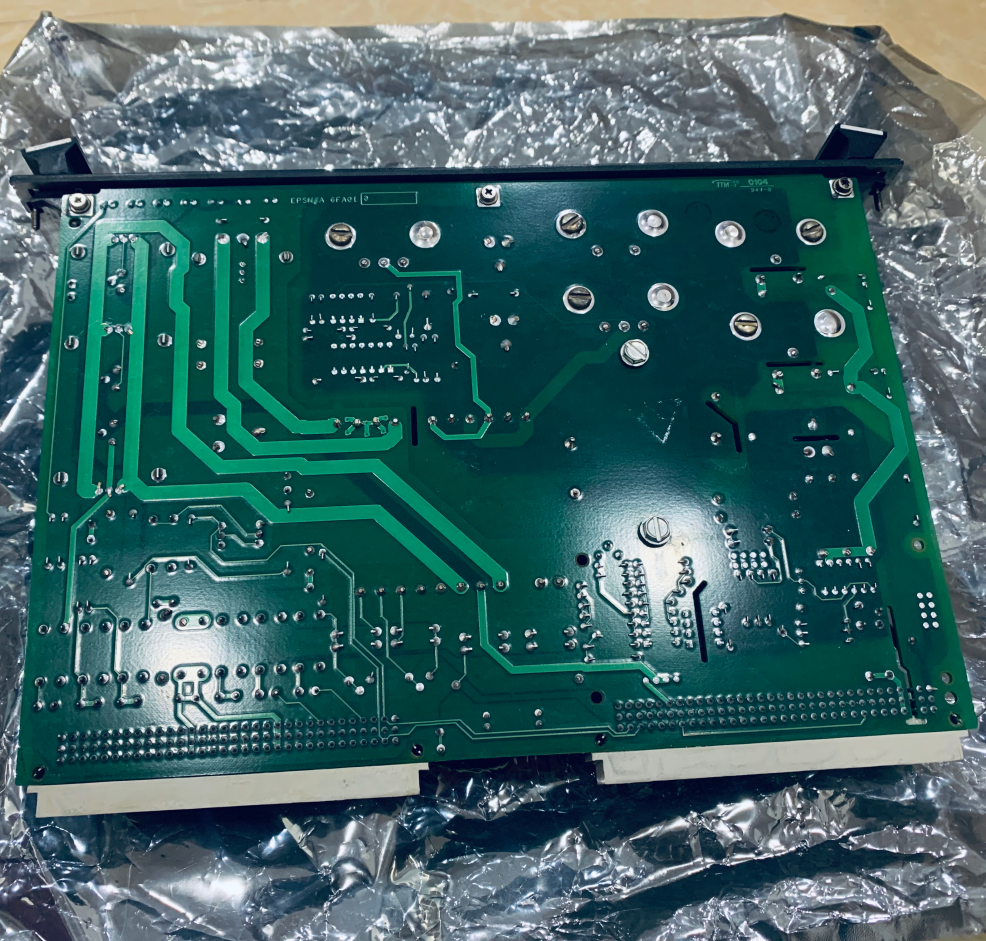

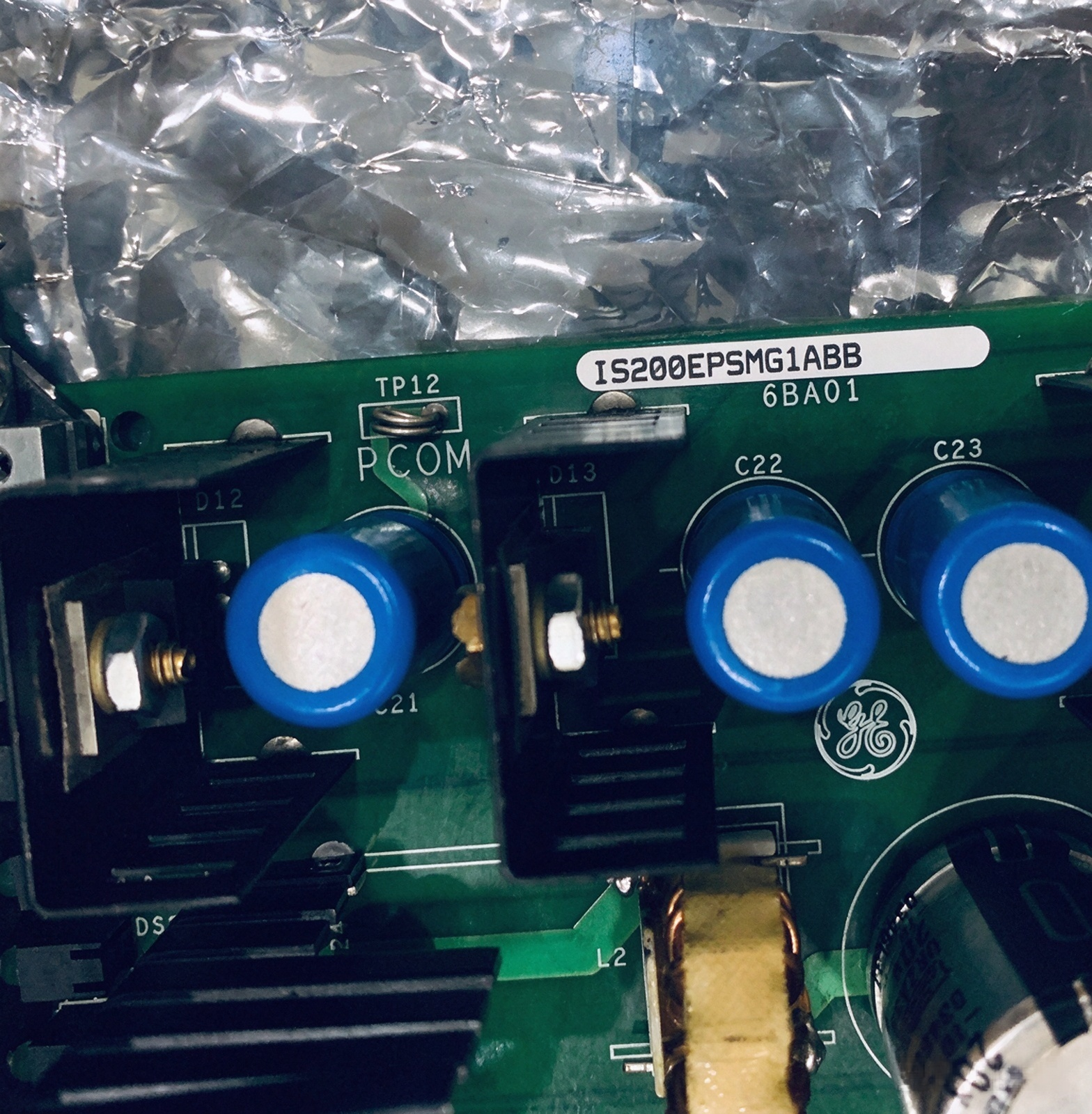

The GE IS200EPSMG1ABB Exciter Power Supply Module is a critical power conversion component used in the EX2100™ Excitation Control System and the EX2100 Regulator Control. The IS200EPSMG1ABB Exciter Power Supply Module converts input power into the multiple regulated voltages required by the excitation control and regulator control electronics, providing isolated and protected power to the control system, external modules, and terminal boards. The module is a member of the EPSM board family, with the IS200EPSMG1ABB Exciter Power Supply Module specifically belonging to Group 1 (EPSMG1), which is dedicated to the excitation control system.
The IS200EPSMG1ABB Exciter Power Supply Module is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "IS200" prefix identifies the module as a GE Industrial Control Systems product, with "200" specifically indicating that the module is a base-level assembly. The "EPSM" acronym identifies the module's functional designation as an Exciter Power Supply Module. The "G1" designation identifies the hardware group, with Group 1 used in the excitation control system and Group 2 used in the regulator control. The "ABB" suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components.
The IS200EPSMG1ABB Exciter Power Supply Module converts 125 V DC from the power distribution module (PDM) into the voltages required for the EX2100 excitation control. Three independent IS200EPSMG1ABB Exciter Power Supply Modules supply power to each of the controllers M1, M2, and C, and they are mounted in the IS200EPBPG_A Exciter Power Backplane (EPBP) located below the IS200EBKPG_A Exciter Backplane (EBKP) in the control cabinet. The connectors P1 and P2 carry power from the module to the EPBP for cables to the EBKP and other boards.
This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE IS200EPSMG1ABB Exciter Power Supply Module, serving as an essential reference for excitation control engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
The IS200EPSMG1ABB Exciter Power Supply Module is built around a robust two-stage power conversion architecture comprising a buck regulator and a push-pull inverter, followed by a comprehensive output distribution and protection network. This architecture ensures high efficiency, high-voltage isolation, and reliable operation across the full range of input voltage and load conditions.
The buck regulator is the first stage of the IS200EPSMG1ABB Exciter Power Supply Module and converts the input voltage into a 50 V DC intermediate voltage. This intermediate voltage is then applied to the push-pull inverter, which creates the required multiple output voltages. The transformer used in the push-pull inverter provides high-voltage isolation between the input voltage source and the output supplied to the control system, ensuring that the control electronics are protected from the high voltages present on the input side.
The output stage of the IS200EPSMG1ABB Exciter Power Supply Module provides ten individual voltages to the EX2100 excitation control system and regulator control. These outputs include +5 V DC, ±15 V DC, +24 V DC (P24A and P24B), −24 V DC (N24B), isolated +70 V DC for contact wetting to the terminal boards, ±24 V DC to power the fans, de-excitation module, crowbar module, ground detector module, and field voltage/current module. The module also provides isolated +70 V DC for contact wetting to the terminal boards, ensuring that the external contacts are properly wetted for reliable operation.
The IS200EPSMG1ABB Exciter Power Supply Module includes comprehensive protection and monitoring features. There are eight fuses on the voltage outputs of the module, with individual fuses protecting the +5 V DC, ±15 V DC, +24 V DC, −24 V DC, +70 V DC, and the ±55 V DC outputs used in regulator applications. The module faceplate has seven green LED indicators that illuminate when the labeled voltage is present on the individual outputs, providing maintenance personnel with a clear visual indication of the power supply status. There are thirteen testpoints on the module to check nine of the voltage outputs and the PCOM, DCOM, ACOM, and ICOM references, allowing detailed verification of the power supply operation.
In the EX2100 Excitation Control System, the IS200EPSMG1ABB Exciter Power Supply Module converts 125 V DC from the power distribution module into the voltages required for the excitation control. There are three independent IS200EPSMG1ABB Exciter Power Supply Modules that supply power to each of the controllers M1, M2, and C, providing the redundancy and availability required for critical excitation control applications. The modules are mounted in the Exciter Power Backplane (EPBP), which is located below the Exciter Backplane (EBKP) in the control cabinet.
The IS200EPSMG1ABB Exciter Power Supply Module supplies +5 V DC, ±15 V DC, and +24 V DC to the control assembly backplane, providing power to the control boards and interface modules that make up the excitation control system. Power is also supplied to external modules, including ±24 V DC to power the fans, de-excitation module, crowbar module, ground detector module, and field voltage/current module, and isolated +70 V DC for contact wetting to the terminal boards.
The module's role in the excitation control system is to provide a stable, isolated, and protected power source that ensures the reliable operation of the control electronics under all conditions. The redundancy provided by the three independent modules ensures that a failure in one module does not prevent the excitation control system from operating, because the other modules remain available to supply power to their respective controllers.
In the EX2100 Regulator Control, the IS200EPSMG2 variant of the Exciter Power Supply Module converts the DC link bus voltage into the voltages required for the regulator control. In simplex systems, one IS200EPSMG2 is mounted in the IS200ERBPH_A Exciter Regulator Backplane (ERBP), while in redundant systems, one IS200EPSMG2 is mounted in the ERBP (M1) and a second IS200EPSMG2 is mounted in the IS200ERRBH_A Exciter Regulator Redundant Backplane (ERRB, M2/C). The EPSD that is mounted on the EPSMG2 modifies the power input path to allow the module to accept higher voltages by increasing the creep and clearance distances, and it also provides a fuse between the regulator power source (DC link) and the buck regulator.
The IS200EPSMG2 supplies +5 V DC, ±15 V DC, and +24 V DC to the ERBP and ERRB. Power is also supplied to external modules, including ±24 V DC (P24B/N24B) to power fans, relays, and the DC feedback board, isolated +70 V DC (P70) for contact wetting on the terminal board, dynamic discharge board, and redundant relay board, isolated 20 V AC (AC17) to power the IGBT gate and dynamic discharge board, and ±55 V DC (P55/N55) to the ground detector circuits on the options card.
The IS200EPSMG1ABB Exciter Power Supply Module is an integral component of the EX2100 Excitation Control System, providing the regulated and isolated power that is essential for the operation of the excitation control electronics. Its two-stage buck regulator and push-pull inverter architecture delivers high efficiency, high-voltage isolation, and reliable operation across the full range of input voltage and load conditions.
In the EX2100 Excitation Control System, three independent IS200EPSMG1ABB Exciter Power Supply Modules supply power to each of the controllers M1, M2, and C, providing the redundancy and availability required for critical excitation control applications. The modules are mounted in the EPBP, which is located below the EBKP in the control cabinet, and the connectors P1 and P2 carry power from the modules to the EPBP for cables to the EBKP and other boards. The module supplies +5 V DC, ±15 V DC, and +24 V DC to the control assembly backplane, as well as ±24 V DC to power the fans, de-excitation module, crowbar module, ground detector module, and field voltage/current module, and isolated +70 V DC for contact wetting to the terminal boards.
The IS200EPSMG1ABB Exciter Power Supply Module is designed for easy installation and maintenance. Its ejector tabs and captive screws allow the module to be quickly installed in and removed from the backplane, and its seven green LED indicators provide a clear visual indication of the power supply status. The thirteen testpoints allow detailed verification of the output voltages, and the eight fuses provide comprehensive protection against output faults. The module is not adjustable in the field, and there are no jumpers on the board, simplifying configuration and reducing the potential for errors.
The IS200EPSMG1ABB Exciter Power Supply Module is designed for long service life with minimal maintenance. The module contains no moving parts other than the ejector tabs, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the module, connectors, and LED indicators, verification of the testpoint voltages, and confirmation that the fuses are intact and properly seated.
If a module fails, replacement requires careful attention to safety procedures. After de-energizing the exciter and verifying that no power exists on the module, the screws at the top and bottom of the faceplate are loosened, the module is unseated by raising the ejector tabs, and the module is gently pulled from its slot in the EPBP using both hands. The replacement module is slid into the correct slot in the correct section of the EPBP, seated by firmly pressing the top and bottom of the faceplate, and secured by alternately tightening the screws to ensure the module is seated squarely. Power is then applied to the appropriate section of the EPBP from the EPDM, and the module power indicator LEDs and the green power LEDs on the controller boards are checked.
For redundant excitation control systems, it is possible to replace a failed IS200EPSMG1ABB Exciter Power Supply Module while the exciter is running. The failed module is confirmed from the indicators on the front of the three modules, and the LEDs on the ESEL board are checked to confirm that control is transferred to the other master. The section of the EPBP containing the failed module is de-energized by switching off the appropriate output of the EPDM, and the replacement procedure is then followed as described above.
GE Industrial Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement IS200EPSMG1ABB Exciter Power Supply Module, provide the complete part number and description, the exciter serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement boards is guaranteed.
The GE IS200EPSMG1ABB Exciter Power Supply Module is a reliable, robust, and highly integrated power supply module for the EX2100™ Excitation Control System and the EX2100 Regulator Control. Its two-stage buck regulator and push-pull inverter architecture, comprehensive output distribution, and comprehensive protection and monitoring features provide the stable, isolated, and protected power that is essential for the reliable operation of the excitation control electronics.
With its seven green LED indicators, thirteen testpoints, eight fuses, and clearly labeled connectors, the IS200EPSMG1ABB Exciter Power Supply Module is designed for easy installation, verification, and maintenance. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the IS200EPSMG1ABB Exciter Power Supply Module continues to deliver the performance, durability, and reliability that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing module, the IS200EPSMG1ABB Exciter Power Supply Module provides the power conversion and distribution functionality required for reliable and efficient excitation control operation.
Specification Category | Parameter | Value / Description |
|---|---|---|
General | ||
Product Name | GE IS200EPSMG1ABB Exciter Power Supply Module | |
Board Family | EPSM (Exciter Power Supply Module) | |
Group / Revision | G1 group, ABB revision suffix | |
Group 1 Application | EX2100 Excitation Control System (EPSMG1) | |
Group 2 Application | EX2100 Regulator Control (EPSMG2 with EPSD) | |
Input Voltage | 125 V DC from power distribution module (PDM) | |
Board Identification | Alphanumeric part number stamped on board edge | |
Power Conversion Architecture | ||
First Stage | Buck regulator converting input to 50 V DC intermediate | |
Second Stage | Push-pull inverter generating multiple output voltages | |
Isolation | High-voltage transformer isolation in push-pull inverter | |
Output Voltages | ||
P5 (+5 V DC) | 4.95 V min, 5.1 V mean, 5.25 V max; 8.0 A max load; 10 A fuse | |
P15 (+15 V DC) | 14.55 V min, 15.0 V mean, 15.45 V max; 1.0 A max load; 1.5 A limit | |
N15 (−15 V DC) | −15.45 V min, −15.0 V mean, −14.55 V max; 1.0 A max load; 1.5 A limit | |
P24A (+24 V DC A) | 22.5 V min, 25.0 V mean, 27.5 V max; 1.5 A max load; 4.0 A fuse | |
P24B (+24 V DC B) | 22.5 V min, 25.0 V mean, 27.5 V max; 2.0 A max load; 4.0 A fuse | |
N24B (−24 V DC B) | −27.5 V min, −25.0 V mean, −22.5 V max; 2.0 A max load; 4.0 A fuse | |
AC17 (20 V AC) | 18.0 V min, 20.0 V mean, 22.0 V max; 0.75 A max load; no fuse | |
P55 (+55 V DC) | 52.5 V min, 55.0 V mean, 57.5 V max; 0.2 A max load; 0.75 A fuse | |
N55 (−55 V DC) | −52.5 V min, −55.0 V mean, −57.5 V max; 0.2 A max load; 0.75 A fuse | |
P70 (+70 V DC) | 63.0 V min, 70.0 V mean, 77.0 V max; 0.2 A max load; 0.75 A fuse | |
Fuses | ||
FU1 (N24B) | 4 A fuse supplying −24 V DC output B | |
FU2 (P24B) | 4 A fuse supplying +24 V DC output B | |
FU3 (P24A) | 4 A fuse supplying +24 V DC output A | |
FU4 (P5) | 10 A fuse supplying +5 V DC output | |
FU5 (P70) | 0.75 A fuse supplying +70 V DC output | |
FU6 (N15) | 1.5 A fuse supplying −15 V DC output | |
FU8 (P55) | 0.75 A fuse supplying +55 V DC output (regulator applications) | |
FU9 (N55) | 0.75 A fuse supplying −55 V DC output (regulator applications) | |
Testpoints | ||
TP1 (N24B) | Negative 24 V DC output B | |
TP2 (P24B) | Positive 24 V DC output B | |
TP3 (P24A) | Positive 24 V DC output A | |
TP4 (P5) | Positive 5 V DC output | |
TP5 (P70) | Positive 70 V DC output | |
TP6 (P15) | Positive 15 V DC output | |
TP7 (N15) | Negative 15 V DC output | |
TP8 (P55) | Positive 55 V DC output (regulator applications) | |
TP9 (DCOM) | Digital common (P5 return) | |
TP10 (ICOM) | Isolated common (P70 return) | |
TP11 (ACOM) | Analog common (P15, N15 return) | |
TP12 (PCOM) | Power common (P24A, P24B, N24B, P55, N55 return) | |
TP13 (N55) | Negative 55 V DC output (regulator applications) | |
Indicators | ||
Faceplate LEDs | Seven green LED indicators illuminate when labeled voltage is present | |
Connectors | ||
P1 | Power output connector to EPBP | |
P2 | Power output connector to EPBP | |
P3 | EPSD connection (EPSMG2 configuration) | |
P4 | EPSD connection (EPSMG2 configuration) | |
P3D | EPSD daughterboard connector (M*_PWR_IN_P) | |
P4D | EPSD daughterboard connector (M*_PWR_IN_N) | |
Environmental | ||
Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) | |
Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) | |
Humidity | 5% to 95% non-condensing | |
Physical | ||
Mounting | EPBP (excitation control) or ERBP/ERRB (regulator control) | |
Ejector Mechanism | Top and bottom ejector tabs with captive screws | |
Handling Requirements | Anti-static precautions, grounding strap required | |
Warranty and Support | ||
Replaceable Components | Module replaced as a unit; fuses replaceable | |
Warranty | As per GE Terms and Conditions | |
Support Contact | GE Industrial Systems Post Sales Service, 1501 Roanoke Blvd., Salem, VA 24153-6492 USA | |
Support Phone | 1-888-GE4-SERV (888-434-7378, United States); +1-540-378-3280 (International) | |
Support Fax | +1-540-387-8606 | |
Required Info | Complete part number and description, exciter serial number, Material List (ML) number | |
Ordering Information | ||
Part Number | IS200EPSMG1ABB | |
Part Number Breakdown | IS = GE Industrial Control Systems; 200 = base-level board; EPSM = board acronym; G = group; 1 = group number; A = artwork revision; B = functional revision 1; B = functional revision 2 | |
Ordering Note | All digits are important; factory may substitute later versions with backward compatibility |
