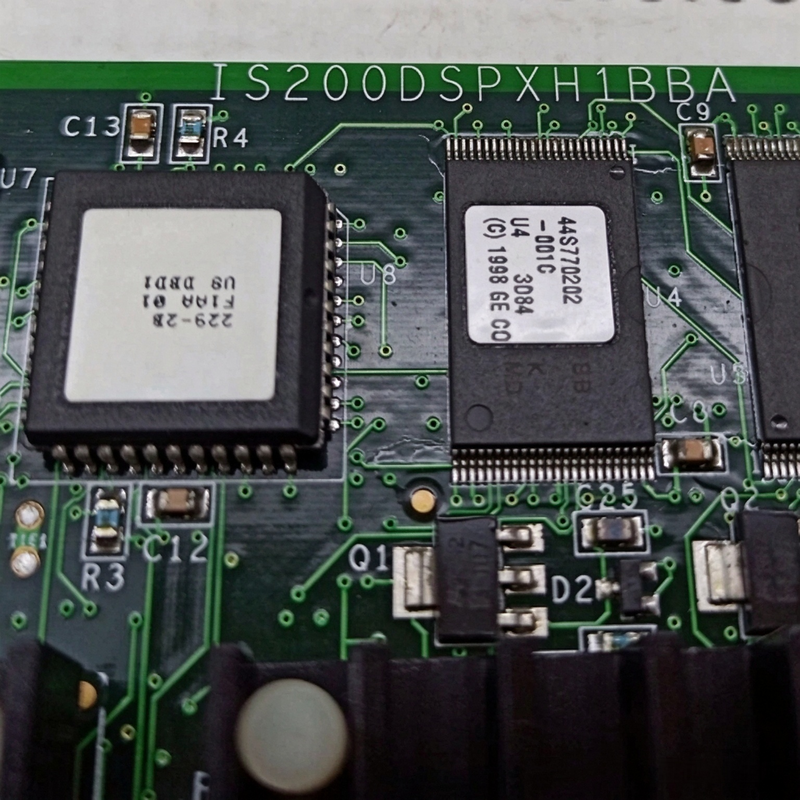

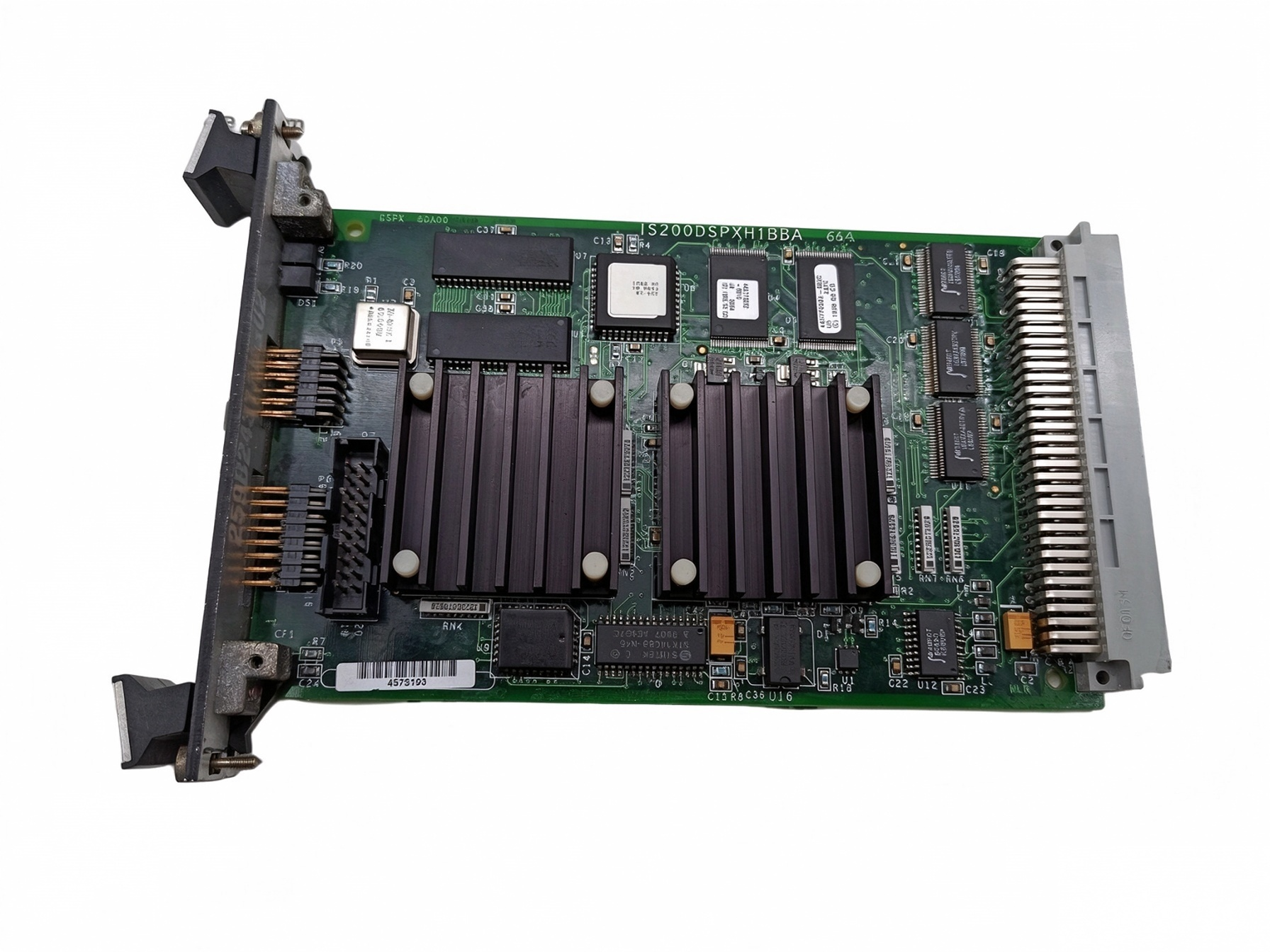

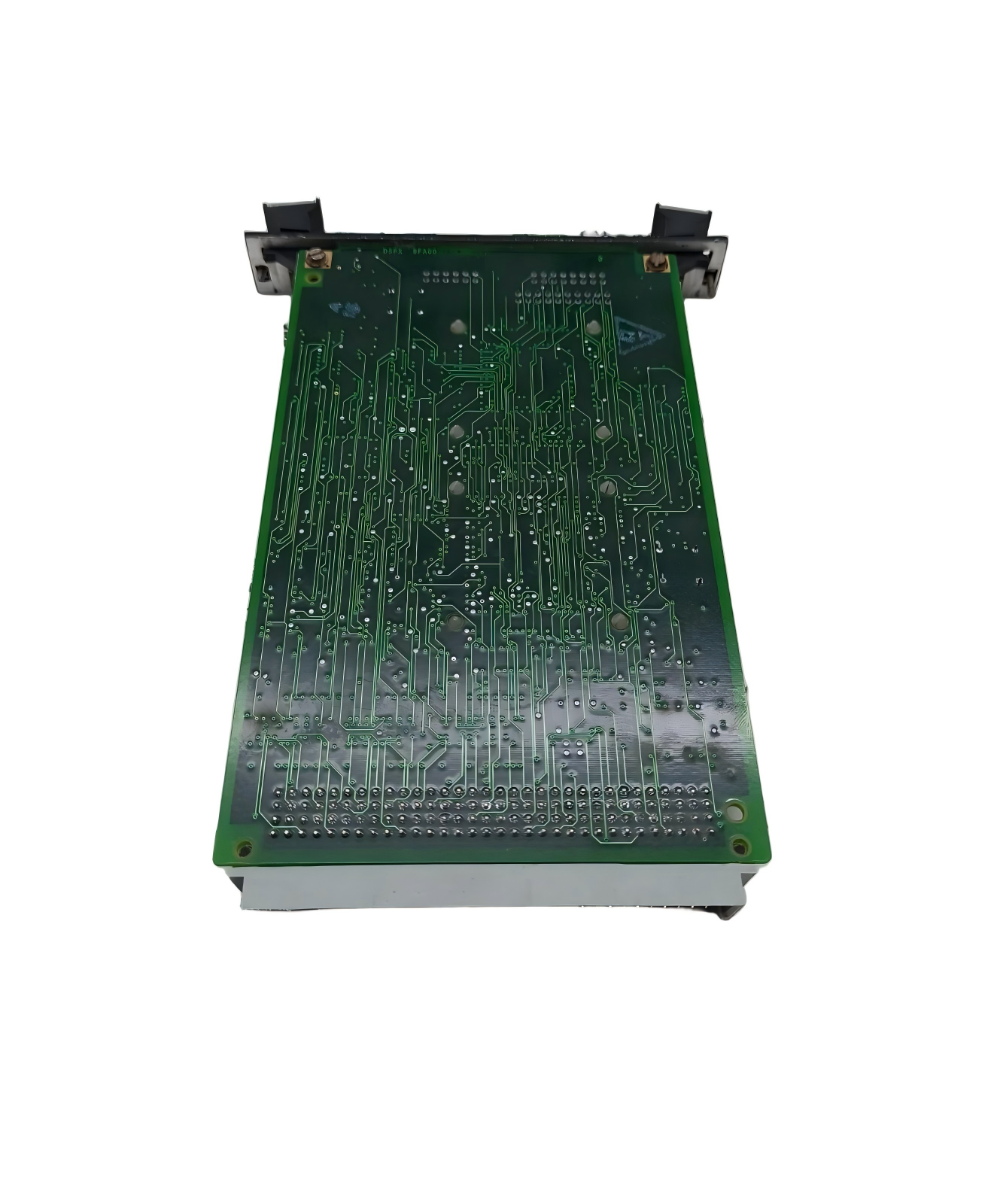

The GE IS200DSPXH1BBA Digital Signal Processor Control Board is the primary controller for the bridge and motor regulator and gating functions for Innovation Series™ drives, and it also controls generator field control functions for the EX2100™ Excitation Control. The IS200DSPXH1BBA Digital Signal Processor Control Board provides logic, processing, and interface functions, integrating a high-performance digital signal processor, standard memory components, and an application-specific integrated circuit that performs custom logic functions. The board is engineered for demanding industrial control applications where deterministic real-time response, comprehensive I/O handling, and reliable communication are essential.
The IS200DSPXH1BBA Digital Signal Processor Control Board is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "IS200" prefix identifies the board as a GE Industrial Control Systems product, with "200" specifically indicating that the board is a base-level assembly. The "DSPX" acronym identifies the board's functional designation as a Digital Signal Processor Control Board. The "H1" designation identifies the hardware group and conformal coating, while the "BBA" suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components. Several variations of the DSPX board exist, and the specific part number must be referenced when ordering or replacing the board to ensure correct configuration and compatibility.
The IS200DSPXH1BBA Digital Signal Processor Control Board includes a high-performance digital signal processor operating at 60 MHz, supported by FLASH memory for boot images and code execution, RAM for data storage and code execution, NVRAM for nonvolatile data storage, and add-only memory for board revision identification. The board also incorporates an ASIC that implements the majority of specialized and support functions, including serial interfaces, load pulse synchronization, watchdog timer, VCO counters, tachometer interfaces, discrete inputs, PWM outputs, and backplane chip select logic. The board connects to the backplane through a 4-row, 128-pin DIN connector (P1), and in the EX2100 application it is attached to another board, the EISB, with the two boards detachable when required.
This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE IS200DSPXH1BBA Digital Signal Processor Control Board, serving as an essential reference for drive engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Signal Processing
The IS200DSPXH1BBA Digital Signal Processor Control Board is built around a robust architecture centered on the floating-point digital signal processor and the custom ASIC that together deliver deterministic real-time control, comprehensive I/O handling, and flexible communication. The board performs several distinct functions that ensure reliable and accurate control of the drive or exciter power bridge and precise acquisition of feedback signals.
The digital signal processor on the IS200DSPXH1BBA Digital Signal Processor Control Board runs at 60 MHz and provides four external interrupts during normal operation. The stack overflow interrupt (INT0) is generated when either the foreground stack or the background stack overflows; if both stacks overflow simultaneously, a hard reset is generated, and a configuration register allows the stack overflow reset to be disabled. The inner loop load pulse interrupt (INT1) synchronizes the control software to the power bridge switching cycle. Two configurable inputs (INT2 and INT3) provide additional flexibility for application-specific events and synchronization requirements.
The memory subsystem of the IS200DSPXH1BBA Digital Signal Processor Control Board includes FLASH memory for DSP boot images, code execution, configurable item storage, and system history records; RAM for data storage and code execution; NVRAM for nonvolatile data storage; and add-only memory for board revision identification. The boot loader stored in FLASH controls the power-up sequence and should not be reloaded in the field. Application code defines the specific control functions for the drive or exciter product and is loaded through the Tool port on the exciter. Configuration parameters are loaded using the toolbox, with exciter parameters loaded over the Unit Data Highway and drive parameters loaded through a serial port, ISBus, or Ethernet to ACL where applicable.
The custom ASIC on the IS200DSPXH1BBA Digital Signal Processor Control Board provides four serial interfaces to P1: two five Mb/s ISBus™ interfaces used as either master or slave, one asynchronous TTL interface for a PC-based configuration tool including RX, TX, and TXEN/RTS data signals, and one asynchronous TTL interface to a programmer board including RX, TX, and RTS data signals. An ASIC revision identification register readable by the DSP is also provided, allowing the firmware to verify the ASIC revision and configure itself accordingly.
Synchronizing load pulse signals perform critical functions in the IS200DSPXH1BBA Digital Signal Processor Control Board. The inner loop load pulse signal captures the values of I/O such as bridge, motor, or generator voltages and current VCOs, tachometer counters, and discrete inputs. It can also synchronize the ISBus channels, the software, and gating outputs to bridges. At a sub-multiple or multiple of the inner loop load pulse, the application loop load pulse signal is used to capture values of other application VCOs and optionally the tachs. To facilitate firmware synchronizing of the load pulse signals, a 6-bit register increments on each inner loop load pulse and resets on each application loop load pulse.
A watchdog timer is enabled and periodically toggled by the DSP with a configurable toggle interval; a time-out of the watchdog timer generates a hard reset, ensuring that a stalled processor cannot leave the drive in an unsafe state. A 24-bit free-running timer is also provided and used as a reference for certain functions. Stack overflow detection is provided for both the foreground stack from internal memory and the background stack from external SRAM, with the INT0 interrupt generated if either stack overflows.
The IS200DSPXH1BBA Digital Signal Processor Control Board features five differential HIFI pair application inputs that support multiple configuration options. These inputs may be used as two quadrature incremental tach interfaces, one with marker capability. The signals drive two 16-bit up/down counters that maintain their present state when the inputs are at the same level and change state when the inputs are differentially opposite. A five MHz timer resets each time the counter increments or decrements, and a state register records the direction of the last count. Associated with each of these counters, timers, and registers is a capture register that can be configured to capture the values on the occurrence of either the inner loop load pulse or the application loop load pulse. A marker pulse is used to latch or reset the up/down counter.
The five differential HIFI inputs can alternatively be used as application layer VCO counters or single-channel tach interfaces. Five 16-bit counters increment on the differentially decoded and filtered inputs, and these counter values are captured into registers the DSP can read by the application loop load pulse. The five differential HIFI inputs can also be used as up to ten discrete inputs, with each input filtered for three system clock cycles and directly readable by the DSP in a buffer.
Six inputs from the backplane are digitally filtered and input to the VCO counters on the IS200DSPXH1BBA Digital Signal Processor Control Board. These are 16-bit counters with capture registers latched by the inner loop load pulse and readable by the DSP. The inputs come from technology-specific I/O cards such as BIC (bridge interface) or exciter interface cards, enabling the DSPX to acquire bridge VCO feedback from current and voltage sensing circuits. Six 0–2 MHz bridge VCO inputs are provided for current and voltage feedbacks.
Output Capabilities
The IS200DSPXH1BBA Digital Signal Processor Control Board provides two PWM outputs operating at a fixed 24 kHz frequency with 10-bit resolution each, occupying one 20-bit register. These outputs can be used to drive instrumentation meters or other outputs, providing flexible analog indication without additional hardware. Miscellaneous expansion board I/O (SYNC OUT) is provided for synchronizing functions at the BIC board layer, and a SYNC_LAN output is provided for LAN synchronization. A BIC_ disable output tells the BIC to turn off power during power-up, with a high level disabling the bridge. Three load pulse outputs, three keypad interface signals, and three tool interface signals extend the board's connectivity options.
Backplane Interface and I/O Definitions
The IS200DSPXH1BBA Digital Signal Processor Control Board includes three I/O connectors: the P1 backplane connector, the P5 DSP emulator port, and the P6 engineering monitor port. The 5 V power supply input (P5, −2%/+5%) is also provided through P1. The P1 connector provides memory-mapped process bus address space with four chip select signals to support interfaces to bridge and customer input/output, and it also contains individual controls for a standard UART serial interface to a programmer board and a configuration tool, plus two additional ISBus proprietary serial interfaces for Application Control Layer or local expansion functions.
The P1 backplane connector on the IS200DSPXH1BBA Digital Signal Processor Control Board is organized into four rows (A, B, C, and D) of 32 pins each. The signal set includes a 32-bit data bus, a 14-bit DSP address bus, two bus control output signals (ORD and OWR), four backplane chip select outputs (BIC_, LAN, IO, SPR), one ready/busy handshake input to the DSPX wait state logic, four clock signal outputs (2–30 MHz CPU_CLK and 2–20 MHz CLK 20), four interrupt inputs, one board identification input (serial ID LAN), one hard reset input, six 0–2 MHz bridge VCO inputs, four ISBus serial channel signals (TX and RX for two channels), three load pulse outputs, three keypad interface signals, three tool interface signals, one BIC_ disable output, ten HIFI application inputs, two meter PWM outputs, one SYNC_LAN output, eight P5 supply pins, sixteen DCOM power supply returns, four reserved pins (ACOM, P15, N15), and five unused pins.
The P5 emulator port, located on the board front panel, provides an interface to the TI emulator port and a scan interface similar to JTAG to allow emulation as well as FLASH programming. The P5 connector provides DCOM returns, EMU1 and EMU3 emulator point interfaces, P5 supply, and a 30 MHz DSP clock output on pin 12. The P6 engineering monitor port, also located on the board front panel, connects to the DSP synchronous serial port at TTL levels and allows connection to a terminal for GE engineering use only. The P6 connector provides P5 supply, data transmit output (DX0), frame synchronization pulse for transmit (FSX0), transmit clock (CLKX0), boot from serial port (SERBOOT), external flag pin (C31_XF0), receive clock (CLKR0), frame synchronization pulse for receive (FSR0), and data receive (DR0). The P6 and P7 test point ports located on the board surface are for test and development use only.
Indicating Lights and Diagnostics
The IS200DSPXH1BBA Digital Signal Processor Control Board includes two LEDs on its front panel that provide essential operational status information. The red FAULT LED (DS1) is driven by the DSP; when illuminated or flashing, it indicates that a fault has occurred or that the board is in reset. The LED remains off when no faults are present. The green STATUS LED (DS2) is a status monitor driven by the DSP; it flashes when the system is running, is continuously illuminated when the system is stopped but operational, and is off when a fault has occurred or during reset. Together, these two indicators enable operators and maintenance personnel to assess system status at a glance without requiring external test equipment.
Onboard Firmware and Configuration
Onboard firmware for the IS200DSPXH1BBA Digital Signal Processor Control Board is stored in FLASH memory and is organized into three main types. The boot loader controls the power-up sequence and should not be reloaded in the field. Application code defines the specific control functions for the drive or exciter product and is loaded through the Tool port on the exciter. Configuration parameters are loaded using the toolbox, with exciter parameters loaded over the Unit Data Highway and drive parameters loaded through a serial port, ISBus, or Ethernet to ACL where applicable. After the DSPX is replaced, it must be reconfigured, and the GE Control Systems Toolbox provides the required procedures.
The IS200DSPXH1BBA Digital Signal Processor Control Board has no fuses, adjustable hardware devices, or user testpoints. The board is mounted in the board rack and connects to the backplane through the 4-row, 128-pin DIN connector (P1). In the EX2100 application, the DSPX is attached to the EISB board, and these two boards can be detached when required for replacement. Because boards are keyed for specific rack slots, inserting the DSPX into the wrong slot can damage the electronics, and the board must be seated squarely with the captive screws tightened evenly to ensure proper backplane engagement.
Installation and Replacement Procedures
Proper installation and replacement of the IS200DSPXH1BBA Digital Signal Processor Control Board require careful attention to safety procedures. Printed wiring boards may contain static-sensitive components, so all boards must be treated with static-sensitive handling techniques, stored in anti-static bags or boxes, and handled with a grounding strap at a normally grounded workstation.
For Innovation Series drives, power must be turned off and verified before touching the board or any connected circuits, and board connections must never be removed, inserted, or adjusted while power is applied. To remove the board from the rack, the drive must be de-energized, the cabinet door opened, and the circuits tested for the absence of power. The screws at the top and bottom of the board near the ejector tabs are loosened (the screws are captive and should not be removed), the board is unseated by raising each ejector tab, and the board is gently pulled from the bus rack using both hands.
For offline excitation control replacement, the exciter must be de-energized following the procedures in GEH-6631 or GEH-6674 and all local lock-out/tag-out practices. The power indicators on the EPDM and EPSM power supplies must be off and the DSPX LEDs must be off before proceeding. The six fiber-optic cables are disconnected from the EISB front panel, the DSPX and attached EISB are removed together by loosening the captive screws, raising the ejector tabs, and pulling both boards from the rack, and the EISB is then removed from the bottom of the DSPX and attached to the replacement DSPX. The replacement boards are slid into the correct slot, seated by pressing the top and bottom of the faceplates, and secured by alternately tightening the screws to ensure the module is seated squarely. All communication cables are reconnected, and the DSPX must be reconfigured after replacement using the GE Control Systems Toolbox.
For online replacement in a redundant control system, it is possible to replace the failed DSPX while the exciter is running, although leaving the failed DSPX in place and running on the remaining controller carries the risk that a second board failure in another controller will shut down the exciter. The failed DSPX is confirmed from the indicators on the front of the board, and the section of the control rack containing the DSPX to be replaced is de-energized following the procedure for the specific EX2100 type. Control is confirmed to have transferred to the other master, and all power indicators on the boards in the affected rack section are confirmed off before touching the DSPX or any connected circuits. The fiber-optic cables are disconnected, the DSPX and attached EISB are removed, the EISB is transferred to the replacement DSPX, and the replacement boards are installed and seated as in the offline procedure. Power is then applied to the appropriate section of the control rack, the LED power indicators on the EPDM and EPSM are checked, the green power LEDs on the adjacent controller boards are checked, and all communication cables are reconnected. The replaced DSPX can be tested by transferring control from the active master to the inactive master and observing correct operation, and the board must be reconfigured using the GE Control Systems Toolbox.
Application Suitability and System Integration
The IS200DSPXH1BBA Digital Signal Processor Control Board is an integral component of GE's Innovation Series™ drives and EX2100™ Excitation Control systems, providing the primary control, signal acquisition, and communication functions that are essential for the operation of the drive or exciter. In Innovation Series drives, the board serves as the primary controller for the bridge and motor regulator and gating functions, executing the control algorithms that regulate motor speed, torque, and current while synchronizing gating outputs to the power bridge. In the EX2100 Excitation Control, the board controls generator field control functions, regulating field current and voltage to maintain generator terminal voltage and reactive power output.
The board's comprehensive I/O capabilities support a wide range of feedback and control signals. The six bridge VCO inputs acquire current and voltage feedback from the power bridge, the five differential HIFI inputs support tachometer, VCO, and discrete input functions, and the two PWM outputs provide instrumentation meter drives or other analog outputs. The four serial interfaces, including two ISBus channels, support communication with the Application Control Layer, configuration tools, and programmer boards, while the backplane chip selects and address/data buses support memory-mapped interfaces to bridge and customer I/O.
The IS200DSPXH1BBA Digital Signal Processor Control Board is designed for easy integration into the drive or exciter system. Its standard backplane connector, front-panel emulator and monitor ports, and comprehensive diagnostic indicators simplify installation and maintenance. The board's conformal coating provides protection against moisture, dust, and chemical contaminants, enhancing reliability in demanding industrial environments. The watchdog timer, stack overflow detection, and ASIC revision identification provide layered protection against software and hardware faults, contributing to high system availability.
Maintenance and Lifecycle
The IS200DSPXH1BBA Digital Signal Processor Control Board is designed for long service life with minimal maintenance. The board contains no fuses, adjustable hardware devices, or user testpoints, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the board, connectors, and mounting hardware, verification of the front-panel LED indications, and confirmation that the captive screws are properly tightened and the board is seated squarely in its rack slot.
If a board fails, replacement requires careful attention to safety procedures as described in the installation and replacement section. After turning off all power and verifying that no power exists on the board, the fiber-optic cables are disconnected from the EISB front panel, the DSPX and attached EISB are removed together, the EISB is transferred to the replacement DSPX, and the replacement boards are installed and seated. Power is then applied, the LED indicators are checked, all communication cables are reconnected, and the board is reconfigured using the GE Control Systems Toolbox.
GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement IS200DSPXH1BBA Digital Signal Processor Control Board, provide the complete part number and description, the drive or exciter serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement boards is guaranteed.
Conclusion
The GE IS200DSPXH1BBA Digital Signal Processor Control Board is a reliable, robust, and highly integrated primary controller for GE Innovation Series™ drives and EX2100™ Excitation Control systems. Its high-performance 60 MHz floating-point DSP, comprehensive memory subsystem, and custom ASIC deliver the processing power, I/O flexibility, and communication capabilities required for precise real-time control of the power bridge and generator field. The board's load pulse synchronization, watchdog timer, stack overflow detection, and ASIC revision identification provide layered protection and deterministic operation, while its conformal coating ensures reliability in demanding industrial environments.
With its standard backplane connector, front-panel emulator and monitor ports, clearly marked diagnostic LEDs, and comprehensive documentation, the IS200DSPXH1BBA Digital Signal Processor Control Board is an essential component in countless industrial drive and exciter installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the IS200DSPXH1BBA Digital Signal Processor Control Board continues to deliver the performance, durability, and ease of use that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the IS200DSPXH1BBA Digital Signal Processor Control Board provides the control, processing, and interface functionality required for reliable and efficient industrial drive and exciter operation.
