The IS200RCSBG1B is a specialized RC snubber board designed by GE Industrial Systems for the 620 frame SCR-diode source bridge. As a critical component for power semiconductor protection, the core function of the IS200RCSBG1B is to provide a reliable passive snubber network for each phase's thyristors (SCRs) and diodes within the source bridge. It suppresses transient overvoltages generated during device commutation caused by rapid current switching, ensuring that the power devices operate safely within their rated voltage limits. Each 620 frame source bridge is equipped with one IS200RCSBG1B snubber board, mounted directly onto the SCR-diode modules of the corresponding phase, forming a compact and highly effective near-device protection system.
In high-voltage, high-current rectification and inversion applications, voltage spikes can easily occur across SCRs and diodes during turn-on and turn-off due to circuit stray inductance and device reverse recovery charge. If left unsuppressed, these voltage spikes can exceed the device's repetitive peak reverse voltage rating, leading to device breakdown, accelerated aging, or catastrophic failure. By paralleling an RC snubber network across each power device, the IS200RCSBG1B absorbs commutation energy, limiting the rate of voltage change (dv/dt) and peak voltage to safe levels. This effectively extends the service life of the power modules and enhances the overall reliability of the source bridge.
System Positioning and Operating Environment
The medium-voltage drive system housing the IS200RCSBG1B is typically used in high-power drive applications such as power plant auxiliaries, large compressors, pumps, fans, and marine propulsion. In these applications, the source bridge acts as the power front end, converting AC electrical energy to DC. The reliability of its continuous operation directly determines the availability of the entire variable frequency drive system. The IS200RCSBG1B is directly mounted onto the power module terminals, requiring no additional mounting brackets or insulating supports. Its mechanical structure is simple, electrical connections are reliable, and it is capable of withstanding the mechanical vibration and thermal stress generated during equipment operation.
The board design fully accounts for the electrical characteristics of the 620 frame source bridge. Its AC input voltage can reach up to 600 V line-to-line rms, covering the majority of medium-voltage industrial supply levels. The onboard capacitance and resistance parameters are carefully calculated to optimally match the specific models of SCR-diode modules used in the source bridge.
Snubber Circuit Principle and Design

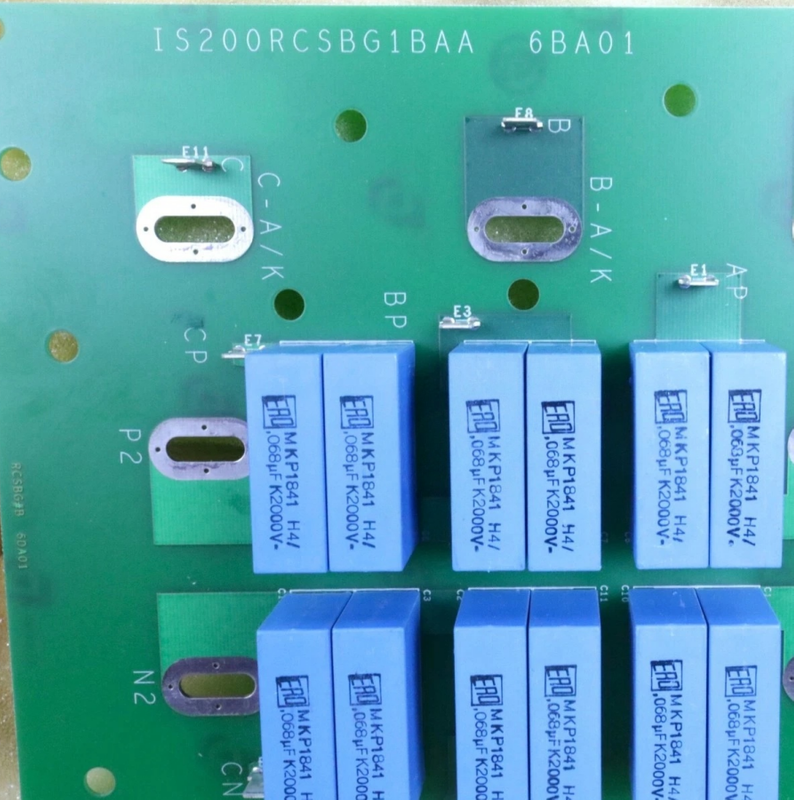

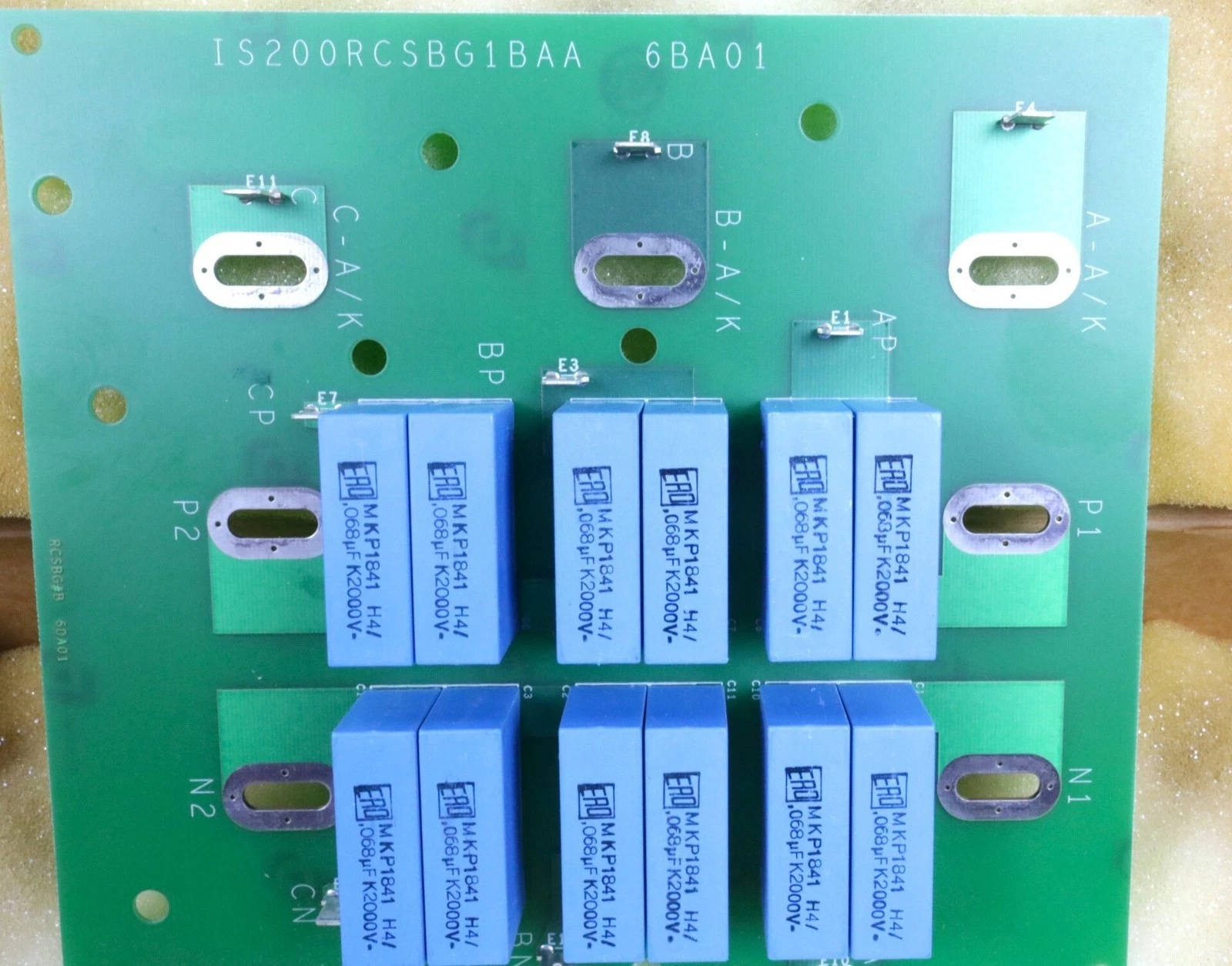

Each IS200RCSBG1B board integrates six sets of snubber capacitors, one set for each power device (SCR or diode) in the bridge. Each set consists of two capacitors connected in parallel to provide sufficient ripple current handling capability and low equivalent series inductance. The parallel configuration not only increases the effective capacitance but also significantly reduces the impact of a single capacitor failure on the system—if one capacitor fails open-circuit, the other can continue to provide basic snubber functionality, achieving a form of passive redundancy.
The capacitors work in conjunction with external snubber resistors (connected via stab-on terminals) to form a classic RC absorption circuit. When an SCR or diode turns off, the energy stored in the stray inductance is transferred and dissipated through the RC circuit, thereby limiting the voltage rise rate and peak voltage across the device. Furthermore, this network can, to some extent, mitigate voltage sharing issues caused by dynamic parameter mismatches among parallel devices.
The onboard capacitors have a peak current withstand capability of up to 8.5 A, sufficient for handling the high-frequency impulse currents during commutation. The 0.5 A rms rating ensures controlled temperature rise during long-term operation. The total capacitance value ranges from 0.095 µF to 0.150 µF, with the specific value adaptable based on device parameters and system voltage.
Mechanical Structure and Electrical Connections
The mechanical design of the IS200RCSBG1B follows the principle of direct mounting onto the power terminals. The board is secured directly by the SCR and diode module terminals. Nuts and washers are used to clamp the board's eyelet connections onto the device terminal posts, achieving both the electrical connection and the mechanical fastening. This design eliminates the need for additional screws or insulating standoffs, reducing the number of installation parts and eliminating parasitic inductance and grounding path issues introduced by extra support structures.
The board's stab-on quick-connect terminals define clear interfaces:
AC Input Terminals (E4, E8, E11): Connect to the three-phase AC input of the source bridge.
Snubber Resistor Connection Terminals (E1, E10, E3, E14, E7, E16): Connect external snubber resistors.
SCR Anode/Diode Cathode Connection Terminals (E5, E9, E13): Directly connect to the anode or cathode terminals of the power devices.
DC Bus Terminals (E2, E6, E12, E15): Connect to the positive and negative DC bus, respectively.
This layout positions the snubber capacitors as close as possible to the devices being protected, minimizing the high-frequency current loop area, reducing parasitic inductance, and maximizing the snubber's effectiveness.
Safety and Maintenance Precautions
When installing or replacing the IS200RCSBG1B board, high-voltage safety procedures must be strictly followed. Before operation, it must be confirmed that the equipment is completely de-energized, and Lock-Out/Tag-Out procedures must be executed. Because the board connects directly to the high-voltage terminals of the power module, dangerous voltage may still reside on the DC bus capacitors even after the equipment is powered off. Testing with equipment designed for high voltages must be used to verify that energy has fully dissipated before contact is made.
The onboard capacitors are non-polarized high-voltage capacitors. Although robustly constructed, mechanical shock should be avoided when handling the board to prevent damage to the capacitor bodies. Old boards should be recycled in accordance with electronic waste disposal regulations. The board is an electrostatic discharge (ESD) sensitive component; spare boards must be transported and stored in anti-static packaging, and operators must wear a grounding wrist strap.
The replacement procedure is briefly as follows:
Confirm the equipment is de-energized and safety procedures are executed.
Open the bridge cabinet doors and test to verify that power is off.
Cut and remove any wire ties securing wires to the holes at the corners of the board.
Remove the nuts and washers securing the RCSB board to the SCR/diode module terminals.
Remove the old board, orient the new board in the same position, and secure it with the nuts and washers, torqued to the recommended 13 in-lb.
Secure any loose wires with new wire ties.
Close the cabinet doors.
