The IS200BAIAH1B is a Bridge Application Interface Board introduced by GE Industrial Systems. It is a critical component of the GE Innovation Series drive control platform. This board serves as the core bridge connecting user terminal boards to the main processor board (DSPX) in IGCT (Integrated Gate-Commutated Thyristor) drive systems, assuming the key roles of signal interfacing and isolation.
The primary design objective of the IS200BAIAH1B board is to provide electrical isolation and an earth ground reference for all signal inputs originating from user terminal boards, while simultaneously outputting conditioned and application-specific signals to the processor board. The board integrates multiple functions into a single unit, including digital inputs/outputs, analog inputs/outputs, an RS-232C serial communication interface, and panel meter drive signals, capable of meeting the demands of complex medium-voltage variable frequency drive control.

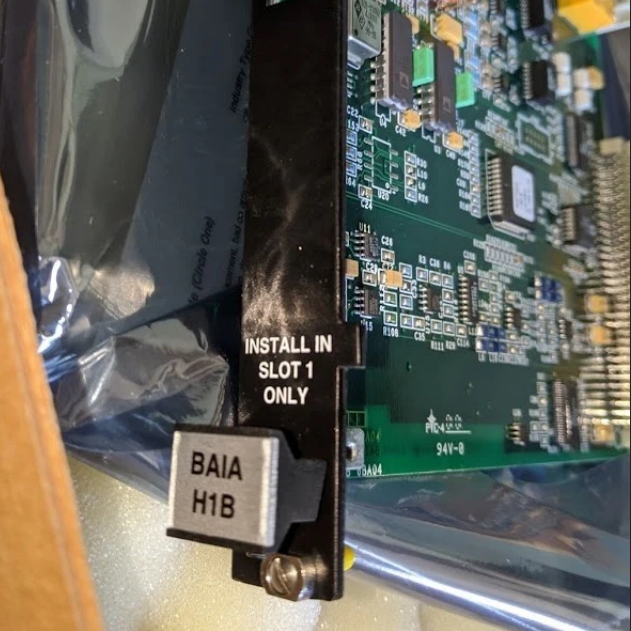

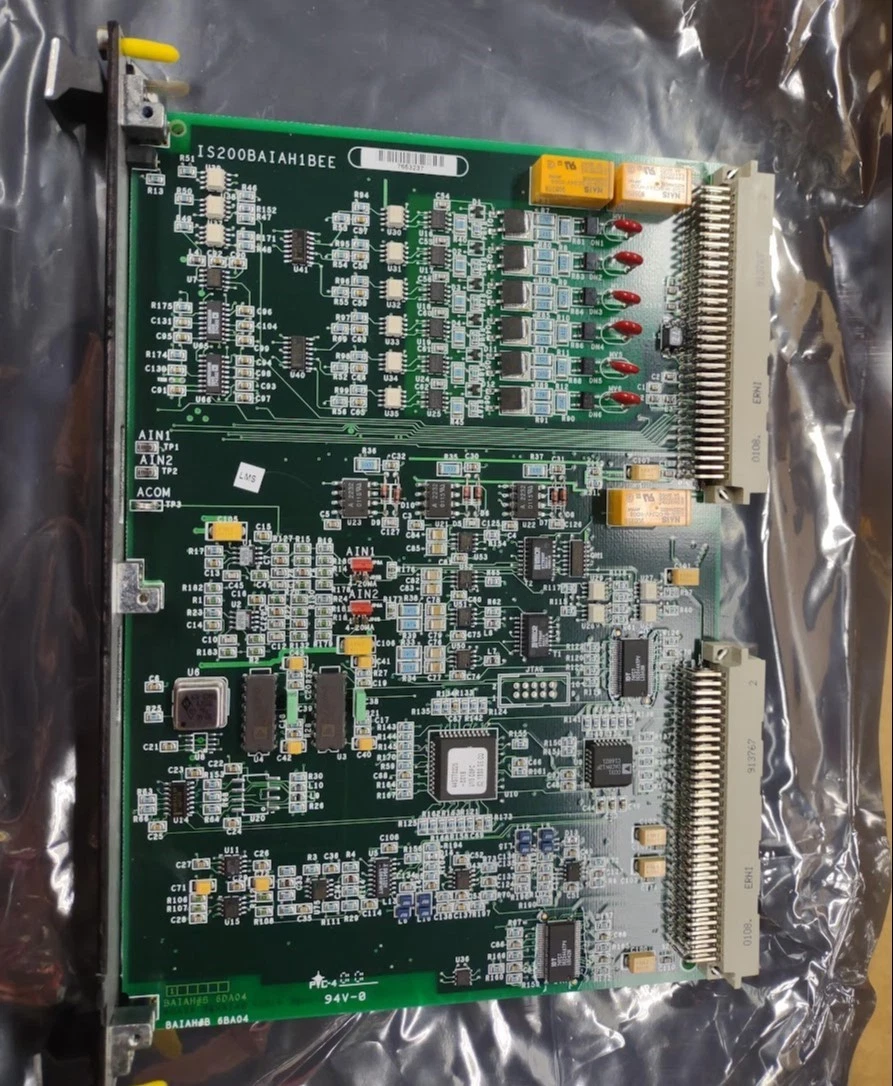

The product employs a manufacturing design that combines surface mount technology with through-hole technology. The board boasts a compact overall structure, high reliability, and has undergone rigorous quality control and testing verification. The front panel of the board features an LED status indicator, test points, and configuration jumpers, facilitating on-site debugging and maintenance. Additionally, two connectors (P1 and P2) on the rear of the board provide seamless connection to the control rack backplane, ensuring long-term, stable operation in harsh industrial environments.
II. Detailed Core Functionality
2.1 Digital Input Channels
The IS200BAIAH1B board provides six isolated, differential, universal digital input channels. These input channels feature an exceptionally wide operating voltage range:
AC Mode: Supports 115V AC, 50/60 Hz sinusoidal signals.
DC Mode: Supports DC signals ranging from 24V DC to 105V DC.
The differential input design effectively suppresses common-mode interference, while the isolation design protects the control-side circuitry from high-voltage or noise damage originating in the field. After signal conditioning, these six input signals are transmitted to the processor board for detecting external switch statuses, contactor auxiliary contacts, safety interlock signals, and more.
2.2 Digital Output Channels
The IS200BAIAH1B board integrates three independently controlled Form C (SPDT) relay contact outputs. The "Form C" designation means each relay includes a common terminal (COM), a normally open contact (NO), and a normally closed contact (NC). This design provides maximum flexibility for external control circuits.
These three relays can be used to drive indicator lights, small contactors, alarm devices, or other equipment requiring dry contact signals. Relays inherently provide natural electrical isolation between contacts and the coil drive, greatly simplifying system isolation design.
2.3 Analog Input Channels
The IS200BAIAH1B board is equipped with two bipolar analog input channels (AIN1 and AIN2), with an input range of ±10V. The signal conditioning chain for these two channels is meticulously designed:
Differential Amplifier Input Stage: Provides high input impedance and excellent common-mode rejection capability.
Synchronous Voltage-Controlled Oscillator (VCO): The analog voltage signal output by the differential amplifier is fed into a synchronous VCO, which converts the voltage amplitude into a frequency-proportional pulse train.
Differential Pulse Transmission: The pulse train generated by the VCO is transmitted as a differential signal to the system's isolated side, thereby achieving analog signal isolation with minimal distortion and high linearity.
The IS200BAIAH1B board also provides configurable 4-20mA current loop input modes for the analog input channels (via jumpers JP5 and JP6), making it easy to connect industry-standard transmitters.
2.4 Analog Output Channels
The IS200BAIAH1B board receives digital signals from the DSPX processor board and generates analog outputs through digital-to-analog conversion. The board provides a total of four output channels:
Channels A and B: Made available for customer use via the terminal board; they can drive external instruments or serve as setpoint outputs for process control.
Channels C and D: Dedicated to driving the drive's panel meters (such as an output voltmeter or output ammeter), providing operators with an intuitive indication of operating parameters. These meters are driven by onboard 24kHz, 10-bit resolution PWM signals.
2.5 RS-232C Communication Interface
The IS200BAIAH1B board provides an RS-232C serial communication interface bridging function between the DSPX processor board and the drive's Keypad and PC programming Tool. The board handles level conversion and signal routing between TTL levels and RS-232C levels, enabling convenient parameter setting, status monitoring, and fault diagnosis.
2.6 High-Fidelity Inputs
The IS200BAIAH1B receives five pairs of high-fidelity differential input signals (HIFI_1 through HIFI_5) from the backplane via connector P2. These signals are used to transmit high-precision analog reference or feedback signals within the system, crucial for the overall control accuracy of the drive.
2.7 Encoder Interface
The board provides a differential encoder input interface, supporting standard A and B quadrature encoder signals for speed or position feedback.
III. Detailed Hardware Description
3.1 Layout and Connections
The IS200BAIAH1B board integrates with the system via two primary backplane connectors, P1 and P2.
Connector P2: This is a high-density connector primarily responsible for digital communication with the DSPX processor board. It carries the 32-bit data bus, address bus, read/write control signals, chip select signal, interrupt signal, and clock signals. Additionally, signals for high-fidelity inputs and TTL-level signals for keyboard and tool communication are also transmitted through this connector.
Connector P1: This connector carries all interface signals to the user terminal board. Its pin assignments distribute the six differential digital inputs, encoder signals, two analog voltage inputs, analog outputs, and RS-232 communication signals.
3.2 Power Architecture
The IS200BAIAH1B board requires multiple power rails to ensure proper operation of different circuit modules:
+5V Digital Power: Provides the core operating voltage for the board's logic devices and data bus interfaces. This is the foundation of the digital circuitry.
±15V Non-isolated Analog Power: Supplies power to analog signal conditioning circuits, such as operational amplifiers.
Isolated ±12V Power: Brought out from connector P1, this rail is specifically used to provide excitation power for user-side potentiometers, thus ensuring electrical isolation between the user side and the control side.
+18V Power: Provides operating voltage for specific circuits.
3.3 Analog Input Configuration Details
The IS200BAIAH1B board's analog input channels feature flexible configuration options to accommodate voltage or current-type industrial sensor signals. This configuration is achieved through two sets of jumpers:
3.4 Front Panel and Maintenance
The front panel of the IS200BAIAH1B board integrates essential elements for maintenance:
IMOK Indicator: A green LED whose behavior resembles a watchdog or heartbeat signal. The LED lights up when software periodically reads or writes to a specific register. If the processor stops running or communication is interrupted, the LED will go out, providing field engineers with a simple visual check of the board's operational status.
Test Points: Located behind a top opening in the front panel, these are mainly used for factory debugging. By measuring the voltage of TP1 (AIN1) and TP2 (AIN2) relative to TP4 (ICOM12), one can easily verify if the front end of the analog input signal conditioning is working correctly.
Ejector Tabs and Fasteners: An ejector tab is located at both the top and bottom of the board. To safely remove the board, loosen the screws and then pivot the ejector tabs outward to overcome the connector friction. For installation, align the board with the guide rails, push it in while pressing simultaneously on the top and bottom of the front panel, and finally tighten the screws to ensure the connectors are fully and squarely seated.
VI. Ordering, Warranty, and Replacement Information
4.1 Board Identification and Ordering
Correctly identifying the board model is critical when ordering spare or replacement parts.

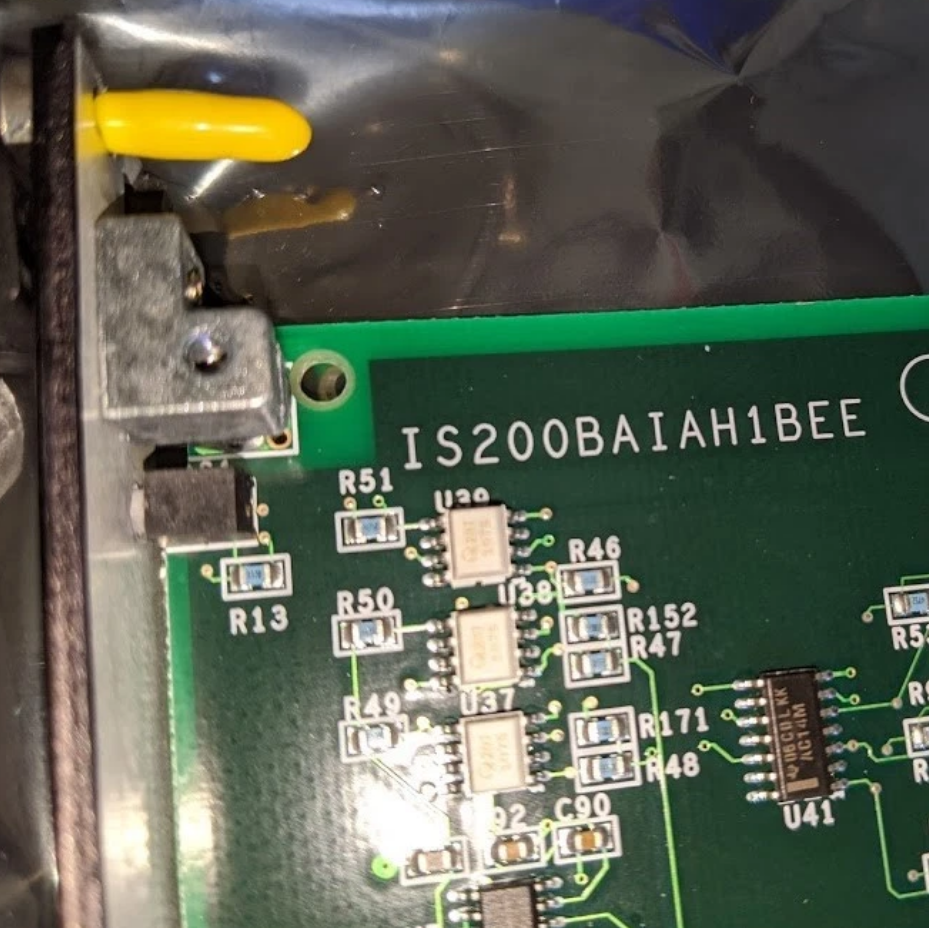

Model Identification: Each IS200BAIAH1B board has a unique alphanumeric part number printed near its edge. The part number structure includes the board's base model and version information. For example, "200" indicates a base-level board, while "215" might indicate a higher-level assembly or added components.
Ordering Instructions: The board's complete part number, description, and the drive's serial number must be provided when ordering from GE or an authorized GE sales representative. GE may substitute later versions of boards based on availability and design enhancements; however, backward compatibility of replacement boards is ensured.
4.2 Warranty Terms
Detailed warranty information (such as warranty period and coverage) is stipulated in the GE "Terms and Conditions" brochure. This brochure is included with the customer documentation.
Under Warranty: Replacement boards can be obtained directly from the GE Industrial Control Systems Product Service Engineering department (located in Salem, Virginia, USA).
Out of Warranty: Renewal parts (spares or those not under warranty) should be ordered by contacting the nearest GE Sales or Service Office.
4.3 Onboard Firmware
Every new IS200BAIAH1B board is shipped from the factory with firmware pre-installed. The onboard EEPROM containing the firmware is not intended for removal or reprogramming in the field. If a board failure is confirmed to be caused by a firmware or EEPROM problem, or if a firmware upgrade is required, the entire board must be replaced with a new one.
4.4 Safe Replacement Procedure
The IS200BAIAH1B board contains components sensitive to electrostatic discharge (ESD). Strict safety and anti-static operating procedures must be followed during replacement:
De-energize and Verify: Ensure the drive system is completely de-energized, and use test equipment rated for high voltages to verify that electrical circuits are indeed off before touching them.
Anti-Static Preparation: Wear a grounded anti-static wrist strap. Keep the spare board in its anti-static bag or box until immediately before installation.
Removal Steps:
Loosen the captive fastening screws at the top and bottom of the front panel. The screws are captive and should not be fully removed.
Unseat the board by raising the ejector tabs to the top and bottom.
Using both hands, grasp the board by the front panel and gently pull it straight out of the rack slot. Note and record the existing jumper positions for configuration on the replacement board.
Installation Steps:
Ensure the BAIA board is inserted into the correct rack slot. Innovation Series drive boards are designed for specific slots; inserting a board into the wrong slot can damage the electronics.
Align the board edges with the rack guide rails and push it in steadily until the connectors begin to engage.
Begin seating the board by firmly pressing the top and bottom of the front panel simultaneously with your thumbs.
Finish seating the board by evenly tightening the captive screws, which ensures the connector is squarely and fully inserted into the backplane.
