Parameter | Details |
General | |

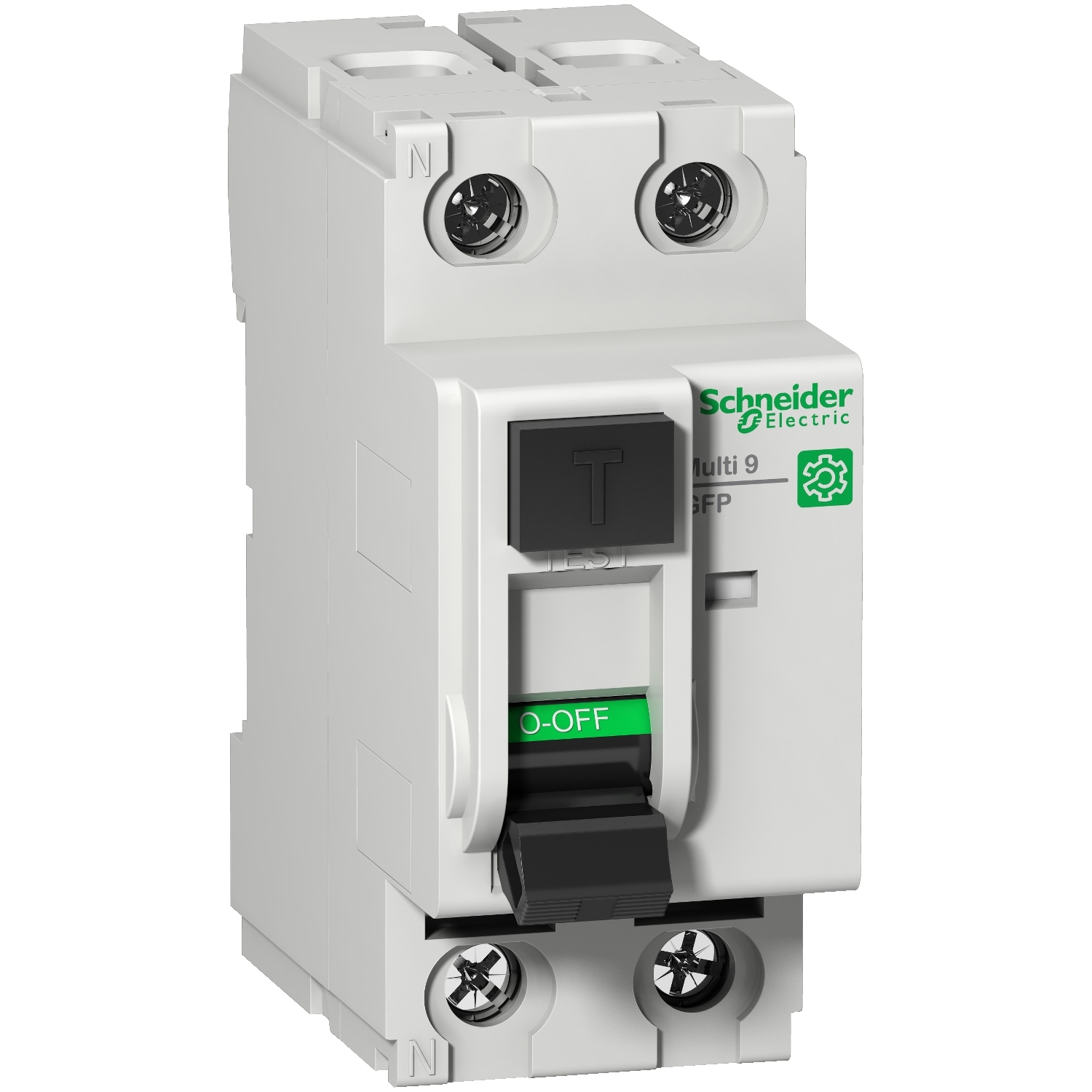

Product Model | M9R41225 |
Range | Multi9 |
Product Name | Multi9 GFP |
Product or Component Type | Residual current circuit breaker (RCCB) |
Device Short Name | GFP |
Device Application | Distribution |
Poles Description | 2P |
Neutral Position | Left |
Line Rated Current | 25 A at 40 °C conforming to EN/IEC 61008-1 |
Network Type | AC |
Earth-leakage Sensitivity | 26 mA (UL 1053)
30 mA (EN/IEC 61008-1) |
Earth-leakage Protection Time Delay | Instantaneous |
Earth-leakage Protection Class | Type A-SI (Super Immunised) |
Utilisation Category | AC-23A conforming to EN/IEC 61008-1 |
Standards | EN/IEC 61008-1, UL 1053 |
Product Certifications | IEC, UL |
Electrical Characteristics | |
Network Frequency | 50/60 Hz |
Rated Operational Voltage (Ue) | 480Y/277 V AC 60 Hz
240/415 V AC 50 Hz |
Residual Current Tripping Technology | Voltage independent |
Rated Breaking and Making Capacity (Idm) | 1500 A conforming to EN/IEC 61008-1 |
Rated Conditional Short-circuit Current (Inc) | 10 kA (100 A gG) |
Rated Insulation Voltage (Ui) | 440 V AC 50/60 Hz |
Rated Impulse Withstand Voltage (Uimp) | 6 kV conforming to EN/IEC 61008-1 |
Mechanical Characteristics | |
Contact Position Indicator | Yes |
Control Type | Toggle |
Local Signalling | ON, OFF, fault trip |
Mounting Mode | Clip-on |
Mounting Support | DIN rail |
9 mm Pitches | 4 |
Height | 81 mm (3.2 in) |
Width | 36 mm (1.4 in) |
Depth | 60 mm (2.4 in) |
Net Weight | 0.22 kg (0.49 lb) |
Colour | Gray |
Mechanical Durability | 20,000 cycles |
Locking Options Description | Padlocking in OFF position |
Connections – Terminals | |
Terminal Type | Tunnel type terminals (top or bottom) |
Rigid Conductor | 1…35 mm² (18 AWG…2 AWG) |
Flexible Conductor | 1…25 mm² (18 AWG…3 AWG) |
Flexible with Ferrule | 1…25 mm² (18 AWG…3 AWG) |
Wire Stripping Length | 14 mm for top or bottom connection |
Tightening Torque | 3.5 N·m top or bottom |
Environment | |
IP Degree of Protection | IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529 |
Pollution Degree | 3 |
Electromagnetic Compatibility | 8/20 μs impulse withstand, 3000 A conforming to EN/IEC 61008-1 |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative Humidity | 95% at 55 °C |
Ambient Air Temperature for Operation | -25…60 °C |
Ambient Air Temperature for Storage | -40…70 °C |
Ordering and Shipping | |
GTIN | 3606481198471 |
Country of Origin | ES |
Package 1 (PCE) | 1 unit; H 4.0 cm × W 8.0 cm × L 9.0 cm; weight 212 g |
Package 2 (S03) | 54 units; H 30.0 cm × W 30.0 cm × L 40.0 cm; weight 12.148 kg |
Warranty | 18 months |
Environmental Data | |
Carbon Footprint – Total | 18 kg CO₂ eq. |
Carbon Footprint – Manufacturing (A1-A3) | 3 kg CO₂ eq. |
Carbon Footprint – Distribution (A4) | 0 kg CO₂ eq. |
Carbon Footprint – Installation (A5) | 0 kg CO₂ eq. |
Carbon Footprint – Use Phase (B2, B3, B4, B6) | 15 kg CO₂ eq. |
Carbon Footprint – End-of-life (C1-C4) | 0.7 kg CO₂ eq. |
Recyclability Potential | 59% |
SCIP Number | 81454b7e-fcdf-4818-a481-efccd54a351f |
EU RoHS Directive | Compliant By Exemption |
REACH Regulation | Reference contains SVHC above threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. |
EPA PFAS Regulation | Item contains PFAS Chemicals |
OECD PFAS Regulation | Item contains PFAS Chemicals |
Halogen Content Performance | Product contains halogen above thresholds |
Packaging with Recycled Cardboard | Yes |
Packaging without Single-use Plastic | Yes |
WEEE Label | Required for EU disposal (separate collection) |
