MPC4 200-510-078-215 Machinery Protection Card

  • VM

  • MPC4 200-510-078-215

  • $5800

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The MPC4 200-510-078-215 is the Separate Circuits Version (Separate Circuits) Machinery Protection Card within the Meggitt Vibro-Meter VM600 series Machinery Protection System. The product code precisely defines its version attributes: "2" represents the Separate Circuits version, firmware version 078, and hardware version 215. Firmware version 078 represents the latest software feature set of the MPC4 platform in terms of signal processing, diagnostics, and communication; hardware version 215 signifies a specific hardware iteration under the separate circuits design specifications. This model is specifically designed for demanding application environments that need to comply with the IEC 60255-5 standard ("Insulation coordination for measuring relays and protection equipment - Requirements and tests"). By implementing enhanced electrical isolation between key internal circuits, it significantly improves the system's immunity to interference and operational safety under varying ground potential differences.


As a member of the VM600 family oriented towards high reliability and high electrical safety requirements, the Separate Circuits MPC4 inherits all the core monitoring and protection functions of the Standard version. It simultaneously performs independent, real-time acquisition and processing of 4 dynamic signals and 2 speed/keyphasor signals. Its powerful Digital Signal Processor can execute a series of algorithms ranging from simple overall vibration monitoring to complex order tracking analysis. When any monitored parameter deviates from the preset normal operating range, the card will immediately trigger multi-level alarms and drive relays based on user-configured logic, providing critical safety protection for key rotating machinery, preventing catastrophic failures, and ensuring production continuity and asset safety.


This card must be used as a pair with a matching IOC4T Input/Output Card to form a monitoring and protection unit and must be installed in a VM600 Rack supporting the separate circuits configuration. This design makes it particularly suitable for applications with stringent requirements for measurement loop isolation, such as power systems and large industrial plants.

2. Core Features and Advantages

  • Design Compliant with Strict Isolation Standards: The internal circuit design adheres to the IEC 60255-5 standard, achieving a higher level of electrical isolation and insulation coordination between inputs, outputs, power supplies, and communication interfaces. This effectively suppresses ground loop interference, common-mode voltage, and transient overvoltage impacts, ensuring measurement accuracy and system reliability in complex industrial electromagnetic environments and situations with potential differences.

  • Complete Functional Inheritance: Possesses the same high-performance multi-channel processing capability as the Standard MPC4, including independent parallel processing of 4 dynamic channels and 2 speed channels. Parameters for all channels can be independently and finely configured, providing unparalleled flexibility.

  • Professional Signal Processing and Analysis Toolkit:

    • Comprehensive Filtering Options: Provides programmable broadband filters (high-pass, low-pass, band-pass) and Narrowband (Order) Tracking filters for precise fault diagnosis (constant Q, Q=28), effectively separating fault characteristic frequencies.

    • Multiple Rectification Algorithms: Supports True RMS, Mean, True Peak, and True Peak-to-Peak rectification, meeting various vibration standards and fault diagnosis needs.

    • Simultaneous Order Analysis: During speed changes, it can accurately extract amplitude and phase information for orders such as 1X, 2X, providing key data for dynamic balancing and fault localization.

  • Advanced Programmable Protection Logic:

    • Quadruple Alarm Thresholds: Each dynamic channel can have independent Alert+, Alert-, Danger+, Danger- thresholds, with adjustable delay, hysteresis, and latching functions.

    • Adaptive Monitoring: Alarm limits can be automatically adjusted based on machine speed or other process parameters, suitable for transient processes like start-up and shutdown.

    • External Control Interfaces: Supports Direct Trip Multiply and Danger Bypass functions, enabling flexible control of protection logic via external discrete signals.

    • Powerful Logic Combination: Provides 8 Basic Logic and 4 Advanced Logic function blocks for constructing complex voting and interlock protection strategies.

  • Integrated Design and Intelligent Diagnostics:

    • Built-in Sensor Power Supplies: Provides +27.2V, -27.2V, +15V isolated power supplies to directly drive common sensors.

    • "OK System" Diagnostics: Continuously monitors the health status of each sensor and signal chain, reporting faults like open circuits and short circuits in real-time, ensuring the reliability of the monitoring system itself.

  • Engineering and Maintenance Friendliness:

    • Front-Panel Diagnostic Interface: Equipped with 6 BNC connectors for easy connection to external test equipment for online signal analysis.

    • Intuitive Status Indication: Clearly displays the overall card status and each channel's alarm, danger, OK status, and channel inhibit condition via multi-colored LEDs.

    • Hot-Swappable: Allows card replacement without system power-down, improving system availability.

  • Rich Output and Integration Capabilities:

    • Analog Outputs: Provides 4 isolated 0-10V or 4-20mA outputs via the IOC4T card for connection to DCS/PLC.

    • Relay Control: Alarm signals can drive local or expansion relays to execute shutdowns or alarms.

    • Flexible Configuration Methods: Supports configuration and communication via the front-panel RS-232 or VME bus (requires CPUx card).

  • Safety and Quality Standards: This Separate Circuits version is designed to comply with relevant safety standards, suitable for applications requiring high electrical isolation, and works with the VM600 system to build a highly reliable protection architecture.

3. Typical Application Areas

The Separate Circuits MPC4 is particularly suitable for harsh industrial environments with extremely high requirements for electrical safety, isolation, and noise immunity:

  • Power Industry (Generation, Transmission & Distribution): Protection of key rotating equipment in large steam turbines, gas turbines, hydro-generator sets, nuclear power plant auxiliary systems, and high-voltage substations. Its isolation characteristics help cope with complex ground potentials and electromagnetic interference in power systems.

  • Oil, Gas & Chemicals: Protection of rotating equipment in compressors, pump sets within hazardous areas, and large plants with significant ground potential differences (e.g., electrolysis, electrochemical processes).

  • Basic Industries: Protection of drive systems for fans, mills, etc., in areas with harsh electrical environments in large metallurgical and cement plants.

  • Special Applications: Any machinery protection scenario that requires strict electrical isolation between measurement loops and control/safety loops to prevent fault propagation or ensure personnel and equipment safety.

4. Operating Principle and System Integration

The operating principle of the Separate Circuits MPC4 is completely identical to the Standard version, following the same real-time processing flow: "Signal Acquisition -> DSP Processing -> Threshold Comparison -> Logic Decision -> Output Execution." Its core difference lies in the internal PCB layout, component selection, and insulation design, all aimed at meeting the isolation requirements of IEC 60255-5, thereby providing higher insulation strength and noise immunity between different circuits at the physical level.

Key System Integration Points:

  1. Mandatory Pairing: Must be paired with an IOC4T Input/Output Card (recommended to use the corresponding version).

  2. Dedicated Rack: Should be installed in a VM600 Rack supporting the separate circuits configuration to ensure the isolation integrity of the entire signal path (from sensor terminals to backplane bus) is maintained.

  3. Grounding and Wiring: Must strictly follow the VM600 Separate Circuits System Manual for grounding and shield wiring to fully leverage its isolation advantages and avoid introducing new interference paths.

  4. Software Configuration: Configured using VM600 MPSx software, with an interface and functionality identical to the Standard MPC4.

5. Status Indicators

Status indication is identical to the Standard MPC4, providing clear status feedback via front-panel LEDs:

  • DIAG/STATUS Light: Indicates overall card status (Normal, Configuring, TM/DB Active, Fault, etc.).

  • Channel Status Lights (RAW OUT 1-4, TACHO OUT 1-2): Indicate each channel's signal validity (OK), alarm (yellow), danger (red), and inhibit status (slow green blink).

6. Selection and Application Advice

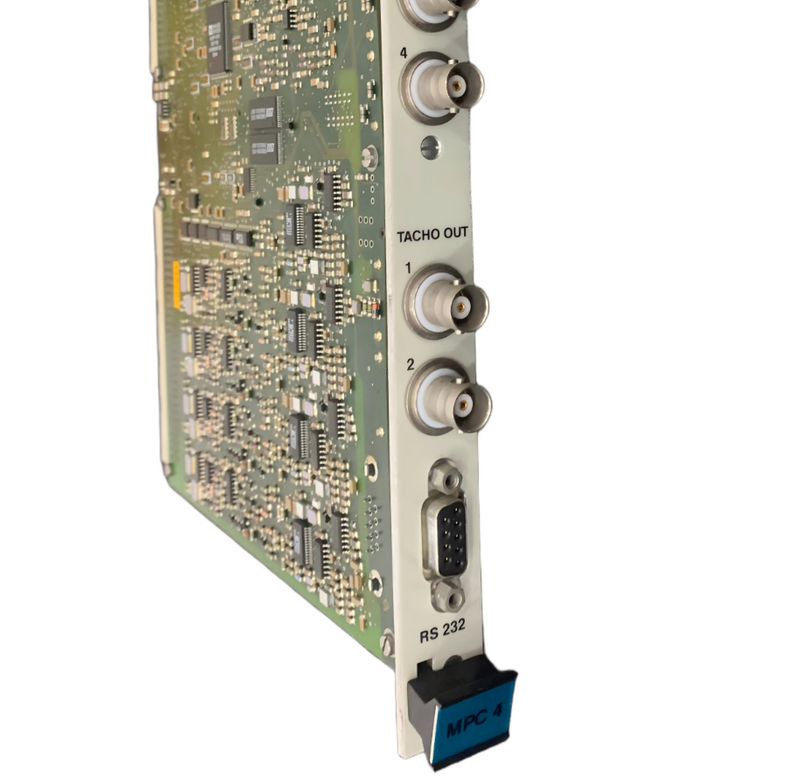

Selection Identification: The MPC4 200-510-078-215 front-panel lower handle label has white "MPC 4" text on a blue background. In VM600 MPSx software, it is identified as type "MPC4". Users need to confirm its Separate Circuits attribute based on the hardware model number and documentation.

Core Selection Advice:

  • Choose the Separate Circuits MPC4 (e.g., -215 model) if and only if: Your application explicitly requires or benefits from the enhanced isolation characteristics complying with the IEC 60255-5 standard. This is common in power systems, environments with high common-mode voltage, complex grounding systems, or applications with mandatory safety isolation regulations.

  • Choose the Standard MPC4: For the vast majority of general industrial applications without special isolation compliance requirements, the functionally identical Standard MPC4 (-1xx models) is a more cost-effective choice.

  • Choose the Safety MPC4SIL (-3xx models): When the application requires functional safety (SIL) certification and may involve mixed configuration of protection and monitoring cards within the same rack, the MPC4SIL should be selected.

When designing a separate circuits system, it is essential to refer to the complete VM600 Separate Circuits System Manual and consult Meggitt technical support to ensure the entire loop design from sensor to control system complies with isolation specifications.


Specification Category Parameter Details Description & Notes
Dynamic Signal Inputs
Channels: 4, Compliant with Separate Circuits Isolation Requirements
Input Signal Type Voltage or Current Software configurable, supports AC+DC coupled signals.
DC Voltage Range 0 to +20 V or 0 to -20 V
AC Voltage Range ±10 V (peak, maximum)
Common Mode Voltage Range -50 V to +50 V Combined with separate circuits design, provides stronger common-mode noise rejection.
Input Impedance 200 kΩ (for voltage input)
DC Current Range 0 to 25 mA
AC Current Range ±8 mA (maximum)
Analog Bandwidth (-3dB) DC to 60 kHz
AC Frequency Range (No Integration) 0.1 Hz to 10 kHz
AC Frequency Range (With Integration) 2.5 Hz to 10 kHz
Current Measuring Resistor 324.5 Ω
Speed/Keyphasor Inputs
Channels: 2, Isolated Design
Triggering Method Rising / Falling Edge Threshold Trigger Software configurable.
Dynamic Trigger Thresholds Rising = (2/3) × Vpp, Falling = (1/3) × Vpp Automatically adaptive.
Tachometer Range Input: 0.016 Hz to 50 kHz
Display: 0.016 Hz to 1092 Hz (1 to 65,535 RPM)

Input Voltage Range 0.3 Hz - 10 kHz: 0.4 - 500 Vpp
10 kHz - 50 kHz: 2.0 - 500 Vpp

Buffered Signal Outputs

Output Signals Sensor "Raw" signals Output loops comply with separate circuits isolation specifications.
Output Interface MPC4 Front-Panel BNC, IOC4T Rear-Panel Screw Terminals
Output Impedance 50 Ω
Dynamic Channel Transfer Ratio Voltage Input: 1 V/V; Current Input: 0.3245 V/mA
Speed Channel Output 0 to 5 V, TTL-compatible
Analog Outputs (IOC4T)
Outputs feature isolation characteristics.
Output Channels 4 channels (DC OUT 1 to 4)
Output Type & Range 4 to 20 mA or 0 to 10 V Selected via jumpers.
Signal Processing Functions
Functionally identical to Standard MPC4.
Broadband Processing High-pass, Low-pass, Band-pass filters selectable Slope 6-60 dB/oct programmable.
Narrowband Tracking Processing Constant Q filter (Q = 28) Frequency Range: 0.15 Hz to 10 kHz
Relative Shaft Vibration Proc. Vibration: 0.1 Hz - 10 kHz; Gap/Position: DC - 1 Hz With initial gap compensation.
Amplitude Accuracy ±1% of full scale (typical)
Alarm & Logic Control
Functions consistent with Standard version.
Setpoints Alert+, Alert-, Danger+, Danger- (Measurement); Alert+, Alert- (Speed)
Adaptive Monitoring Supported
Direct Trip Multiply (TM) Supported
Danger Bypass (DB) Supported
Channel Inhibit Supported
Logic Combination 8 Basic Logic + 4 Advanced Logic
OK System Diagnostics

Diagnostic Thresholds Configurable Upper and Lower Limits
Fault Confirmation Time 250 ms
Electrical & Isolation Characteristics (Core Advantage of Separate Circuits Version)
Insulation Coordination Standard Complies with IEC 60255-5 Key Differentiator: Designed specifically for separate circuits applications.
Card Power Supply +5 VDC, ±12 VDC Powered via rack backplane, internal isolation design.
Sensor Power Supply Outputs +27.2 V, -27.2 V, +15.0 V (all ±5%) Isolated outputs, max 25 mA per channel.
Circuit Isolation Enhanced isolation design between inputs, outputs, power supplies, and communication interfaces Improves system reliability in environments with potential differences and electrical noise.
Environmental Specifications

Operating Temperature -25°C to +65°C
Storage Temperature -40°C to +85°C
Operating Humidity 0 to 90% RH, non-condensing
Communications & Configuration

Configuration Interface RS-232 Serial Port (front panel)
VME Bus (via CPUx card)
Supports dual configuration modes.
Physical Attributes

Dimensions 6U x 20 mm x 187 mm
Weight Approx. 0.40 kg
Certifications & Compliance

EMC IEC/EN 61000-6-2, IEC/EN 61000-6-4
Electrical Safety & Isolation Complies with IEC 60255-5 Insulation Coordination Requirements Specific certification focus for the Separate Circuits version.
Environmental RoHS Compliant
