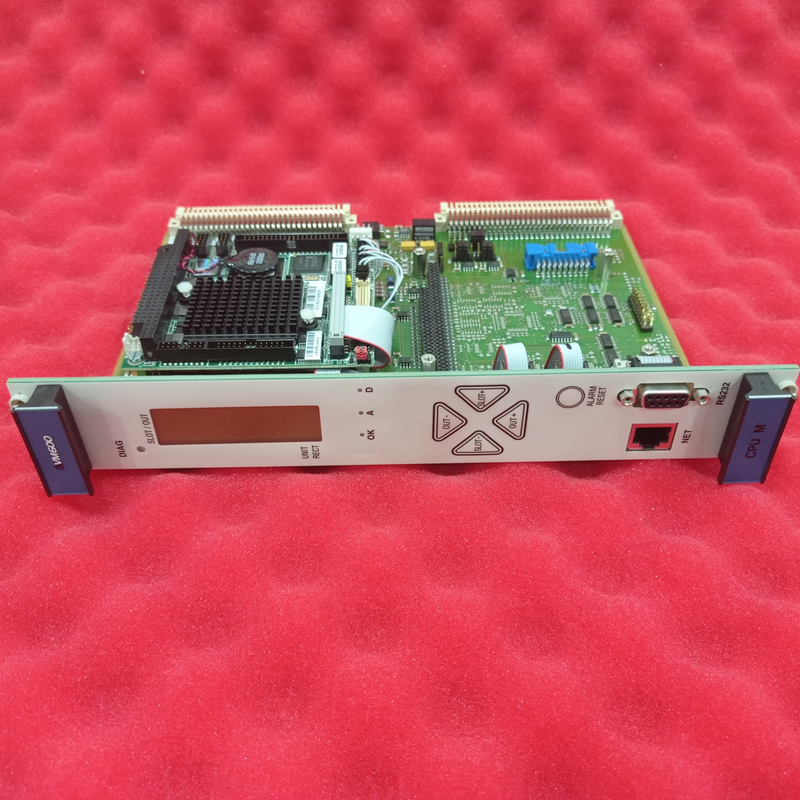

CPUM 200-595-082-332 CPU Card

CPUM 200-595-082-332 is a core control and communication interface card with native standard PROFINET support within Meggitt Vibro-Meter's VM600 series rack-based machinery protection and condition monitoring systems. This model number identifies a significant modern version of the CPUm/IOCN card pair, with firmware version 082 for the CPUM card and hardware version 332. This version marks a crucial technological leap in the evolution of the VM600 product line: it is part of the official firmware branch (081 and above) that is the first to formally support the standard PROFINET industrial Ethernet protocol, while also being built on the newer 332 hardware platform. This makes it a high-performance, standardized bridge connecting the traditional, Modbus-based world of machine protection to modern, PROFINET-backboned industrial automation networks.

This product is designed for modern factories undergoing digital transformation and committed to building unified, efficient industrial Ethernet architectures. It is not only the core controller of the VM600 rack, coordinating the operation and configuration of all monitoring card pairs, but also a fully functional multi-protocol industrial communication gateway. It can natively and simultaneously handle Modbus TCP, Modbus RTU, and PROFINET communication, enabling critical machine health data from sensors like vibration, displacement, and speed to be seamlessly and real-time integrated into top-tier DCS, PLC, or Manufacturing Execution Systems (MES) using PROFINET or Modbus. Hardware version 332 represents a further iteration in hardware design, component selection, and manufacturing processes, aiming to enhance the product's long-term reliability, signal integrity, and overall performance in complex industrial environments.

CPUM 200-595-082-332 must be used as a pair with a corresponding hardware version IOCN Input/Output Card and installed in a VM600 ABE04x Standard System Rack (6U). Choosing this model means the user selects a future-oriented solution: it not only meets the urgent current need for PROFINET integration, but its hardware platform is also prepared to handle more complex communication tasks and adapt to harsher plant environments. It is suitable for new "all-Ethernet" factories, as well as retrofit projects that aim to upgrade to PROFINET networks while retaining some traditional Modbus devices.

2. Core Features and Benefits

• Native Multi-Protocol Communication & Modern Control Core:

• Standard PROFINET Integration: The core breakthrough of Firmware Version 082 is the provision of native, standardized support for the PROFINET protocol. This allows the CPUM to seamlessly integrate as a standard PROFINET IO Device (slave) into PROFINET networks from mainstream automation vendors like Siemens, without relying on early special, no-longer-supported firmware (e.g., 067), thereby gaining long-term compatibility assurance and technical support.

• Mature Dual Modbus Protocol Support: While providing advanced PROFINET capabilities, it maintains excellent support for Modbus TCP and Modbus RTU protocols. Users can flexibly configure the same card to achieve data access for different network layers or legacy systems.

• Powerful Rack Control and Management: As a reinforced rack controller, it provides efficient centralized configuration, real-time monitoring, and advanced diagnostics via VM600 MPSx software. Its processing power can easily manage the data aggregation and distribution of dozens of monitoring channels within large racks.

• Reliable Hot-Swapping and Operational Support: Supports safe hot-swapping of the full range of monitoring card pairs. Combined with the firmware's intelligent configuration management, it ensures maximum system availability during maintenance, meeting the requirements of continuous production processes.

• Enhanced Hardware Platform and Communication Reliability:

• Advanced 332 Hardware Platform: Hardware Version 332 implies the adoption of updated circuit designs, potentially faster or more robust communication chips, and enhanced power management. These improvements aim to enhance data exchange stability, reduce communication latency, and strengthen interference immunity in electrically noisy environments.

• High-Robustness Communication Interfaces: Both the Ethernet interfaces (supporting PROFINET and Modbus TCP) and the serial interfaces (supporting Modbus RTU) have been optimized based on the new hardware platform, potentially featuring stronger ESD protection, surge suppression, and electrical isolation characteristics, ensuring the reliability of communication links in harsh industrial sites.

• Flexible Network Interface Routing: Retains the ability to flexibly configure the primary Ethernet interface on either the CPUM or IOCN front panel via jumpers, providing convenience for cabinet wiring and supporting various installation methods such as front-access or rear-wiring.

• Comprehensive System Data Processing, Security & Diagnostics:

• High-Performance Data Gateway: As a high-performance data concentrator and protocol converter, it can simultaneously handle data requests from PROFINET controllers and Modbus masters, efficiently performing data mapping, format conversion, and real-time forwarding, reducing the burden on upper-level systems.

• Enhanced System Security: Fully implements the VM600 MPS Rack (CPUM) Security function. The hardware platform upgrade may have improved the reliability of security key storage, which, combined with software password verification, provides a robust access control barrier for critical protection functions.

• Comprehensive Diagnostics and Event Logging: Features a complete event logging system. In addition to recording traditional system and measurement events, it may enhance logging for PROFINET network connection status and diagnostic information, providing a richer perspective for unplanned downtime analysis and predictive maintenance.

• Future-Oriented Compatibility and Sustainability:

• Full System Compatibility: Fully compatible with all VM600 ABE04x System Racks and the VM600 monitoring card ecosystem, protecting the user's existing investment.

• Modular Architecture: Supports standard CPU modules and optional serial communication modules, allowing users to choose to build systems with stronger multi-network access capabilities based on actual network complexity.

• Long-Term Investment Protection: As a version supporting a mainstream industrial Ethernet standard (PROFINET), its technological lifecycle is longer, better adapting to the development of future factory networks. The 332 hardware platform also aims to provide longer mean time between failures.

• Compliance & Environmental: Hardware Version 332 is expected to comply with the latest global environmental directives (e.g., RoHS, REACH) and major industrial market safety and EMC certifications.

3. Typical Application Areas

CPUM 200-595-082-332 is an ideal choice for the following modern, highly integrated industrial applications:

• Newly Built Digital Factories Using PROFINET as the Backbone: Automotive manufacturing, high-end consumer goods production lines, large lithium battery production plants, etc., where the plant-wide automation system is based on PROFINET and requires direct integration of the machine protection system as an intelligent IO device into the same network.

• Modernization Upgrades and Integration in Process Industries: In industries like petrochemicals, pharmaceuticals, and food & beverage, when upgrading existing DCS systems to PROFINET or building new PROFINET control networks, using this card enables seamless integration of rotating equipment protection and monitoring, achieving unified data management and advanced applications (e.g., predictive maintenance).

• Intelligent Monitoring Networks for Power Generation Equipment: New gas turbine power stations, combined cycle power plants, smart wind farms, etc., where control systems widely adopt PROFINET and require standard PROFINET interfaces from vibration, temperature, and other protection systems for deep integration with Turbine Control Systems (TCS) or plant-level monitoring systems.

• Advanced Equipment Bundling for OEMs: Providing future-oriented intelligent monitoring solutions for large equipment manufacturers like turbomachinery, compressors, and pump sets, using native PROFINET as the standard factory interface, greatly enhancing their product competitiveness and ease of integration in high-end markets.

• Complex Integration Projects in Hybrid Network Environments: In scenarios where a factory has both PROFINET networks and traditional Modbus devices (e.g., third-party instruments, legacy systems), this card can serve as a key protocol conversion hub, achieving unified data access and forwarding.

4. Working Principle & System Integration

As an intelligent gateway supporting PROFINET, the workflow of CPUM 200-595-082-332 reflects deep integration with modern industrial network protocols:

1. Data Acquisition and Internal Processing: Collects data from protection cards via the VME bus, performs unified processing and mapping within the CPU module, preparing it for multi-protocol publishing.

2. Multi-Protocol Parallel Service: This is its core value. The card can run three independent communication services simultaneously:

• PROFINET IO Device Service: According to the pre-loaded device description file (GSDML), packages the VM600 system's data into standard PROFINET IO modules for cyclic and acyclic data exchange with PROFINET IO Controllers (e.g., Siemens PLCs).

• Modbus TCP Server Service: Responds to requests from other Modbus TCP clients on the network (e.g., SCADA, third-party DCS).

• Modbus RTU Slave Service: Responds to requests from Modbus masters on the serial network.

3. Protocol-Independent Rack Management: Regardless of the external protocol used, its management functions for the VM600 rack itself (configuration, hot-swapping, security, event logging) remain independent and consistent.

Key Integration Steps and Considerations:

1. Network Planning and Protocol Determination: Define the PROFINET network architecture (IP planning, device names) and the coexistence relationship with Modbus networks. Version 082-332 provides an ideal platform for such hybrid networks.

2. Engineering Software Configuration:

• PROFINET Side: In engineering software like STEP 7 (TIA Portal), import the GSDML file provided by Meggitt, add the CPUM as an IO device to the hardware configuration, assign device names and IP addresses, and configure the input/output data modules it provides.

• VM600 Side: Use compatible VM600 MPSx software and CPUM Configurator to configure protection card parameters and define data points that need to be mapped to PROFINET and Modbus.

3. Hardware Installation and Connection: Install the card pair, connect the PROFINET network (to port 1 or NET) and/or Modbus networks. Be sure to use PROFINET-certified network cables (CAT5e or higher).

4. Device Commissioning and Naming: Assign a unique device name to the CPUM in the PROFINET network via engineering software; this is key for PROFINET device identification.

5. Data Mapping Testing: Test data read/write separately from the PROFINET controller and Modbus master to verify the correctness and real-time performance of the mapping.

5. Version Comparison & Selection Strategy

• Fundamental Differences from Earlier Versions:

  Comparison Item	CPUM 082-332 (and subsequent)	CPUM 072/074/075-xxx	CPUM 067-xxx
  PROFINET Support	Native, standardized support, based on official firmware 081+, long-term maintained.	Not Supported.	Special firmware support, no longer supported, non-standard implementation.
  Technical Sustainability	High, future-oriented for PROFINET networks.	High, but limited to Modbus ecosystem.	Low, no longer officially supported.
  Hardware Platform	332 (new generation).	122/422, etc. (previous mature platforms).	Early hardware versions.
  Core Value	Modern protocol integration, for all-Ethernet factories.	Optimized Modbus functionality, high cost-effectiveness.	Legacy solution, only for specific old system maintenance.

• Selection Decision Tree:

  For the vast majority of new or network-modernizing industrial projects, as long as PROFINET is involved, CPUM 082-332 is the recommended foundational starting point.

• Yes → Choose between CPUM 075-422 (optimized function + highly reliable hardware) and CPUM 072/074-122 (classic stable), considering budget.

• No, prioritizing overall cost-effectiveness → CPUM 072-122 or similar mature versions are safe choices.

• Yes, or very likely in the future → Must select CPUM 082 or higher version (e.g., 082-332). This is the only correct technological path to meet current or future project needs.

• No, and the foreseeable future uses only Modbus → Proceed to next question.

1. Question: Is your factory automation network based on, or planned to upgrade to, PROFINET?

2. Question: Do you pursue ultimate Modbus performance, and does the project environment demand extremely high reliability?
