Parameter | Details |
General | |

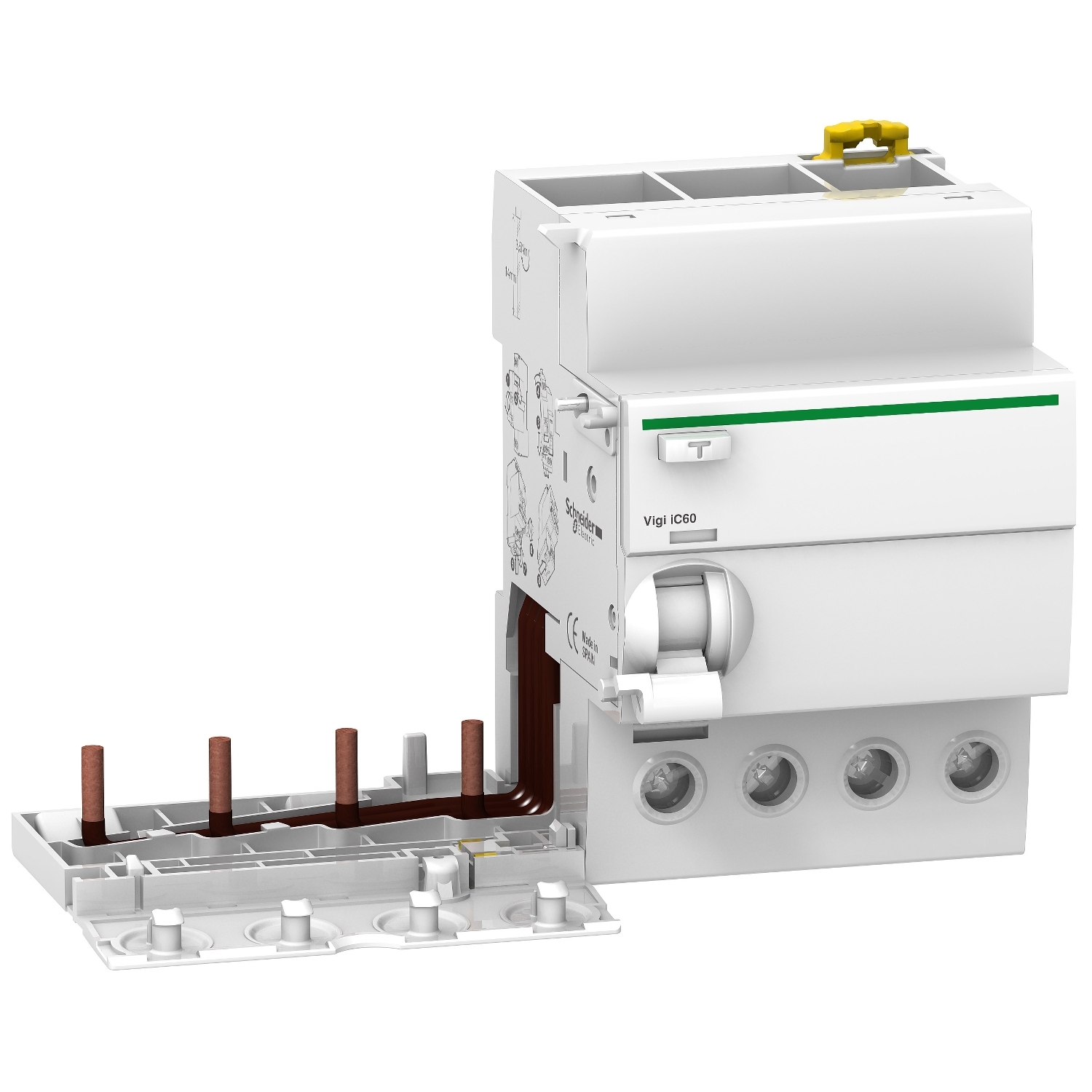

Product Model | A9V51463 |
Range | Acti9 |
Product Name | Acti9 Vigi iC60 |
Product or Component Type | Add-on residual current device |
Poles Description | 4P |
Rated Current | 63 A |
Earth Leakage Sensitivity | 30 mA |
Earth Leakage Protection Class | Type A-SI (Super Immunised) |
Residual Current Tripping Technology | Voltage independent |
Standards | IEC 61009-1, EN 61009-1 |
Electrical Characteristics | |
Rated Operational Voltage (Ue) | 400 V AC (operating range 400…415 V AC) |
Rated Insulation Voltage (Ui) | 500 V AC |
Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Pollution Degree | 3 |
Electromagnetic Compatibility | 8/20 μs impulse withstand, 250 A conforming to IEC 61009-1 |
Mechanical Characteristics | |
Mounting Support | DIN rail |
Number of 9 mm Pitches | 7 |
Width | 135 mm |
Height | 91 mm |
Depth | 73.5 mm |
Net Weight | 0.245 kg |
Connections – Terminals | |
Terminal Type | Tunnel type terminal (downside) |
Rigid Conductor | 1…35 mm² (without cable end) |
Flexible Conductor | 1…25 mm² (without cable end) |
Flexible with Cable End | 1…25 mm² |
Tightening Torque | 3.5 N·m (bottom) |
Environment | |
IP Degree of Protection | IP20 conforming to IEC 60529
IP40 in modular enclosure conforming to IEC 60529 |
Ambient Air Temperature for Operation | -25…60 °C |
Ambient Air Temperature for Storage | -40…85 °C |
Packing Units | |
Package 1 (PCE) | 1 unit; H 8.6 cm × W 11.5 cm × L 14.2 cm; weight 283.0 g |
Package 2 (S03) | 15 units; H 30 cm × W 30 cm × L 40 cm; weight 4.745 kg |
Country of Origin | FR |
Environmental Data | |
Carbon Footprint – Total | 8 kg CO₂ eq. |
Carbon Footprint – Manufacturing (A1-A3) | 2 kg CO₂ eq. |
Carbon Footprint – Distribution (A4) | 0.1 kg CO₂ eq. |
Carbon Footprint – Installation (A5) | 0.1 kg CO₂ eq. |
Carbon Footprint – Use Phase (B2, B3, B4, B6) | 6 kg CO₂ eq. |
Carbon Footprint – End-of-life (C1-C4) | 0.5 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile |
Recyclability Potential | 28% |
SCIP Number | B078722f-7853-4e1e-a05b-29638f57b0ab |
EU RoHS Directive | Compliant By Exemption |
REACH Regulation | Reference contains SVHC above threshold |
OECD PFAS Regulation | Item contains PFAS Chemicals |
Halogen-free Status | Halogen free plastic parts product |
PVC Free | Yes |
Silicone-free | No |
Packaging with Recycled Cardboard | No |
Packaging without Single-use Plastic | Yes |
WEEE Label | Required for EU disposal (separate collection) |
