GE IS200GGXIG1A Expander Load/Source Board

The IS200GGXIG1A is a core signal isolation and distribution board designed by General Electric (GE) Industrial Systems for the Innovation Series™ medium voltage variable frequency drive system. As the Expander Load/Source Board (GGXI), the IS200GGXIG1A establishes a complete safety isolation barrier between the high-voltage power bridge and the Innovation Series™ board rack, while simultaneously undertaking multiple critical tasks including gate control signal conversion, feedback signal conditioning and aggregation, and system status monitoring. This board works in close coordination with the IS200BICI Bridge Interface Controller Board and the IS200BPII Bridge Power Interface Board, together forming a complete distributed control link for up to 12 Integrated Gate Commutated Thyristors (IGCTs).

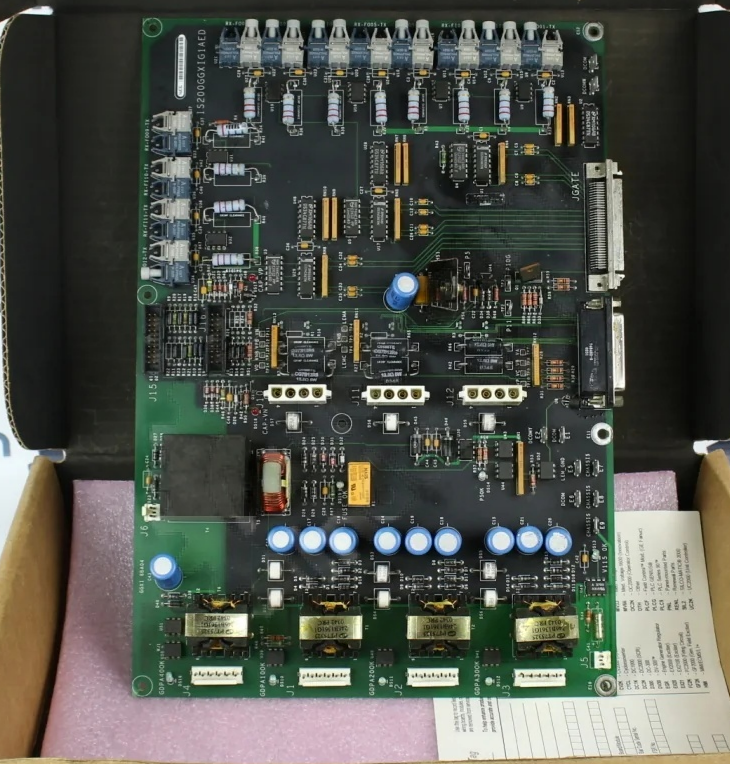

The IS200GGXIG1A board is installed in the control cabinet area near the power bridge, adjacent to the DS200GDPA Gate Driver Power Assembly Board (GDPA). It exchanges gate commands and status information with the BPII board via RS-422 differential signals, sends conditioned voltage and current feedback signals to the BICI board via the JFBK connector, and directly connects to the gate driver modules of the IGCTs through 12 pairs of fiber-optic transceivers. This multi-level, multi-media interface architecture ensures high-voltage isolation and noise immunity while enabling reliable bidirectional transmission of control commands and feedback signals.

System Positioning and Architecture Integration

Within the control hierarchy of the Innovation Series™ drive system, the IS200GGXIG1A is situated between the BICI/BPII control board group and the power bridge, serving as the field-side hub of the entire gate control and signal feedback network. Its main interface relationships are as follows:

• Uplink to BICI Board: Via the 44-pin JFBK connector, it sends current feedback signals from the three-phase active current transformers (LEMs), voltage feedback signals attenuated by the NATO board for various nodes, board identification signals, and cable connection check signals to the BICI board.

• Uplink to BPII Board: Via the 68-pin JGATE connector, it receives 12 channels of RS-422 gate command signals from the BPII board and sends back 12 channels of RS-422 gate status signals to the BPII board. It also reports various status information, including GDPA power status, P5 power status, 115 V control power status, fuse status, NATO board cable-in-place detection, and BICI-GGXI-BPII cable connection check.

• Downlink to IGCTs: Through 12 pairs of fiber-optic transceiver connectors (FO01 through FO12), it converts gate commands into optical signals sent to the IGCT gate driver modules and receives optical IGCT gate status feedback signals.

• Power Input: Receives a 27 kHz, 48 V AC square wave power supply from the GDPA board via four connectors J1 through J4, with each input also carrying the GDPA board's CVOK status signal.

• Voltage Feedback Input: Receives attenuated voltage signals from the IS200NATO Voltage Feedback Scaling Board via two 20-pin connectors, J15 and J16.

• Current Feedback Output: Provides ±24 V DC power to the three-phase active current transformers via connectors J10, J11, and J12, and receives their ±5 V DC feedback signals.

Detailed Core Functions

1. RS-422 to Fiber-Optic Gate Signal Conversion

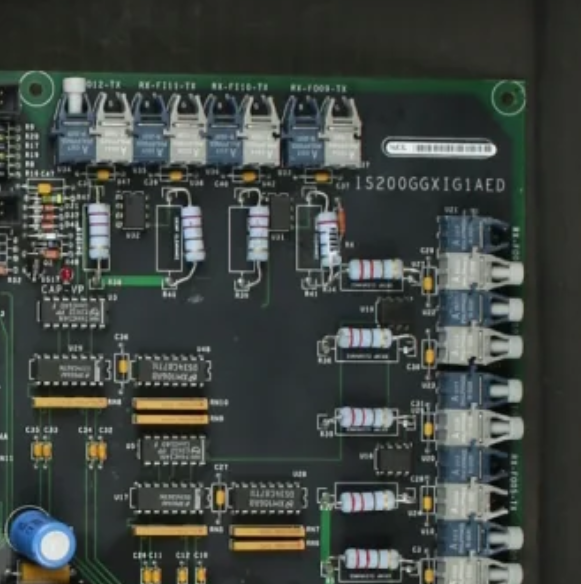

One of the core functions of the IS200GGXIG1A is to convert the 12 channels of RS-422 differential gate command signals (TX N/TX P) received from the BPII board via the JGATE connector into fiber-optic signals that drive the corresponding IGCTs to turn on ("Light ON" indicates a fire command). Simultaneously, the fiber-optic status feedback signals from the IGCT gate driver modules ("Light ON" indicates IGCT is OK) are received and converted back into RS-422 differential electrical signals (RX N/RX P), which are sent back to the BPII board via the JGATE connector. Each gate signal corresponds to a pair of fiber-optic transceiver connectors, with the transmitter (TX) being gray and the receiver (RX) being blue; this clear color distinction facilitates on-site identification and maintenance.

2. Voltage Feedback Signal Reception and Distribution

The IS200GGXIG1A receives multiple channels of attenuated voltage signals from the NATO board via two 20-pin connectors (J15 and J16). J15 carries the voltage signals of bridge arm nodes relative to neutral: Phase A voltage (VA), Phase B voltage (VB), Phase C voltage (VC), Positive bus voltage (VP), Negative bus voltage (VN), and the NATO board #1 cable-in-place check signal. J16 carries capacitor bus voltage signals: Capacitor positive bus voltage (VPB), Capacitor negative bus voltage (VNB), Zero bus voltage (VO), capacitor positive and negative bus voltage indicator signals (VPCAP, VNCAP), and the NATO board #2 cable-in-place check signal. All signals have an amplitude of 10 V peak, referenced to the local common (LCOM), and are sent to the BICI board via the JFBK connector.

3. Active Current Transformer Interface

The IS200GGXIG1A provides a complete power supply and signal reception channel for the three-phase active current transformers (LEMs). Through three connectors—J10 (Phase A), J11 (Phase B), and J12 (Phase C)—each phase outputs ±24 V DC power (±10% accuracy, 0.6 A maximum) and simultaneously receives current feedback signals of ±5 V DC, 0.5 A rms. The conditioned three-phase current signals (LEMA, LEMB, LEMC) are sent to the BICI board via the JFBK connector for use by the current regulator and protection functions. Testpoints TP4, TP5, and TP6 on the board allow measurement of the scaled three-phase current signals respectively.

4. System Status Monitoring and LED Indication

The IS200GGXIG1A board integrates comprehensive system status monitoring functions and is equipped with nine LED indicators that provide intuitive status display:

The two red LEDs, DS17 and DS18, provide an important safety warning: they remain illuminated when the residual voltage on the DC bus capacitors exceeds 100 V, alerting maintenance personnel to the high-voltage hazard.

5. Isolation and Grounding Design

The IS200GGXIG1A employs a multi-layered isolation technique to ensure high-voltage safety: fiber-optic interfaces provide high-voltage isolation, opto-isolators are used for status signal transmission, an isolated fuse switch sensor is used, an electrically isolated board identification chip is present, isolated power supplies feed the board, and active transformer shields are employed.

The board provides nine grounding stab connectors (E1 through E9) to support flexible grounding configurations. Two types of commons are distinguished in the design: LCOM (Local Common) is used for "quiet" circuits such as analog circuits, serving as the center point for the current transformer power supplies and the terminal reference for voltage and current sensor burden resistors; DCOM (Digital Common) is used for "noisy" circuits such as digital circuits. On the GGXI board, there is no direct connection between DCOM and chassis ground; the connection exists only through the BPII board. This design effectively avoids ground loop interference.

A recommended typical grounding configuration is: connect a CHASSIS stab to panel ground, connect an LCOM stab to a CHASSIS stab, and connect a DCOM stab to a DCOMY stab (DCOMY/DCOMW are extended ground planes via the JFBK/JGATE cables).

6. Electronic Board Identification and Cable Checking

The IS200GGXIG1A incorporates an onboard isolated serial ID chip, and its board identification signal (BRDID) network extends through the BICI board's PFBK connectors. To ensure that the GGXI board cables are connected correctly and not crossed, the system uses a dedicated pair of wires in the PFBK/JFBK cable and the JGATE cable. Current is passed in opposite directions through these dedicated pairs to verify that the cable direction for the first and second GGXI boards is correct. The detection result is fed back to the BICI board by the BPII board via the backplane, achieving automatic verification of cable connection integrity and correctness.

Testpoint Resources

The IS200GGXIG1A provides 14 user testpoints, facilitating on-site commissioning and fault diagnosis:

Connector Interface Summary

Installation and Safety Precautions

The IS200GGXIG1A is secured with 7 screws onto four plastic standoffs (top and middle locations) and three metal standoffs (bottom locations, used with star washers). The star washers must be paired with the metal standoffs and seated against metal surfaces, not against the plastic standoffs. The metal standoffs and star washers together form a protective circuit that shunts any accidental high voltage to ground. When replacing the board, all power must be disconnected and lockout/tagout procedures must be followed. An anti-static wrist strap must be worn during handling, and spare boards must be stored in anti-static packaging.
