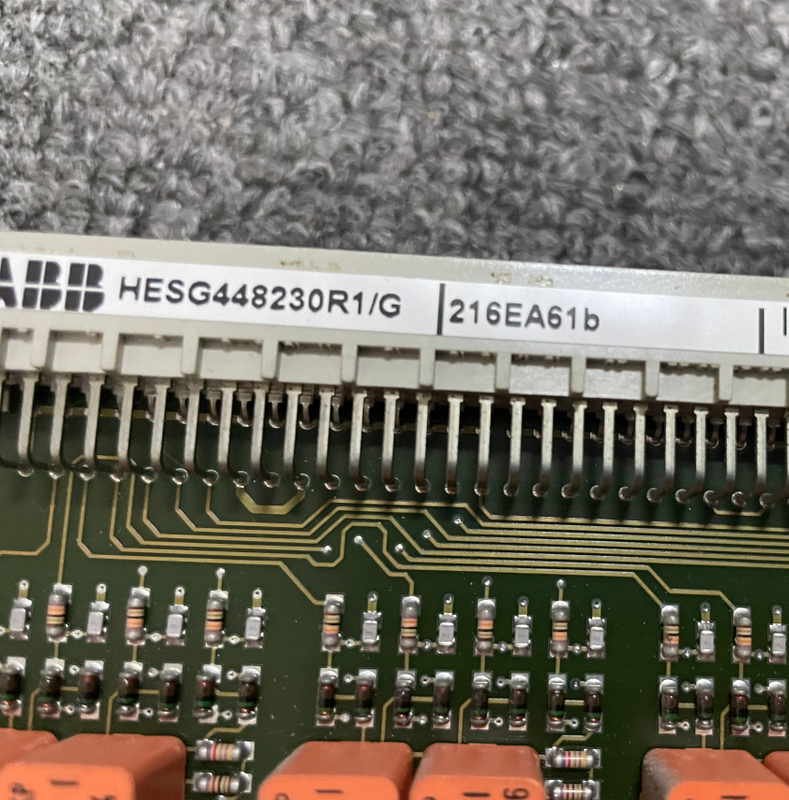

The 216EA61B is a critical Analog Input Unit within the ABB REG 216 numerical generator protection system, serving as the bridge between the system and the primary current and voltage transformers. It acts as the "sensory organ" of the protection system, responsible for conditioning, isolating, digitizing the continuous analog signals (high current, high voltage) from the primary power system, and converting them into discrete data that can be understood and processed by the digital processor. Its conversion accuracy, stability, and real-time performance directly determine the accuracy of the entire protection system's measurements and judgments, forming the cornerstone for ensuring reliable operation of protection functions.
This unit employs high-performance analog-to-digital conversion technology and precision signal processing circuits, ensuring high-quality data samples even in the complex electromagnetic environment of power systems. As a key data source on the B448C parallel bus, the 216EA61B provides the sole data foundation for subsequent protection calculations, disturbance recording, measurement display, and other functions. Its performance directly impacts the reliability of almost all major protection functions, such as differential protection, overcurrent protection, and power protection.
2. Core Functions
The core functions of the 216EA61B revolve around the acquisition and digitization of analog signals, specifically manifested in the following aspects:
1. Multi-Channel Analog Signal Acquisition
Channel Capacity: Each 216EA61B unit provides 24 independent analog input channels. These 24 channels are allocated via two standard connectors:
Signal Compatibility: Designed to receive secondary low-level analog signals from the 216GW61 Input Transformer Unit. These signals have already been isolated and transformed by the 216GW61, with amplitudes suitable for the 216EA61B's input requirements (e.g., in the range of ±40V), covering all necessary measurements for power systems such as three-phase currents, three-phase voltages, zero-sequence current, zero-sequence voltage, synchronizing voltages, etc.
2. High-Precision Analog-to-Digital Conversion
Conversion Core: The unit integrates a high-performance 24-channel Analog-to-Digital Converter (ADC), responsible for converting continuous analog signals into discrete digital values.
Conversion Range: Supports a wide input voltage range of -40V to +40V, sufficient to cover signal amplitudes during various normal operations and fault conditions.
Conversion Accuracy and Resolution: Utilizes a high-resolution ADC, ensuring that even minute fault currents or voltage changes can be accurately detected, providing data support for high-sensitivity protection functions (e.g., differential protection). Conversion accuracy directly affects measurement veracity and the precise operation of protection settings.
3. Data Preprocessing and Synchronized Sampling
Preprocessing Unit: The unit contains a dedicated preprocessor that performs preliminary processing on the digitized raw sample data, such as validation, filtering (suppressing high-frequency noise), and data formatting.
Synchronized Sampling: Ensures that sampling for all channels occurs at the same instant. This is crucial for protection functions relying on phase relationships (e.g., differential, power direction, impedance measurement), avoiding phase errors and calculation mistakes caused by unsynchronized sampling.
4. Parallel Bus Communication
Bus Interface: As an active unit on the B448C parallel bus, the 216EA61B is responsible for periodically and rapidly sending the converted and preprocessed digital measurement data onto the bus.
Data Provision: It is the sole source of raw measurement data for the 216VC62a Processing Unit. The protection algorithms within the processing unit rely entirely on the real-time data stream provided by the 216EA61B for calculations and decisions.
5. Self-Testing and Status Monitoring
Internal Monitoring: The unit possesses comprehensive self-monitoring capabilities, continuously checking its internal status, including:
Internal Power Supply: Whether the +5V operating power is normal.
Reference Voltage: Whether the reference voltage required for A/D conversion is within the allowable tolerance.
Internal Clock: Whether the sampling clock is operating correctly.
Memory Status: Whether the RAM and ROM are functioning properly.
Fault Reporting: Upon detecting an internal fault, it immediately reports it to the system via the bus and illuminates the front panel alarm indicator, ensuring the system can promptly perceive the issue and take safety measures like blocking.
3. Working Principle
The working principle of the 216EA61B is a precise, continuous chain of conversion from physical signals to digital information. Its detailed workflow is as follows:
1. Signal Reception and Front-End Conditioning
Input Source: Primary Current Transformers (CTs) and Voltage Transformers (VTs) scale down the system's high currents and voltages to standard, safely manageable secondary values (e.g., 1A/5A, 100V/110V).
Primary Isolation and Transformation: These secondary signals are first connected to the 216GW61 Input Transformer Unit. The 216GW61 provides electrical isolation and electromagnetic shielding between the primary side and the protection electronics, a critical first step for equipment safety and common-mode noise rejection. It may also perform further amplitude scaling to adjust the signal levels to those more suitable for the 216EA61B.
Cable Transmission: The low-level analog signals processed by the 216GW61 are transmitted via shielded standard cables to the rear connectors of the 216EA61B unit.
2. Analog-to-Digital Conversion Process
Signal Routing: Upon entering the 216EA61B, the 24 analog signals are routed to an internal analog switch array.
Sample-and-Hold: During each sampling cycle, controlled by the unit's internal precision timing clock, the analog switches sequentially connect each channel signal to the Sample-and-Hold (S/H) circuit. This circuit "freezes" the instantaneously changing analog signal value, ensuring the voltage being converted remains constant during the A/D conversion period, preventing conversion errors due to signal variation. This is a key technical aspect for achieving multi-channel synchronized sampling.
A/D Conversion: The constant voltage output from the S/H circuit is fed into a high-precision, high-speed Analog-to-Digital Converter (ADC). The ADC converts this analog voltage value into a corresponding binary digital code. This conversion process involves quantization and encoding, whose resolution and linearity determine whether the digital result accurately reflects the original analog value.
Data Buffering: The converted digital values are temporarily stored in a data buffer within the unit.
3. Data Processing and Bus Transmission
Preprocessing: The unit's built-in 80C186 co-processor activates. It performs necessary processing on the raw ADC output data, such as:
Data Validation: Ensuring data integrity.
Digital Filtering: Applying software filters to further smooth the data and suppress interference in specific frequency bands.
Data Formatting: Organizing the data into a specific format compliant with the B448C bus communication protocol and adding timestamps if required.
Bus Arbitration and Transmission: The preprocessed data is sent to the bus interface circuit. This interface includes a 64 kByte Dual-Port Memory (DPM) for high-speed data exchange with the B448C bus. The 216EA61B acts as a slave device on the bus but initiates a bus request when it needs to upload data. Upon gaining bus control, it writes the latest block of measurement values for all channels into the DPM, making it available for the bus master (e.g., 216VC62a) to read. This process cycles at a very high rate, ensuring the protection processor always has access to the latest system conditions.
4. System Coordination and Data Flow
Closed-Loop System: The 216VC62a processing unit reads the digital measurement values provided by the 216EA61B from the bus and runs the protection algorithms. If an algorithm decides action is needed, it sends commands via the bus to output units like the 216AB61 or 216DB61.
Real-Time Performance Guarantee: The entire data chain, from sampling by the 216EA61B to processing by the 216VC62a and then to output execution, must be completed within an extremely short time (typically milliseconds) to meet the speed requirements for power system fault clearance. The sampling rate and bus transmission efficiency of the 216EA61 are key to ensuring this real-time performance.
5. Fail-Safe Mechanisms
Monitoring Loop: Internal monitoring circuits continuously check key components like the ADC, reference source, and power supply. If an anomaly is detected, such as a reference voltage out of tolerance or an internal clock failure, the monitoring circuit immediately sets the unit's status register.
System Alarm: The unit reports a "General Device Alarm" to the system via the bus and illuminates the red "ALARM" LED on the front panel. Upon receiving this alarm, the system diagnostic program may downgrade the system status based on the fault severity and block protection functions reliant on data from this unit, preventing maloperation due to erroneous data. Concurrently, it stops sending invalid or unreliable data to the bus, preventing the processor from making judgments based on faulty data.
4. Hardware Architecture
The hardware design of the 216EA61B is built around high-precision signal processing and data transmission:

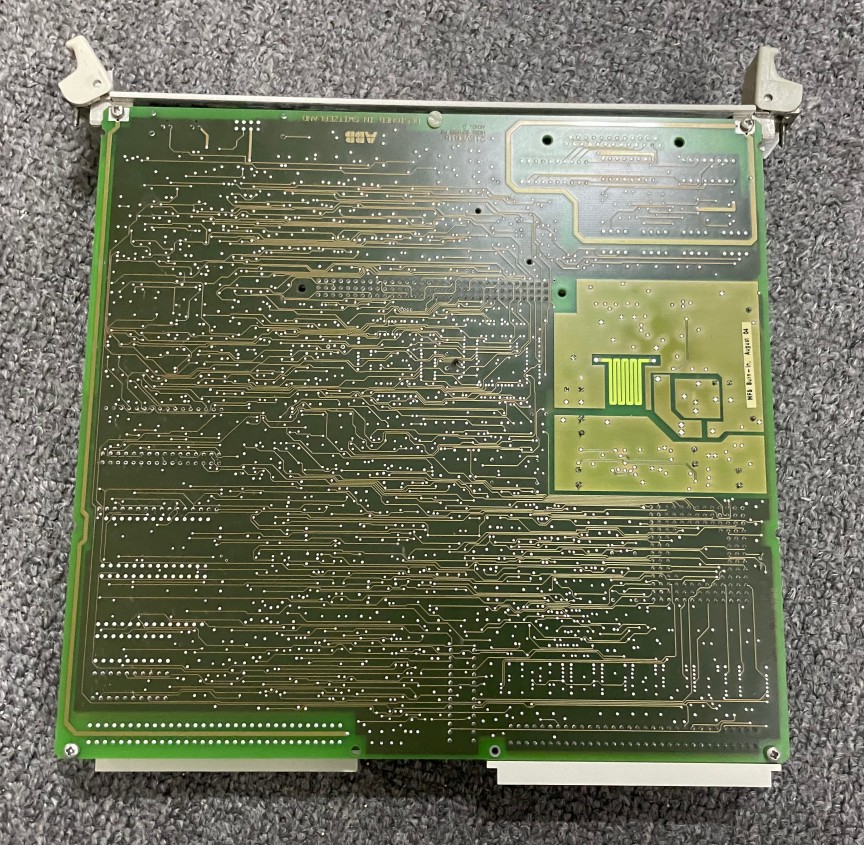

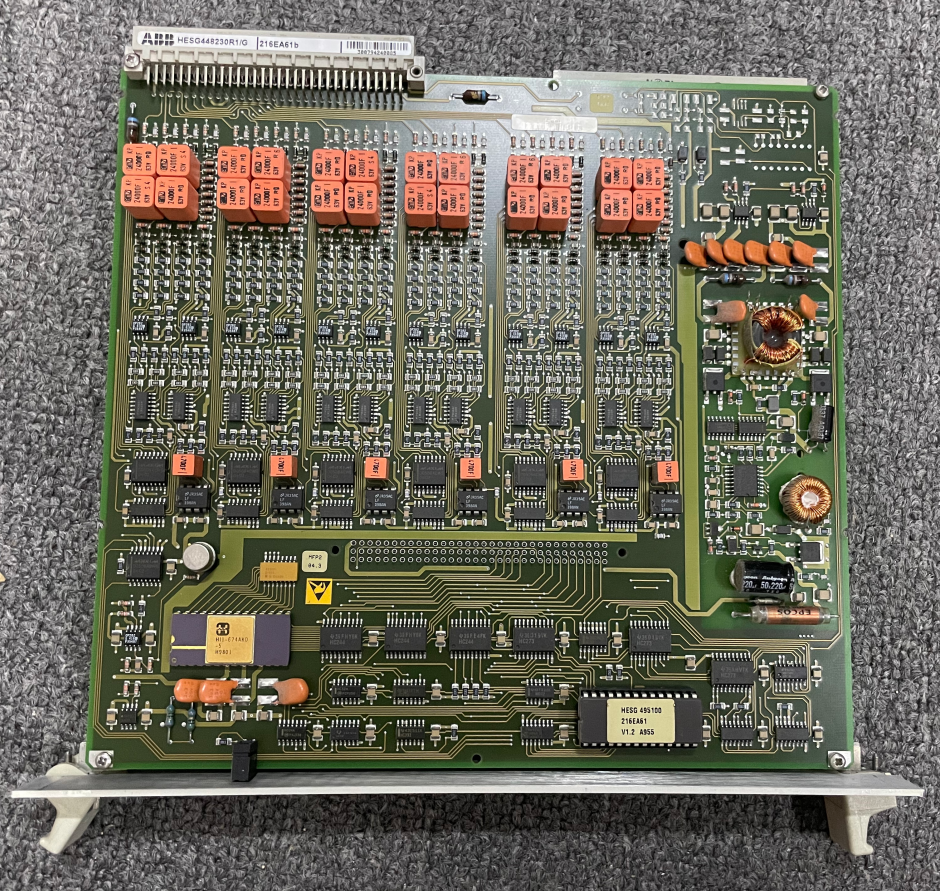

Physical Structure: Plug-in unit, 2 standard divisions (2T) wide, insertable from the front into the equipment rack.
Core Components:
128 kByte EPROM: Stores unit firmware and operating program.
64 kByte RAM: Serves as the main runtime memory.
8 kByte EEPROM: Used for storing configurable parameters and calibration data.
Analog Front End: Includes multiplexer analog switches and Sample-and-Hold circuits, responsible for signal routing and stabilization.
Analog-to-Digital Converter (ADC): The core 24-channel ADC performing the analog-to-digital conversion.
Preprocessing Processor: 80C186 microprocessor, responsible for data preprocessing and unit control.
Bus Interface: 64 kByte DPM/RAM, enabling seamless, high-speed data exchange with the B448C bus.
Memory:
Power Supply: An internal DC/DC converter derives the unit's operating power, generating the required +5V digital supply (and possibly ±15V for analog circuits) from the 24V DC auxiliary supply obtained via the B448C bus.
5. Front Panel Indication and Operation
Indicators:
Red ALARM LED: Indicates an internal unit fault/alarm. Illuminates when a hardware fault is detected (e.g., power, clock, memory, analog section fault). The unit may have stopped outputting valid data.
Yellow MST LED: Master indicator. Flashes or lights when the unit accesses the B448C bus as a master for data transmission.
Green RUN LED: Run indicator. This is the most critical indicator for determining if the unit is operating normally. During normal operation, this light must be continuously lit, indicating the A/D conversion program is running and data is being processed and prepared for transmission. If this light is off, it means digitized measured variables are not being transmitted to the bus, and protection functions will lose their data source.
Operation Sockets:
PASSIVE: Inserting the shorting pin blocks the A/D converter, and the unit stops transmitting any data (digitized measured variables) to the bus. Already stored data and measurement variable tables are not deleted but are no longer updated. This mode is used for system debugging or fault finding, preventing invalid data from interfering with the system.
RESET: Briefly inserting the shorting pin restarts the unit's program. All units are reinitialized, and the stored measurement variable tables are deleted. This operation should be used with caution.
6. Configuration and Settings
Hardware Settings: The 216EA61B unit itself requires no hardware jumpers or DIP switch settings. Its channel characteristics are determined by internal firmware and design.
Software Configuration: All configuration is performed via the portable user interface connected to the 216VC62a:
Channel Assignment: In the 216VC62a software configuration, assign the various measurement channels of the 216EA61B (CH01-CH24) to specific protection functions. For example, designate CH01-CH03 as Generator Stator A, B, C phase currents for differential protection 87G and overcurrent protection 51.
Parameter Settings: Define the rated values for each channel, e.g., whether the rated current for a current channel is 1A or 5A, or the rated voltage for a voltage channel is 100V or 110V. This setting is crucial as it ensures the accuracy of per-unit calculations and setting comparisons within the protection algorithms.
Scaling Factors: If necessary, configure individual scaling factors to compensate for CT/VT ratios or line losses.
7. Self-Diagnostics and Maintenance
The 216EA61B features comprehensive self-diagnostics, with its status reported via the device status register:
Monitored Items: Include internal +5V supply, A/D converter status, reference voltage, RAM/ROM, bus communication, analog section supply, etc.
Fault Response: Upon a fault, the red ALARM LED lights up, the status register is set (e.g., SSG), and a system alarm is sent via the SML bus line. Severe faults can trigger a system "Warm Start".
Maintenance Hint: During routine inspection, pay attention to whether the green RUN LED is constantly lit. If the red ALARM LED is on or the RUN LED is off, it indicates a unit fault. Use the user interface to check specific diagnostic information. Always switch off the rack auxiliary power before plugging or unplugging the unit.
8. Application Scenarios
The 216EA61B is the core data acquisition unit for the following applications:
Generator Protection: Acquires all current and voltage signals from the generator terminals and neutral.
Transformer Protection: Acquires currents and voltages from all sides for differential and backup protection.
Motor Protection: Acquires supply circuit currents and voltages.
Feeder Protection: Acquires line current and busbar voltage.
Any power protection and monitoring application requiring high-precision, multi-channel AC electrical quantity acquisition.
