The IS200ERBPG1ACA is an Exciter Regulator Backplane (ERBP) manufactured by GE Energy as part of the EX2100™ excitation control system. This backplane is specifically designed for use in regulator control applications, both simplex and redundant. The ERBP provides the mechanical and electrical connectivity between all printed circuit boards mounted within it and external boards or modules via cable connectors. It serves as the foundation for the regulator control assembly, enabling seamless communication and power distribution among the various control, I/O, and interface boards.
The IS200ERBPG1ACA is used in EX2100 systems that regulate the excitation of synchronous generators. In simplex regulator applications, a single ERBP contains the complete set of control boards. In redundant regulator applications, the ERBP is designated as the M1 control section, working in conjunction with a separate Exciter Regulator Redundant Backplane (ERRB) that houses the M2 and C control sections. The backplane supports a range of boards, including the Application Control Layer Module (ACLA), Digital Signal Processor Control Board (DSPX), Exciter Regulator I/O Board (ERIO), Exciter Power Supply Module (EPSM), IGBT Exciter Regulator Interface and Dynamic Discharge Board (ERDD), and Exciter Regulator Options Card (EROC). Optionally, the Exciter ISBus Board (EISB) may also be installed.
The suffix ACA indicates a specific revision and factory configuration that maintains full backward compatibility with all EX2100 regulator control systems while incorporating the latest design enhancements. This backplane is intended for use by trained personnel familiar with GE excitation products and is built to meet rigorous industrial standards for safety, electromagnetic compatibility, and environmental performance.
Functional Description
The IS200ERBPG1ACA serves as the central interconnection hub for the EX2100 regulator control’s electronic boards. It replaces point‑to‑point wiring with a robust, high‑density backplane that distributes power, data, and control signals among the installed modules. The backplane physically supports the boards and provides the following key functions:
Power distribution – Receives DC power from the EPSM(s) mounted on the backplane and distributes +5 V dc, ±15 V dc, +24 V dc, and other voltages to the various boards and to external circuits via cable connectors.
Signal routing – Transfers analog and digital signals between boards (e.g., between ACLA, DSPX, and ERIO) and to external terminal boards (e.g., EPCT, ECTB) through backplane connectors.
Board-to-board communication – Enables high‑speed data exchange between the processor boards (ACLA and DSPX) and I/O boards (ERIO, EROC, ERDD) using the backplane’s internal buses.
Cable interface – Provides connection points (e.g., 25‑pin D‑sub connectors) for external cables that link the backplane to customer interface boards, power supplies, and other system components.
In a simplex regulator configuration, the IS200ERBPG1ACA is fully populated with one set of control and I/O boards. In a redundant configuration, it serves as the M1 backplane, hosting the active control set, while a second ERRB houses the M2 and C controls. The backplane is designed to support hot‑swappable boards (when the system is properly de‑energised) and includes features for fault isolation.
Hardware Characteristics

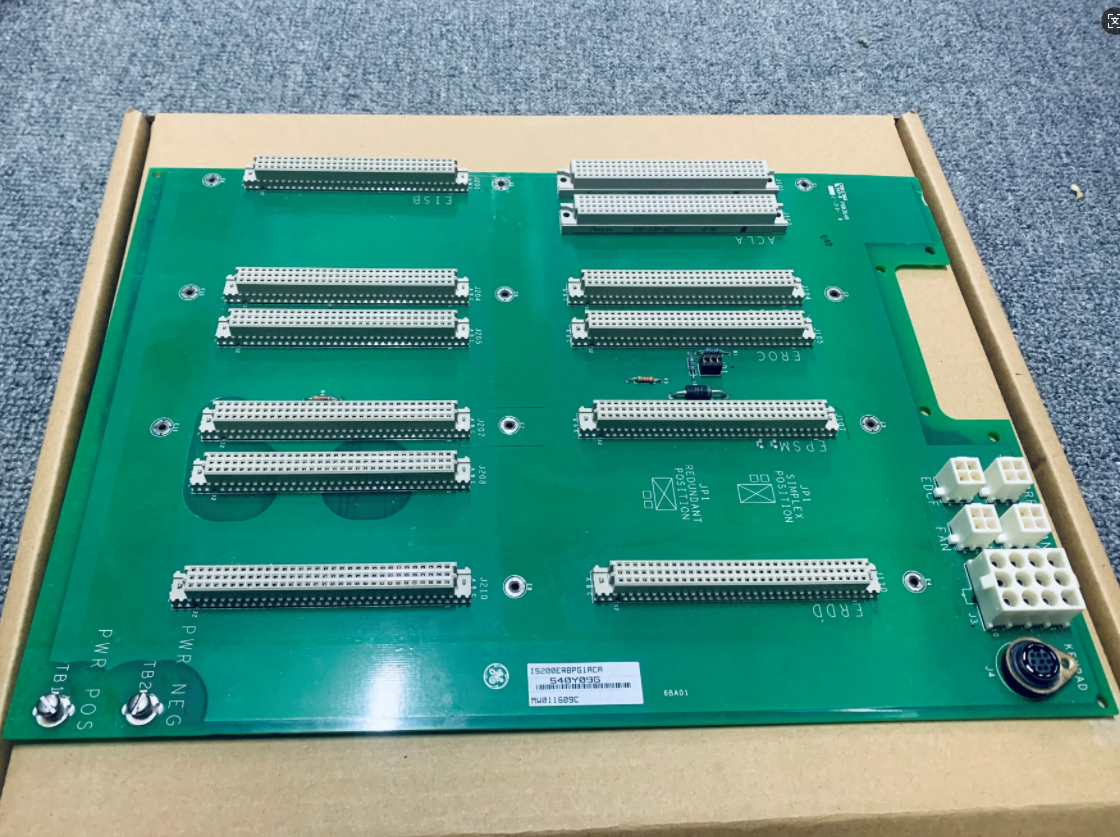

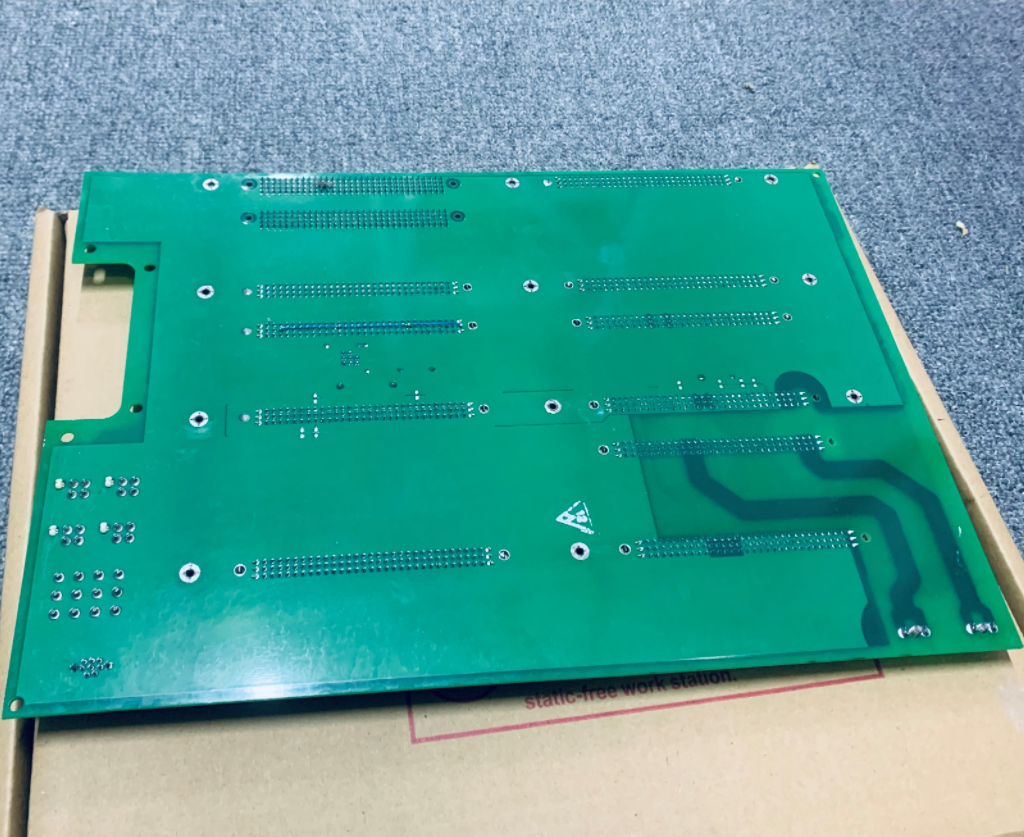

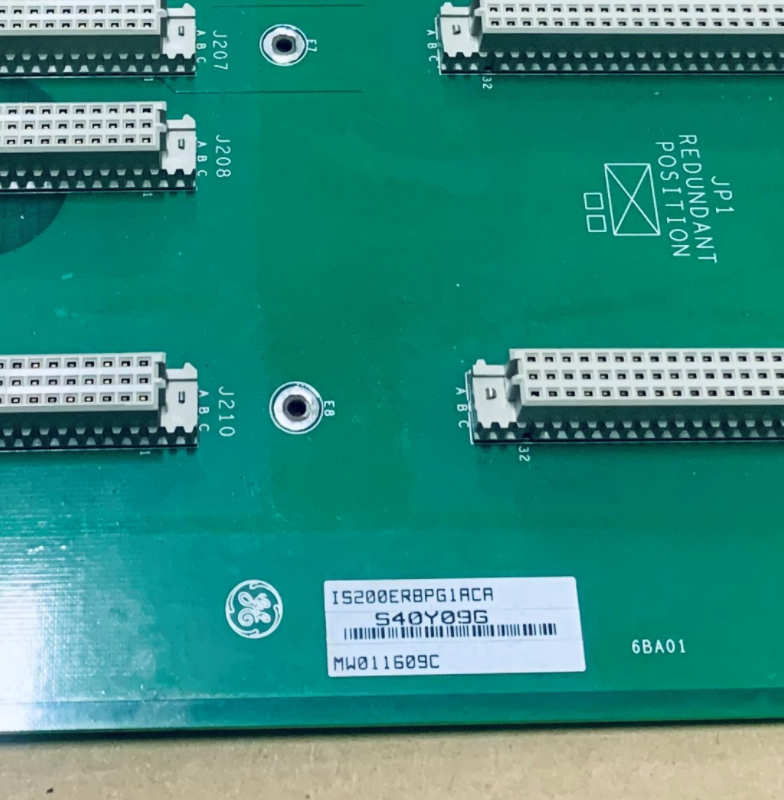

The IS200ERBPG1ACA is a large printed wiring board (backplane) that mounts inside the EX2100 regulator control cabinet. It is designed to be either door‑mounted or panel‑mounted, depending on the specific application. The backplane uses Eurocard‑style card guides and connectors to accept standard 3U and 6U boards. Its dimensions are typical of 19‑inch (480 mm) wide control backplanes, although exact physical dimensions are not specified in the document.
Board Slots and Population
The backplane contains multiple slots for the following board types (exact slot count and arrangement may vary with revision, but typical population for a simplex regulator includes):
Board Type | Acronym | Function | Slot Occupancy |
Application Control Layer Module | ACLA | Communication gateway and outer‑loop regulator | 2 half‑slots |
Digital Signal Processor Control Board | DSPX | Inner‑loop regulator and operator interface | 1 slot |
Exciter Regulator I/O Board | ERIO | Customer and system I/O interface | 1 slot |
Exciter Power Supply Module | EPSM (with EPSD) | Power supply for the backplane and external circuits | 1 slot |
IGBT Exciter Regulator Interface and Dynamic Discharge Board | ERDD | Gate drive control and dynamic discharge | 1 slot |
Exciter Regulator Options Card | EROC | Ground detector support, keypad, and third‑party interfaces | 1 slot |
Exciter ISBus Board (optional) | EISB | High‑speed communication between controllers | 1 slot |
The backplane also includes connectors for external cables, such as 25‑pin D‑sub connectors for interfacing with the EPCT and ECTB terminal boards, and connectors for power distribution to external modules.
Connectors and External Interfaces
Based on the document’s description of ERBP and associated boards, the IS200ERBPG1ACA provides the following key connectors:
Connector Type | Location | Description |
Backplane card‑edge slots | Internal | Accepts ACLA, DSPX, ERIO, EPSM, ERDD, EROC, and optional EISB boards. |
25‑pin D‑sub (female) | On backplane (via front or rear) | Connects to EPCT (PT/CT board) and ECTB (contact terminal board) for customer I/O. |
25‑pin D‑sub (female) | On backplane | Interconnects with ERRR (redundant relay board) in redundant applications. |
Power input connector | On backplane (from EPSM) | Distributes ±5 V, ±15 V, +24 V, isolated +70 V, and ±24 V to other boards. |
Cable connectors to external modules | On backplane | Provides power and signals to ERDD, EROC, and external termination boards. |
Optional fibre‑optic interface | Through EISB board | Connects to EGDM (ground detector) and other fibre‑optic devices. |
LED Indicators
The IS200ERBPG1ACA itself does not have LED indicators; status is provided by the individual boards mounted on it (e.g., power‑good LEDs on EPSM, activity LEDs on ACLA and DSPX). However, the backplane distributes power‑indication signals from the EPSM to the front panel LEDs of the control assembly.
Supported Boards and Modules
The IS200ERBPG1ACA is designed to host and interconnect the following GE boards (typical for a simplex regulator system). Refer to the respective board manuals for detailed specifications.
Board | Description | Key Functions |
ACLA | Application Control Layer Module | Communication gateway (Ethernet, serial, DPM); outer‑loop regulator (AVR, limiter, PSS). |
DSPX | Digital Signal Processor Control Board | Inner‑loop regulator (FVR/FCR); keypad interface; sequencing and protection. |
ERIO | Exciter Regulator I/O Board | Customer I/O (to EPCT, ECTB); system I/O (to ERDD, EROC, ERRR). |
EPSM (with EPSD) | Exciter Power Supply Module | Converts DC link or battery voltage to backplane power supplies. |
ERDD | IGBT Exciter Regulator Interface and Dynamic Discharge | Gate drive control; dynamic discharge; bridge feedback monitoring. |
EROC | Exciter Regulator Options Card | GE ground detector, third‑party ground detector, keypad support. |
EISB (optional) | Exciter ISBus Board | High‑speed fibre‑optic communication between M1, M2, C controllers. |
Installation and Replacement Procedures
Handling Precautions
Static sensitivity – The IS200ERBPG1ACA contains static‑sensitive components. Always wear a grounding wrist strap and handle the backplane only at a grounded workstation. Store the board in its antistatic bag when not in use.
De‑energise before handling – To prevent electric shock, turn off power to the exciter regulator control section and verify zero voltage on all circuits before touching the backplane or any connected cables. Follow all local lock‑out/tag‑out procedures. Refer to GEH‑6631 (EX2100 Installation and Startup Guide) for complete de‑energising procedures.
Do not insert or remove boards with power applied – Doing so may cause equipment damage or personal injury.
Installation (New Backplane)
Mount the IS200ERBPG1ACA in the designated location in the control cabinet (panel or door mount). Secure it with the provided mounting hardware.
Install the required boards (ACLA, DSPX, ERIO, EPSM, ERDD, EROC, and optionally EISB) into their corresponding slots, ensuring proper alignment with card guides. Press firmly to seat them into the backplane connectors.
Connect external cables to the backplane’s 25‑pin D‑sub connectors as per the system wiring diagram. Typical connections include:
Cable to EPCT (PT/CT board) for generator voltage and current inputs.
Cable to ECTB (contact terminal board) for contact inputs and outputs.
In redundant systems, cables to ERRR (redundant relay board).
Connect the EPSM(s) to the external power source (e.g., DC link or station battery) through the designated terminal blocks. The EPSM will supply power to the backplane.
Apply power to the EPSM(s). Verify that the power‑good LEDs on the EPSM and on other boards (e.g., ACLA, DSPX) illuminate.
Use the ToolboxST software to configure the regulator system and verify communication with the backplane and all installed boards.
Replacement (De‑energised System)
De‑energise the exciter regulator control following local lock‑out/tag‑out procedures.
Open the control cabinet door and verify zero voltage on all circuits.
Remove all external cables from the backplane connectors, labelling them to ensure correct reconnection.
Remove the individual boards (ACLA, DSPX, etc.) from the backplane by loosening the ejector tabs and pulling them straight out.
Remove the mounting screws that secure the backplane to the cabinet. Carefully lift the backplane out.
Install the new IS200ERBPG1ACA in the reverse order, ensuring that the board slots align correctly.
Reinstall all boards and reconnect cables.
Restore power and verify system operation using the ToolboxST diagnostics.
Diagnostics and Maintenance
The IS200ERBPG1ACA itself does not provide on‑board diagnostics. However, the backplane enables the following diagnostic capabilities through the installed boards:
Power supply monitoring – Each EPSM provides green LED indicators for output voltages. The backplane distributes these status signals.
Board ID and mismatch detection – The backplane allows the DSPX to read electronic ID information from each board; a mismatch triggers a hardware incompatibility fault.
Communication fault detection – Loss of communication between the DSPX and any board (e.g., ERIO, EROC) due to backplane problems will be reported by the control software as a module fault.
Field ground detection – Through the EROC and optional EISB, the backplane passes signals from the EGDM to the DSPX for ground fault detection.
Routine maintenance of the backplane is limited to visual inspection for damage, corrosion, or loose connectors. No calibration is required.
When ordering the IS200ERBPG1ACA, use the complete part number exactly as shown. The part number follows GE’s convention:
IS200 – Innovation Series, 200‑class.
ERBP – Functional acronym: Exciter Regulator Backplane.
G1 – Generation/version.
A – Base designator.
C – Modifier (e.g., coating or component variation).
A – Revision A.
