GE IS200DTAIH1AAA Simplex Analog Input/Output Board

The GE IS200DTAIH1AAA Simplex Analog Input Output Board is a compact, high‑density analog terminal board engineered for DIN‑rail mounting in industrial control systems. Designed as a simplex (non‑redundant) analog interface, the IS200DTAIH1AAA provides ten analog input channels and two analog output channels, connecting to the VAIC processor board via a single shielded cable. This cable is identical to those used on the larger TBAI terminal boards, ensuring compatibility and ease of integration within existing GE control architectures.

The IS200DTAIH1AAA Simplex Analog Input Output Board is specifically developed for applications requiring space‑efficient analog signal conditioning. Its vertical stacking capability on a DIN‑rail allows multiple boards to be mounted in a compact footprint, significantly reducing cabinet space requirements. Two IS200DTAIH1AAA boards can be connected to a single VAIC processor, expanding the system to twenty analog inputs and four analog outputs, making it an ideal solution for medium‑scale distributed control systems.

The board incorporates the same robust noise suppression and signal conditioning functions as the larger TBAI terminal boards, ensuring reliable operation in electrically noisy industrial environments. High‑density euro‑block type terminal blocks are permanently mounted to the board, simplifying field wiring and maintenance. An onboard identification chip automatically identifies the IS200DTAIH1AAA to the VAIC processor, enabling system‑level diagnostics and configuration validation.

This product introduction provides comprehensive technical information, installation guidelines, configuration options, and detailed specifications for the IS200DTAIH1AAA Simplex Analog Input Output Board, serving as a reference for system integrators, maintenance engineers, and procurement specialists.

Detailed Functional Description

The IS200DTAIH1AAA Simplex Analog Input Output Board is a dedicated analog signal conditioning and interface module that bridges field sensors and actuators with the digital control processor. Its ten analog input channels are highly configurable, accommodating a wide variety of transmitter types and signal levels. The board supports two‑wire, three‑wire, four‑wire, and externally powered transmitters, providing exceptional flexibility for different field instrumentation scenarios.

For current loop inputs, the IS200DTAIH1AAA accepts standard 4‑20 mA signals, which are widely used in industrial process control. For voltage signals, the inputs can be configured for ±5 V DC or ±10 V DC ranges, covering most common analog sensor outputs. Additionally, two of the input channels can be configured for ±1 mA or 4‑20 mA operation, offering even finer resolution for low‑level current signals. The input configuration is achieved through onboard jumpers, allowing quick adaptation to changing application requirements without the need for external signal conditioners.

The two analog output channels of the IS200DTAIH1AAA provide 0‑20 mA current outputs, suitable for driving actuators, valve positioners, and recording instruments. One of the two outputs is jumper‑configurable to deliver 0‑200 mA, a higher current range that can directly drive certain high‑impedance loads or longer cable runs without external amplification. This feature enhances the board's versatility, enabling it to serve both standard instrumentation and more demanding control loops.

The IS200DTAIH1AAA Simplex Analog Input Output Board derives its 24 V DC power from the system supply, which is also available on the board for powering field transducers. This eliminates the need for separate power supplies for most 2‑wire transmitters, simplifying installation and reducing system cost. The onboard power distribution is designed to handle the cumulative current requirements of connected transducers within the board's rated capacity.

Noise suppression on the IS200DTAIH1AAA is implemented with careful attention to industrial electromagnetic compatibility. Differential input filtering, common‑mode rejection, and shielding techniques ensure accurate signal acquisition even in the presence of high‑frequency interference from variable frequency drives, contactors, and other common factory equipment. The board's ground system utilizes a dedicated SCOM terminal (terminal 43) that must be connected to chassis ground with the shortest possible path, as recommended in the installation guidelines.

Physical and Mechanical Characteristics

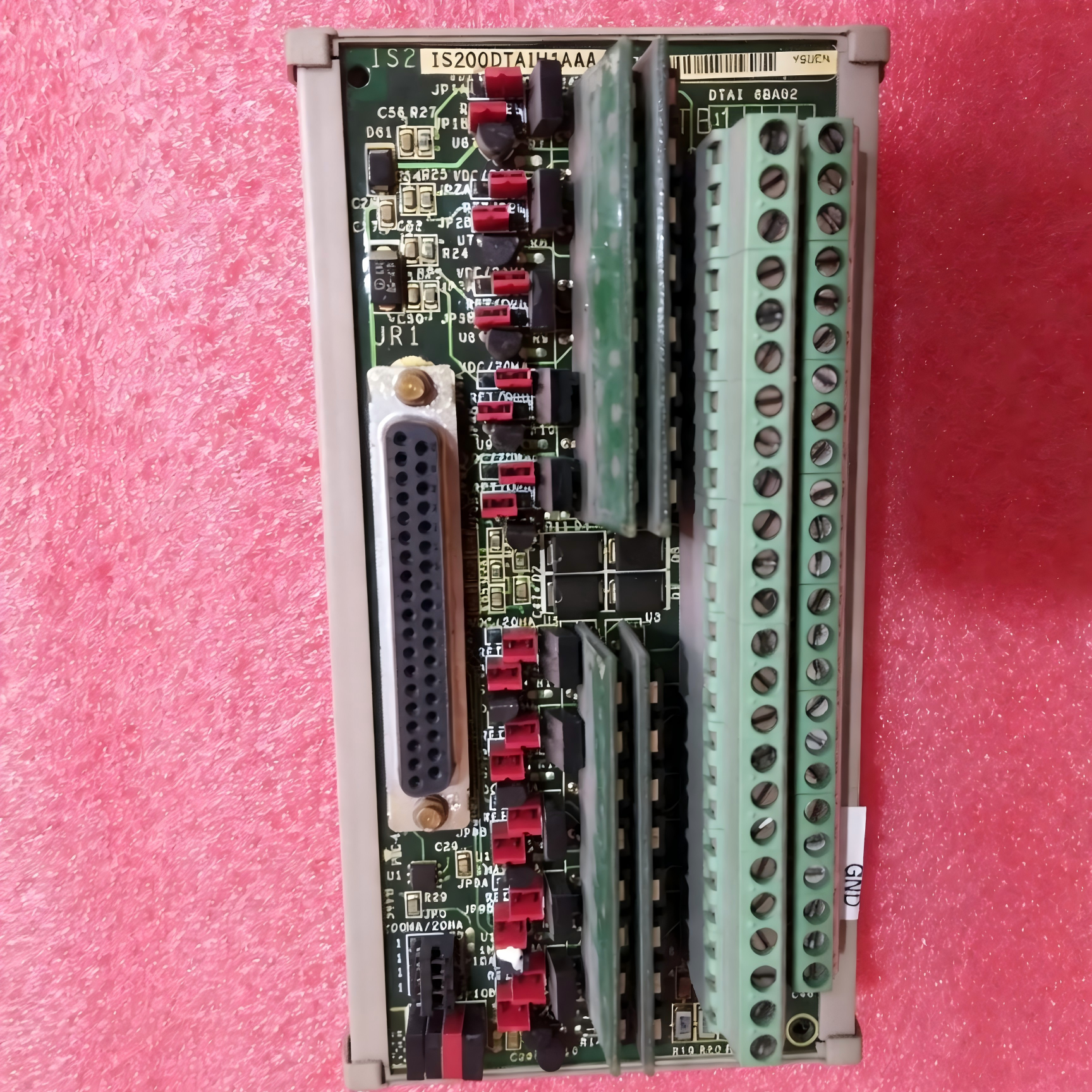

The IS200DTAIH1AAA Simplex Analog Input Output Board is designed for robust industrial mounting. Its form factor is optimized for DIN‑rail installation, with a plastic holder that slides onto the standard 35 mm DIN rail. The board is held securely in place by the holder's latching mechanism, ensuring stable operation even in high‑vibration environments.

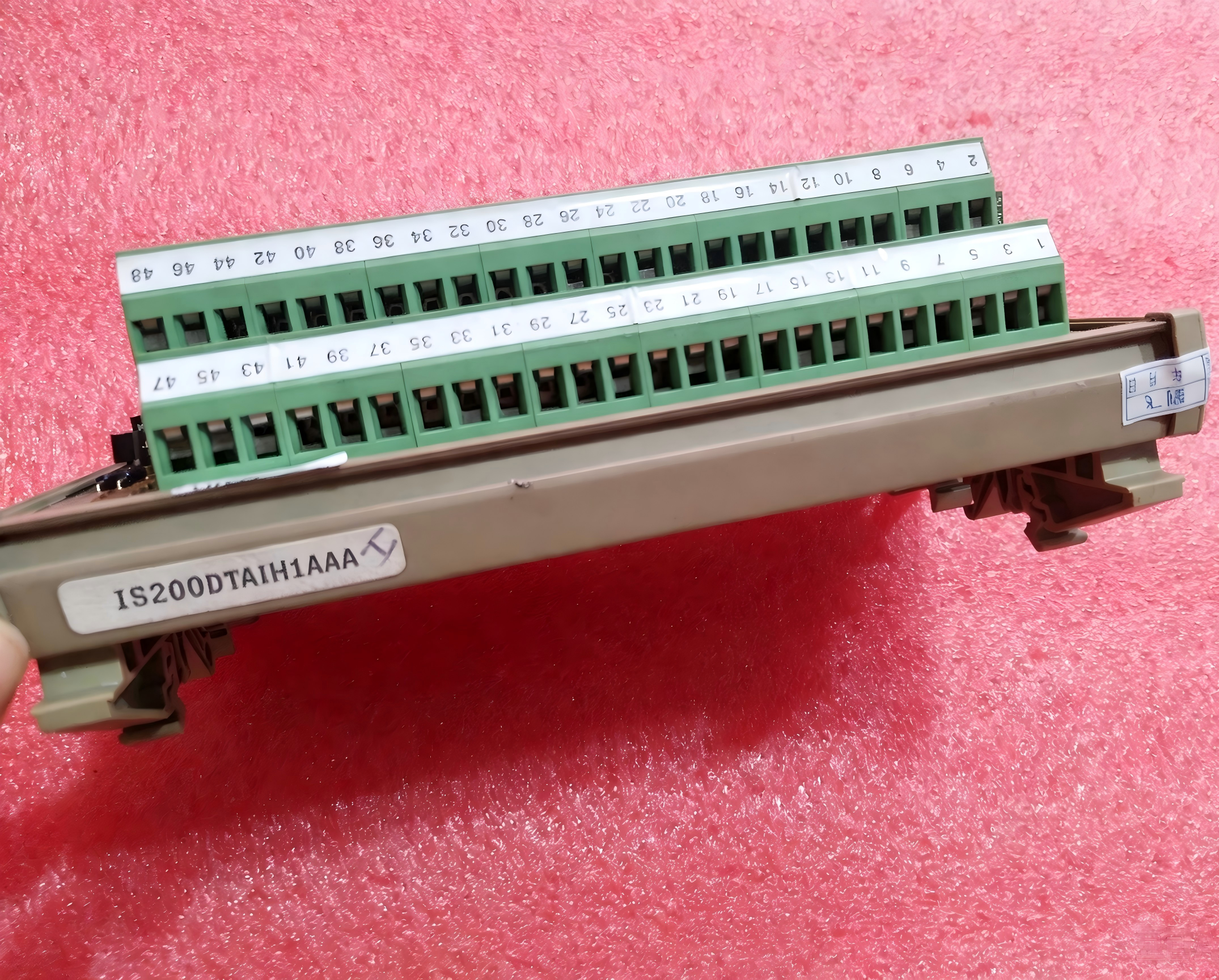

The terminal block is a high‑density euro‑block type with 48 positions, permanently soldered to the board. This terminal block accommodates field wiring of up to #18 AWG shielded twisted‑pair cables, which are typical for analog signal transmission. Two dedicated screw terminals, number 43 and 44, are provided for the SCOM (signal common/ground) connection. The board does not include a separate shield terminal strip; therefore, cable shields must be terminated at the field device or through an external grounding bar, as per standard practice.

The IS200DTAIH1AAA connects to the VAIC processor board through a single 37‑pin D‑sub connector with latching fasteners. This connector is identical to that used on the TBAI boards, allowing standard cable assemblies to be used interchangeably. The single cable connection limits the board to simplex operation; it cannot be used in triple‑modular redundant (TMR) applications, unlike the TBAI which supports multiple cable connections for redundancy.

Vertical stacking capability is a key mechanical advantage of the IS200DTAIH1AAA. Multiple boards can be mounted one above another on the same DIN‑rail, with the wiring facing forward for easy access. This stacking conserves valuable cabinet space and simplifies cable routing, as all terminations are on the front face of the board.

Installation and Wiring Guidance

Proper installation of the IS200DTAIH1AAA Simplex Analog Input Output Board is critical for reliable operation. The board must be mounted on a standard DIN‑rail using the supplied plastic holder. To install, snap the holder onto the rail, then slide the board into the holder until it clicks into position. Ensure that the board is securely seated and that there is adequate clearance for wiring and cable connections.

Wiring connections are made directly to the 48‑position euro‑block terminal block. The board supports multiple input and output configurations, each requiring specific jumper settings and terminal assignments. The wiring diagram provided in the product documentation illustrates the correct terminal connections for each configuration type.

For two‑wire transmitters, the positive supply from the board (terminal 1) is connected to the transmitter positive, and the transmitter negative returns to the input terminal (e.g., terminal 2), with the loop completed through the internal sense resistor. Three‑wire transmitters require an additional connection for the negative supply return. Four‑wire transmitters have separate power and signal wires, with the signal connected to the input terminals while the power is supplied externally. Externally powered transmitters similarly connect only the signal lines to the board, with the power source provided separately.

Voltage inputs (±5 V or ±10 V) are wired directly to the input terminals, with the signal high and low differential connections. Jumper configurations select the appropriate input range and impedance. For current inputs, the board's internal shunt resistor converts the current to a voltage, which is then measured by the analog‑to‑digital converter. Jumpers also enable or disable the internal power supply for 2‑wire transmitters.

The analog output connections are made to the designated output terminals. The standard 0‑20 mA output is available on one set of terminals, while the second output can be jumpered for either 0‑20 mA or 0‑200 mA operation. It is essential to verify the load impedance requirements to ensure the output can drive the connected load within its compliance voltage range.

A critical installation step is the grounding of the SCOM terminal (terminal 43). This terminal must be connected to chassis ground using the shortest possible wire to minimize ground loops and common‑mode noise. The two screws (43 and 44) are both provided for SCOM, offering flexibility in wiring; either or both can be used for a secure ground connection. The board's design does not include a dedicated shield terminal, so cable shields should be tied to ground at one end, typically at the field device or at a common ground point.

After wiring, the 37‑pin D‑sub cable is connected between the IS200DTAIH1AAA and the VAIC processor board. The latching fasteners ensure a positive connection that will not loosen due to vibration. Once all connections are complete, apply power and verify proper operation through the system diagnostics.

Configuration and Jumper Settings

The IS200DTAIH1AAA Simplex Analog Input Output Board offers extensive configuration flexibility through onboard jumpers. Each input channel can be independently configured for current or voltage, and for specific ranges. The jumpers are clearly labeled on the printed circuit board, and their positions correspond to the wiring diagram in the technical documentation.

For the first eight input channels, the user can select between ±10 V DC, ±5 V DC, or 4‑20 mA current input. A single jumper per channel sets the operating mode. When configured for voltage, the input presents a high impedance to the source; when configured for current, a precision shunt resistor is inserted, and the input becomes a low‑impedance current sensing loop.

The remaining two input channels (channels 9 and 10) can be configured for 4‑20 mA or ±1 mA, providing a more sensitive current measurement capability for applications such as thermocouple signal conditioning or low‑level sensor outputs. These channels also require specific jumper placements to select the appropriate shunt resistor and gain.

The two analog outputs have their own configuration jumpers. The first output is fixed as a 0‑20 mA output, with no user‑selectable range. The second output can be jumpered to operate either as a standard 0‑20 mA output or as a high‑current 0‑200 mA output. When selecting the 0‑200 mA range, ensure that the load resistance and cable length are within the specified limits to avoid saturation or overheating.

The IS200DTAIH1AAA also includes an onboard identification chip that stores board type, revision, and serial number information. This chip is read by the VAIC processor during system initialization, allowing automatic detection and configuration of the analog channels. The identification data is used for diagnostic purposes, such as verifying that the correct board is installed in the expected slot.

Diagnostic and Status Features

The IS200DTAIH1AAA Simplex Analog Input Output Board incorporates several diagnostic capabilities to assist with system maintenance and fault finding. The onboard identification chip, as mentioned, provides positive board identification to the VAIC processor. This allows the control software to verify that the correct terminal board is connected and to alert the operator if an incorrect board type is detected.

The board's analog inputs are continuously monitored by the VAIC processor for out‑of‑range conditions, open‑circuit detection (for current loops), and over‑voltage events. The processor can generate alarms or trips based on these conditions, enabling rapid response to sensor faults. The diagnostic data is accessible through the system's human‑machine interface or through a configuration tool.

The board has no visible status LEDs on its front panel, as its operational status is primarily reported through the VAIC processor's software interface. However, the VAIC processor provides detailed channel‑level status information, including raw counts, scaled engineering units, and fault flags.

In the event of a communication loss between the IS200DTAIH1AAA and the VAIC processor, the system can be configured to hold the last known outputs or to fail to a safe state. This fail‑safe behavior is configurable in the system software, ensuring that critical processes are not interrupted by a transient communication issue.

Technical Specifications

The following table provides comprehensive technical specifications for the GE IS200DTAIH1AAA Simplex Analog Input Output Board.

Application Examples and System Integration

The IS200DTAIH1AAA Simplex Analog Input Output Board is ideally suited for a wide range of industrial applications. In process control, it can interface with pressure transmitters, temperature sensors (RTDs and thermocouples with external signal conditioners), level transmitters, and flow meters. The configurable inputs allow direct connection to common 4‑20 mA loops, which are ubiquitous in the chemical, petrochemical, and power generation industries.

For drive and motor control systems, the IS200DTAIH1AAA can provide analog feedback signals such as speed setpoints, current references, or torque commands. The analog outputs can drive actuators, proportional valves, or chart recorders, closing the control loop with precision. The 0‑200 mA output option is particularly useful for driving high‑current actuators that require more drive capability than standard 0‑20 mA outputs.

In power generation, the IS200DTAIH1AAA can be used in excitation control systems, steam turbine controls, or generator monitoring applications. Its compact size allows it to be placed near the field devices, reducing wiring distances and improving signal integrity. The simplex design is appropriate for non‑critical monitoring functions or for systems where redundant measurement is not required.

The board's vertical stacking capability enables efficient use of cabinet space. For example, a control cabinet with limited width can mount multiple IS200DTAIH1AAA boards one above another, with the front‑facing terminal blocks providing easy access for wiring and troubleshooting. This stacking is particularly advantageous in retrofit applications where existing cabinets have limited space for additional I/O.

When two IS200DTAIH1AAA boards are connected to a single VAIC processor, the system can handle up to 20 analog inputs and 4 outputs, covering the needs of many medium‑scale control systems without the expense and complexity of larger terminal boards. The VAIC processor handles all analog‑to‑digital and digital‑to‑analog conversion, as well as communication with the main controller (e.g., via ISBus or other fieldbus protocols).

Maintenance and Troubleshooting

The IS200DTAIH1AAA Simplex Analog Input Output Board requires minimal maintenance due to its solid‑state design and absence of moving parts. Periodic inspection of terminal block connections is recommended to ensure they remain tight and free from corrosion. The wiring should be checked for signs of damage, especially in high‑vibration environments.

If a channel appears to be reading incorrectly, the first step is to verify the jumper settings against the intended input/output type. A mismatch between jumper configuration and the actual field device will result in scaling errors or out‑of‑range readings. The onboard ID chip can be read by the VAIC to confirm that the correct board is installed.

For current loop inputs, an open‑circuit condition can be detected by the VAIC as a zero or near‑zero reading. The system should be configured to generate an alarm for such conditions. For voltage inputs, over‑voltage protection is passive; excessive voltage can damage the input circuitry, so it is important to stay within the specified limits.

If a board fails to communicate with the VAIC, check the 37‑pin cable connection and ensure the latching fasteners are fully engaged. A faulty cable or loose connector is a common cause of intermittent communication. The VAIC diagnostic screen can display the board's identification and status, helping to isolate the problem.

Should a board need to be replaced, the process is straightforward: disconnect power, remove the wiring (noting terminal assignments), unplug the D‑sub cable, release the DIN‑rail holder, and slide the board off. Install the replacement in the reverse order, then reconfigure the jumpers to match the original settings. The VAIC will automatically recognize the new board upon power‑up.
