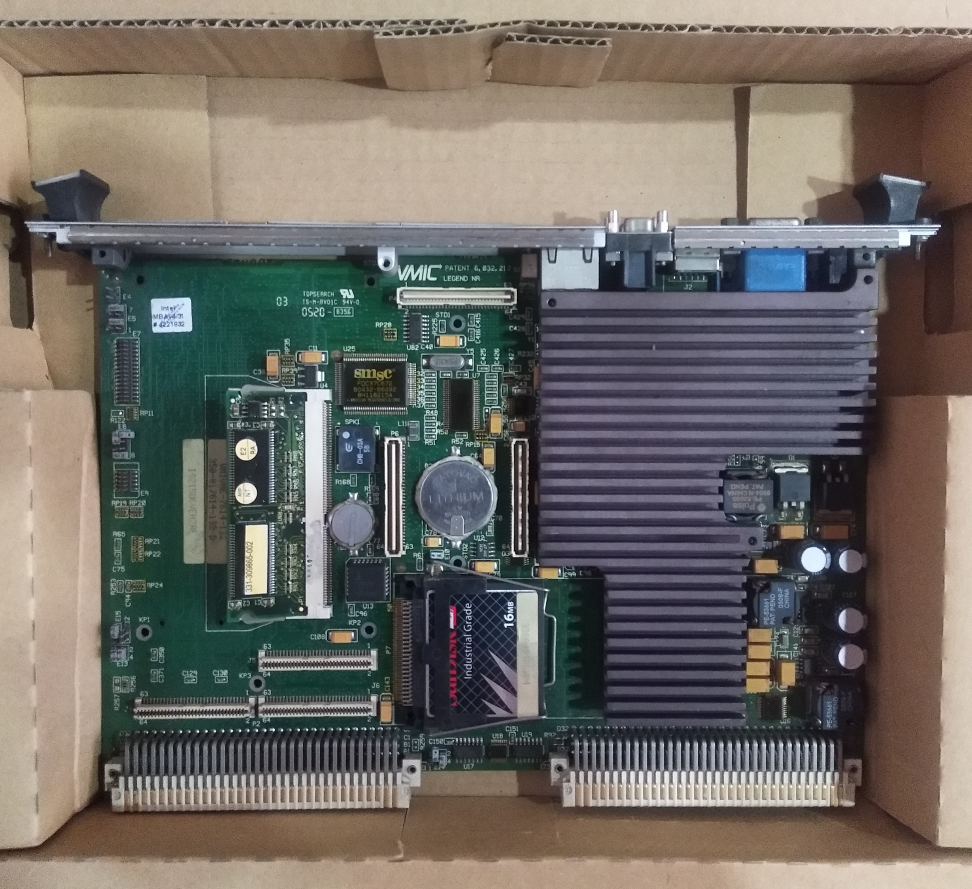

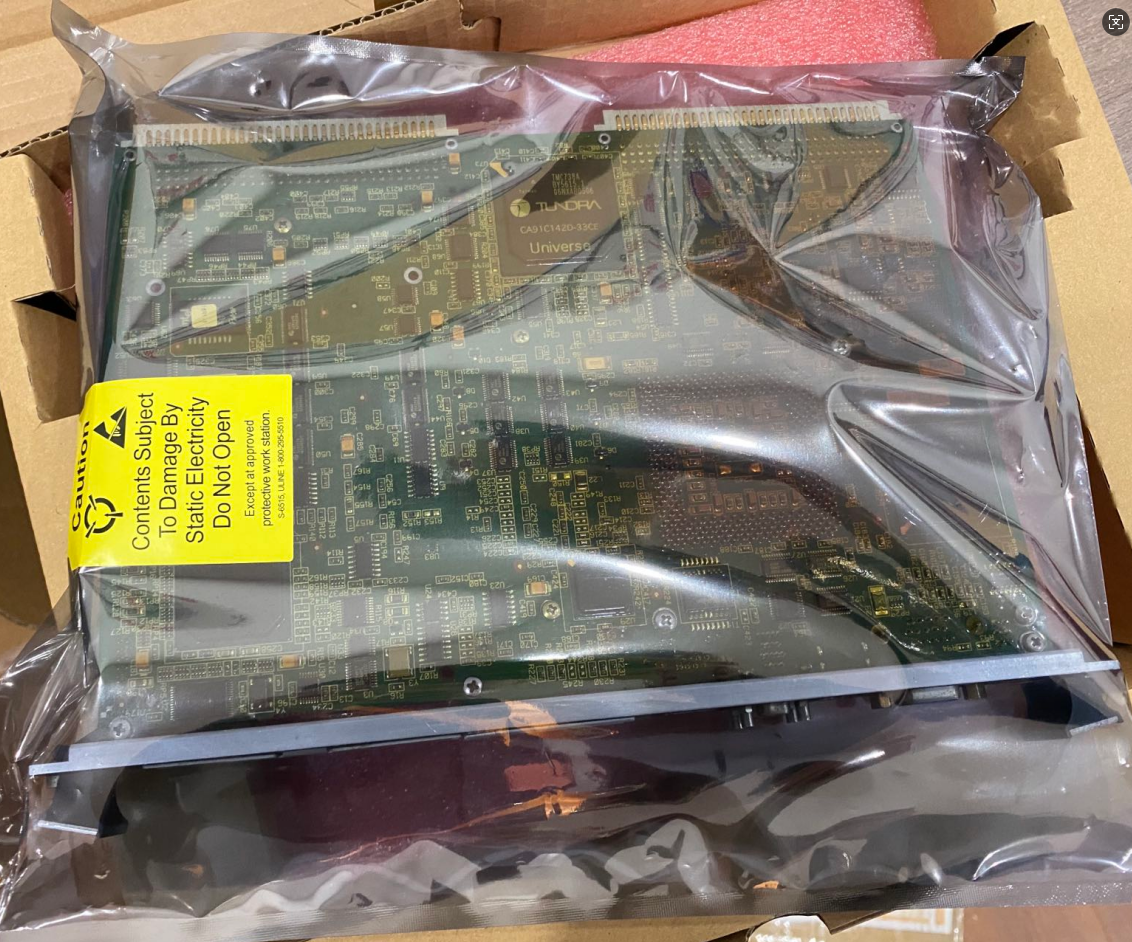

GE IS215UCVEH2A Controller

The IS215UCVEH2A is a high-performance VME bus single-board computer (SBC) designed by General Electric (GE) for its Mark VI turbine control system. As the standard model within the UCVE series controllers, this unit features a 6U height, single-slot form factor and mounts within a VME rack called the control module, serving as the core processing unit running turbine application code. Its operating system is QNX, a real-time, multitasking OS engineered for high-speed, high-reliability industrial applications.

The IS215UCVEH2A represents the current generation of controllers and is widely used in most new systems, replacing the earlier UCVB and UCVD series. It utilizes a 300 MHz Intel Celeron processor, equipped with 32 MB of DRAM and either 16 or 128 MB of flash memory, providing ample computing resources for real-time control applications. The controller connects via a single 10BaseT/100BaseTX Ethernet interface to the Universal Data Highway (UDH), enabling seamless integration with the Toolbox, HMI, CIMPLICITY monitoring system, Series 90-70 PLCs, and third-party DCSs.

This product is suitable for controlling critical rotating equipment such as gas turbines, steam turbines, compressors, and generators, and is widely used in industrial sectors including power generation, oil & gas, chemical processing, and metallurgy.

II. Key Functions

1. Control Logic Execution

The IS215UCVEH2A controller is loaded with software specific to its application (e.g., steam turbine, gas turbine, aeroderivative turbine, or balance of plant). It can execute control logic at rates up to 100,000 rungs or blocks per second. It supports both analog and discrete processing, with data types encompassing Boolean, 16-bit/32-bit signed integers, and 32-bit/64-bit floating points, meeting complex industrial control requirements.

2. Data Exchange and Communication

• VME Bus Communication: Exchanges data with I/O boards via the VCMI communication board. In a simplex system, data comprises process inputs and outputs from I/O boards. In a Triple Modular Redundant (TMR) system, data includes voted inputs, computed outputs for output hardware voting, and internal state values exchanged between controllers.

• Ethernet Communication: Equipped with one 10BaseT/100BaseTX (RJ-45) Ethernet interface, supporting:

• TCP/IP protocol: For configuration and peer-to-peer communication with the Toolbox.

• EGD (Ethernet Global Data) protocol: For high-speed data exchange with CIMPLICITY HMI and Series 90-70 PLCs.

• Modbus protocol: For communication with third-party DCSs.

• Serial Communication: Two RS-232C interfaces (COM1 and COM2). COM1 is reserved for diagnostics, and COM2 is used for serial Modbus slave communication.

3. System Synchronization and Real-Time Performance

The controller can synchronize with the clock on the VCMI communication board via an external clock interrupt, achieving accuracy within ±100 microseconds, ensuring strict synchronization requirements in multi-controller systems.

4. Online Programming and Diagnostics

Supports online modification of application software without requiring a system restart. When a failure is detected, the controller generates an internal fault code readable via the Toolbox. Each time the rack is powered up, the controller validates its Toolbox configuration against the existing hardware.

5. Redundancy and Fault Tolerance Support

In TMR systems, the IS215UCVEH2A can operate in conjunction with two other controllers to perform input voting, output voting, and state exchange, significantly enhancing system reliability.

III. Hardware Architecture

1. Processor and Memory

The IS215UCVEH2A utilizes an Intel Celeron 300 MHz microprocessor, equipped with:

• 32 MB DRAM (main memory)

• 16 MB or 128 MB Compact Flash Module (storage)

• 128 KB L2 cache

• 8 KB battery-backed SRAM allocated as NVRAM for controller functions

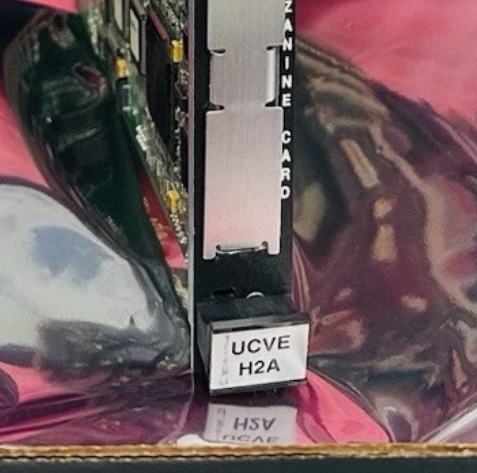

2. Front Panel Indicators

The UCVE series controllers feature front panel status LEDs to indicate operational status. Unlike the UCVD series, the UCVE series does not use dual-column LEDs to display error codes; instead, internal fault codes are read via the Toolbox software.

3. Interfaces and Connectors

• Ethernet Interface: 1 RJ-45 connector, supporting 10BaseT/100BaseTX auto-negotiation.

• Serial Interfaces: 2 micro-miniature 9-pin D-type connectors (COM1, COM2).

• VME Bus Connectors: P1/J1 and P2/J2 backplane connectors for power and bus communication.

• PMC Expansion Site: One site compliant with IEEE 1386.1 5V PCI standard for functional expansion.

IV. Detailed Interface Description

1. Ethernet Interface

The IS215UCVEH2A provides one 10BaseT/100BaseTX auto-negotiating Ethernet interface using an RJ-45 connector. This interface connects to the UDH for data exchange with the Toolbox, HMI, and other control equipment. Supported protocols include:

• TCP/IP: Toolbox configuration and peer-to-peer communication. The controller validates its Toolbox configuration against the hardware each time the rack is powered up.

• EGD (Ethernet Global Data): High-speed data exchange with CIMPLICITY HMI and Series 90-70 PLCs for real-time monitoring and control.

• Modbus: Supports Modbus protocol for communication with third-party DCSs, enabling system integration.

2. Serial Interfaces (COM1 and COM2)

Both serial interfaces are micro-miniature 9-pin D connectors, with pin assignments conforming to RS-232C standards.

• COM1: Fixed for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit. Users can obtain controller status and error information via a serial terminal, facilitating on-site debugging and troubleshooting.

• COM2: Configurable for Modbus slave communication, supporting 9600 or 19200 baud. Used for connecting to distributed control systems or other serial devices for data exchange.

3. VME Bus Interface

The controller connects to the VME bus via backplane connectors P1 and P2, facilitating data exchange with I/O boards and the VCMI communication board. P1 provides power and basic bus signals, while P2 is used for extended address and data lines. The controller acts as a VME bus master and can initiate data transfers.

4. PMC Expansion Site

The IS215UCVEH2A is equipped with one PMC expansion site compliant with the IEEE 1386.1 5V PCI standard. This site can be used to install additional function modules, such as extra communication interfaces or dedicated I/O processing modules, enhancing the controller's flexibility and scalability.

5. Battery and Configuration Switch

The controller contains a Type 1 Lithium battery rated at 3.3 V, 200 mA, used to maintain the real-time clock and backup SRAM data during power loss. Important Note: The battery is factory-shipped in the disabled position. To enable the battery, set switch SW10 to the closed position as shown in the diagram. When replacing the battery, use an equivalent type.

V. Operation and Diagnostics

1. Operational Status

After loading the specific application software, the IS215UCVEH2A controller begins executing control logic. During normal operation, the controller maintains communication with external systems via Ethernet and serial interfaces. If rotating status LEDs are supported (on certain models), the front panel LEDs display a rotating pattern; otherwise, the status must be monitored via the Toolbox software.

2. Fault Diagnostics

If a failure occurs in the controller while it is running application code, the following will happen:

• Rotating status LEDs stop (if supported).

• An internal fault code is generated, readable via the Toolbox.

• Diagnostic alarms are displayed in the Toolbox, showing error numbers and descriptions.

For UCVE series controllers, error codes are no longer displayed via flashing front panel LEDs but are read through the Toolbox software. Additional information can be obtained via the COM1 serial port.

3. Common Fault Codes

Refer to the fault codes listed in the documentation (applicable to all controller types), including but not limited to:

Users can view detailed error information in the controller trace buffer via the Toolbox (e.g., View General Dump the trace buffer).

VI. Installation and Maintenance

1. Pre-Installation Preparation

• Ensure the VME rack is correctly installed and grounded.

• Verify that the required slot in the rack is free and meets the single-slot width requirement.

• Prepare an anti-static wrist strap to prevent electrostatic damage to the board.

• If the battery needs to be enabled, pre-set the SW10 switch accordingly.

2. Installation Steps

1. Power Off the Rack: Ensure the rack power is turned off before inserting or removing any board.

2. Configure Battery Switch: If enabling the battery, set SW10 to the closed position.

3. Insert the Controller: Align the IS215UCVEH2A with the rack guides and push it in smoothly until the backplane connectors are fully engaged.

4. Secure the Front Panel: Tighten the captive screws at the top and bottom of the front panel to secure the board.

5. Connect External Cables: Connect Ethernet cables, serial cables, etc., as required.

6. Power On and Verify: After powering on, use the Toolbox software to verify that the controller is correctly recognized and communicating.

3. Maintenance Recommendations

• Regular System Status Checks: Monitor controller status, CPU load, temperature, and other parameters via the Toolbox.

• Ensure Adequate Ventilation: Verify that rack fans are operational and filters are clean to prevent controller overheating.

• Anti-Static Precautions: Always wear a grounded wrist strap when handling the board. Store the board in an anti-static bag when not in use.

• Battery Maintenance: Be aware of the battery's service life. Check periodically and replace when necessary (using only an equivalent type).

• Firmware Upgrades: If a firmware upgrade is necessary, strictly follow GE's official procedures to avoid interruption during the process.

• Spare Parts Management: It is recommended to keep at least one identical controller on-site as a spare to minimize downtime in case of failure.

4. Upgrade Considerations

When replacing an older UCVB controller with the IS215UCVEH2A, note the following:

• Backplane Upgrade Required: The UCVE series is not directly compatible with backplanes for earlier controllers.

• Ethernet Cabling Upgrade: Upgrade from 10Base2 (coaxial) to 10Base-T (twisted pair).

• Verify Configuration Compatibility: Ensure the Toolbox configuration matches the new hardware.

VII. Applications

The IS215UCVEH2A controller is widely used in the following scenarios:

• Gas Turbine Control: As the core controller in Mark VI systems, executing fuel control, speed control, temperature monitoring, combustion monitoring, etc.

• Steam Turbine Control: Working with DEH (Digital Electro-Hydraulic Control) systems for turbine speed governing, protection, and load control.

• Compressor Control: Anti-surge control, performance optimization, and sequencing for pipeline and process compressors.

• Generator Excitation Control: Interfacing with excitation systems for voltage regulation, reactive power control, and grid synchronization.

• Balance of Plant (BOP) Control: Logic control and sequencing for auxiliary equipment such as boilers, pumps, fans, and cooling water systems.

• Combined Cycle Power Plants: Coordinating gas turbine and steam turbine operation in multi-shaft or single-shaft configurations for overall efficiency optimization.

• Upgrade and Retrofit Projects: Replacing older UCVB and UCVD controllers to enhance system performance and reliability.
