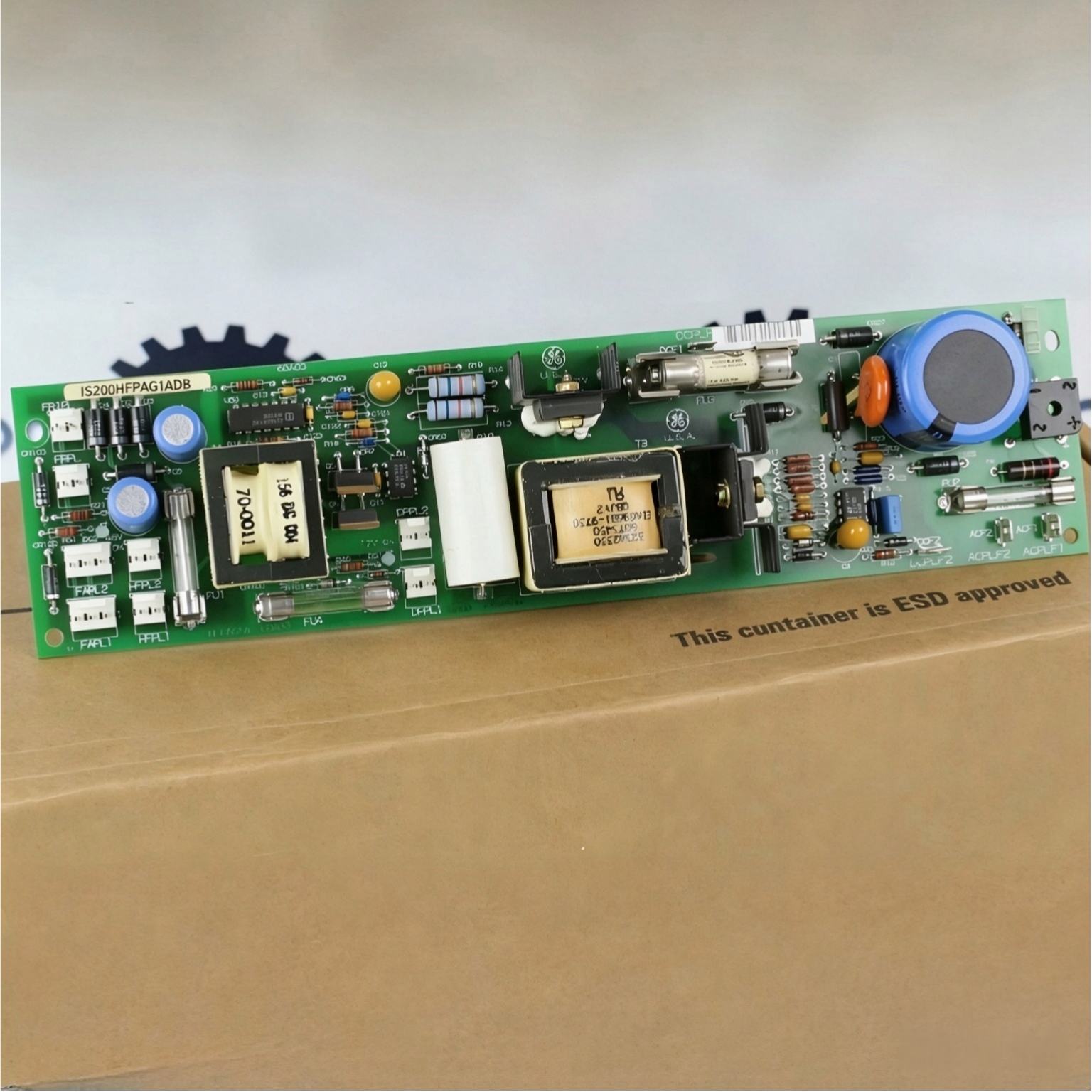

GE IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board

  • GE

  • IS200HFPAG1ADB

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The GE IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is a specialized power conversion and fan supply module used within GE Industrial Control Systems drive platforms. As a member of the HFPA board family, the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board accepts either AC or DC input voltage and converts it into the multiple output voltages required to power drive cooling fans and isolated high-voltage circuitry. The board is designed for flexibility, accommodating either an isolated 230 V AC winding input or a high-voltage DC link input ranging from 230 to 1000 V DC, making it suitable for a variety of drive configurations and cabinet arrangements.

The IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "IS200" prefix identifies the board as a GE Industrial Control Systems product, with "200" specifically indicating that the board is a base-level assembly. The "HFPA" acronym identifies the board's functional designation as a High Frequency AC/Fan Power Supply Board. The "G1" designation identifies the hardware group and normal coating, while the "ADB" suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components.

The IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board provides three output voltages in both the G1 and G2 configurations. For Group 1, the outputs are 48 V AC and 48 V DC for fan power, plus an isolated 17.7 V AC squarewave for high-voltage-isolated circuitry. For Group 2, the corresponding outputs are 52 V AC and 52 V DC for fan power, plus an isolated 19.1 V AC squarewave. All squarewave outputs operate at 25 kHz with ±5% tolerance, and the total output loading for either the G1 or G2 board should not exceed 90 VA. The board includes four stab-on connectors for voltage input and eight plug connectors for voltage output, along with two status LEDs and four protective fuses.

This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board, serving as an essential reference for drive engineers, maintenance technicians, and system integrators working with GE industrial control equipment.

Functional Architecture and Signal Processing

The IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is built around a robust two-stage power conversion architecture comprising a current- and voltage-limited buck regulator followed by a self-oscillating power supply inverter. This architecture enables the board to accept a wide range of input voltages while delivering well-regulated, isolated, and filtered outputs suitable for fan power and isolated control circuitry.

The first stage of the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is the buck regulator, which converts the high-voltage DC to a lower, non-isolated intermediate voltage of approximately 118 V DC referenced to the positive DC link terminal. The buck regulator is designed to operate with input voltages between 230 and 1000 V DC, providing the wide input range required for different drive configurations. The conversion of the high-voltage DC to the lower intermediate voltage uses a current- and voltage-limited buck regulator, which restricts the switch current to a maximum of 1.5 amps, providing inherent current limiting for the downstream circuitry. Control voltage for the regulator is initially supplied by a low-current resistive path and is sustained by the scaled and rectified flyback voltage developed in a bias winding coupled to the regulator series inductor. This bias winding voltage is also used as feedback to regulate the 118 V DC intermediate voltage, ensuring stable operation across the input voltage range.

The second stage of the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is a self-oscillating power supply inverter, which converts the 118 V DC intermediate voltage to an AC squarewave voltage feeding the primary of a transformer. The transformer provides the isolation between the input and output circuits, and one of its secondary windings develops the 48 V AC (G1) or 52 V AC (G2) output. This AC output is also full-wave rectified and filtered to provide the 48 V DC (G1) or 52 V DC (G2) output for fan power. A second output winding provides the unrectified isolated 17.7 V AC (G1) or 19.1 V AC (G2) squarewave output, which is used to power circuitry isolated from high voltage. Output current is limited by fusing and by restricting the buck regulator switch current, ensuring that the board and the connected loads are protected under fault conditions.

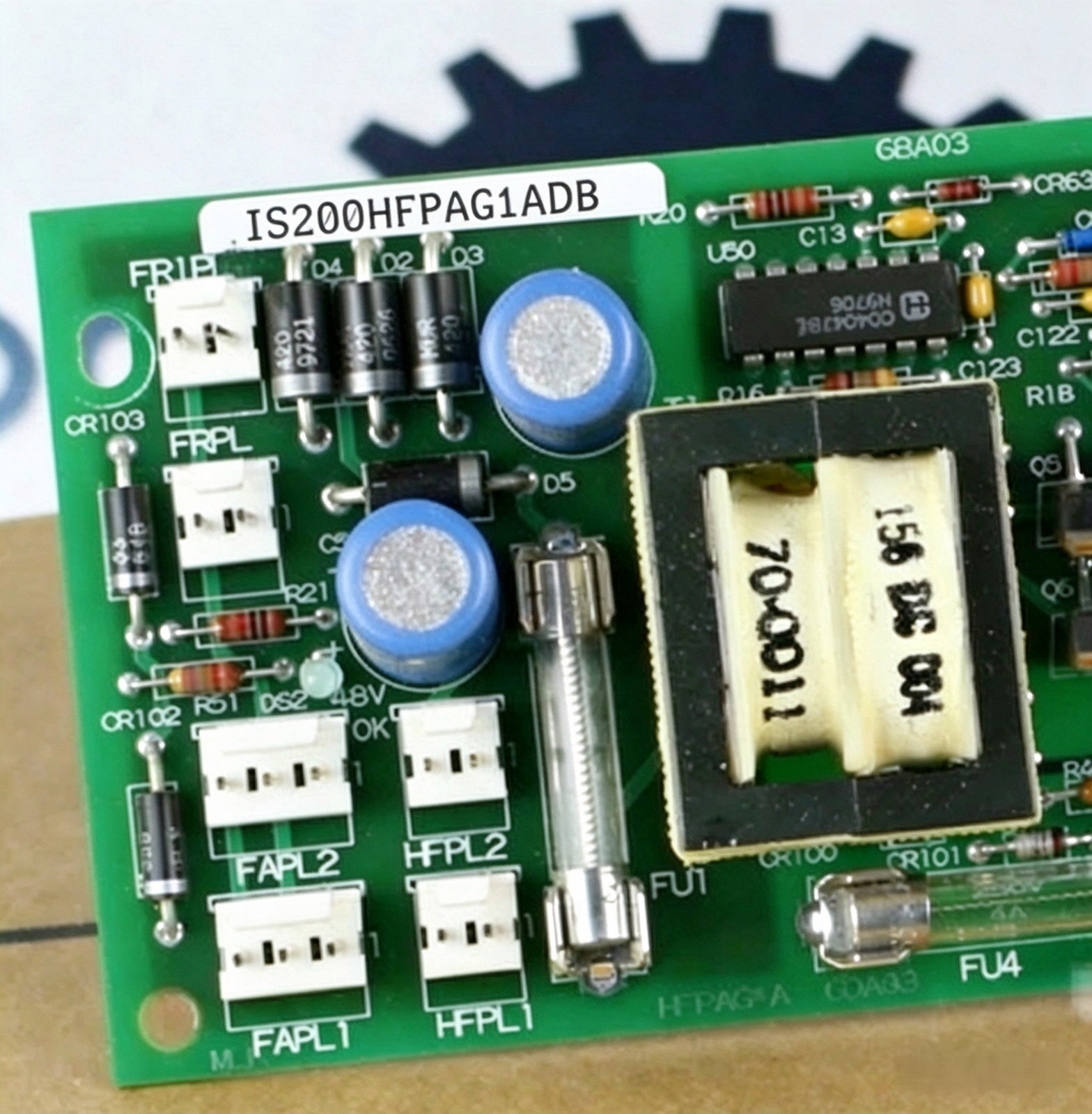

The output stage of the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board provides the voltages at eight plug connectors: DPPL1, DPPL2, HFPL1, HFPL2, FAPL1, FAPL2, FRPL, and FRPL1. The FAPL1 and FAPL2 connectors provide the 48/52 V DC fan power with COM48, FREF, and P48 signals. The FRPL and FRPL1 connectors provide the fan reference distribution with COM48 and FREF signals. The DPPL1, DPPL2, HFPL1, and HFPL2 connectors provide the remaining outputs, including the 48/52 V AC and the 17.7/19.1 V AC isolated squarewave outputs. These connectors allow the board to interface with the fan assemblies, the isolated control circuitry, and the other boards in the drive system.

Voltage Inputs and Wide-Range Operation

One of the distinguishing features of the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is its ability to accept either an isolated 230 V AC input or a high-voltage DC link input, providing flexibility in the drive configuration and installation. Power supply input is received from an isolated 230 V AC winding on the stab-on terminals ACF1 and ACF2, or from the drive's main DC power supply (DC link) on the stab-on terminals DCF1 and DCF2. The DC input range of 230 to 1000 V DC allows the board to operate directly from the drive's DC link, eliminating the need for a separate AC power supply in many applications.

The wide input voltage range of the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is enabled by the current- and voltage-limited buck regulator, which is designed to operate with input voltages between 230 and 1000 V DC. The buck regulator chops down the DC link voltage into the 118 V DC intermediate voltage, and the control voltage for the regulator is derived from the bias winding coupled to the regulator series inductor. This design allows the board to maintain stable output voltages even as the input voltage varies over a wide range, ensuring that the fan power and isolated control circuitry receive reliable power under all operating conditions.

The AC input path of the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board accepts an isolated 230 V AC winding at 50 to 60 Hz, which is rectified and filtered before being fed to the buck regulator. This input option is useful in applications where a dedicated AC winding is available for the fan power supply, or where the DC link is not accessible or is not suitable for the fan power supply. The two input options provide the system designer with the flexibility to choose the most convenient and reliable power source for the fan and isolated control circuitry.

LED Indicators and Fuse Protection

The IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board includes two LED indicators and four protective fuses that provide status indication and fault protection for the board's outputs.

The two LED indicators on the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board are DS1 (17 V OK) and DS2 (48 V OK). DS1 is ON when the 17.7/19.1 V AC output is OK; if DS1 is off, the maintenance technician should check that fuse FU4 is not blown. DS2 is ON when the 48/52 V AC and DC output is OK; if DS2 is off, the maintenance technician should check that fuse FU1 is not blown. These indicators provide a clear visual indication of the status of the board's outputs, allowing maintenance personnel to quickly identify the source of a fault.

The four protective fuses on the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board are FU1, FU2, FU3, and FU4. FU1 is rated at 250 V, 2.5 A and protects the 48 V AC/DC power output (G1) or the 52 V AC/DC power output (G2). FU2 is rated at 250 V, 1.0 A and protects the 230 V AC power input. FU3 is rated at 600 V, 2.0 A and protects the 230 to 1000 V DC power input. FU4 is rated at 250 V, 4.0 A and protects the 17.7 V AC (G1) or 19.1 V AC (G2) fused power output. These fuses provide comprehensive protection for the board's inputs and outputs, ensuring that a fault in one circuit does not damage the board or the connected equipment.

Application Suitability and System Integration

The IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is a versatile power supply module that can be used in a variety of GE drive applications. Its ability to accept either an isolated 230 V AC input or a 230–1000 V DC link input makes it suitable for drives with different power architectures and cabinet arrangements, and its dual output configurations (G1 and G2) allow it to be matched to the specific fan voltage requirements of the drive.

In drive applications, the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is typically used to power the drive cooling fans and the isolated control circuitry. The 48 V DC (G1) or 52 V DC (G2) output provides the fan power, while the isolated 17.7 V AC (G1) or 19.1 V AC (G2) squarewave output provides power to circuitry that must be isolated from the high voltage. The board's wide input voltage range and current-limited buck regulator ensure that the outputs remain stable and protected even as the drive's DC link voltage varies over a wide range.

Because the HFPA is a multi-purpose board, it may be mounted in different cabinets of the drive. However, the board is typically located near a board rack or a fan enclosure and is mounted in a plastic carrier secured with two screws. This mounting arrangement provides mechanical protection for the board and allows for straightforward removal and replacement when maintenance is required.

The board's comprehensive protection features, including the current-limited buck regulator, the four protective fuses, and the two LED status indicators, ensure that the board and the connected equipment are protected from fault conditions and that maintenance personnel can quickly identify and resolve any issues. The absence of configurable hardware items simplifies installation and reduces the potential for configuration errors.

Maintenance and Lifecycle

The IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is designed for long service life with minimal maintenance. The board contains no moving parts or user-adjustable components, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the board, connectors, LEDs, and fuses, and verification that the output voltages are within specification.

If a fuse blows, the maintenance technician should first turn off power to the board and verify that no power exists before changing the fuse. The fuse should be replaced with one of the same rating and type, and the cause of the fuse blowing should be investigated to prevent recurrence. If an LED is off, the corresponding fuse should be checked, and if the fuse is intact, the board should be replaced.

If the board requires replacement, the process is straightforward but requires careful attention to safety procedures. After turning off power to the drive and waiting several minutes for all capacitors to discharge, the technician should test any electrical circuits before touching them to ensure that power is off. The cables should be labeled with the correct connector name to simplify reconnection, and the cables should be carefully disconnected from the board. The two screws that hold the board in the plastic carrier should be removed, and the board should be removed. The replacement board should be oriented in the same position as the one removed and installed into the board carrier with the two screws. All cables should be reconnected as labeled and properly seated at both ends, and the technician should verify that all four fuses are present and good before closing the drive cabinet doors.

GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board, provide the complete part number and description, the drive serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement boards is guaranteed.

Conclusion

The GE IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is a reliable, robust, and versatile power supply module for GE industrial drive systems. Its ability to accept either an isolated 230 V AC input or a 230–1000 V DC link input, its two-stage buck regulator and self-oscillating inverter architecture, and its dual G1 and G2 output configurations make it suitable for a wide range of drive applications. The board's comprehensive protection features, including the current-limited buck regulator, the four protective fuses, and the two LED status indicators, ensure that the board and the connected equipment are protected from fault conditions.

With its standard stab-on and plug connectors, clearly marked LED indicators, and simple mounting arrangement, the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board is designed for easy installation, verification, and maintenance. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board continues to deliver the performance, durability, and reliability that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board provides the fan power and isolated control power functionality required for reliable and efficient drive operation.

Specification Category

Parameter

Value / Description

General

Product Name

GE IS200HFPAG1ADB High Frequency AC/Fan Power Supply Board

Board Family

HFPA (High Frequency AC/Fan Power Supply Board)

Group / Revision

G1 group, normal coating, ADB revision suffix

Applications

GE Industrial Control Systems drives

Board Identification

Alphanumeric part number stamped on board edge

Configurable Hardware

None

Input Specifications

AC Input

Isolated 230 V AC, 50–60 Hz, on stab-on terminals ACF1 and ACF2

DC Input

230–1000 V DC on stab-on terminals DCF1 and DCF2

Input Source

Isolated 230 V AC winding or drive main DC power supply (DC link)

Output Voltages (G1)

48 V AC

25 kHz squarewave, ±5%

17.7 V AC

25 kHz squarewave, ±5%, isolated

48 V DC

Unregulated fan voltage

Output Voltages (G2)

52 V AC

25 kHz squarewave, ±5%

19.1 V AC

25 kHz squarewave, ±5%, isolated

52 V DC

Unregulated fan voltage

Output Loading

Total Output Loading

90 VA maximum (G1 or G2)

Power Conversion Architecture

First Stage

Current- and voltage-limited buck regulator

Intermediate Voltage

Approximately 118 V DC referenced to positive DC link terminal

Buck Regulator Input Range

230–1000 V DC

Buck Regulator Switch Current Limit

1.5 A maximum

Regulator Control Voltage

Initially from low-current resistive path; sustained by scaled/rectified flyback voltage from bias winding

Regulator Feedback

Bias winding voltage used to regulate 118 V DC

Second Stage

Self-oscillating power supply inverter

Isolation

Transformer isolation between input and output

Connectors

ACF1, ACF2

230 V AC input stab-on terminals

DCF1, DCF2

230–1000 V DC input stab-on terminals

DPPL1, DPPL2

Plug connectors for voltage outputs

HFPL1, HFPL2

Plug connectors for voltage outputs

FAPL1, FAPL2

48/52 V DC fan power connectors (COM48, FREF, P48)

FRPL, FRPL1

Fan reference distribution connectors (COM48, FREF)

LED Indicators

DS1 (17 V OK)

ON when 17.7/19.1 V AC output is OK; check FU4 if off

DS2 (48 V OK)

ON when 48/52 V AC and DC output is OK; check FU1 if off

Fuses

FU1

250 V, 2.5 A; protects 48 V AC/DC (G1) or 52 V AC/DC (G2) output

FU2

250 V, 1.0 A; protects 230 V AC power input

FU3

600 V, 2.0 A; protects 230–1000 V DC power input

FU4

250 V, 4.0 A; protects 17.7 V AC (G1) or 19.1 V AC (G2) output

Environmental

Operating Temperature

0 °C to +60 °C (32 °F to 140 °F)

Storage Temperature

-40 °C to +85 °C (-40 °F to +185 °F)

Humidity

5% to 95% non-condensing

Physical

Mounting

Plastic board carrier, typically near board rack or fan enclosure

Mounting Hardware

Two screws securing board to plastic carrier

Handling Requirements

Anti-static precautions, grounding strap required

Warranty and Support

Replaceable Components

Fuses FU1–FU4 replaceable; board replaced as a unit for other failures

Warranty

As per GE Terms and Conditions

Support Contact

GE Industrial Control Systems Product Service Engineering, 1501 Roanoke Blvd., Salem, VA 24153-6492 USA

Support Phone

+1-540-387-8606

Required Info

Complete part number and description, drive serial number, Material List (ML) number

Ordering Information

Part Number

IS200HFPAG1ADB

Part Number Breakdown

IS = GE Industrial Control Systems; 200 = base-level board; HFPA = board acronym; G = normal coating; 1 = group; A = artwork revision (backward compatible); D = functional revision 1 (backward compatible); B = functional revision 2

Ordering Note

All digits are important; factory may substitute later versions with backward compatibility
