Bently Nevada
330130-040-00-05
In Stock
T/T
Xiamen
| Availability: | |
|---|---|
| Quantity: | |

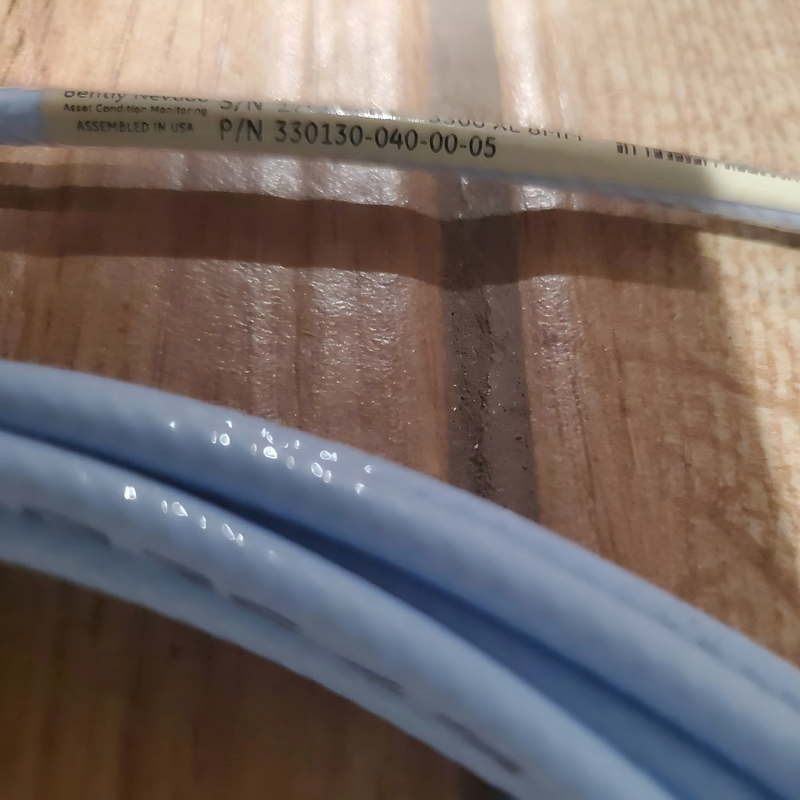

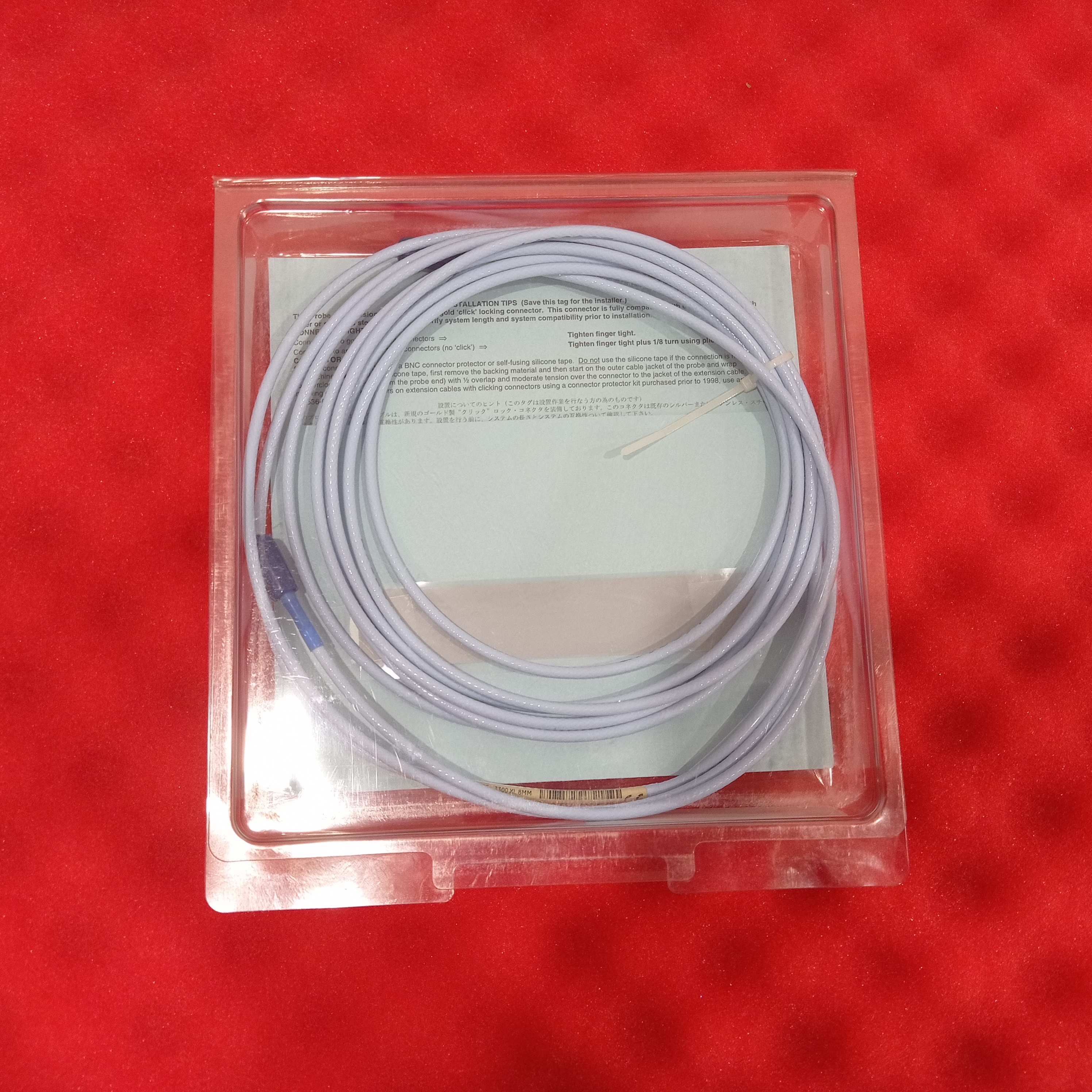

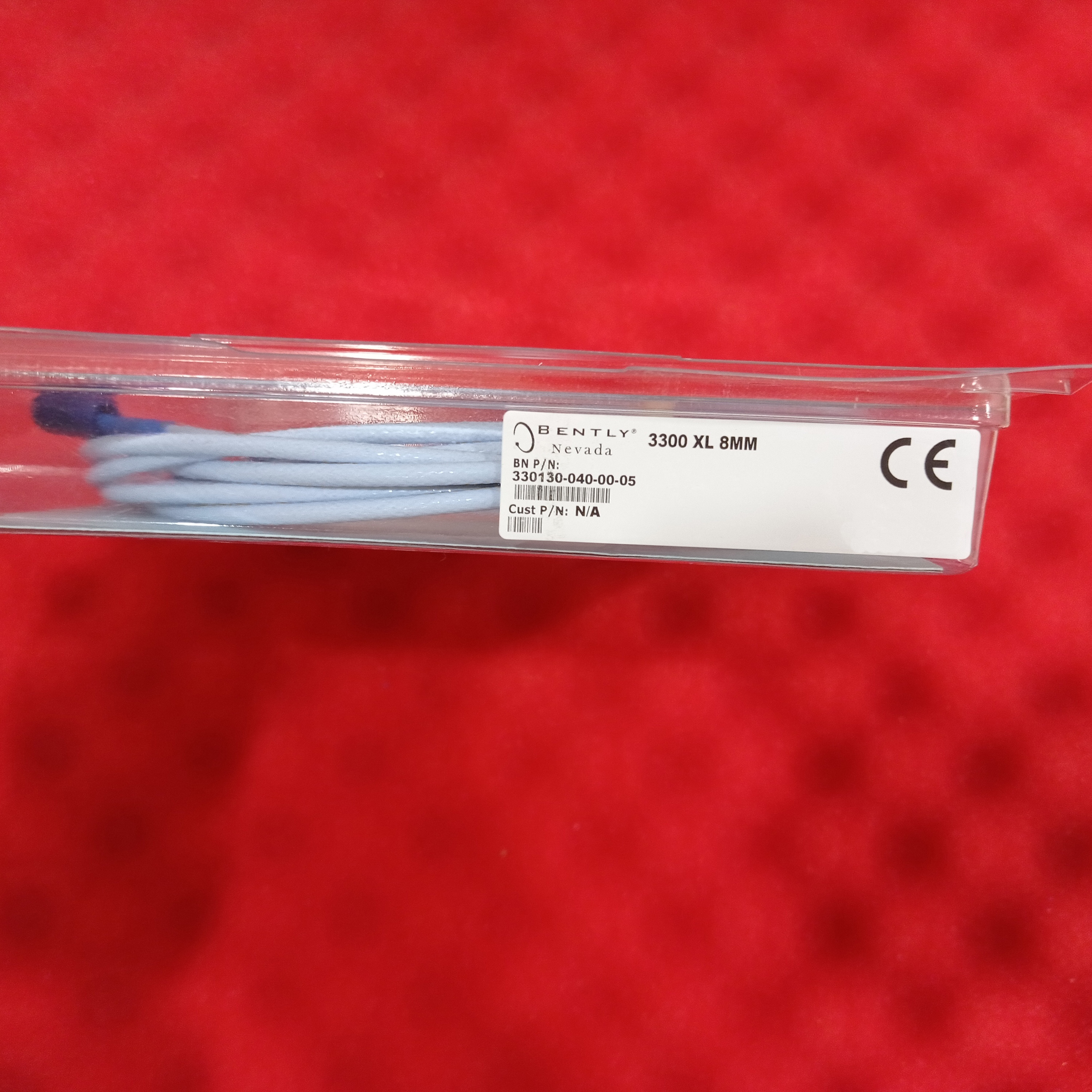

330130-040-00-05 is a Bently Nevada 3300 XL series standard extension cable with a total length of 4.0 meters (13.1 feet). This model features standard FEP-insulated cable and carries CSA, ATEX, and IECEx hazardous area approvals, making it suitable for intrinsically safe (IS) installations in explosive atmospheres.
It is an essential component of the 3300 XL 8 mm eddy current probe system, specifically designed for applications requiring the precise 4.0 meter length to match a 1.0 meter hazardous area approved probe to form a complete 5 meter intrinsically safe system. Typical applications include vibration monitoring of turbomachinery, compressors, and pumps in Zone 0 and Zone 1 hazardous areas such as refineries, petrochemical plants, and natural gas facilities, where the distance between the Proximitor Sensor and probe mounting location is moderate.
Following Bently Nevada’s part number coding system (refer to datasheet Pages 18-19), the fields in this model number represent the following:
Field | Code | Parameter | Description |
|---|---|---|---|
Base Model |
| 3300 XL Standard Extension Cable | Compatible with 3300 XL 8 mm and 3300 5 mm series probes |
Length Option |
| 4.0 meters (13.1 ft) | Total cable length for precise system total length matching |
Cable Option |
| Standard Cable | FEP-insulated triaxial cable, temperature rating -52°C to +177°C |
Agency Approval |
| CSA, ATEX, IECEx Hazardous Area Approvals | Certified for intrinsically safe installations in explosive atmospheres |
Key Configuration Note: The combination of
040and05is the defining feature of this model. In a 3300 XL intrinsically safe system, when using a 1.0 meter hazardous area approved probe (e.g., 330101-XX-10-XX-05), a 4.0 meter hazardous area approved extension cable is required to form a complete 5 m IS system (1.0 m + 4.0 m = 5 m). This model is specifically designed for such precise total length matching in hazardous area applications.
330130-040-00-05 carries the following hazardous area approvals, suitable for installations in major industrial regions worldwide:
Certification | Type | Area Classification | Temperature Class |
|---|---|---|---|
ATEX / IECEx | Ex ia IIC T4/T5 Ga | Zone 0, 1, 2 | T5 @ Ta = -55°C to +40°C |
cNRTLus | Class I, Zone 0, AEx/Ex ia IIC T4/T5 Ga | Class I, Groups A, B, C, D | Same as above |
When used in an intrinsically safe system, the following conditions must be observed:
Barriers/Isolators: Must be installed with intrinsically safe zener barriers per Bently Nevada drawing 141092, or with galvanic isolators.
Entity Parameters (when connected to approved Proximitor Sensor):
Ui = -28V
Ii = 140 mA
Pi = 0.91 W
Ci = 47 nF
Li = 1460 μH
Installation Environment: The Proximitor Sensor must be installed in a non-hazardous area or within an approved explosion-proof enclosure.
Important: This cable must be used with hazardous area approved probes (e.g., 330101-XX-10-XX-05) and Proximitor Sensors (e.g., 330180-50-05) to maintain a complete intrinsically safe system. Mixing with non-approved components will void the hazardous area certification.
330130-040-00-05 is suitable for the following typical applications:
Precise Total Length Matching for 5 m IS Systems: When using a 1.0 meter hazardous area approved probe, a 4.0 meter hazardous area approved extension cable is required to form a complete 5 m IS system (1.0 m + 4.0 m = 5 m). This is the primary application for this model, common in hazardous area monitoring systems where the Proximitor Sensor is located at a moderate distance from the probe mounting point.
Medium-Distance Signal Transmission in Hazardous Areas: When the field routing distance is approximately 4.0 meters, this model provides precise length matching, avoiding excess cable coiling or insufficient length, while meeting hazardous area approval requirements.
Turbomachinery Monitoring in Refineries and Petrochemical Plants: Steam turbines, compressors, and pumps are often located in Zone 1 or Zone 2 areas, with Proximitor Sensors typically installed in junction boxes near the equipment. The 4.0 meter length is well-suited for such moderate-distance installations.
Interchangeability with Other 4.0 m Hazardous Area Configurations: For armored, connector protector, or FluidLoc options in the same length, refer to other cable option hazardous area versions (e.g., 330130-040-02-05, 330130-040-01-05, 330130-040-12-05).
Selection Notes:
Total Length Matching: Probe length + extension cable length = Proximitor Sensor total system length (5 m or 9 m). Verify your probe length: if using a 1.0 m hazardous area approved probe, select this model (4.0 m); if using a 0.5 m hazardous area approved probe, select a 4.5 m hazardous area approved extension cable (e.g., 330130-045-00-05).
System Integrity: All components entering the hazardous area (probe, extension cable, connector protectors) must carry the same hazardous area approval rating. This model is standard cable without connector protectors – if environmental sealing is required, select a version with protectors.
Ambient Temperature: If the application environment exceeds +177°C, consider the ETR (Extended Temperature Range) hazardous area extension cable series (e.g., 330190-040-00-05).
Length Verification: 4.0 m is the total length including connectors. Confirm that the field routing distance is within 4.0 m to ensure proper fit.
Model | Length | Approvals | Typical Matching Probe | System |
|---|---|---|---|---|
330130-040-00-05 | 4.0 m | ATEX/IECEx | 1.0 m hazardous area probe | 5 m IS system |
330130-045-00-05 | 4.5 m | ATEX/IECEx | 0.5 m hazardous area probe | 5 m IS system |
330130-080-00-05 | 8.0 m | ATEX/IECEx | 1.0 m hazardous area probe | 9 m IS system |
Standard 5 m intrinsically safe systems are typically composed of a 1.0 m hazardous area probe + 4.0 m hazardous area cable, or a 0.5 m hazardous area probe + 4.5 m hazardous area cable. Choose the extension cable length that matches your probe.
Cable Outer Diameter: Standard cable 3.68 mm (0.145 in) maximum
Connector: Features the ClickLoc design. Finger-tighten until an audible "click" is heard — no special tools are required.
Installation Drawing: Intrinsically safe system installation must strictly follow Bently Nevada drawing 141092, including barrier selection, grounding, and wiring practices.
Installation Tips: When installing in hazardous areas, use appropriate cable strain relief to avoid excessive tensile stress on the connector. If environmental sealing of the connector is required, select a version with connector protectors or field-install connector protectors that are suitable for hazardous area use.
For other lengths or configurations of hazardous area approved extension cables, refer to the following options:
Model | Length | Cable Option | Approvals | Application |
|---|---|---|---|---|
330130-040-00-05 | 4.0 m | Standard Cable | ATEX/IECEx | Current model, pairs with 1.0 m hazardous area probe, 5 m IS system |
330130-045-00-05 | 4.5 m | Standard Cable | ATEX/IECEx | Pairs with 0.5 m hazardous area probe, 5 m IS system |
330130-040-02-05 | 4.0 m | Standard Cable + Protector | ATEX/IECEx | 5 m IS system requiring connector environmental sealing |
330130-040-01-05 | 4.0 m | Armored Cable | ATEX/IECEx | 5 m IS system requiring mechanical protection |
330130-040-12-05 | 4.0 m | FluidLoc + Protector | ATEX/IECEx | 5 m IS system requiring oil leakage prevention |
Matching Probe: This cable is commonly used with 330101 series 1.0 m hazardous area approved probes (total length option
10, approval option05).
330130-040-00-05 is a standard hazardous area length model in the Bently Nevada product line. For pricing, lead time, or technical drawings, please contact us:
Online Inquiry: Click the “Request a Quote” button and provide the model number for a prompt response.
Technical Support: If you need assistance verifying compatibility with your hazardous area system, please provide your probe model number (especially the total length option and approval option) and we will help confirm total length matching and certification integrity.
Specification | Value |
|---|---|
Cable Type | 75Ω triaxial, FEP insulation |
Overall Length | 4.0 meters (13.1 ft) |
Connector Type | ClickLoc gold-plated brass/beryllium copper (male) |
Connector Protector | None (for protector, select |
Connector Torque | Finger-tight until "click"; maximum 0.565 N·m (5 in·lbf) |
DC Resistance (Center to Center) | 0.88 Ω ± 0.13 (based on 4.0 m length) |
DC Resistance (Outer to Outer) | 0.26 Ω ± 0.05 (based on 4.0 m length) |
Nominal Capacitance | 69.9 pF/m (21.3 pF/ft) |
Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
Minimum Bend Radius | 25.4 mm (1.0 in) |
Tensile Strength | 270 N (60 lbf) rated at connector |
Compatible Probes | 3300 XL 8 mm series, 3300 5 mm series probes (must be approved versions) |
Matching Proximitor Sensors | 3300 XL 5 m system Proximitor Sensors with hazardous area approvals (e.g., 330180-50-05) |
DC Resistance Note: Based on datasheet Pages 4-5, the center conductor resistance for a 4.0 m extension cable is 0.88 Ω ± 0.13, and the outer conductor resistance is 0.26 Ω ± 0.05.
