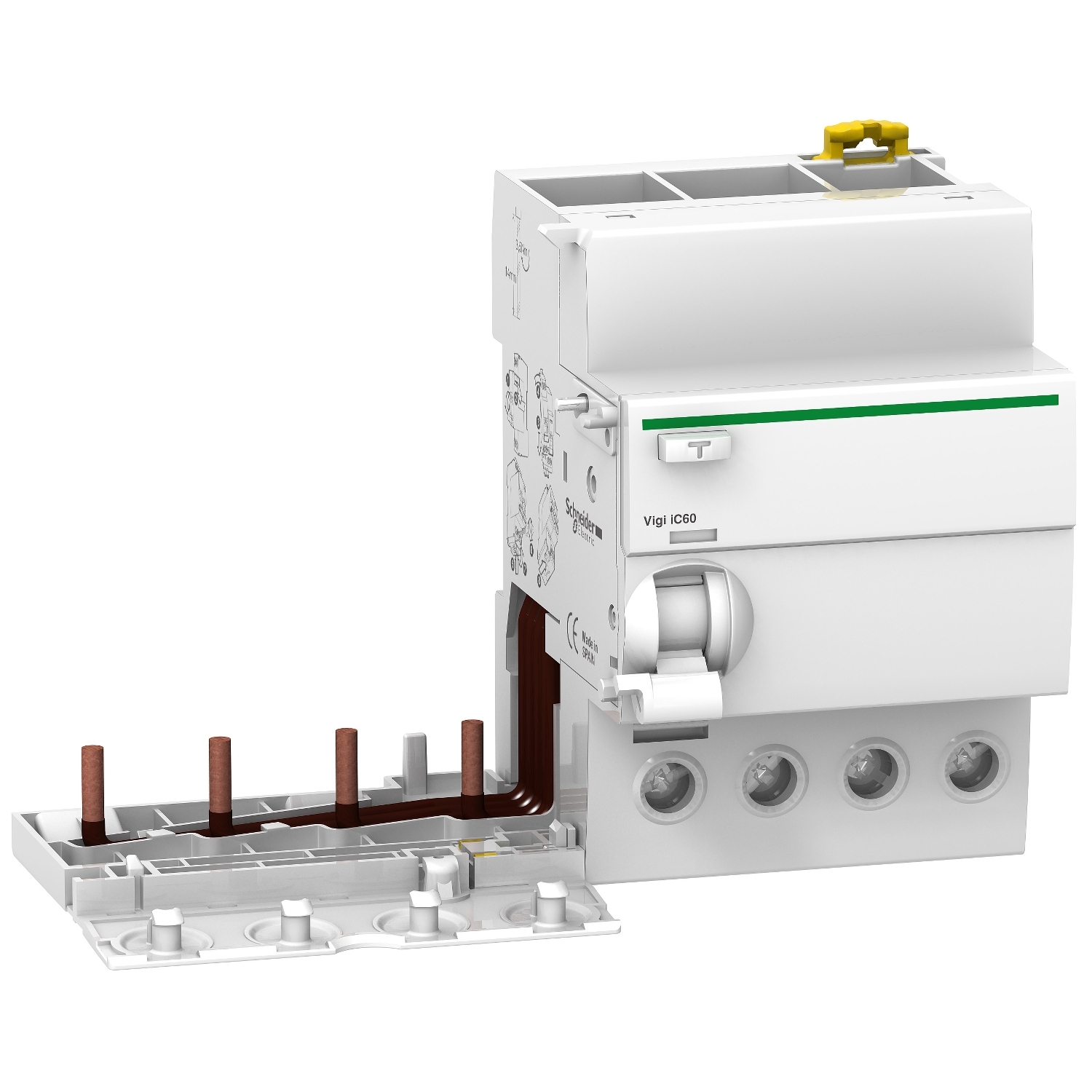

The Schneider Electric Acti9 Vigi iC60 A9V61463 is a four-pole modular add-on residual current device designed to work with Acti9 iC60 or Reflex iC60 circuit breakers. It is rated 63 A and provides earth leakage protection with 30 mA sensitivity using Type A-SI (Super Immunised) technology, which improves immunity to electrical interference and polluted or corrosive environments. The device uses voltage-independent residual current tripping, helping ensure reliable protection even when the supply voltage varies. It protects against indirect-contact electric shock and fire hazards, and when combined with a compatible iC60 breaker it also contributes to protection against short circuits and cable overloads. The A9V61463 complies with IEC 61009-1 and EN 61009-1. It has a rated operational voltage of 400–415 V AC, a rated insulation voltage of 500 V AC, and a rated impulse withstand voltage of 6 kV. The unit mounts on a DIN rail, occupies seven 9 mm pitches, and measures 135 mm (W) × 91 mm (H) × 73.5 mm (D), with a net weight of 0.245 kg. It offers IP20 terminal protection and IP40 when installed in a modular enclosure, operates from -25 °C to +60 °C, and can be stored from -40 °C to +85 °C. With a total lifecycle carbon footprint of 8 kg CO₂ eq. and a 28% recyclability potential, it supports more sustainable installation practices.
