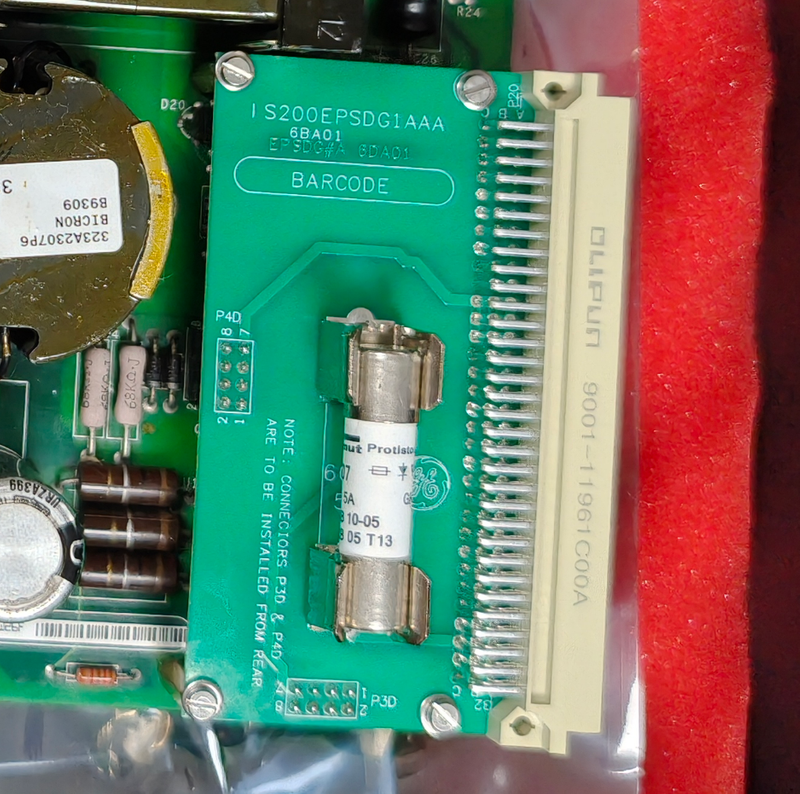

The IS200EPSDG1A (Exciter Regulator Power Supply Daughter Board) is a highly integrated, high-reliability power supply daughter board designed by General Electric (GE) for its EX2100 Excitation Control System. As a critical component of the EPSMG2 module, the IS200EPSDG1A is primarily used to enhance the input voltage adaptability of the power supply module, strengthen the system's electrical isolation performance, and provide essential overcurrent protection functions. This board is widely applied in both simplex and redundant configurations within EX2100 regulator control systems and is one of the core components ensuring stable operation of the excitation control system.
The design of the IS200EPSDG1A fully considers the high-reliability requirements of industrial environments. It utilizes high-withstand voltage components and an optimized circuit layout to ensure stable power output even under harsh operating conditions. Its tight integration with the EPSMG2 allows the entire power module to adapt to a wider range of input voltages, meeting the needs of diverse field applications.
II. Main Functions and Features
1. High Voltage Adaptability
The IS200EPSDG1A enables the EPSMG2 to safely accept higher input voltages by optimizing creepage distances and electrical clearances. This characteristic makes it particularly suitable for applications requiring power take-off from high-voltage DC links, such as large generator sets and industrial drive systems.
2. Input Overcurrent Protection
The daughter board integrates a fuse on the power input path. This fuse disconnects the power supply under abnormal conditions, protecting subsequent circuits from damage. Located between the regulator power source (DC link) and the buck regulator, it provides reliable short-circuit and overload protection.
3. Enhanced Electrical Isolation
The layout design of the IS200EPSDG1A not only improves voltage withstand capability but also enhances the isolation between the power module and control circuits. This reduces the impact of common-mode interference and ground loop noise on the system, thereby improving overall system immunity.
4. Modular Design
As a daughter board, the IS200EPSDG1A features a standardized interface design, allowing direct plug-in mounting onto the EPSMG2. This facilitates on-site installation and replacement. Its modular structure simplifies system maintenance procedures and reduces spare parts costs.
5. Strong Compatibility
The IS200EPSDG1A is compatible with various control boards within the EX2100 series, including ERBP, ERRB, and ERIO. It can be seamlessly integrated into existing systems, suitable for both new projects and retrofits of older systems.
III. . Application Areas
The IS200EPSDG1A is primarily used in the following scenarios:
1. Power Plant Excitation Systems
Whether for new power plant construction or old system retrofits, the IS200EPSDG1A provides stable and reliable power support for the EX2100 regulator. Its high voltage adaptability is particularly suitable for large generator sets requiring power from a DC bus.
2. Industrial Drive Control Systems
In industrial applications requiring precise control of motor excitation, the IS200EPSDG1A serves as a core daughter board within the power module, ensuring power quality and system stability for the control system.
3. Redundant Power Configurations
In high-reliability redundant control systems, the IS200EPSDG1A can be used with multiple EPSMG2 modules to achieve hot-standby power module configurations, thereby increasing the system's Mean Time Between Failures (MTBF).
IV. Installation and Usage Instructions
1. Pre-Installation Check
Verify the IS200EPSDG1A is free from physical damage, and connectors are not bent or contaminated.
Check that the EPSMG2 module is intact and the installation slot is clean.
2. Installation Steps
Align the IS200EPSDG1A with the corresponding slot on the EPSMG2 and push gently until fully seated.
Ensure the board is firmly secured without any looseness.
Connect the DC link input power and verify the fuse is intact.
3. Pre-Power-On Check
Confirm all connectors are properly mated.
Verify the input power voltage is within the allowable range.
Ensure the system grounding is correct to avoid common-mode interference.
4. Operational Monitoring
After power-up, observe if the output voltages from the EPSMG2 are normal.
Check the IS200EPSDG1A area for any abnormal heating or odors.
Regularly record the power module's operating status for future fault analysis.
V. Maintenance and Troubleshooting
1. Routine Maintenance
Every six months, check the cleanliness of the IS200EPSDG1A surface and clean dust using dry compressed air.
Inspect the fuse for continuity and replace if necessary.
Check connector tightness and re-seat if needed to ensure good contact.
2. Common Faults and Handling
| Fault Phenomenon | Possible Cause | Handling Method |
| EPSMG2 has no output | Missing input power or blown fuse | Check input power, replace fuse |
| Unstable output voltage | Input voltage fluctuation or poor board contact | Check input voltage, re-seat IS200EPSDG1A |
| Board overheating | High ambient temperature or poor ventilation | Improve ventilation, lower ambient temperature |
| System Alarm | Power module fault or overcurrent | Check EPSMG2 status, replace faulty board |
