Parameter | Details |
General | |

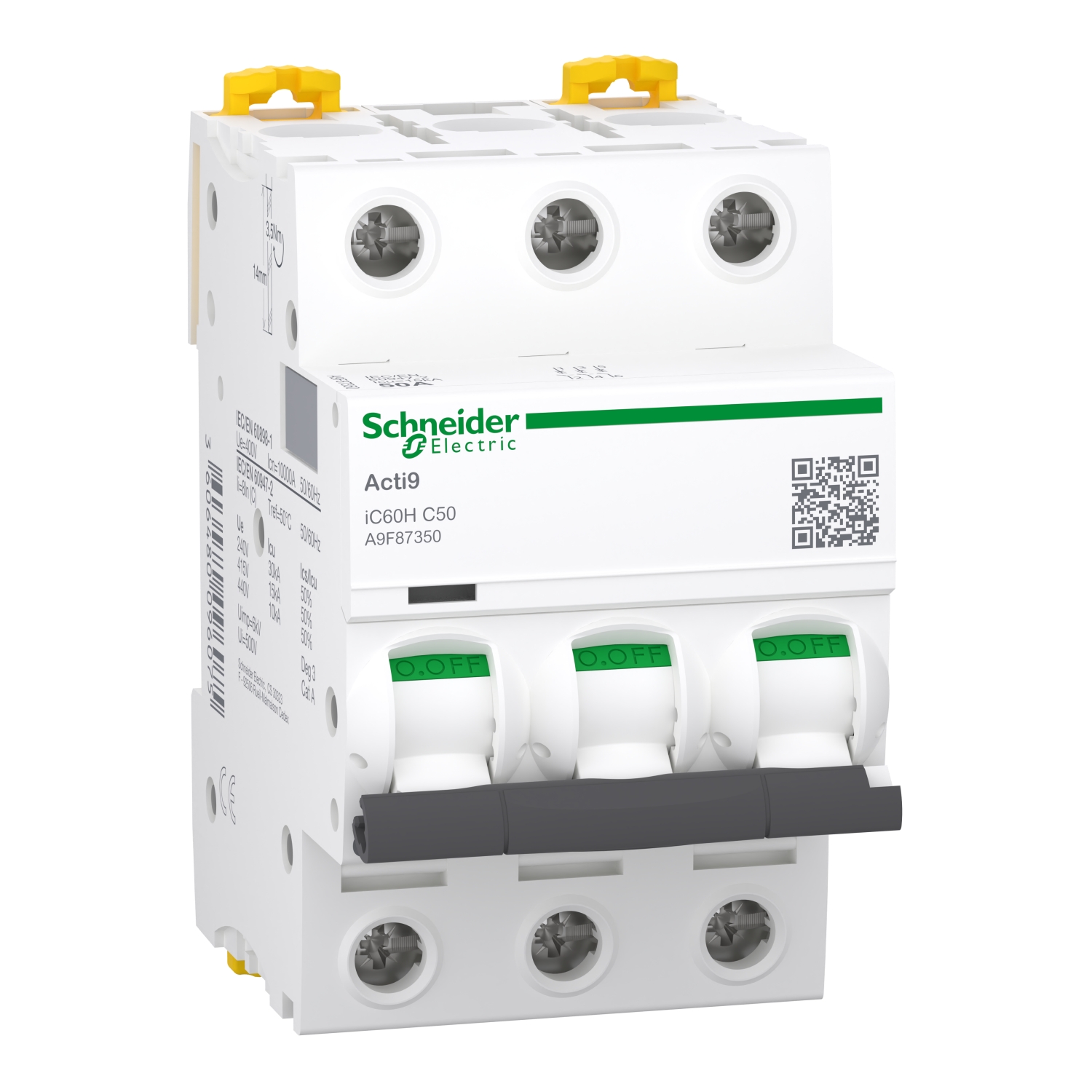

Product Model | A9F87350 |
Range | Acti9 |
Product Name | Disbo iC60 |
Device Short Name | iC60H |
Device Application | Distribution |
Poles Description | 3P |
Number of Protected Poles | 3 |
Rated Current (In) | 50 A |
Network Type | AC / DC |
Trip Unit Technology | Thermal‑magnetic |
Tripping Curve | C |
Magnetic Tripping Limit | 8 x In ± 20% (typical for C curve) |
Suitability for Isolation | Yes (conforming to EN/IEC 60898‑1 and EN/IEC 60947‑2) |
Utilisation Category | Category A (EN/IEC 60947‑2) |
Breaking Capacity (Icu) | |
– EN/IEC 60947‑2 (AC) | 30 kA at 220…240 V AC 50/60 Hz |
– EN/IEC 60898‑1 (AC) | 10,000 A at 400 V AC 50/60 Hz |
Service Breaking Capacity (Ics) | Not specified in provided document |
Limitation Class | Class 3 (EN/IEC 60898‑1) |
Rated Operational Voltage (Ue) | 220…240 V AC 50/60 Hz (per image); other voltages available per series |
Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz (EN/IEC 60947‑2) |
Rated Impulse Withstand Voltage (Uimp) | 6 kV (EN/IEC 60947‑2) |
Network Frequency | 50/60 Hz |
Durability | |
Mechanical Durability | 20,000 cycles |
Electrical Durability | 10,000 cycles |
Contact Position Indicator | Yes (toggle) |
Control Type | Toggle |
Local Signalling | Trip indicator (VisiTrip) |
Mounting & Physical | |
Mounting Mode | Clip‑on (35 mm DIN rail) |
Removable Comb Busbar | Installed; compatible top or bottom |
Connection Pitch | 18 mm between phases |
Number of Pitches | 6 (54 mm total width) |
Height | 85 mm |
Width | 54 mm |
Depth | 78.5 mm |
Net Weight | 0.375 kg |
Colour | White (RAL9003) |
Terminals & Connections | |
Connection Type | Single terminal (top or bottom), double tunnel |
Rigid Conductor (copper) | 1…35 mm² (1 cable); 3 x 16 mm² with accessory |
Rigid Aluminium (with accessory) | 1 x 50 mm² |
Flexible Conductor (copper) | 1…25 mm² |
Flexible with Ferrule (copper) | 1…25 mm² |
Flexible (Cu/Al) with Ring Terminal | Via accessory |
Multiple Flexible Conductors | 3 x 10 mm² with accessory |
Wire Stripping Length | 14 mm (top or bottom) |
Tightening Torque | 3.5 N·m (top or bottom) |
Earth‑leakage Protection | Separate add‑on block required |
Environmental & Protection Ratings | |
Standards Compliance | EN/IEC 60947‑2, EN/IEC 60898‑1 |
IP Degree (terminals) | IP20 (IEC 60529) |
IP in Enclosure | IP40 (Insulation class II) |
Pollution Degree | 3 (EN/IEC 60947‑2) |
Overvoltage Category | IV |
Tropicalisation | 2 (IEC 60068‑1) |
Relative Humidity | 95% at 55°C |
Operating Altitude | 0…2000 m |
Operating Temperature | -35°C … +70°C |
Storage Temperature | -40°C … +85°C |
Sustainability & Compliance | |
Halogen‑free status | Product contains halogen above thresholds |
PVC‑free | Yes |
Silicone‑free | No |
PFAS | Contains PFAS chemicals |
Recyclability Potential | 54% |
EU RoHS Directive | Compliant |
REACH Regulation | Contains SVHC above threshold |
SCIP Number | 26F71d1‑98cf‑4280‑8725‑455b9a6b2fb9 |
Packaging with recycled cardboard | Yes |
Packaging without single‑use plastic | Yes |
WEEE Label | Required for EU disposal (separate collection) |
Repair / Take‑back | No / No |
Logistics | |
Country of Origin | Bulgaria (BG) |
Warranty | 18 months |
Package 1 (Single unit) | 1 pc; H 7.2 cm × W 5.0 cm × L 9.5 cm; weight 402 g |
Package 2 (Box of 4) | 4 units; H 8.0 cm × W 9.8 cm × L 22.5 cm; weight 1.668 kg |
Package 3 (Pallet of 44) | 44 units; H 30 cm × W 30 cm × L 40 cm; weight 19.053 kg |
Carbon Footprint (Lifecycle) | |
Total | 69 kg CO₂ eq. |
Manufacturing (A1‑A3) | 3 kg CO₂ eq. |
Distribution (A4) | 0.1 kg CO₂ eq. |
Installation (A5) | 0 kg CO₂ eq. |
Use Phase (B2, B3, B4, B6) | 65 kg CO₂ eq. |
End‑of‑life (C1‑C4) | 1 kg CO₂ eq. |
Environmental Disclosure | Product Environmental Profile available |
