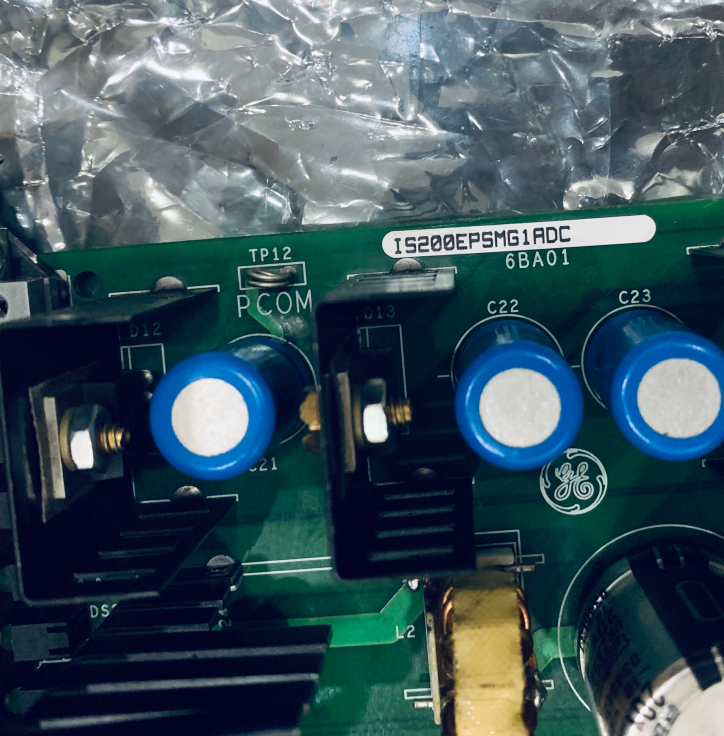

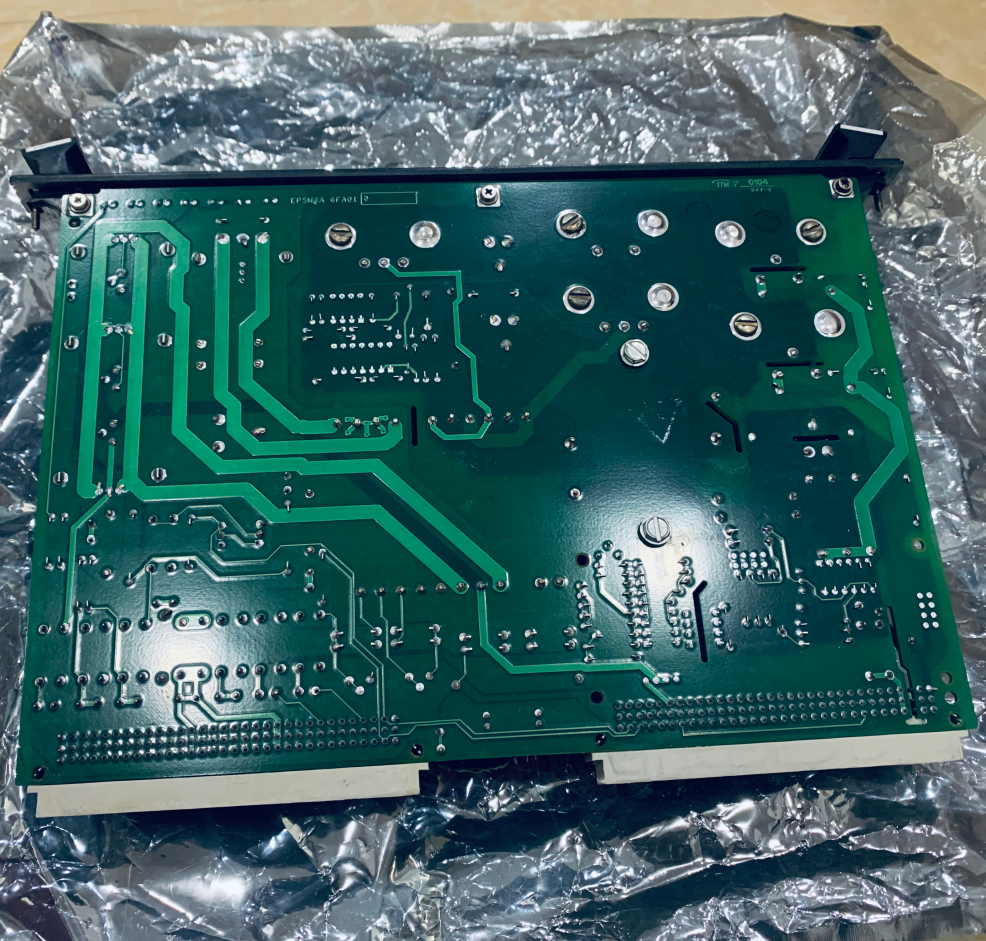

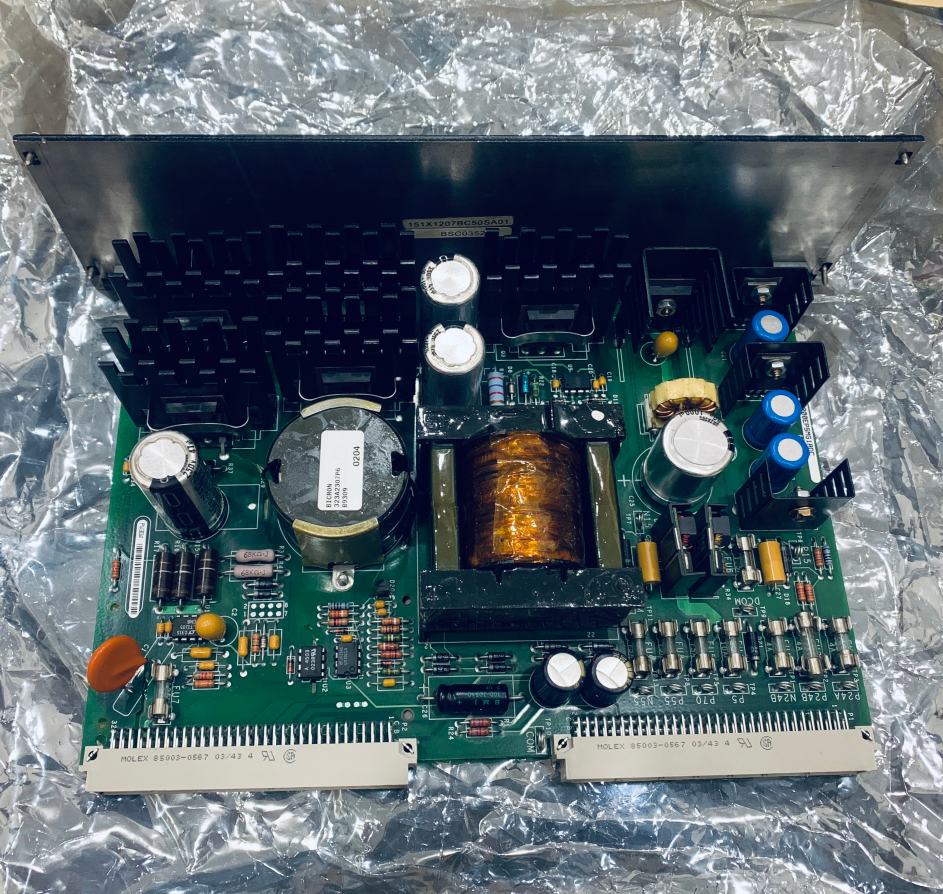

The IS200EPSMG1A is an Exciter Power Supply Module designed by General Electric (GE) for its EX2100™ Excitation Control System. This module is the version within the EPSM series specifically dedicated to the EX2100 excitation control system. Its primary function is to convert the 125 V dc input voltage from the Power Distribution Module (PDM) into various stable DC voltages required by the control system, providing reliable power to controllers M1, M2, C, and their associated peripheral devices.
The IS200EPSMG1A module utilizes a two-stage topology consisting of a buck-regulator and a push-pull inverter. The input voltage is first converted to a 50 V dc intermediate voltage by the buck-regulator. This intermediate voltage then passes through the push-pull inverter and transformer to generate multiple isolated outputs. The transformer provides high-voltage isolation between the input power source and the control system, ensuring equipment and personnel safety.
In an EX2100 excitation control system, three independent IS200EPSMG1A modules are typically configured, installed in the M1, M2, and C sections of the Exciter Power Backplane (EPBP), providing independent power to the three controllers. Each EPSMG1A delivers power to the EPBP via backplane connectors P1 and P2, which is then distributed to the EBKP backplane and other boards through cabling.
Output voltages of the IS200EPSMG1A module include:
+5 V dc: Powers digital circuits on control boards
±15 V dc: Powers analog circuits
+24 V dc (P24A): Powers the control backplane
±24 V dc (P24B/N24B): Powers fans, de-excitation module, crowbar module, ground detector module, and field voltage/current module
+70 V dc (Isolated): Provides contact wetting voltage for terminal boards
The module front panel features seven green LED indicators, each indicating the status of an individual output voltage. Multiple fuses inside the module provide overcurrent protection for the output circuits. Additionally, the module provides 13 test points for convenient on-site measurement of output voltages and commons. The IS200EPSMG1A module has no adjustable jumpers; all parameters are set at the factory.
II. Main Functions
The primary functions of the IS200EPSMG1A include, but are not limited to, the following:
1. Input Voltage Conversion
The IS200EPSMG1A receives a 125 V dc input voltage (allowable range 80-140 V dc) from the Power Distribution Module (PDM) and converts it into multiple stable DC voltages required by the control system via internal circuitry.
2. Multiple Isolated Outputs
Through the push-pull inverter and transformer, the IS200EPSMG1A generates multiple mutually isolated output voltages to meet the power requirements of different loads:
+5 V dc: Powers digital circuits on control boards
±15 V dc: Powers analog circuits on control boards
+24 V dc (P24A): Powers the control backplane
±24 V dc (P24B/N24B): Powers fans, de-excitation module, crowbar module, ground detector module, and field voltage/current module
+70 V dc (Isolated): Provides contact wetting voltage for terminal boards
3. High-Voltage Isolation
The transformer in the push-pull inverter provides electrical isolation between the high-voltage input side and the low-voltage output side, with isolation levels meeting industrial safety standards, protecting control circuits and personnel.
4. Status Indication
The front panel features seven green LED indicators, each corresponding to an output voltage. When an output voltage is normal, its corresponding LED illuminates, providing power status indication for operation and maintenance personnel.
5. Overcurrent Protection
Each output circuit is equipped with fuses. In case of a load short circuit or overcurrent, the fuse blows, protecting the module and downstream equipment. Refer to the technical specifications table for specific fuse configurations.
6. Test Points
The module provides 13 test points for conveniently measuring output voltages and commons during commissioning and troubleshooting.
7. Redundant Architecture Support
In the EX2100 excitation control system, the M1, M2, and C sections each have an independent IS200EPSMG1A module for power supply. If any module fails, it can be replaced online (in redundant systems) while the system is running, ensuring continuous operation of the excitation control system.
III. System Applications
1. Application in EX2100 Excitation Control System
The IS200EPSMG1A is the core power module powering controllers and peripheral devices within the EX2100 Excitation Control System. In a typical triple-redundant EX2100 system, three EPSMG1A modules are installed in the M1, M2, and C sections of the EPBP backplane, independently powering their respective controllers. Its roles within the system include:
Controller Power Supply: Provides +5 V, ±15 V, and +24 V operating power for boards in the M1, M2, and C controllers (e.g., DSPX, EISB, EMIO, ESEL).
Peripheral Device Power Supply: Provides ±24 V for fans, de-excitation module, crowbar module, ground detector module, and field voltage/current module.
Contact Wetting: Provides isolated +70 V for contact wetting on terminal boards (e.g., ECTB, EXTB), ensuring reliable contact detection.
Redundant Power Supply: The three modules operate independently. If one module fails, the remaining two modules can still maintain the operation of their corresponding controllers, ensuring uninterrupted excitation system function.
2. Typical Application Scenarios
Power supply for synchronous generator excitation control systems
EX2100 excitation systems for steam turbine generators
Power supply for hydro turbine generator excitation systems
Excitation systems for gas turbines
Upgrades and retrofits for industrial excitation systems
IV. Detailed Interface Description
1. Backplane Connectors P1 and P2
The IS200EPSMG1A module connects to the EPBP backplane via two backplane connectors, P1 and P2, delivering the various output voltages to the backplane for distribution to other boards and connectors. Pin assignments for P1 and P2 are detailed in related EPBP documentation.
2. EPSD Daughter Board Connectors P3 and P4
The IS200EPSMG1A module features P3 and P4 connectors for mounting the EPSD daughter board (used only when upgrading EPSMG1 to EPSMG2 for regulator control applications). These connectors are typically unused on the EPSMG1A. Their signal definitions are as follows:
| Connector | Pins | Signal | Description |
| P3/P3D | 1-8 | M*_PWR_IN_P | Current-limited DC link positive input to EPSM (for regulator applications) |
| P4/P4D | 1-8 | M*_PWR_IN_N | DC link negative input to EPSM, PSCOM (for regulator applications) |
Note: M can be M1 (for ERBP) or M2/C (for ERRB) depending on the installation location.
3. Front Panel LED Indicators

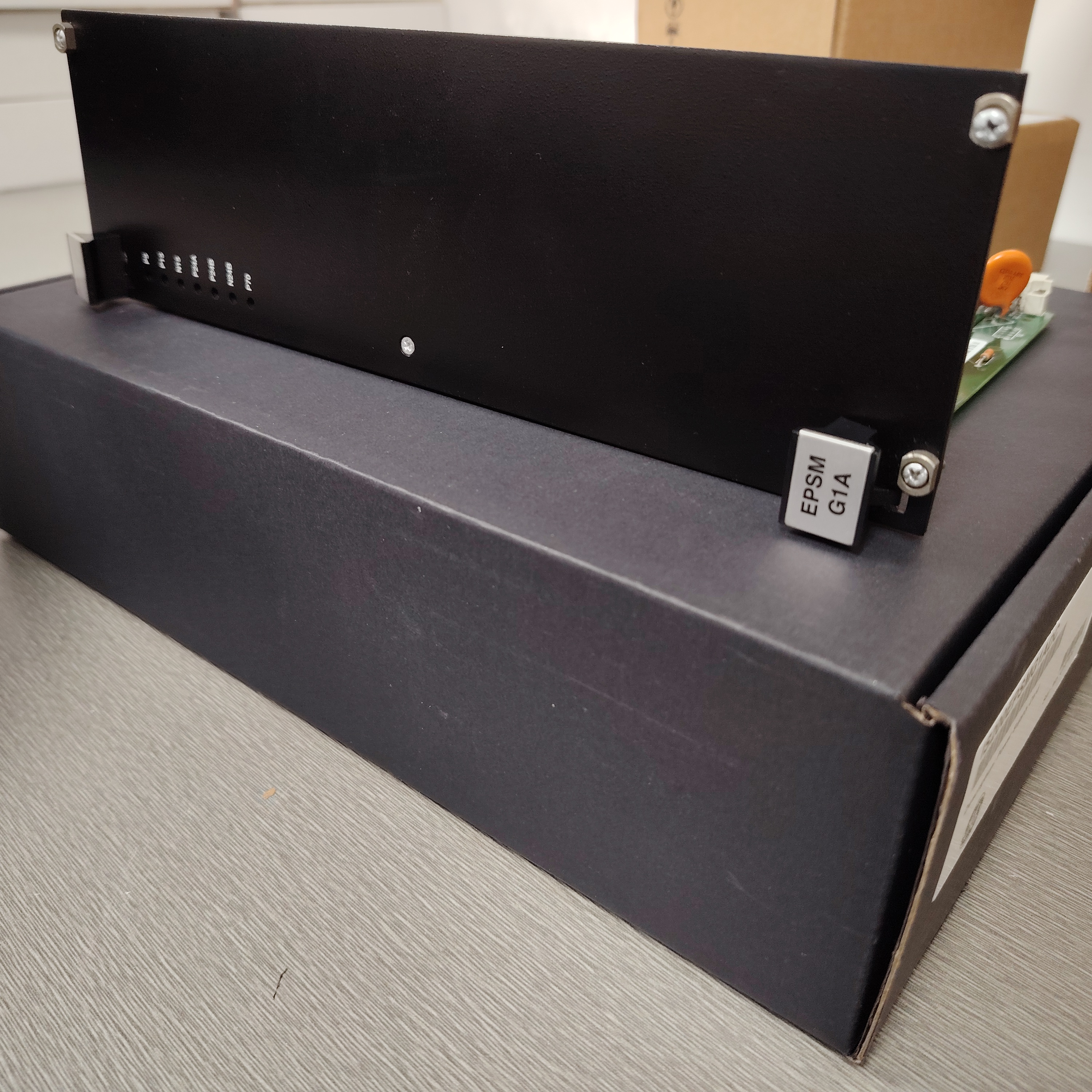

Seven green LEDs on the module front panel correspond, from top to bottom, to:
| LED | Corresponding Output Voltage |
| 1 | +5 V |
| 2 | +15 V |
| 3 | -15 V |
| 4 | +24 V A |
| 5 | +24 V B |
| 6 | -24 V B |
| 7 | +70 V |
During normal operation, all LEDs should be steadily lit. If an LED is off, it indicates that the corresponding output voltage is missing, possibly due to module failure or a blown fuse.
4. Fuses
The IS200EPSMG1A module contains multiple fuses internally for overcurrent protection on each output. Fuses are located inside the module; replacing the module does not require单独 fuse replacement. If a fuse blows, it typically indicates a fault in that circuit; the load should be investigated before replacing the module.
5. Test Points
Thirteen test points are located inside the module; refer to the layout diagram in the document for specific locations. A multimeter can be used to measure voltages between test points and their corresponding commons to verify output status. Test point descriptions are provided in the technical specifications table.
V. Installation and Replacement
1. Mounting Location
The IS200EPSMG1A module inserts into designated slots in the EPBP backplane. Simplex excitation systems use one slot in the M1 section. Redundant excitation systems use slots in the M1, M2, and C sections. During installation, ensure the module is inserted into the correct section; incorrect insertion may prevent the control system from functioning properly or damage equipment.
2. Offline Replacement Procedure (System De-energized)
Safety Warnings:
WARNING: To prevent electric shock, turn off power to the excitation system and follow the complete de-energizing procedures outlined in the Installation and Startup Guide (GEH-6631). Adhere to all local Lock-out/Tag-out practices. Allow time for capacitors to discharge.
CAUTION: To prevent component damage caused by static electricity, treat all modules with static sensitive handling techniques. Wear a wrist grounding strap and store modules in anti-static bags.
Replacement Steps:
Verify Power Off: Ensure the excitation system is completely de-energized. Before opening the control cabinet door, check that power indicators on the EPDM and EPSMG1 modules are off.
Remove Old Module:
Loosen the screws at the top and bottom of the faceplate near the ejector tabs (screws are captive).
Unseat the module by raising both ejector tabs.
Gently pull the module straight out of its EPBP slot using both hands.
Install New Module:
Align the new module with the correct slot (M1, M2, or C section) and push it in along the guides.
Using thumbs, firmly press the top and bottom of the faceplate simultaneously to initially seat the module.
Alternately tighten the top and bottom faceplate screws evenly to ensure the module is squarely seated.
Restore Power: Apply power to the section from the EPDM. Check that all LED indicators on the EPSMG1 module are lit and that the green power LEDs on the corresponding controller boards are also lit.
3. Online Replacement Procedure (Redundant System)
In a redundant excitation control system, a failed IS200EPSMG1 module can be replaced while the excitation system is running.
Risk Warning: During online replacement, other controllers, power supplies, and terminal boards remain energized and active. Extreme caution must be taken to avoid touching other live parts or causing short circuits.
Replacement Steps:
Identify Failed Module: Confirm the failed EPSMG1 module via front panel indicators (some or all LEDs off) and observe the status indicators on the corresponding controller.
Verify Control Transfer: Check LEDs on the ESEL board to confirm that control has been transferred to the other master controller.
De-energize Section: On the EPDM, turn off the power switch for the section containing the failed module, de-energizing that section.
Verify De-energized: Check that the LED indicator for the corresponding EPDM section is off, and all power indicators on the EPSMG1 module and corresponding controller are off.
Remove Failed Module: Same as offline procedure.
Install New Module: Same as offline procedure.
Test Output Voltages: Output voltages of the new module can be tested at the J602 connector (refer to GEI-100463).
Restore Power: Re-apply power to the section from the EPDM. Check that all LED indicators on the EPSMG1 module are lit and that the green power LEDs on the corresponding controller boards are also lit.
