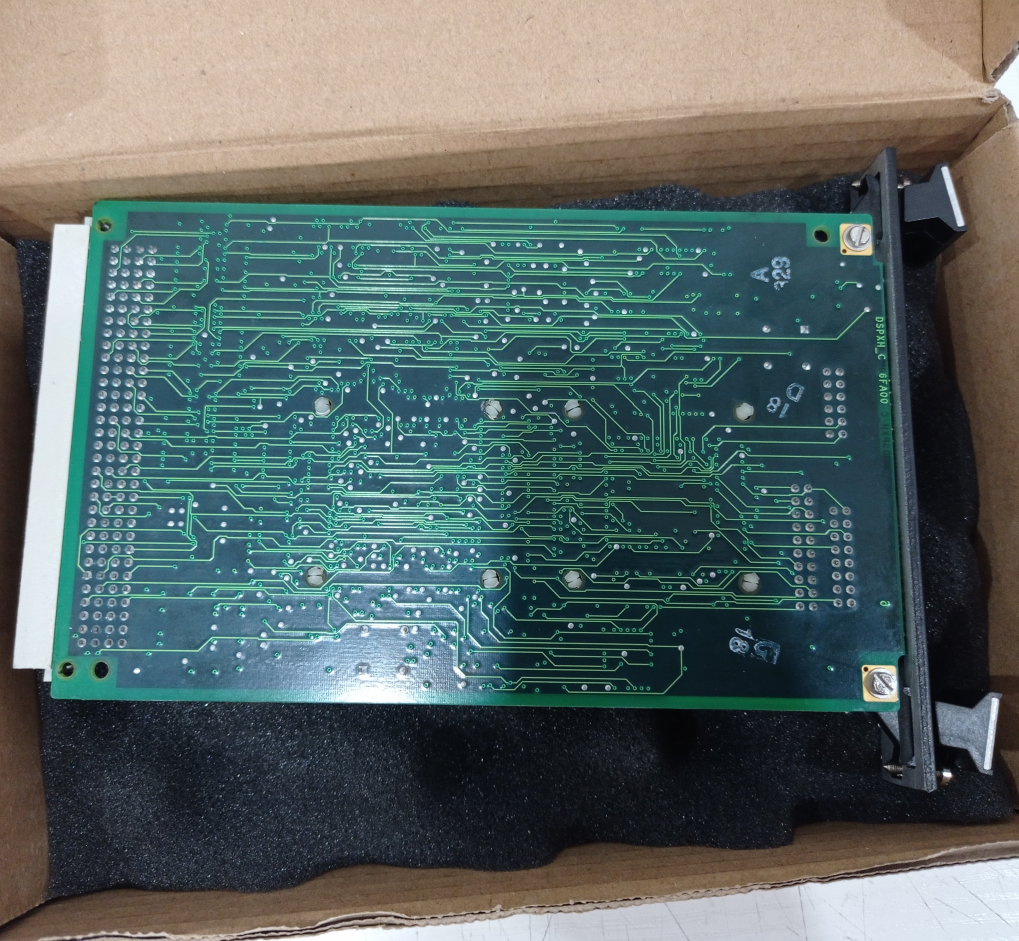

The GE IS200DSPXH2CAA Digital Signal Processor Control Board represents a sophisticated and high-performance primary controller module engineered for critical industrial automation applications. This advanced control board serves as the cornerstone of the Innovation Series™ drives, providing comprehensive bridge and motor regulator functions alongside precise gating control. Additionally, the IS200DSPXH2CAA is fully compatible with the EX2100™ Excitation Control systems, where it manages generator field control functions with exceptional reliability and precision.
The IS200DSPXH2CAA integrates a powerful digital signal processor, extensive memory resources, and custom application-specific integrated circuit logic to deliver robust processing, interfacing, and control capabilities. This board is designed to operate in demanding industrial environments, offering the flexibility and performance required for both drive and excitation control applications. The IS200DSPXH2CAA is a specific variation within the DSPX board family, featuring conformal coating for enhanced environmental protection and reliability in challenging operating conditions.
Functional Description
The IS200DSPXH2CAA Digital Signal Processor Control Board functions as the primary intelligence hub for Innovation Series™ drive systems, executing critical bridge regulation, motor control algorithms, and gating sequence generation. In EX2100™ Excitation Control applications, the IS200DSPXH2CAA assumes responsibility for generator field regulation, ensuring stable and precise excitation current control.
The architecture of the IS200DSPXH2CAA incorporates a high-performance digital signal processor operating at 60 MHz, supported by comprehensive memory subsystems and a custom ASIC that implements specialized logic functions. This combination enables the IS200DSPXH2CAA to handle complex real-time control algorithms while maintaining deterministic response times essential for industrial drive and excitation applications.
The IS200DSPXH2CAA board provides extensive interface capabilities through its backplane connector, enabling communication with bridge interface cards, exciter interface cards, and various I/O subsystems. The board supports multiple serial communication channels, including ISBus™ interfaces for high-speed data exchange with Application Control Layer systems and local expansion functions.
Standard Hardware Features
The IS200DSPXH2CAA is built around a robust hardware platform that ensures reliable operation in demanding industrial environments. The digital signal processor core operates at 60 MHz, providing ample computational power for complex control algorithms. Four external interrupts are available to the DSP during normal operation, including stack overflow detection, inner loop load pulse synchronization, and two user-configurable inputs.
Memory resources on the IS200DSPXH2CAA include FLASH memory for DSP boot images, code execution storage, and configuration parameter retention, along with system history records for diagnostic purposes. RAM is provided for both data storage and code execution, ensuring optimal performance during operation. Non-volatile RAM preserves critical configuration data across power cycles, while add-only memory stores board revision identification information.
The IS200DSPXH2CAA incorporates sophisticated stack overflow detection mechanisms for both foreground and background stacks. If a stack overflow condition is detected, the board can generate an interrupt or, in the case of simultaneous overflows, initiate a hard reset to prevent system corruption. A watchdog timer, enabled and periodically toggled by the DSP, provides an additional layer of system reliability by generating a hard reset if a timeout occurs.
Specialized Hardware Functions
The IS200DSPXH2CAA leverages custom logic implemented in Field Programmable Gate Arrays and ASICs to provide specialized functions that enhance its capabilities. The primary ASIC on the IS200DSPXH2CAA contains most support and specialized functions, including an ASIC revision identification register readable by the DSP for software version management.
Four serial interfaces are provided through the P1 backplane connector, including two five Mb/s ISBus™ interfaces configurable as either master or slave devices. An asynchronous TTL interface supports connection to a PC-based configuration tool, while another asynchronous TTL interface facilitates communication with a programmer board.
The IS200DSPXH2CAA generates synchronizing load pulse signals that perform critical timing functions. The inner loop load pulse captures I/O values including bridge voltage and current measurements, motor feedback, generator parameters, VCO readings, tachometer counters, and discrete inputs. This signal also synchronizes ISBus channels, software execution, and gating outputs to bridges. A separate application loop load pulse, operating at sub-multiples or multiples of the inner loop, captures additional application VCO values and optional tachometer readings.
A six-bit register is provided to facilitate firmware synchronization, incrementing on each inner loop load pulse and resetting on each application loop load pulse. This mechanism ensures precise coordination between different control loops and I/O sampling events.
The IS200DSPXH2CAA includes a 24-bit free-running timer that serves as a reference for various timing-dependent functions. A marker pulse is available for latching or resetting up/down counters, enabling precise position or speed measurement applications.
The IS200DSPXH2CAA offers extensive I/O capabilities through its backplane connector, supporting a wide range of analog and digital signals essential for industrial control applications. Five differential HIFI pair application inputs can be configured as two quadrature incremental tachometer interfaces with marker capability, driving 16-bit up/down counters. These inputs can alternatively function as five application layer VCO counters, single-channel tachometer interfaces, or up to ten discrete inputs.
Each differential input is filtered for three system clock cycles and is directly readable by the DSP through a buffer, providing flexibility in signal conditioning and interpretation. The five HIFI inputs maintain their present state when inputs are at the same level and change state when inputs are differentially opposite, ensuring reliable operation in noisy industrial environments.
Six inputs from the backplane are digitally filtered and directed to VCO counters, featuring 16-bit counters with capture registers latched by the inner loop load pulse and readable by the DSP. These inputs typically originate from technology-specific I/O cards, including bridge interface cards and exciter interface cards, enabling seamless integration with various system configurations.
The IS200DSPXH2CAA provides two PWM outputs operating at a fixed 24 kHz frequency with 10-bit resolution each, occupying a single 20-bit register. These outputs can drive instrumentation meters or other analog output devices, providing additional system monitoring and control capabilities.
Onboard Firmware
The IS200DSPXH2CAA stores its firmware in FLASH memory, organized into three main categories. The boot loader controls the power-up sequence and initialization process, and importantly, this component should not be reloaded in the field to prevent system corruption. The application code defines specific control functions for the drive or exciter product, implementing the algorithms and logic required for proper system operation.
Configuration parameters are loaded using the toolbox software, with exciter parameters transmitted over the Unit Data Highway. Drive parameters can be loaded through various communication channels, including serial ports, ISBus, or Ethernet connections depending on system configuration and available interfaces.
Indicating Lights and Diagnostics

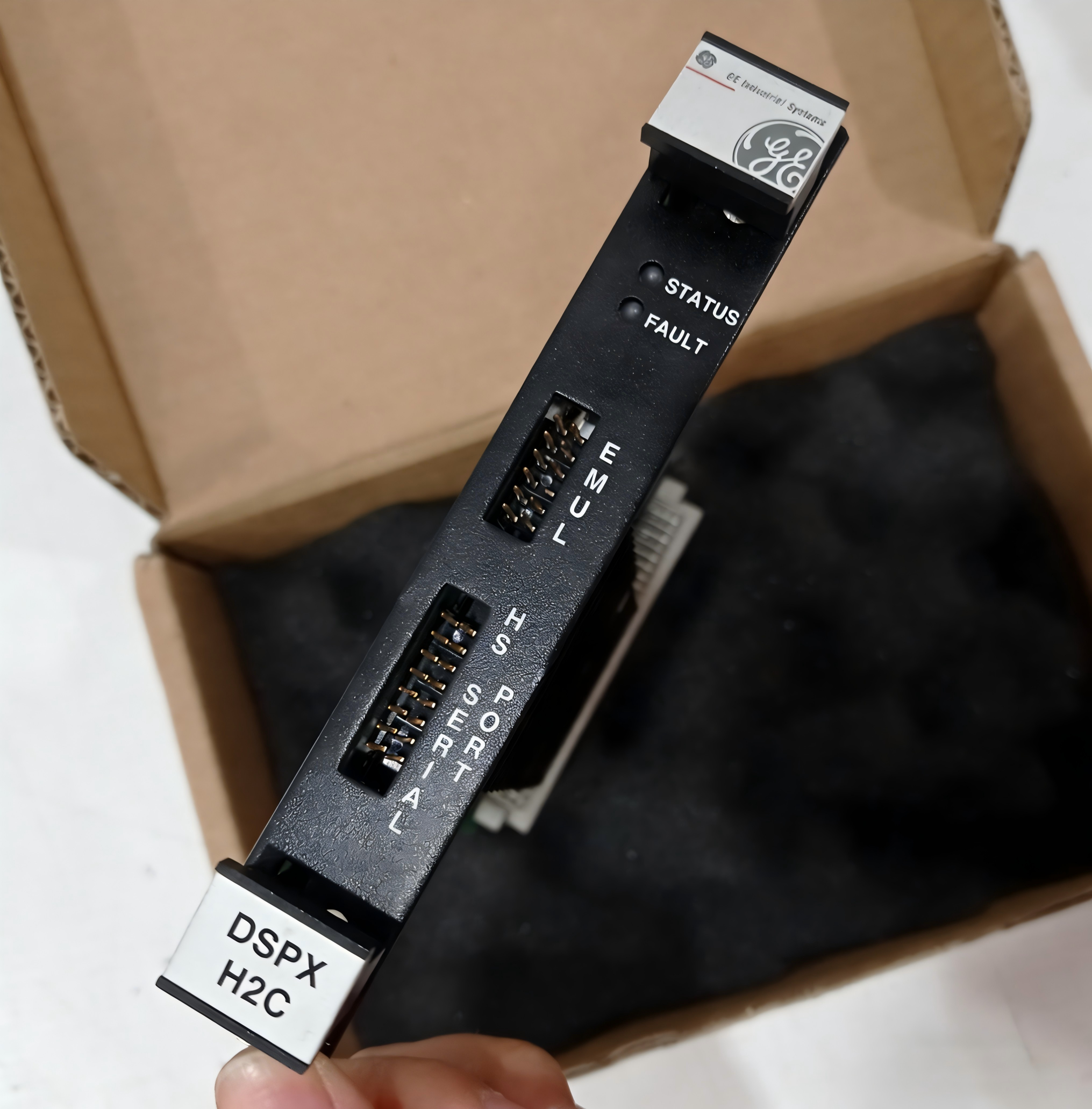

The IS200DSPXH2CAA features two LED indicators on its front panel that provide immediate visual status information. The DS1 FAULT LED illuminates red to indicate fault conditions, flashing or remaining on when a fault has occurred or during reset sequences. When no faults are present, this LED remains off, providing a quick visual confirmation of normal operation.
The DS2 STATUS LED provides operational status information using green illumination. When flashing, it indicates that the system is running normally. A steady on condition indicates the system is stopped, while the LED being off signifies a fault condition or that the system is in reset. These visual indicators enable rapid system status assessment without requiring additional diagnostic tools.
I/O Connectors and Interfaces
The IS200DSPXH2CAA includes three primary I/O connectors for system integration. The P1 backplane connector serves as the main interface to the system, providing all power and signal connections necessary for operation. The P5 DSP emulator port offers a JTAG-compatible scan interface for emulation and FLASH programming, located on the board front panel for convenient access. The P6 engineering monitor port connects to the DSP synchronous serial port at TTL levels, supporting terminal connections for engineering purposes only.
The P1 connector provides memory-mapped process bus address space with four chip select signals, supporting interfaces to bridge and customer I/O. Individual controls for a standard UART serial interface to a programmer board and a configuration tool are also provided, along with two additional ISBus proprietary serial interfaces for Application Control Layer or local expansion functions.
Handling and Installation Precautions
The IS200DSPXH2CAA Digital Signal Processor Control Board contains static-sensitive components that require careful handling to prevent damage. All replacement boards are shipped in anti-static bags and should be stored in anti-static bags or boxes when not installed. Personnel handling the IS200DSPXH2CAA should wear a wrist-grounding strap when handling boards or board components, and this should only be done after boards or components have been removed from potentially energized equipment and are at a normally grounded workstation.
For Innovation Series™ drives, it is essential to turn off power to the board and verify that no power exists before touching the IS200DSPXH2CAA or any connected circuits to prevent electric shock. Board connections should not be removed, inserted, or adjusted while power is applied to the equipment to prevent equipment damage.
For EX2100™ Excitation Control offline replacement, the exciter must be de-energized following complete lock-out/tag-out procedures. Verification that power indicators on the EPDM and EPSM power supplies are off, and that LEDs on the IS200DSPXH2CAA are extinguished, is required before proceeding.
For redundant excitation control online replacement, careful attention must be paid to the fact that other controllers, power supplies, and terminal boards remain energized and active. Control must be verified as transferred to the other master before proceeding with replacement of the failed IS200DSPXH2CAA.
Board Replacement Procedures
Replacement of the IS200DSPXH2CAA requires careful attention to installation procedures to ensure proper seating and operation. The board is inserted into the rack by firmly pressing the top and bottom simultaneously with thumbs to begin seating, then finishing by tightening the screws evenly at the top and bottom to ensure the board is seated squarely.
For Innovation Series™ drives, removal begins by ensuring the drive has been de-energized and testing circuits before touching. The screws at the top and bottom near the ejector tabs are loosened, the board is unseated by raising ejector tabs, and then gently pulled from the rack using both hands.
For EX2100™ excitation control offline replacement, the process involves disconnecting six fiber-optic cables from the EISB front panel, removing the IS200DSPXH2CAA with the attached EISB, separating the EISB, and attaching it to the replacement IS200DSPXH2CAA before installation.
After the IS200DSPXH2CAA is replaced, it must be reconfigured using the GE Control Systems Toolbox for the required procedures. The replaced board can be tested by transferring control from the active master to the inactive master and observing correct operation.
The IS200DSPXH2CAA is covered by GE's standard warranty terms, which detail warranty period and parts and service coverage. Detailed warranty information is available in the GE Terms and Conditions brochure included with customer documentation, and may be obtained separately from the nearest GE Sales Office or authorized GE Sales Representative.

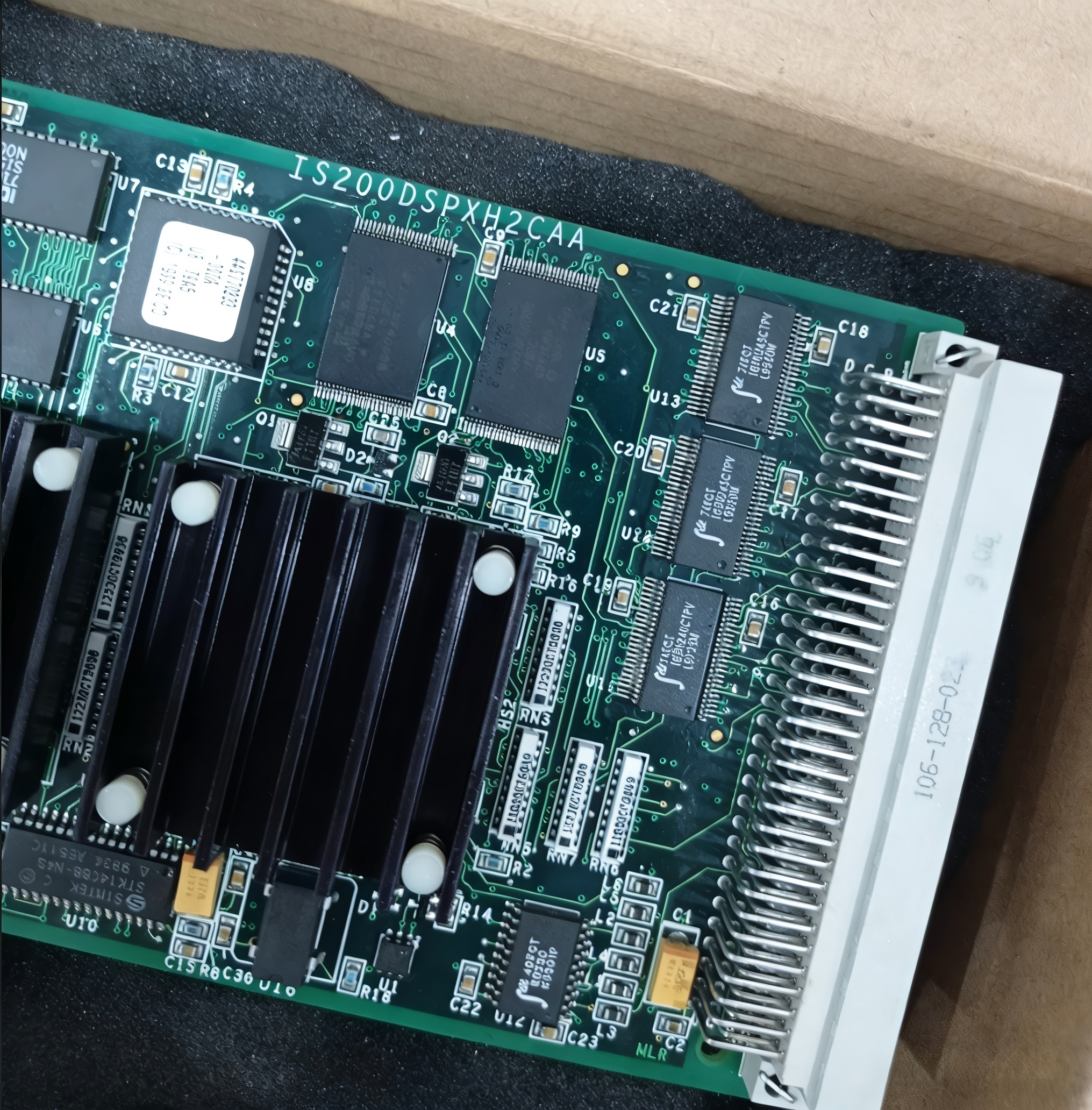

When ordering a replacement IS200DSPXH2CAA, accurate board identification is essential. The board is identified by its alphanumeric part number located near the edge, with the functional acronym DSPX indicating the Digital Signal Processor Control Board. The IS200DSPXH2CAA specific designation indicates a board with conformal coating and specific component configuration.
For technical support or ordering assistance, GE Energy Post Sales Service can be contacted at 1501 Roanoke Blvd., Salem, VA 24153-6492 USA, by phone at 1-888-GE4-SERV (888-434-7378) within the United States, or +1-540-378-3280 for international calls. Fax inquiries can be directed to +1-540-387-8606.
Applications and System Integration
The IS200DSPXH2CAA is specifically designed for integration into GE Innovation Series™ drive systems and EX2100™ excitation control systems. In drive applications, the board manages bridge and motor regulator functions, executing gating sequences for power semiconductor devices while monitoring voltage, current, and speed feedback signals. In excitation applications, the IS200DSPXH2CAA provides generator field control, ensuring stable voltage regulation and protecting the generator against abnormal operating conditions.
The board supports both simplex and redundant control configurations, with capabilities for online replacement in redundant systems to minimize system downtime. The IS200DSPXH2CAA integrates with GE's Application Control Layer systems, enabling coordinated control across multiple system components.
