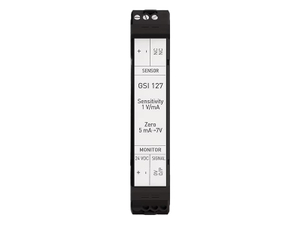

GSI127 244-127-000-017-A2-B04 Galvanic Separation Unit

GSI127 244-127-000-017-A2-B04 is a specialized galvanic separation unit designed by Meggitt to meet the core need for safe isolation and precise transmission of voltage signals in potentially explosive atmospheres. This model is a strategic combination of the A2 hazardous area explosion-proof certification and the B04 voltage-to-voltage (V/V) direct transmission mode, aimed at providing a reliable interface for critical monitoring systems using voltage-output sensors or signal conditioners in industries such as oil, gas, chemicals, and pharmaceuticals. This interface must meet the highest safety regulations while ensuring signal integrity.

In many industrial sites, sensors, transmitters, or local signal processing units often output standard voltage signals (e.g., 0-10 VDC, ±10 VDC). When this equipment is installed in hazardous areas, directly routing their signals to the control system in the safe area presents a dual challenge: first, the risk of ground loop interference and high-voltage surges due to potential differences; second, the direct electrical connection violates the fundamental principle of isolation and explosion protection for equipment in hazardous areas. The GSI127 A2-B04 unit is precisely the key to resolving this contradiction. With its robust 4 kV RMS electrical isolation barrier, it completely severs the direct electrical pathway between the hazardous and safe areas. Through its design compliant with the A2 standard explosion-proof certification, it ensures the isolation interface itself cannot become an ignition source. Simultaneously, the 1:1 high-precision voltage-follower transmission characteristic of its B04 configuration ensures faithful reproduction of the original voltage signal without added gain or attenuation. Therefore, choosing A2-B04 means equipping your field voltage signal monitoring chain with both a "safety shield" and a "signal bodyguard", strictly adhering to safety red lines while defending the authenticity and reliability of your data.

2. Model Decoding and Exclusive Configuration Details

The model number 244-127-000-017-A2-B04 precisely defines its application scenario and technical specifications:

• GSI127: Series base code, representing the galvanic separation unit platform with power supply, isolation, and signal conversion functions.

• A2: Mandatory Explosion-Proof Certification Identifier. This is the legal and technical credential authorizing the product's entry into specific hazardous areas.

• Core Meaning: Indicates that this specific GSI127 model has undergone the complete assessment and certification process for potentially explosive atmospheres, complying with international standards such as the ATEX Directive (2014/34/EU) and the IECEx scheme.

• Critical Obligation: "A2" itself is an index pointing to specific certification documentation. The user must obtain and follow the corresponding Explosion-Proof Certificate of Conformity provided by Meggitt. This certificate clearly specifies: the type of explosion protection employed by the product (e.g., Ex nA increased safety or [ia Ga] intrinsic safety as an associated apparatus), the applicable equipment category and zone (e.g., Group II, Zone 2), permissible environmental conditions, and crucially, the installation and wiring requirements.

• Appearance Feature: According to the overall documentation, products with ordering option A2 have a fully grey housing. This helps distinguish them on-site from the A1 version, which has blue sensor-side terminals.

• B04: Voltage Signal Interface Configuration Code. This code defines a mode of operation completely different from the B01/B02/B03 current modes.

• Interface Nature: The sensor side is a pure voltage input interface. Key Difference: The B04 unit does NOT provide power to the connected sensor or conditioner. Front-end devices must be independently powered.

• Core Function: Achieves 1 V/V ±1% isolated voltage transmission. That is, it samples, isolates, and buffers the input voltage with high accuracy and linearity, regenerating a voltage signal of equal amplitude but fully electrically isolated at the output.

• Signal Reference: The output has a static offset (zero point) of 10.00 VDC ±200 mV. This means that when a 10 V DC voltage is applied at the input, the output will also present 10 V DC. This design provides a symmetrical reference point, facilitating system processing of bidirectional or unidirectional voltage signals.

3. Typical Application Scenarios & System Integration Scheme

The GSI127 A2-B04 primarily serves monitoring systems within hazardous areas where the sensor or local transmitter outputs a voltage signal. Its typical application architecture is as follows:

Application Scenario 1: Local Intelligent Vibration Monitoring in Hazardous Areas

1. Field Layer (Zone 1/2):

• Device: Piezoelectric accelerometer + IPC707 charge amplifier configured for voltage output mode.

• Mode of Operation: The IPC707 is powered by a local safe-area power supply and converts the vibration signal into an analog voltage signal of 0-10 VDC or ±10 VDC.

2. Isolation & Interface Layer (Safe Area or Zone 2 Control Cabinet):

• Safety Isolation: Receives the voltage signal from the IPC707 in the hazardous area. Through 4 kV isolation and A2-certified design, ensures energy cannot be fed back dangerously to the hazardous area in case of a fault, also protecting control room equipment.

• Signal Fidelity: With a gain of 1 V/V, faithfully transmits the input vibration voltage signal (e.g., 7 VDC at rest, 10 VDC at full scale) to the safe area without amplitude distortion.

• Provides Common Reference: Its internal 10 VDC zero point provides a stable voltage reference for the entire signal chain.

• Device: GSI127 244-127-000-017-A2-B04.

• Core Role:

3. Control Layer (Safe Area):

• Device: DCS/PLC analog input module.

• Function: Receives the high-fidelity voltage signal from the GSI127 for monitoring, logging, and alarm generation.

Application Scenario 2: Proximity Probe System (Eddy Current Sensor)

• Proximity probes and their transmitters (e.g., certain IQSxxx series) often output a negative DC voltage proportional to gap (e.g., -2V to -18VDC). While the B05 model is designed specifically for inversion, the B04 can also be used for isolated transmission of such signals if the system design allows or the subsequent card can accept negative voltage, provided the signal falls within the B04's input common-mode range.

Why Must the A2-B04 Combination Be Chosen in Such Scenarios?

• Safety Compliance (A2): Using electrical equipment in hazardous areas is legally mandated to have corresponding explosion-proof certification. The A2 code ensures this GSI127 unit meets this mandatory requirement. Using a non-explosion-proof version or one with non-compliant certification is illegal and extremely dangerous.

• Electrical Compatibility (B04): The front-end device's (e.g., voltage-output IPC707) output is a voltage signal and it is already self-powered. Mistakenly selecting a current-mode (B01/B02/B03) GSI127, which would attempt to output 20VDC power, would cause a power conflict with the front-end device, potentially damaging it. The high-impedance voltage input characteristic of B04 is the only correct choice.

• Functional Match: The 1:1 voltage transmission of B04 perfectly matches applications requiring only isolation, not amplitude scaling.

4. Installation, Commissioning & Safety Compliance Key Points

1. Certificate Document Review: Upon unboxing, the primary task is to verify that the product model and the Explosion-Proof Certificate are completely consistent. Read the certificate carefully, focusing on the explosion-proof marking, applicable zone, installation category, ambient temperature limits, and any "special conditions for safe use".

2. System Parameter Matching Verification:

• Verify that the maximum output voltage (Uo) and internal capacitance/inductance of the front-end voltage-output device (e.g., IPC707) fall within the allowed input parameters (Ui, Ci, Li) specified in the GSI127 A2-B04 certificate. This is the "entity parameter matching" principle ensuring system explosion-proof integrity.

• Confirm that the front-end device is independently powered by a supply compliant with hazardous area requirements.

3. Safety Installation & Wiring:

• Installation Location: Ensure the GSI127 unit is installed in an area permitted by the certificate (e.g., safe area or within a Zone 2 Ex cabinet).

• Cables & Entry Devices: The signal cables connecting to the hazardous area and their sealing glands (cable entry devices) within the cabinet must comply with the explosion-proof type and standards stipulated in the certificate.

• Grounding: Strictly follow certificate requirements for system grounding and shield grounding. Typically, the shield of the signal cable on the safety barrier side should be grounded at a single point to a dedicated grounding busbar.

• Power Supply: Provide the GSI127 unit with a stable 18-30 VDC power supply.

4. Power-on Commissioning:

• Only proceed with power-on after confirming all safety measures are in place.

• Zero-Point & Static Test: With zero input to the front-end sensor, measure the output voltage of the front-end device, then measure the GSI127 output voltage. They should satisfy the relationship: V_out = V_in + (10V - V_ref), where V_ref is the voltage corresponding to the system-designed "zero physical quantity" (e.g., 7V for the IPC707). This test verifies the link is functioning normally.

• Dynamic Test: Apply a known physical quantity change and check if the monitoring system reading matches expectations, verifying the linearity of the entire chain.
