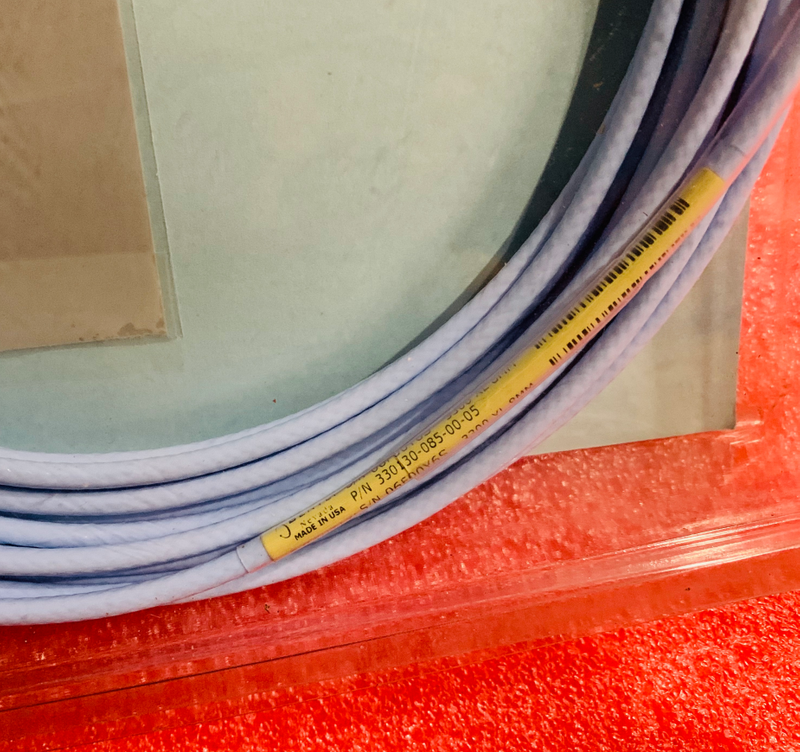

330130-085-00-05 is a Bently Nevada 3300 XL series standard extension cable with a total length of 8.5 meters (27.9 feet). This model features standard FEP-insulated cable and carries CSA, ATEX, and IECEx hazardous area approvals, making it suitable for intrinsically safe (IS) installations in explosive atmospheres.
It is an essential component of the 3300 XL 8 mm eddy current probe system, specifically designed for applications requiring the precise 8.5 meter length to match a 0.5 meter hazardous area approved probe to form a complete 9 meter intrinsically safe system. Typical applications include vibration monitoring of turbomachinery and compressors in Zone 0 and Zone 1 hazardous areas such as refineries, chemical plants, and natural gas facilities.
Model Breakdown: 330130-085-00-05 Configuration Details
Following Bently Nevada’s part number coding system (refer to datasheet Pages 18-19), the fields in this model number represent the following:
Field | Code | Parameter | Description |
Base Model | 330130
| 3300 XL Standard Extension Cable | Compatible with 3300 XL 8 mm and 3300 5 mm series probes |
Length Option | 085
| 8.5 meters (27.9 ft) | Total cable length for precise system total length matching |
Cable Option | 00
| Standard Cable | FEP-insulated triaxial cable, temperature rating -52°C to +177°C |
Agency Approval | 05
| CSA, ATEX, IECEx Hazardous Area Approvals | Certified for intrinsically safe installations in explosive atmospheres |
Key Configuration Note: The combination of 085 and 05 is the defining feature of this model. In a 3300 XL intrinsically safe system, when using a 0.5 meter hazardous area approved probe (e.g., 330101-XX-05-XX-05), an 8.5 meter hazardous area approved extension cable is required to form a complete 9 m IS system (0.5 m + 8.5 m = 9 m). This model is specifically designed for such precise total length matching in hazardous area applications.
Approvals & Conditions of Safe Use
Hazardous Area Certifications
330130-085-00-05 carries the following hazardous area approvals, suitable for installations in major industrial regions worldwide:
Certification | Type | Area Classification | Temperature Class |
ATEX / IECEx | Ex ia IIC T4/T5 Ga | Zone 0, 1, 2 | T5 @ Ta = -55°C to +40°C
T4 @ Ta = -55°C to +80°C |
cNRTLus | Class I, Zone 0, AEx/Ex ia IIC T4/T5 Ga | Class I, Groups A, B, C, D | Same as above |
Conditions of Safe Use (Intrinsically Safe Systems)
When used in an intrinsically safe system, the following conditions must be observed:
Barriers/Isolators: Must be installed with intrinsically safe zener barriers per Bently Nevada drawing 141092, or with galvanic isolators.
Entity Parameters (when connected to approved Proximitor Sensor):
Ui = -28V
Ii = 140 mA
Pi = 0.91 W
Ci = 47 nF
Li = 1460 μH
Installation Environment: The Proximitor Sensor must be installed in a non-hazardous area or within an approved explosion-proof enclosure.
Important: This cable must be used with hazardous area approved probes (e.g., 330101-XX-05-XX-05) and Proximitor Sensors (e.g., 330180-90-05) to maintain a complete intrinsically safe system. Mixing with non-approved components will void the hazardous area certification.
Application Scenarios & Selection Guide
330130-085-00-05 is suitable for the following typical applications:
Precise Total Length Matching for 9 m IS Systems: When using a 0.5 meter hazardous area approved probe, an 8.5 meter hazardous area approved extension cable is required to form a complete 9 m IS system (0.5 m + 8.5 m = 9 m). This is the primary application for this model, common in hazardous areas requiring long-distance signal transmission.
Medium-Distance Signal Transmission in Hazardous Areas: When the field routing distance is between 8.0 and 9.0 meters and hazardous area approval is required, the 8.5 meter length provides a precise intermediate option, avoiding excess cable coiling or insufficient length.
Turbomachinery Monitoring in Refineries and Petrochemical Plants: Steam turbines, compressors, and gas turbines are often located in Zone 1 or Zone 2 areas, with probe mounting points far from the Proximitor Sensor. This model meets both precise total length matching and hazardous area requirements.
Interchangeability with Other 8.5 m Hazardous Area Configurations: For armored, connector protector, or FluidLoc options in the same length, refer to other cable option hazardous area versions (e.g., 330130-085-02-05, 330130-085-01-05, 330130-085-12-05).
Selection Notes:
Total Length Matching: Probe length + extension cable length = Proximitor Sensor total system length (5 m or 9 m). Verify your probe length: if using a 0.5 m hazardous area approved probe, select this model (8.5 m); if using a 1.0 m hazardous area approved probe, select an 8.0 m hazardous area approved extension cable (e.g., 330130-080-00-05).
System Integrity: All components entering the hazardous area (probe, extension cable, connector protectors) must carry the same hazardous area approval rating. This model is standard cable without connector protectors – if environmental sealing is required, select a version with protectors.
Ambient Temperature: If the application environment exceeds +177°C, consider the ETR (Extended Temperature Range) hazardous area extension cable series (e.g., 330190-085-00-05).
Length Verification: 8.5 m is the total length including connectors. Confirm that the field routing distance is within 8.5 m to ensure proper fit.
Comparison with Common Lengths
Model | Length | Approvals | Typical Matching Probe | System |
330130-080-00-05 | 8.0 m | ATEX/IECEx | 1.0 m hazardous area probe | 9 m IS system |
330130-085-00-05 | 8.5 m | ATEX/IECEx | 0.5 m hazardous area probe | 9 m IS system |
330130-040-00-05 | 4.0 m | ATEX/IECEx | 1.0 m hazardous area probe | 5 m IS system |
Standard 9 m intrinsically safe systems are typically composed of a 1.0 m probe + 8.0 m cable, or a 0.5 m probe + 8.5 m cable. Choose the extension cable length that matches your probe.
Mechanical Dimensions & Installation
Cable Outer Diameter: Standard cable 3.68 mm (0.145 in) maximum
Connector: Features the ClickLoc design. Finger-tighten until an audible "click" is heard — no special tools are required.
Installation Drawing: Intrinsically safe system installation must strictly follow Bently Nevada drawing 141092, including barrier selection, grounding, and wiring practices.
Installation Tips: When routing through conduit in hazardous areas, use a pull rope or fish tape attached to the cable jacket (not the connector) to avoid stress. If environmental sealing of the connector is required, select a version with connector protectors (e.g., 330130-085-02-05) or field-install connector protectors that are suitable for hazardous area use.
Related Products & Compatible Configurations
For other lengths or configurations of hazardous area approved extension cables, refer to the following options:
Model | Length | Cable Option | Approvals | Application |
330130-080-00-05 | 8.0 m | Standard Cable | ATEX/IECEx | Pairs with 1.0 m hazardous area probe, 9 m IS system |
330130-085-00-05 | 8.5 m | Standard Cable | ATEX/IECEx | Current model, pairs with 0.5 m hazardous area probe, 9 m IS system |
330130-085-02-05 | 8.5 m | Standard Cable + Protector | ATEX/IECEx | 9 m IS system requiring connector environmental sealing |
330130-085-01-05 | 8.5 m | Armored Cable | ATEX/IECEx | 9 m IS system requiring mechanical protection |
330130-085-12-05 | 8.5 m | FluidLoc + Protector | ATEX/IECEx | 9 m IS system requiring oil leakage prevention |
Matching Probe: This cable is commonly used with 330101 series 0.5 m hazardous area approved probes (total length option 05, approval option 05).
Inquiry & Technical Support
330130-085-00-05 is one of the standard hazardous area length models in the Bently Nevada product line. For pricing, lead time, or technical drawings, please contact us:
Online Inquiry: Click the “Request a Quote” button and provide the model number for a prompt response.
Technical Support: If you need assistance verifying compatibility with your hazardous area system, please provide your probe model number (especially the total length option and approval option) and we will help confirm total length matching and certification integrity.
