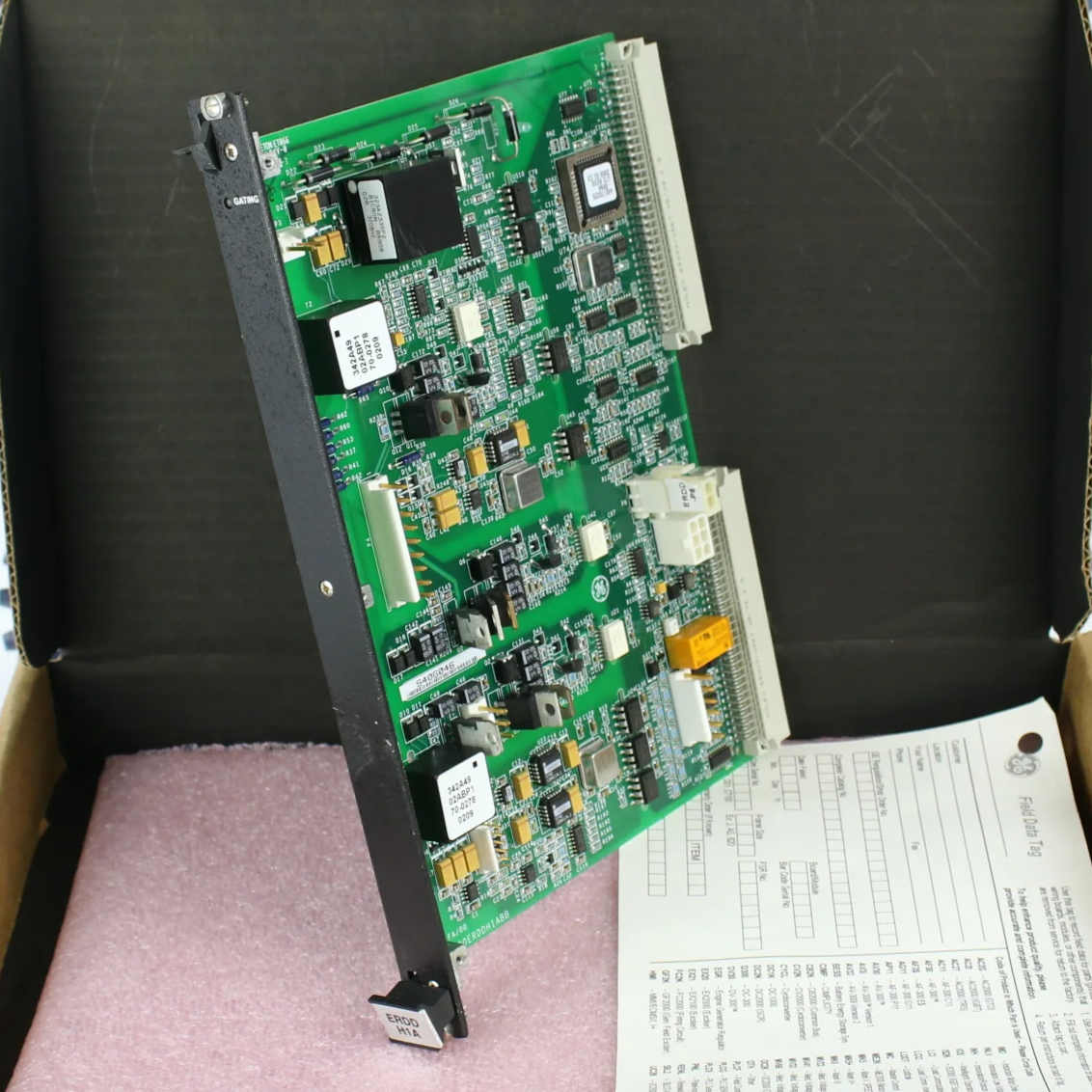

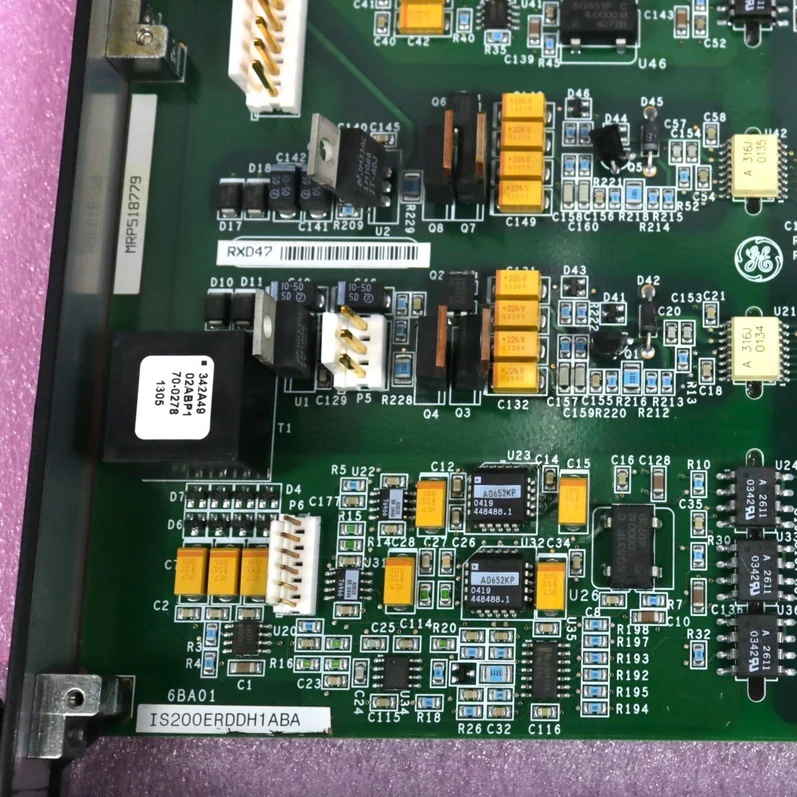

The IS200ERDDH1A is a core interface and protection board within the General Electric (GE) EX2100 excitation control system, designed specifically for IGBT-based regulator applications. As the Exciter Regulator Interface and Dynamic Discharge board (ERDD), the IS200ERDDH1A integrates multiple critical functions including gate drive control, dynamic discharge protection, multi-channel feedback monitoring, and essential relay control. It serves as the key bridge connecting the digital controller to the IGBT power conversion module. The board is installed in the Exciter Regulator Backplane (ERBP) and works in coordination with the ERIO (Exciter Regulator I/O board), the ERSC (Exciter Regulator Static Converter board), and the ERRR (Exciter Regulator Redundant Relay board) to achieve precise control of the generator excitation current and rapid protection during system abnormalities.
Within the EX2100 excitation regulator control system using IGBTs as power devices, the IS200ERDDH1A undertakes three irreplaceable core missions. First, it generates precise IGBT gate drive pulses based on digital commands from the controller, achieving closed-loop regulation of excitation voltage and current. Second, it monitors critical parameters in real time—such as the DC link voltage, output excitation current, IGBT temperature, and gate drive status—providing comprehensive system health information to the upper-level control software. Third, during abnormal operating conditions like generator load rejection or tripping that cause a rapid rise in the DC link voltage, it immediately activates the dynamic discharge circuit. This safely dissipates the excess energy through an external discharge resistor, preventing DC link overvoltage from damaging the power devices and control electronics.
System Positioning and Architecture Integration
Within the control hierarchy of the EX2100 IGBT regulator system, the IS200ERDDH1A is positioned between the ERIO board and the Power Conversion Module (PCM), acting as a mid-layer interface. Its working connections are as follows:
Uplink Interface: Connects to the ERIO board via the ERBP backplane bus, receiving control commands from the DSPX Digital Signal Processor (forwarded through the ACLA and ERIO), and sending various feedback signals back to the ERIO.
Downlink Interface: Connects directly to the ERSC Static Converter board via dedicated cables, outputting gate drive pulses to the IGBT module. Simultaneously, it receives from the ERSC the DC link voltage, output shunt current, excitation voltage, IGBT temperature sensor signals, and gate driver status (including power supply status and IGBT desaturation fault signals).
Relay Control: In simplex applications, the IS200ERDDH1A directly controls the de-excitation relay K41, ensuring the excitation output circuit can be reliably disconnected during a fault trip. In redundant applications, it controls the charging relay K3, which is used for the soft-charging pre-charge process of the DC link capacitors.
The IS200ERDDH1A supports both simplex and redundant system configurations. In a simplex application, a single IS200ERDDH1A is installed in the ERBP backplane, handling all interface and protection functions. In a redundant (Warm Backup) application, two IS200ERDDH1A boards are installed respectively in the ERBP of the M1 control section and the ERRB of the M2/C control section, serving as mutual backups. Furthermore, the ERDD works with the ERRR Redundant Relay board to achieve bumpless transfer of the excitation output. This flexible architectural design allows the same board model to adapt to systems with different reliability levels, reducing spare parts inventory and maintenance complexity for users.
Detailed Core Functions
1. IGBT Gate Drive Control
The IS200ERDDH1A converts and amplifies the low-voltage digital gate commands from the controller into gate pulse signals suitable for driving the IGBT module. In the EX2100 regulator system, power conversion utilizes IGBT Pulse Width Modulation (PWM) with a chopping frequency of approximately 1000 Hz. The IS200ERDDH1A must ensure the timing accuracy, amplitude stability, and isolation voltage withstand capability of the gate drive pulses. This guarantees that the IGBTs can switch on and off reliably under high-frequency operating conditions, preventing overheating damage caused by entering the linear amplification region due to insufficient drive.
2. Dynamic Discharge Control
When a generator unit suddenly sheds load or trips, the energy stored in the DC link capacitors can cause the voltage to rise rapidly, potentially exceeding the voltage ratings of the IGBTs and capacitors. The IS200ERDDH1A incorporates dynamic discharge control logic that monitors the DC link voltage in real time. Once the voltage exceeds a preset safe threshold, it immediately drives the external dynamic discharge IGBT (or discharge switch) into conduction. This rapidly dissipates the energy stored in the DC link capacitors through a high-power discharge resistor, clamping the DC bus voltage within a safe range. This protective action is entirely implemented in hardware, providing an extremely fast response without controller software intervention, thus ensuring reliable hardware protection even during communication loss or software anomalies.
3. Multi-Channel Feedback Monitoring
The IS200ERDDH1A is responsible for acquiring and conditioning the following critical analog and status feedback signals, which are then uploaded to the controller via the ERIO board:
DC Link Voltage Feedback: Monitors the DC link voltage, used for dynamic discharge protection and voltage regulation.
Output Excitation Current Feedback: Measures the actual excitation current through a shunt connected in series with the excitation output circuit, used by the Field Current Regulator (FCR) and the Over-Excitation Limiter (OEL).
Excitation Output Voltage Feedback: Measures the voltage across the excitation winding, used for the Field Voltage Regulator (FVR) and manual regulation mode.
IGBT Temperature Monitoring: Acquires signals from thermistors or thermal switches mounted on the IGBT heat sink, providing bridge over-temperature alarm and trip protection.
IGBT Gate Drive Status: Monitors the power supply status and desaturation fault signals for each IGBT gate driver, ensuring that gate driver faults can be promptly detected and protective actions taken.
All feedback signals are processed through onboard isolation and signal conditioning circuits, ensuring safe electrical isolation between the high-voltage power side and the control side.
4. Relay Control Interface
The IS200ERDDH1A provides output channels to directly drive external relays:
In a simplex system, it controls the de-excitation relay K41. When the generator needs rapid field suppression, the controller sends a command through the ERIO to the IS200ERDDH1A, which drives K41 to open the excitation output circuit while simultaneously inserting the field discharge resistor.
In a redundant system, it controls the charging relay K3. This relay is used during initial system power-up to pre-charge the DC link capacitors through a current-limiting resistor, preventing excessive inrush current upon direct closing. Once the DC bus voltage reaches a preset value, K3 closes, bypasses the current-limiting resistor, and the system enters normal operation.
Simplex and Redundant Configurations
The role of the IS200ERDDH1A differs slightly between simplex and redundant applications, but its core hardware and functions remain highly consistent, embodying GE's modular design philosophy.
In a simplex regulator, a single IS200ERDDH1A is installed in the ERBP backplane, undertaking all functions of gate drive, dynamic discharge, feedback monitoring, and K41 relay control. As a simplex system lacks control redundancy, the reliability of the IS200ERDDH1A is particularly critical in this configuration.
In a redundant regulator, the system is configured with two control sections (M1 and M2/C), each containing an IS200ERDDH1A. When M1 is the active control section, its ERDD drives the power IGBTs and executes protection functions; the ERDD in M2/C remains in a hot standby state, not outputting gate pulses. Both ERDDs independently monitor the DC link voltage and system status. If a fault occurs in the active section, the backup section can seamlessly take over control. During the transfer, the ERRR board coordinates with the ERDDs to rapidly redirect the excitation output circuit, ensuring the generator will not lose excitation due to the control switchover.
Application Scenarios and Maintenance
The IS200ERDDH1A is primarily used in the following power generation excitation scenarios:
Small and medium-sized static excitation regulators using IGBTs as power switching devices.
Brushless exciter regulators.
Rotating DC exciter regulators.
Industrial power generation applications requiring fast dynamic discharge protection and precise excitation current control.
Regarding maintenance, the IS200ERDDH1A supports online replacement (only for the backup channel in a redundant configuration, following strict GE online maintenance safety procedures). After replacement, board identification and configuration loading must be performed using the ToolboxST tool; no manual jumper or switch settings are required. Replacement of the ERDD in a simplex system must be performed with the entire system de-energized and after executing Lockout/Tagout procedures. All replacement operations must be carried out wearing an anti-static wrist strap, with spare boards stored in anti-static packaging to prevent damage to electrostatic-sensitive components.
