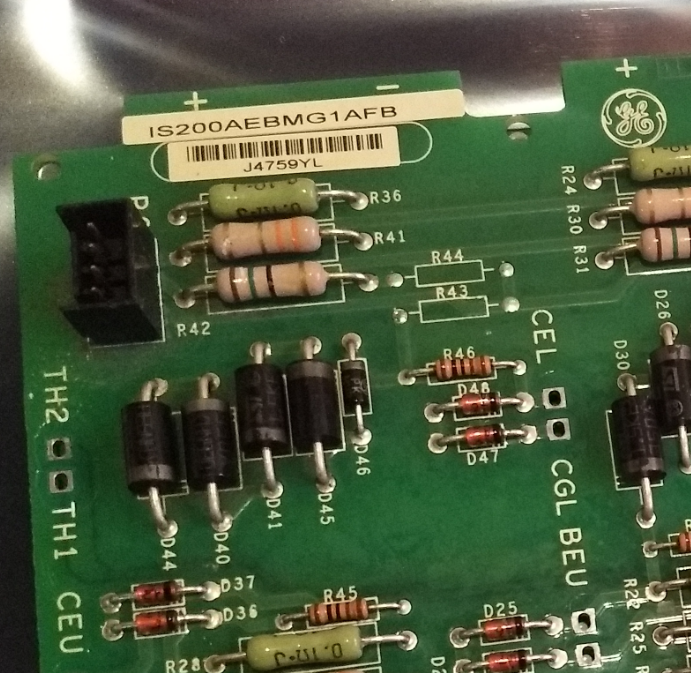

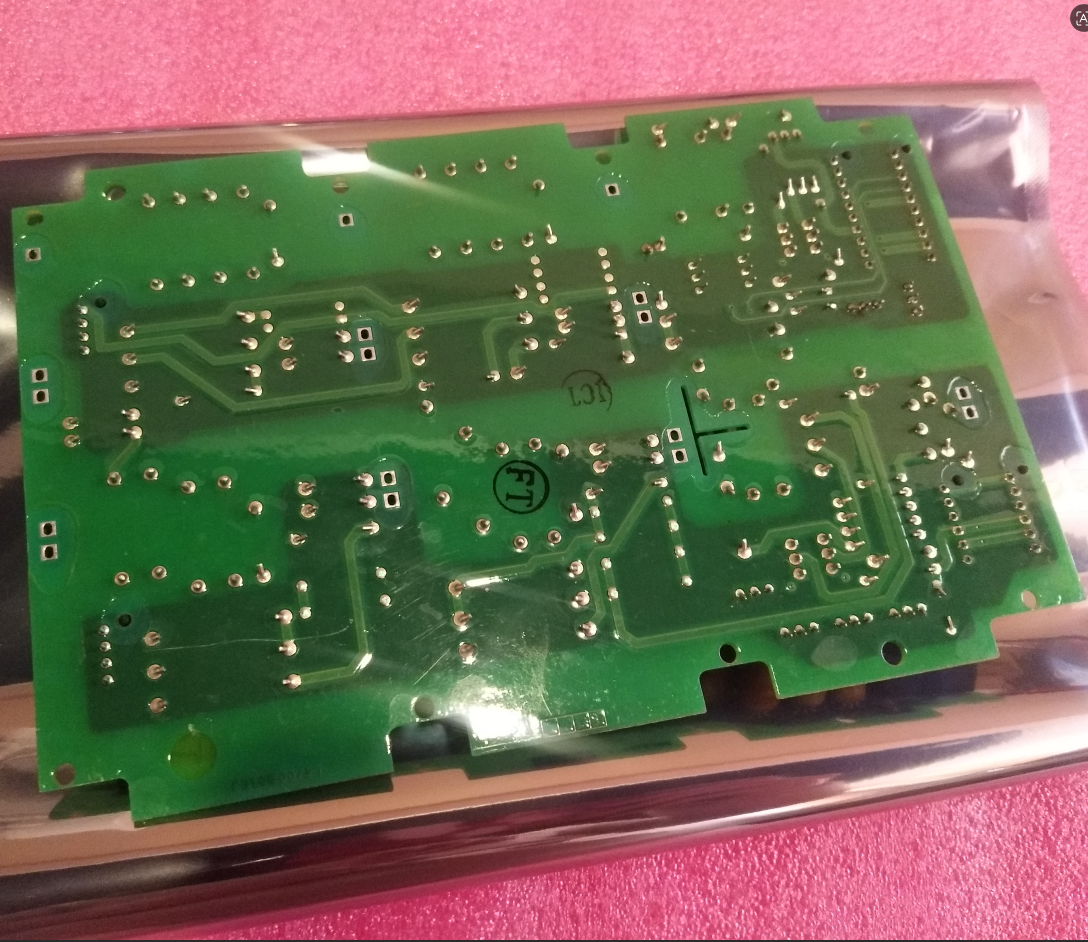

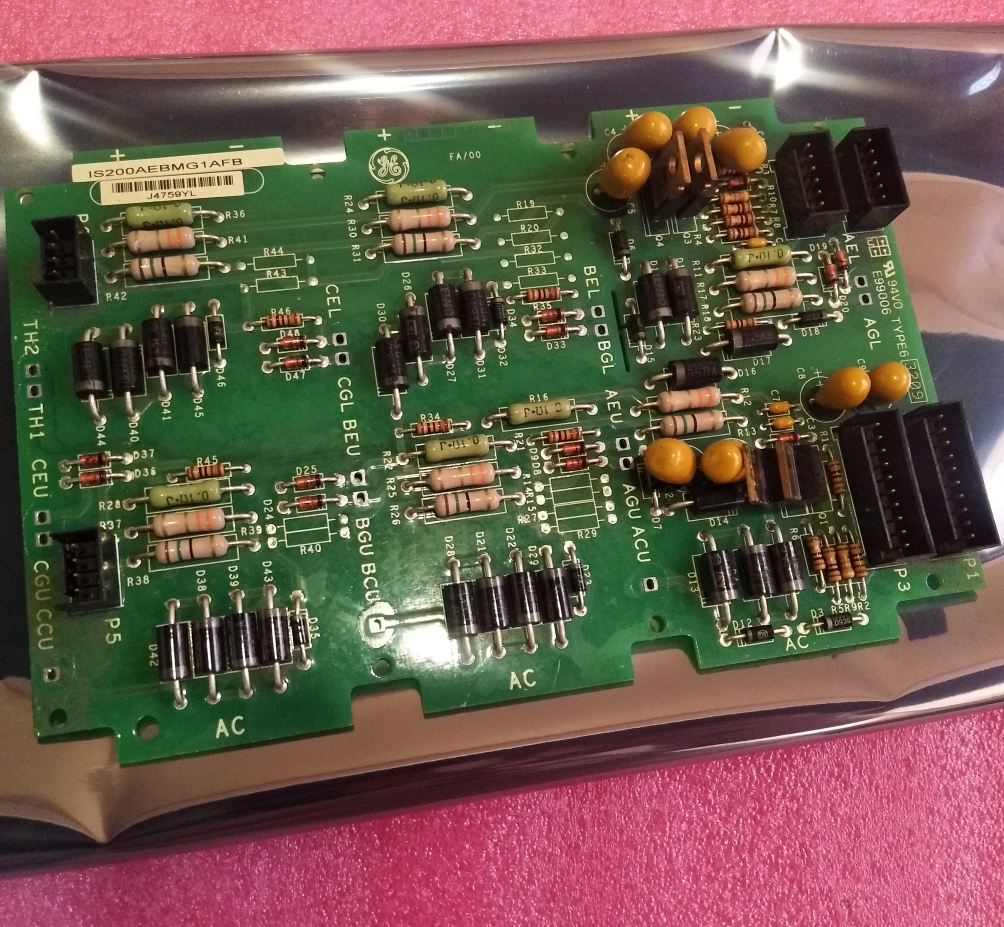

The IS200AEBMG1A is a highly specialized and highly reliable IGBT (Insulated Gate Bipolar Transistor) Advanced Energy Bridge Module (AEBM) developed and manufactured by GE Vernova's GE Energy business. As a core power electronic component within the GE 2.x MW Permanent Magnet Generator (PMG) wind power converter system, this module forms the physical foundation for power conversion on both the generator and grid sides.
In the wind power converter, the IS200AEBMG1A is not a standalone circuit board assembly but rather an integrated power phase module incorporating high-power IGBTs, a heatsink baseplate, busbar interfaces, and protection logic. It converts digital control signals into powerful electrical energy conversion capabilities, acting as the hub connecting the low-voltage logic of the control system to the high-voltage, high-current main power circuit. Its design strictly follows conservative power device derating principles and robust control algorithms, ensuring that the wind turbine system can remain online during severe grid disturbances (such as Low Voltage Ride-Through, LVRT) and quickly resume normal operation once the grid fault is cleared.
2. Core Functions and Operating Principles
In the 2.x MW PMG wind converter system, each Thread Converter typically contains three identical phase modules (Phase A/B/C). The IS200AEBMG1A, serving as one phase, performs the following critical tasks:
2.1 AC-DC-AC Power Conversion Core
Generator-Side Conversion: In active rectification mode, the upper and lower bridge arm IGBTs on the IS200AEBMG1A receive Pulse Width Modulation (PWM) gate drive signals from the Alternate Energy Bridge Interface (AEBI) board. They convert the variable-frequency, variable-voltage AC power generated by the Permanent Magnet Synchronous Generator (typically over a large frequency range corresponding to 500-1800 rpm) into stable DC voltage, which is fed into the DC Link.
Grid-Side Conversion: In inverter mode, the module, controlled by either the Alternate Energy Dynamic Brake (AEDB) board or AEBI board, inverts the DC voltage from the DC Link back into AC power synchronized with the utility grid at a fixed frequency (50/60 Hz) and voltage (690 V AC), enabling unity power factor or controlled reactive power delivery.
2.2 Dynamic Braking (DB)
In specific configurations (especially the Phase A module), the IS200AEBMG1A also integrates the IGBT for the dynamic braking chopper. When grid transient disturbances cause a rapid rise in DC link voltage, the DB IGBT conducts swiftly, dissipating the excess energy stored in the DC link capacitors as heat via a large external power resistor (Top Dynamic Brake Resistor). This protects the DC link capacitors and converter modules from over-voltage damage.
2.3 Critical Signal Feedback and Protection
The module not only executes power conversion but also interfaces with the upper-level interface boards (AEBI/AEDB) to provide real-time interfaces for the following critical protection and monitoring signals:
Desaturation Detection: Monitors the IGBT collector-emitter voltage (Vce) to determine if the IGBT has exited the saturation region due to overcurrent, serving as the most critical short-circuit protection method.
Overcurrent Monitoring: Monitors the voltage across the phase module shunt to determine if the phase current exceeds safe thresholds.
Current Rate of Change Monitoring: Monitors the rate of current change (di/dt) via the shunt voltage to identify and protect against excessive current spikes, preventing device impact damage.
Temperature and Voltage Feedback: Works with Voltage-Controlled Oscillator (VCO) circuits to provide isolated sampling signals for phase current, line-to-line voltage, and DC link voltage, enabling closed-loop calculations by the Multiple Application Converter Control (MACC) board.
3. Mechanical Structure and Interface Design
The IS200AEBMG1A features a compact and highly integrated mechanical structure designed for high-reliability operation in harsh nacelle environments:
3.1 Liquid-Cooled Heatsink Architecture
The core of the module utilizes an efficient liquid-cooled baseplate design. The IGBT modules are fastened to the heatsink surface with screws, with specialized thermal grease applied in between to minimize thermal contact resistance. The internal flow channels of the heatsink connect to the pump stand via coolant distribution hoses at the top of the cabinet. Key Details:
Below 27°C, the thermostatic control valve bypasses coolant back to the pump; when the liquid temperature rises above 36°C, the valve fully opens, directing coolant to the external air-to-liquid heat exchangers for heat rejection.
The upper and lower liquid quick-connect fittings on the single-phase module are secured with specialized blue clamps. When disconnecting, care must be taken to use wire cutters to snip the clamps to avoid damaging the hose.
3.2 Electrical Connections
The power connections of the module are divided into upper and lower sections:
Upper (Grid Side): Connects to the Line AC Bus-work, feeding the inverted power into the grid.
Lower (Generator Side): Connects to the Generator AC Bus-work, receiving the variable-frequency AC power from the generator.
Middle (DC Side): Connects to the DC storage capacitor bank via the DC bus at the back of the module.
Control and Protection: The IGBT gates and auxiliary signals connect to the upper-layer logic boards via stacked plug connectors (typically 4 plug sets). All plugs must be disconnected before removing the module.
3.3 Dynamic Brake Integration
In the typical configuration of Threads 1 through 4, the Phase A module carries the additional dynamic braking function. An extra AEBM module is fixed to the back of its heatsink frame to drive the brake chopper. This means the replacement procedure for the Phase A module is more complex, often requiring the removal or shifting of the middle Phase B module to access the rear plugs.
4. Control and Diagnostic Logic
The IS200AEBMG1A does not possess inherent intelligence; it is a "passive" yet highly sensitive power execution and feedback unit. All its intelligence relies on the thread converter's MACC main board and the AEBI/AEDB interface boards.
4.1 Fault Protection Mechanisms
GE's control software implements strict protection mechanisms:
Hardware-Level Protection: The AEBI/AEDB board directly blocks the PWM pulses at the microsecond level by collecting the Vce voltage, achieving "desaturation" short-circuit protection without software delay.
Software-Level Protection: The MACC board reads feedback signals via the FPGA, generating Alarm or Trip commands. For example, if the detected IGBT junction temperature exceeds limits but no short circuit occurs, an alarm is raised for power derating first; if the condition worsens, a trip shutdown is executed.
4.2 Online Performance Monitoring
Using GE's ToolboxST application, maintenance personnel can retrieve real-time data block diagrams corresponding to the phase module. Among them, the unique IGBT Baseplate Temperature Trend graph is key to determining module health. Under the same load and cooling conditions, if the temperature trend of one phase module significantly deviates from the others, it often indicates dried thermal grease, minor coolant pipe blockage, or IGBT internal resistance degradation. The documentation specifically emphasizes that one must confirm normal coolant flow before concluding that the module itself is faulty.
5. Maintenance and Replacement Strategy
GE adopts a "Line Replaceable Unit (LRU)" repair strategy. For the power phase module, board-level component repair is not performed; instead, the entire module is replaced.
5.1 Fault Determination
The documentation explicitly defines several major characteristics that mandate module replacement:
Catastrophic Failure: IGBT explosion or casing rupture. In this case, it is not only necessary to replace the module but also to strictly inspect secondary damage to surrounding capacitor banks, bus insulation layers (examine Formex insulation sheets for damage) caused by carbonized/metallic powder.
Repeated Desaturation Faults: Caused not by external grid disturbances but by the loss of short-circuit capability within the device.
Cell Test Failure: The online "Cell Test" cannot be passed, verifying an abnormality in the switching or gate drive circuit.
Unexplained Temperature Anomalies: Despite normal coolant flow, baseplate or junction temperature readings are clearly abnormal.
5.2 Key Replacement Steps
Section 10.1.4 of the documentation imposes extremely rigorous process requirements for replacing the IS200AEBMG1A module:
Drain Operation: It is not necessary to fully drain the coolant. Instead, the "Drain Back to Reservoir" procedure is executed. Opening the manual vent valve at the top of the cabinet allows the coolant in the return piping to flow back to the reservoir by gravity until the liquid level drops below the height of the phase module, thereby achieving "drip-free" disconnection.
Tightening Torque: When installing a new module, the DC bus studs must be tightened alternately in three passes (6.3 Nm -> 12.7 Nm -> final 19 Nm / 168 in-lb). Immediately afterward, torque stripe marks must be drawn across the bolt/washer using a permanent marker. The AC busbars also follow the 19 Nm torque value.
Clamp Installation: The blue hose clamp must be crimped firmly using specialized pliers until the metal ring ends almost touch. It must not be overtightened (to prevent cutting the blue braided jacket of the hose) nor too loose (to prevent high-pressure leaks).
Leak Test: After replacement, the coolant pump must be turned on using 400V auxiliary power only, without energizing high voltage (Phase Module Coolant Leak Test). The joints must be inspected for leaks; all power can be restored only after zero leakage is verified.
