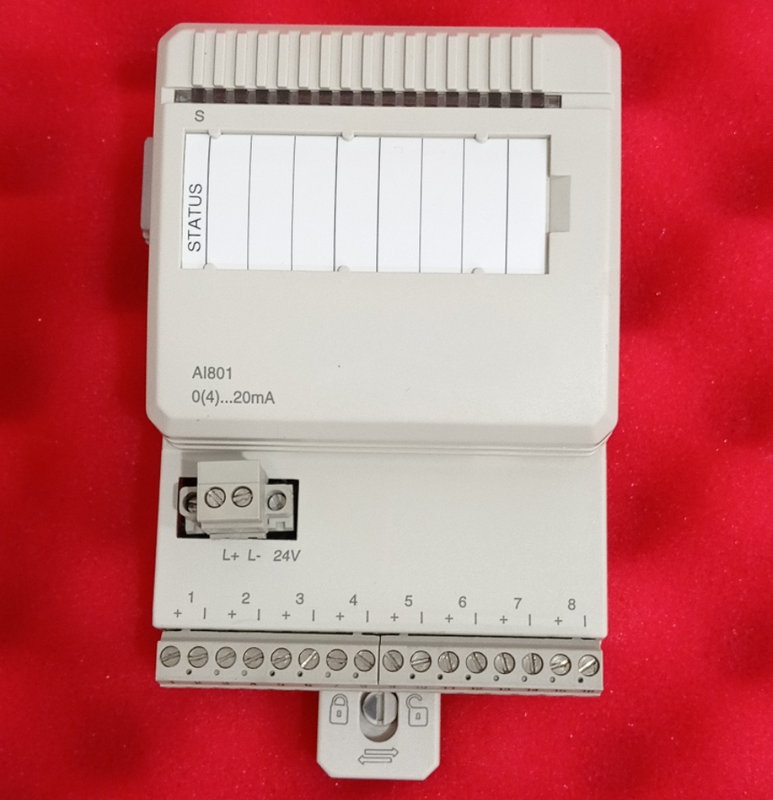

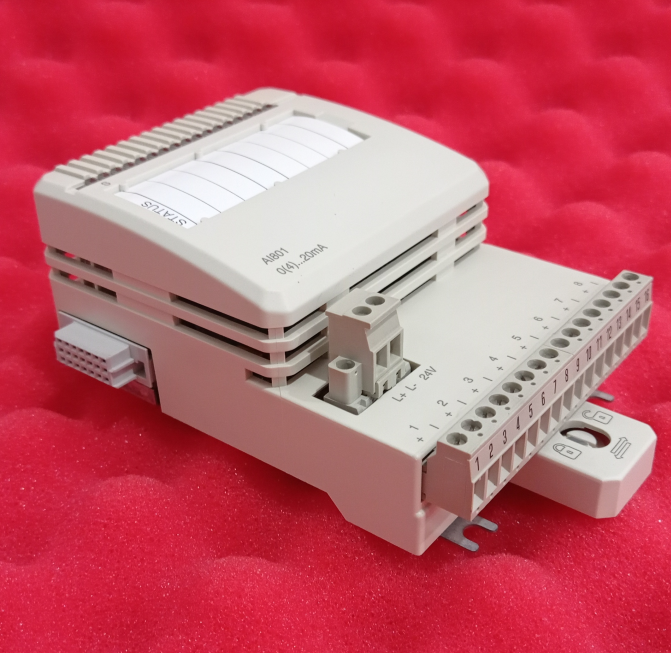

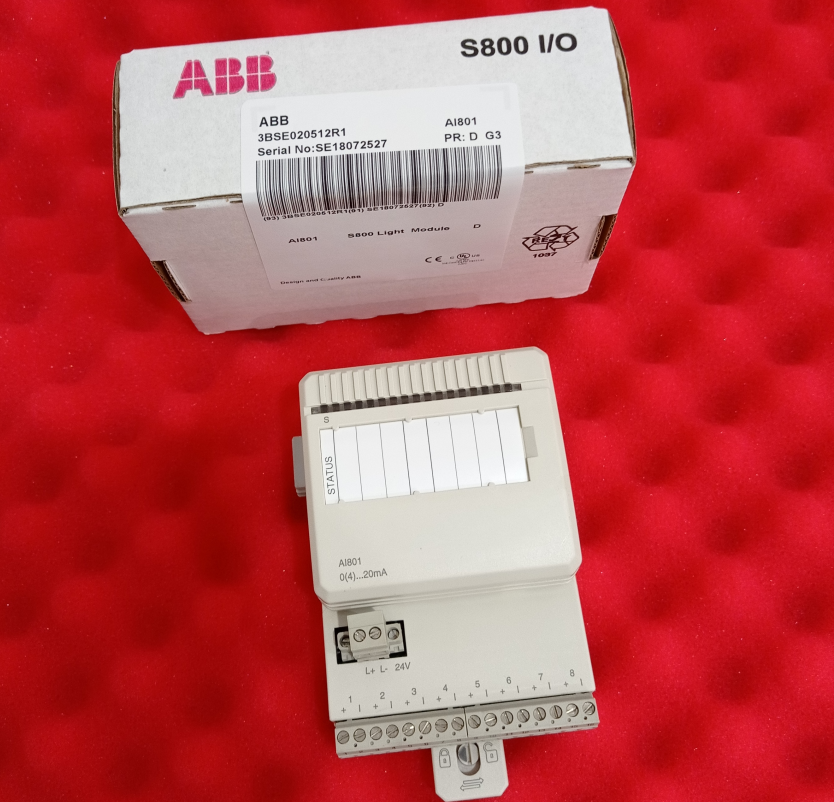

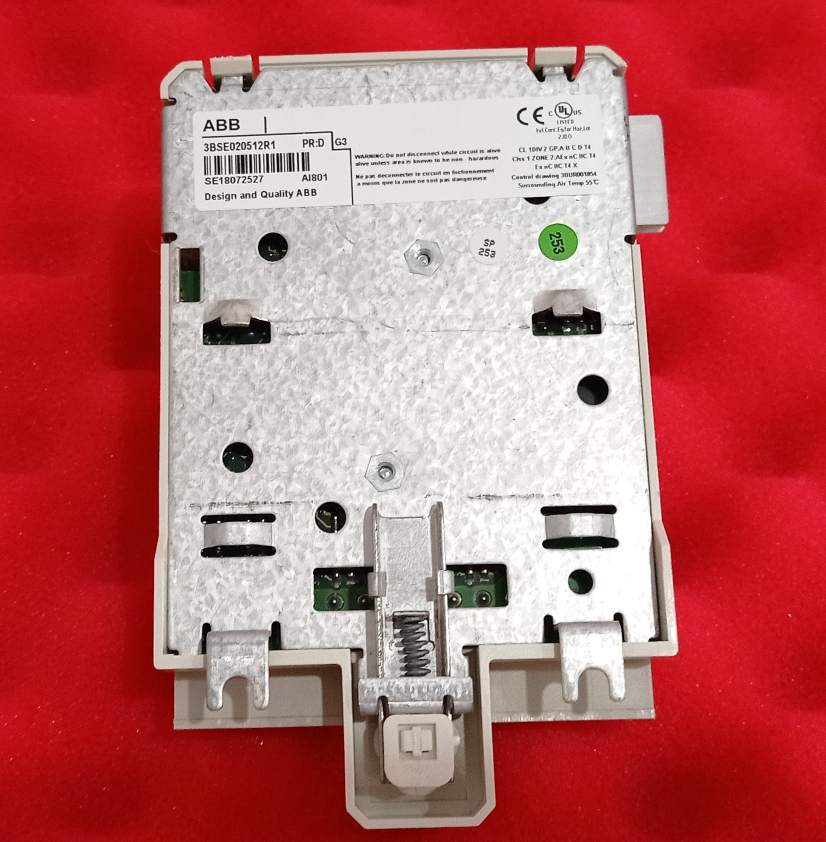

ABB AI801 3BSE020512R1 Analog Input Module

The ABB AI801 Analog Input Module is a high-performance, highly reliable industrial-grade signal acquisition module designed for industrial automation control systems. This module belongs to the ABB 800xA® and Symphony Plus control system hardware family and is suitable for various process control, monitoring, and data acquisition applications. The AI801 module provides 8 channels of current input, supports standard industrial signal ranges, features good anti-interference capability, electrical isolation, and comprehensive protection functions, making it suitable for demanding industrial environments.

The module adopts a compact S800L mechanical structure, supports rail mounting, and is equipped with pluggable terminal blocks for easy installation and maintenance. Its design complies with multiple international safety and electromagnetic compatibility standards and is widely used in industries such as power, chemical, oil & gas, water treatment, and manufacturing that require high-precision analog signal acquisition.

II. Key Features and Benefits

1. Multi-Channel High-Density Input: Provides 8 independent analog input channels, enabling efficient use of rack space and reducing overall system cost.

2. Wide Signal Compatibility: Supports both 0…20 mA and 4…20 mA DC current signal standards, covering the output of the vast majority of industrial transmitters.

3. High Accuracy and Resolution: Features 12-bit resolution with a maximum error not exceeding 0.1%, ensuring signal acquisition accuracy.

4. Robust Input Protection:

• The input loop incorporates a PTC (Positive Temperature Coefficient) resistor for overcurrent and short-circuit protection, capable of withstanding up to 30 VDC continuously without damage.

• Inputs are short-circuit secured to ZP (Zero Point) or +24 V.

• Supports HART communication signal superposition, compatible with smart instruments.

5. Electrical Isolation: The 8 channels are isolated from the system ground as a single group, effectively suppressing common-mode interference and improving system noise immunity and safety.

6. Convenient Connection and Integration:

• Process signal and power connections are made via detachable connectors, facilitating maintenance.

• Integrated transmitter power supply distribution simplifies wiring for 2-wire transmitters.

• Communicates with the control system master via ModuleBus.

7. Robust Environmental Suitability: Features a wide operating temperature range, good humidity tolerance, and corrosion protection rating, meeting the requirements of various industrial environments.

8. Comprehensive Diagnostics and Status Indication: The front panel is equipped with status LEDs indicating module operation, faults, channel errors, etc., enabling quick troubleshooting.




III. Functional Description and Operating Principle

The core function of the AI801 module is to convert analog current signals from field transmitters (e.g., pressure, temperature, flow, level transmitters) into digital values processable by the control system. Its internal block diagram shows the module contains a multiplexer (MUX), analog-to-digital converter (ADC), isolation circuitry, power conversion circuitry, and ModuleBus interface.

1. Signal Input and Conditioning: The current signal for each channel flows through a 250Ω sampling resistor (with integrated PTC protection) at the input, generating a corresponding voltage signal. The built-in PTC resistor sharply increases its impedance during overcurrent or short circuit, limiting current and protecting downstream circuitry.

2. Filtering and Sampling: The signal passes through a second-order low-pass filter with a 3.5 Hz cut-off frequency, effectively suppressing high-frequency noise. A multiplexer then sequentially selects each channel's signal, sending it to the 12-bit ADC for conversion.

3. Electrical Isolation: The digitized signal from the ADC is transmitted across an isolation barrier, achieving electrical isolation between the input channel group and the ModuleBus/other system parts. This not only prevents ground loop interference but also enhances system safety in fault conditions.

4. Transmitter Power Supply: The module supplies power to connected transmitters via the L1+ and L2+ terminals (sourced from the external 24V process power). This design simplifies wiring for 2-wire transmitters, eliminating the need for separate power distribution devices.

5. Communication and Diagnostics: The converted data is uploaded to the controller (e.g., AC 800M) via ModuleBus. The module performs continuous self-diagnostics, monitoring power, internal circuitry, and channel status, reporting via front panel LEDs and status words to the control system.

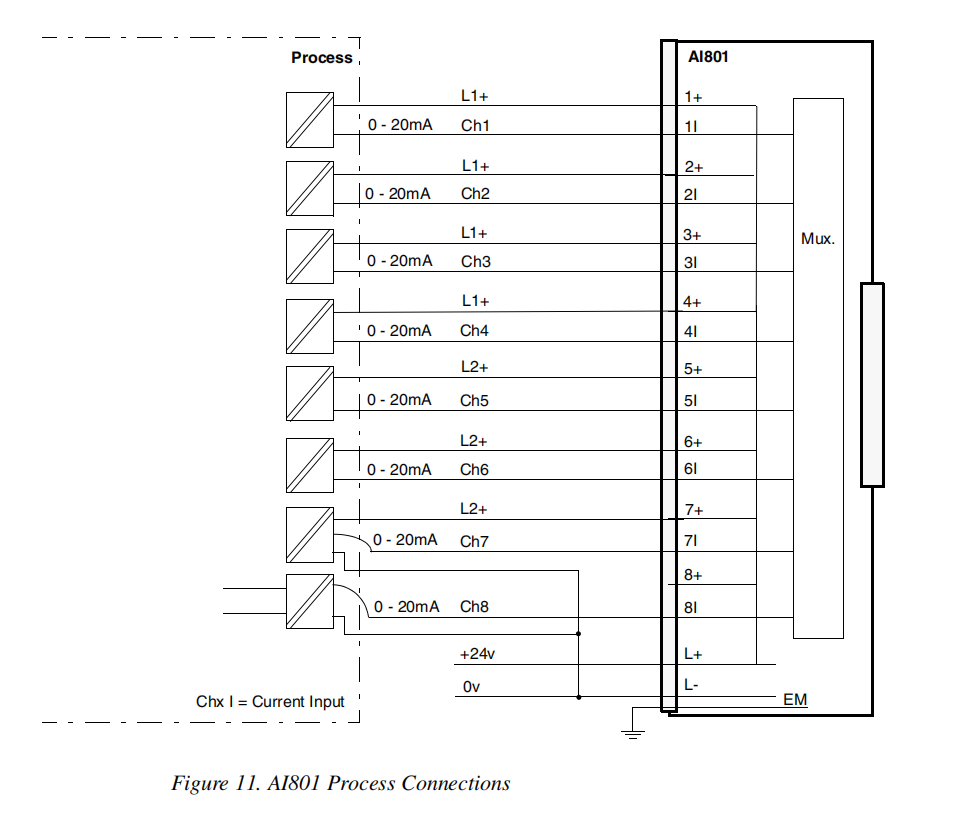

Wiring Diagram Explanation:
The module's 16 process terminals appear in pairs (e.g., 1+ and 1I for Channel 1). For a 2-wire transmitter, the wiring is:

• Transmitter “+” terminal → Module's Lx+ terminal (supplies power)

• Transmitter “-” terminal → Module's xI terminal (signal input)
  The module internally connects Lx+ and x+ electrically, thus completing the power loop.




IV. Typical Application Scenarios

Thanks to its high reliability, high density, and robust protection features, the AI801 module is suitable for the following industrial sectors:

1. Process Industries: In petroleum & chemical, pharmaceutical, food & beverage, etc., for connecting pressure, temperature, flow, level, pH transmitters, enabling continuous process monitoring and control.

2. Power Industry: In power plants (thermal, hydro, nuclear), for acquiring analog signals like temperature, pressure, and vibration from various auxiliary systems, participating in equipment protection and performance optimization.

3. Water & Wastewater Treatment: Monitoring pipeline pressure, pump inlet/outlet pressure, tank level, flowmeter signals, etc., for pump/valve control and process automation.

4. Manufacturing: Monitoring process parameters like motor current, hydraulic pressure, oven temperature on production lines to ensure product quality and equipment safety.

5. Building Automation: Can be used to connect temperature, humidity, and pressure sensors in HVAC systems, though its industrial-grade design is more common in large central monitoring systems.




V. Installation, Configuration, and Maintenance Guidelines

1. Installation:

• Insert the module into a standard base in an S800 I/O station.

• Ensure the working environment meets temperature, humidity, and pollution degree requirements.

• Use cables meeting the specifications and tighten terminal screws according to the recommended torque to avoid poor contact or terminal damage.

2. Configuration:

• Add the corresponding hardware device in the ABB 800xA or Symphony Plus engineering system.

• Configure signal type (0-20mA or 4-20mA), engineering units, range limits, and alarm values for each channel.

• Enable or configure input filter parameters as needed.

3. Maintenance:

• Periodically check wiring for tightness and signs of corrosion.

• Monitor module and channel status via the control system software, noting any "Module Warning" or "Channel Error" messages.

• The module itself is maintenance-free; in case of hardware failure, the entire module should be replaced.
