GE IS215UCVEM01A Controller

The IS215UCVEM01A is a high-performance VME bus single-board computer (SBC) designed by General Electric (GE) for its Mark VI turbine control system. As a multi-function model within the UCVE series controllers, this unit features a 6U height, single-slot form factor and mounts within a VME rack called the control module, serving as the core processing unit running turbine application code. Its operating system is QNX, a real-time, multitasking OS engineered for high-speed, high-reliability industrial applications.

The IS215UCVEM01A is an enhanced model within the UCVE series, building upon all the features of the standard UCVEH2 controller and adding a second 10BaseT/100BaseTX Ethernet interface for use on a separate IP logical subnet, enabling more flexible network configurations. It utilizes a 300 MHz Intel Celeron processor, equipped with 32 MB of DRAM and either 16 or 128 MB of flash memory, providing ample computing resources for real-time control applications. The primary Ethernet interface connects to the Universal Data Highway (UDH), enabling seamless integration with the Toolbox, HMI, CIMPLICITY monitoring system, Series 90-70 PLCs, and third-party DCSs. The auxiliary Ethernet interface can be configured for Modbus or a private EGD network, further enhancing communication flexibility and security.

This product is suitable for controlling critical rotating equipment such as gas turbines, steam turbines, compressors, and generators, and is particularly suited for applications requiring multi-network isolation or redundant communication. It is widely used in industrial sectors including power generation, oil & gas, chemical processing, and metallurgy.

II. Key Functions

1. Control Logic Execution

The IS215UCVEM01A controller is loaded with software specific to its application (e.g., steam turbine, gas turbine, aeroderivative turbine, or balance of plant). It can execute control logic at rates up to 100,000 rungs or blocks per second. It supports both analog and discrete processing, with data types encompassing Boolean, 16-bit/32-bit signed integers, and 32-bit/64-bit floating points, meeting complex industrial control requirements.

2. Dual Ethernet Communication

• Primary Ethernet Interface: One 10BaseT/100BaseTX (RJ-45) interface for connection to the UDH, supporting:

• TCP/IP protocol: For configuration and peer-to-peer communication with the Toolbox.

• EGD (Ethernet Global Data) protocol: For high-speed data exchange with CIMPLICITY HMI and Series 90-70 PLCs.

• Modbus protocol: For communication with third-party DCSs.

• Auxiliary Ethernet Interface: A second 10BaseT/100BaseTX (RJ-45) interface configurable for a separate IP logical subnet, supporting:

• EGD protocol

• Modbus protocol
  This interface is configured through the Toolbox. Each time the rack is powered up, the controller validates its Toolbox configuration against the existing hardware. A separate subnet address allows the controller to uniquely identify this Ethernet port, making it suitable for applications requiring network isolation or redundant communication.

3. VME Bus Communication

Exchanges data with I/O boards via the VCMI communication board. In a simplex system, data comprises process inputs and outputs from I/O boards. In a Triple Modular Redundant (TMR) system, data includes voted inputs, computed outputs for output hardware voting, and internal state values exchanged between controllers.

4. Serial Communication

Two RS-232C interfaces (COM1 and COM2):

• COM1: Reserved for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit.

• COM2: Used for serial Modbus slave communication, supporting 9600 or 19200 baud.

5. System Synchronization and Real-Time Performance

The controller can synchronize with the clock on the VCMI communication board via an external clock interrupt, achieving accuracy within ±100 microseconds, ensuring strict synchronization requirements in multi-controller systems.

6. Online Programming and Diagnostics

Supports online modification of application software without requiring a system restart. When a failure is detected, the controller generates an internal fault code readable via the Toolbox. Each time the rack is powered up, the controller validates its Toolbox configuration against the existing hardware.

7. Redundancy and Fault Tolerance Support

In TMR systems, the IS215UCVEM01A can operate in conjunction with two other controllers to perform input voting, output voting, and state exchange, significantly enhancing system reliability.

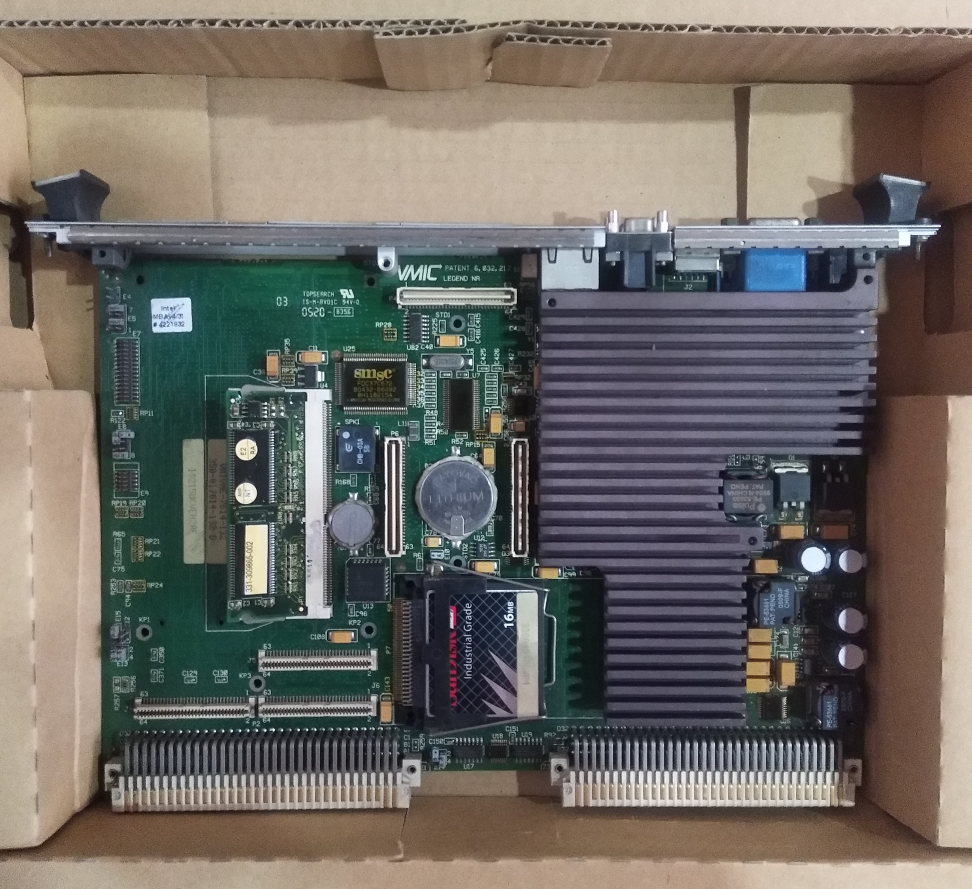

III. Hardware Architecture

1. Processor and Memory

• Processor: Intel Celeron 300 MHz

• Main Memory: 32 MB DRAM

• Storage: 16 MB or 128 MB Compact Flash Module

• Cache: 128 KB L2 cache

• NVRAM: 8 KB battery-backed SRAM allocated for controller functions

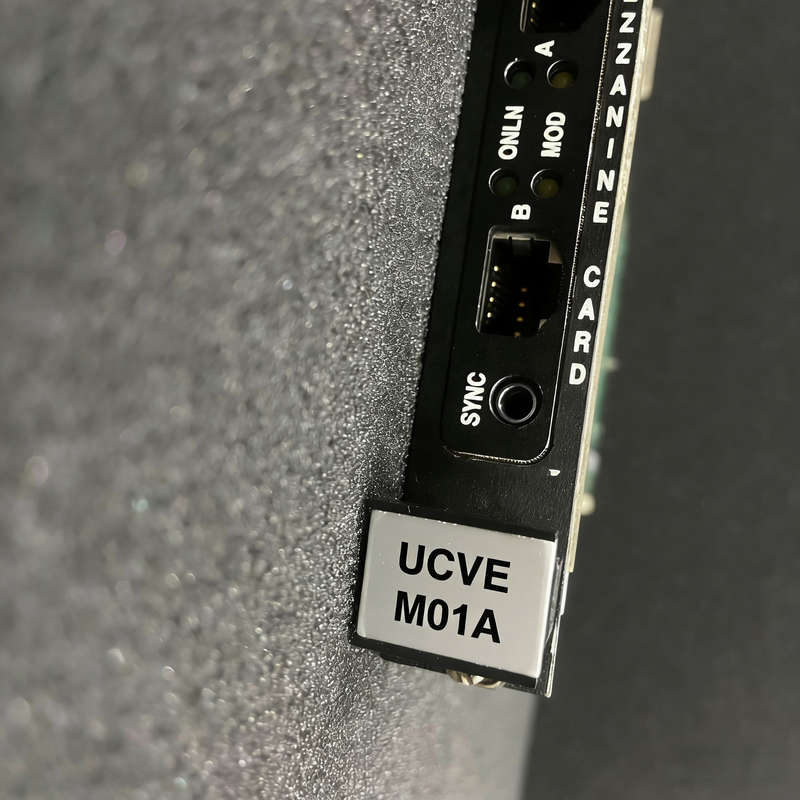

2. Front Panel Indicators

The UCVE series controllers feature front panel status LEDs to indicate operational status. Unlike the earlier UCVD series, the UCVE series does not use dual-column LEDs to display error codes; instead, internal fault codes are read via the Toolbox software.

3. Interfaces and Connectors

• Primary Ethernet Interface: 1 RJ-45 connector, 10BaseT/100BaseTX

• Auxiliary Ethernet Interface: 1 RJ-45 connector, 10BaseT/100BaseTX

• Serial Interfaces: 2 micro-miniature 9-pin D-type connectors (COM1, COM2)

• VME Bus Connectors: P1/J1 and P2/J2 backplane connectors for power and bus communication

• PMC Expansion Site: One site compliant with IEEE 1386.1 5V PCI standard for installing additional function modules

4. Battery and Configuration Switch

The controller contains a Type 1 Lithium battery rated at 3.3 V, 200 mA, used to maintain the real-time clock and backup SRAM data during power loss. Important Note: The battery is factory-shipped in the disabled position. To enable the battery, set switch SW10 to the closed position as shown in the diagram. When replacing the battery, use an equivalent type.

IV. Detailed Interface Description

1. Primary Ethernet Interface

The primary Ethernet interface connects to the UDH for data exchange with the Toolbox, HMI, and other control equipment. This interface supports auto-negotiation for 10BaseT/100BaseTX speeds. Each time the rack is powered up, the controller validates the Toolbox configuration against the hardware.

2. Auxiliary Ethernet Interface

The auxiliary Ethernet interface is the core feature that distinguishes the IS215UCVEM01A from the standard UCVEH2. It can be configured for a separate IP logical subnet, enabling network isolation or dedicated communication. Typical applications include:

• Connecting to a separate network of Modbus slave devices.

• Building a private EGD network for high-speed data exchange between controllers.

• Serving as a redundant Ethernet channel to improve communication reliability.

This interface is configured via the Toolbox software and must be assigned a separate subnet address (e.g., 192.168.2.0). The controller validates the configuration upon startup.

3. Serial Interfaces (COM1 and COM2)

Both serial interfaces are micro-miniature 9-pin D connectors, with pin assignments conforming to RS-232C standards.

• COM1: Fixed for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit. Users can obtain controller status and error information via a serial terminal, facilitating on-site debugging and troubleshooting.

• COM2: Configurable for Modbus slave communication, supporting 9600 or 19200 baud. Used for connecting to distributed control systems or other serial devices for data exchange.

4. VME Bus Interface

The controller connects to the VME bus via backplane connectors P1 and P2, facilitating data exchange with I/O boards and the VCMI communication board. P1 provides power and basic bus signals, while P2 is used for extended address and data lines. The controller acts as a VME bus master and can initiate data transfers.

5. PMC Expansion Site

The IS215UCVEM01A is equipped with one PMC expansion site compliant with the IEEE 1386.1 5V PCI standard. This site can be used to install additional function modules, such as:

• Extra communication interfaces (e.g., Profibus, another Ethernet port).

• Dedicated I/O processing modules.

• Encryption or security modules.

This enhances the controller's flexibility and scalability, accommodating future functional upgrades.

6. Battery and Configuration Switch

The controller contains a Type 1 Lithium battery rated at 3.3 V, 200 mA, used to maintain the real-time clock and backup SRAM data during power loss. Important Note: The battery is factory-shipped in the disabled position. To enable the battery, set switch SW10 to the closed position as shown in the diagram. When replacing the battery, use an equivalent type.

V. Operation and Diagnostics

1. Operational Status

After loading the specific application software, the IS215UCVEM01A controller begins executing control logic. During normal operation, the controller maintains communication with external systems via Ethernet and serial interfaces. If rotating status LEDs are supported (on certain models), the front panel LEDs display a rotating pattern; otherwise, the status must be monitored via the Toolbox software.

2. Fault Diagnostics

If a failure occurs in the controller while it is running application code, the following will happen:

• Rotating status LEDs stop (if supported).

• An internal fault code is generated, readable via the Toolbox.

• Diagnostic alarms are displayed in the Toolbox, showing error numbers and descriptions.

For UCVE series controllers, error codes are no longer displayed via flashing front panel LEDs but are read through the Toolbox software. Additional information can be obtained via the COM1 serial port.

3. Common Fault Codes

Refer to the fault codes listed in the documentation (applicable to all controller types), including but not limited to:

Users can view detailed error information in the controller trace buffer via the Toolbox (e.g., View General Dump the trace buffer).

VI. Installation and Maintenance

1. Pre-Installation Preparation

• Ensure the VME rack is correctly installed and grounded.

• Verify that the required slot in the rack is free and meets the single-slot width requirement.

• Prepare an anti-static wrist strap to prevent electrostatic damage to the board.

• If the battery needs to be enabled, pre-set the SW10 switch accordingly.

2. Installation Steps

1. Power Off the Rack: Ensure the rack power is turned off before inserting or removing any board.

2. Configure Battery Switch: If enabling the battery, set SW10 to the closed position.

3. Insert the Controller: Align the IS215UCVEM01A with the rack guides and push it in smoothly until the backplane connectors are fully engaged.

4. Secure the Front Panel: Tighten the captive screws at the top and bottom of the front panel to secure the board.

5. Connect External Cables: Connect the primary Ethernet cable, auxiliary Ethernet cable, serial cables, etc., as required.

6. Power On and Verify: After powering on, use the Toolbox software to verify that the controller is correctly recognized and communicating, and check that the auxiliary Ethernet interface configuration is correct.

3. Maintenance Recommendations

• Regular System Status Checks: Monitor controller status, CPU load, temperature, and other parameters via the Toolbox.

• Ensure Adequate Ventilation: Verify that rack fans are operational and filters are clean to prevent controller overheating.

• Anti-Static Precautions: Always wear a grounded wrist strap when handling the board. Store the board in an anti-static bag when not in use.

• Battery Maintenance: Be aware of the battery's service life. Check periodically and replace when necessary (using only an equivalent type).

• Firmware Upgrades: If a firmware upgrade is necessary, strictly follow GE's official procedures to avoid interruption during the process.

• Spare Parts Management: It is recommended to keep at least one identical controller on-site as a spare to minimize downtime in case of failure.

4. Upgrade Considerations

When replacing an older UCVB or UCVD controller with the IS215UCVEM01A, note the following:

• Backplane Upgrade Required: The UCVE series is not directly compatible with backplanes for earlier controllers.

• Ethernet Cabling Upgrade: Upgrade from 10Base2 (coaxial) to 10Base-T/100BaseTX (twisted pair).

• Verify Configuration Compatibility: Ensure the Toolbox configuration matches the new hardware, particularly the configuration for the auxiliary Ethernet interface.

VII. Applications

The IS215UCVEM01A controller is widely used in the following scenarios:

• Gas Turbine Control: As the core controller in Mark VI systems, executing fuel control, speed control, temperature monitoring, combustion monitoring, etc. The auxiliary Ethernet port can be used to connect a dedicated combustion monitoring network.

• Steam Turbine Control: Working with DEH (Digital Electro-Hydraulic Control) systems for turbine speed governing, protection, and load control. The auxiliary Ethernet port can be used for redundant communication.

• Compressor Control: Anti-surge control, performance optimization, and sequencing for pipeline and process compressors. The auxiliary Ethernet port can connect to a separate sensor network.

• Generator Excitation Control: Interfacing with excitation systems for voltage regulation, reactive power control, and grid synchronization. The auxiliary Ethernet port can be used for direct communication with the grid dispatch system.

• Balance of Plant (BOP) Control: Logic control and sequencing for auxiliary equipment such as boilers, pumps, fans, and cooling water systems. The auxiliary Ethernet port can isolate communication for different subsystems.

• Combined Cycle Power Plants: Coordinating gas turbine and steam turbine operation in multi-shaft or single-shaft configurations. The auxiliary Ethernet port can be used for high-speed data exchange across units.

• Applications Requiring Network Isolation: Separating the control network from the enterprise network, or separating the real-time EGD network from the Modbus monitoring network to improve cybersecurity and reliability.

• Upgrade and Retrofit Projects: Replacing older UCVB and UCVD controllers while gaining an additional Ethernet port to enhance system performance and network flexibility.
